Heated Oxygen Sensor: Components

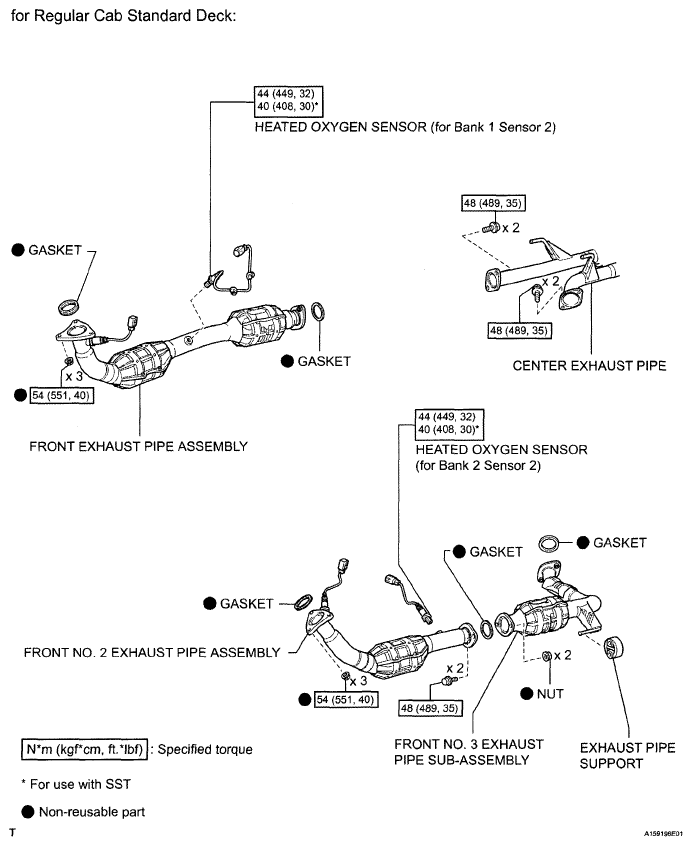

Fig 1: Heated Oxygen Sensor Replacement Components With Torque Specifications (1 Of 2)
G05149622Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

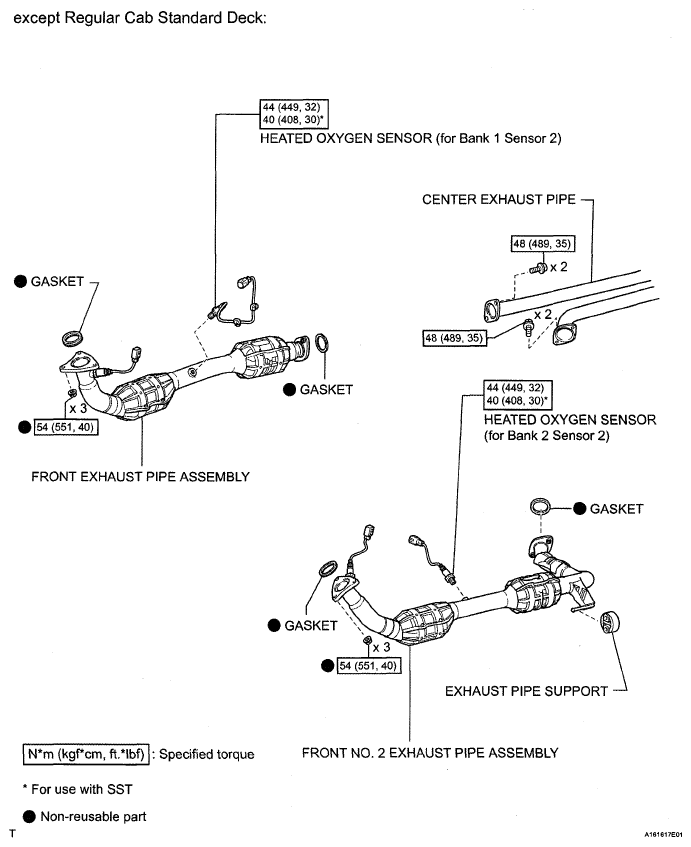

Fig 2: Heated Oxygen Sensor Replacement Components With Torque Specifications (2 Of 2)
G05149623Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
