Engine Control System (1GR-FE) - System Testing, On-Vehicle Inspection, Removal, Inspection & Installation: ECM: Components

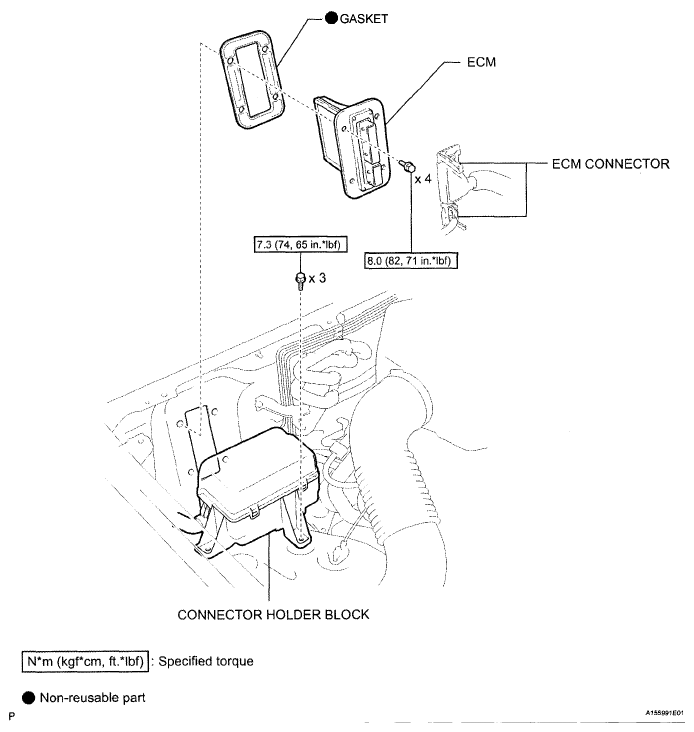

Fig 1: ECM Replacement Components With Torque Specifications
G05149560Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
