Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

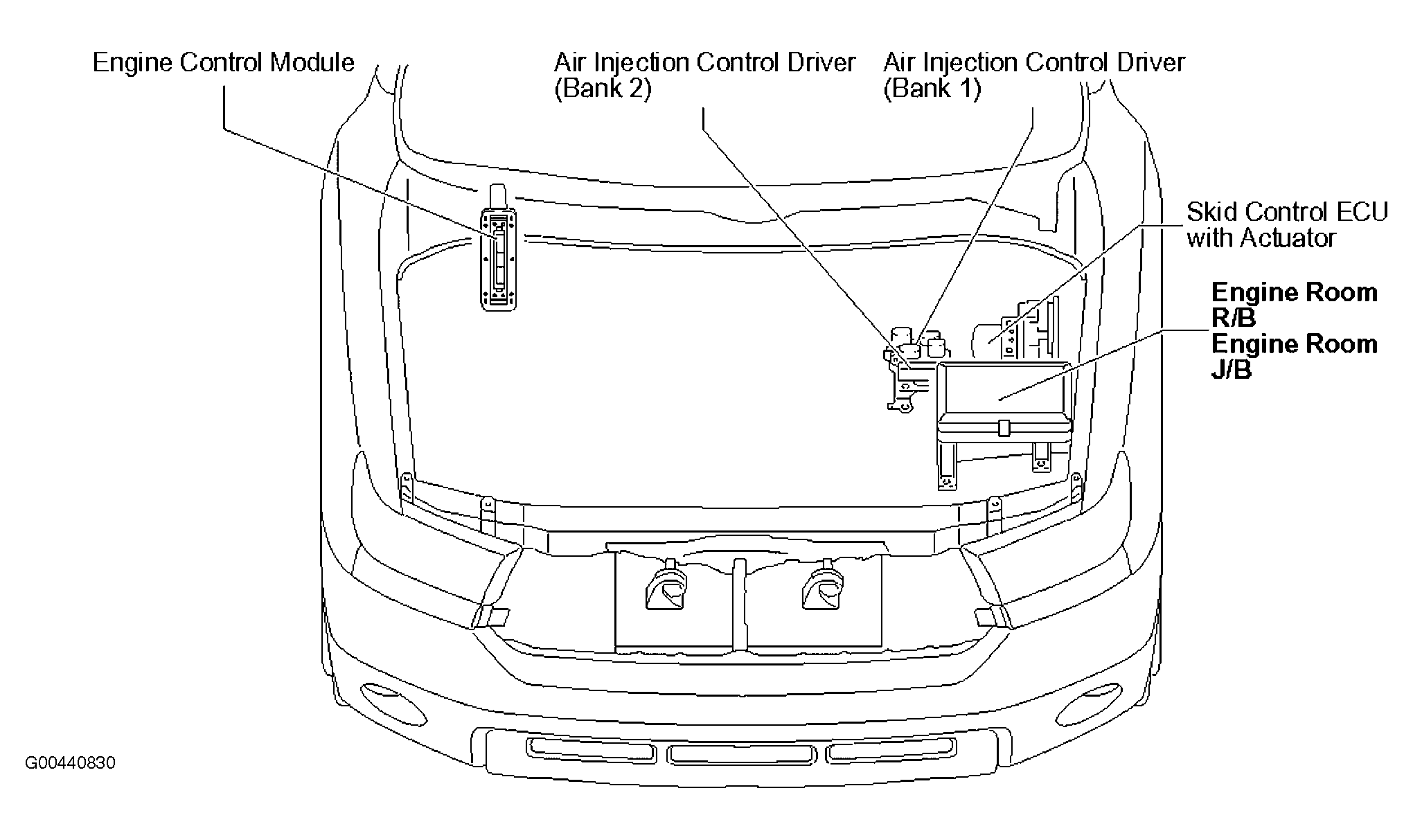

Fig 1: Engine Compartment

G00440830

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

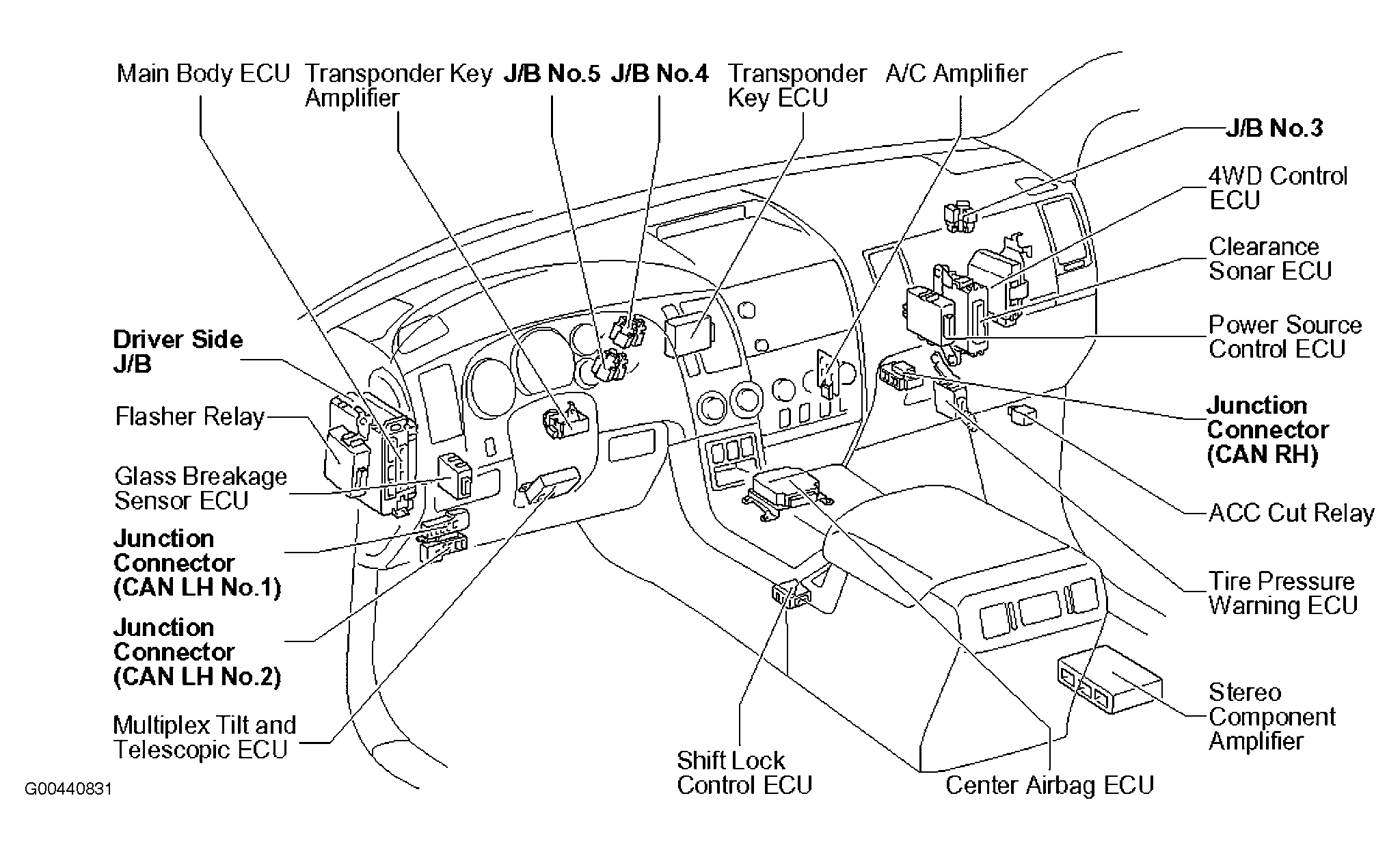

Fig 2: Dash (Floor Shift)

G00440831

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

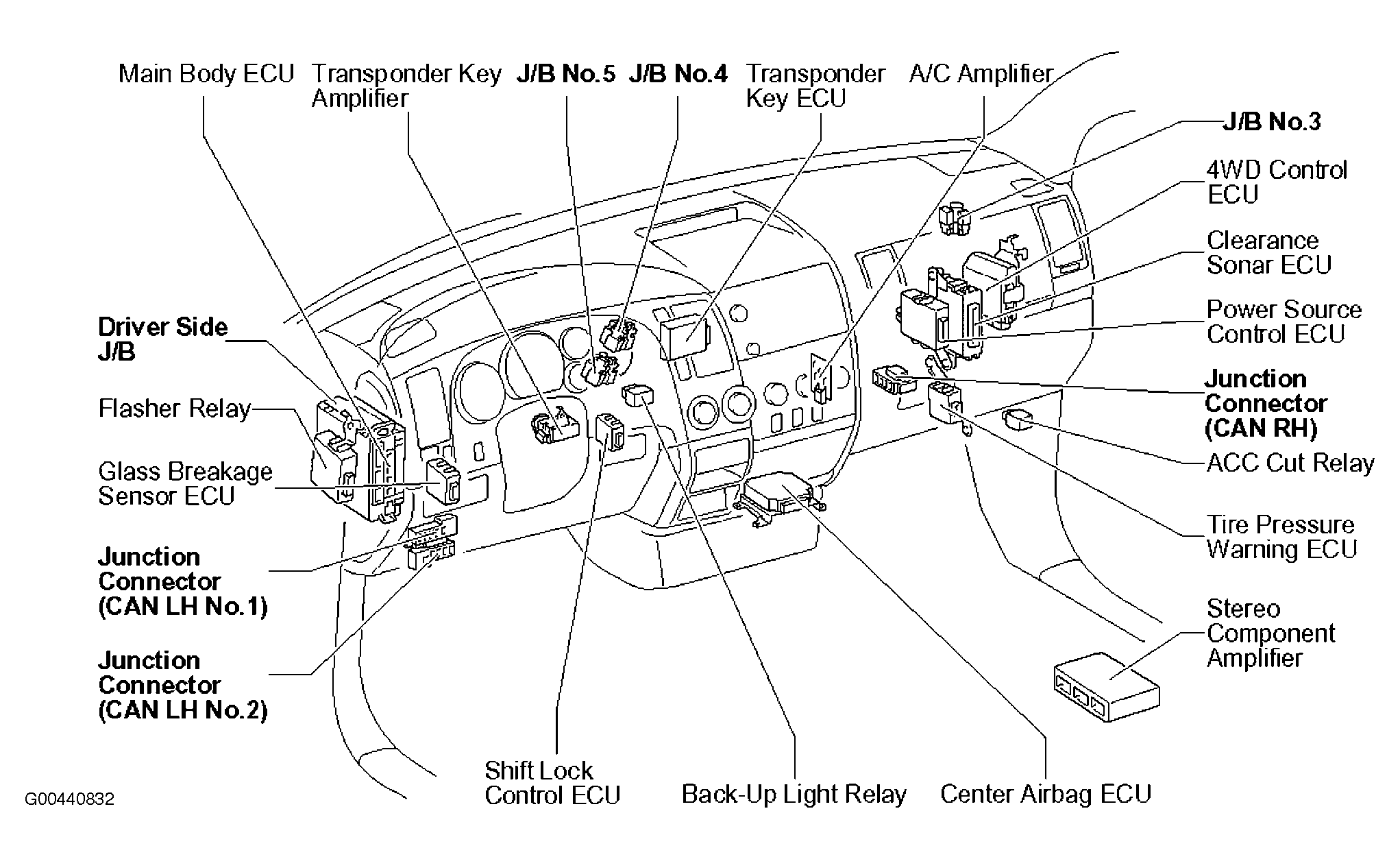

Fig 3: Dash (Column Shift)

G00440832

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

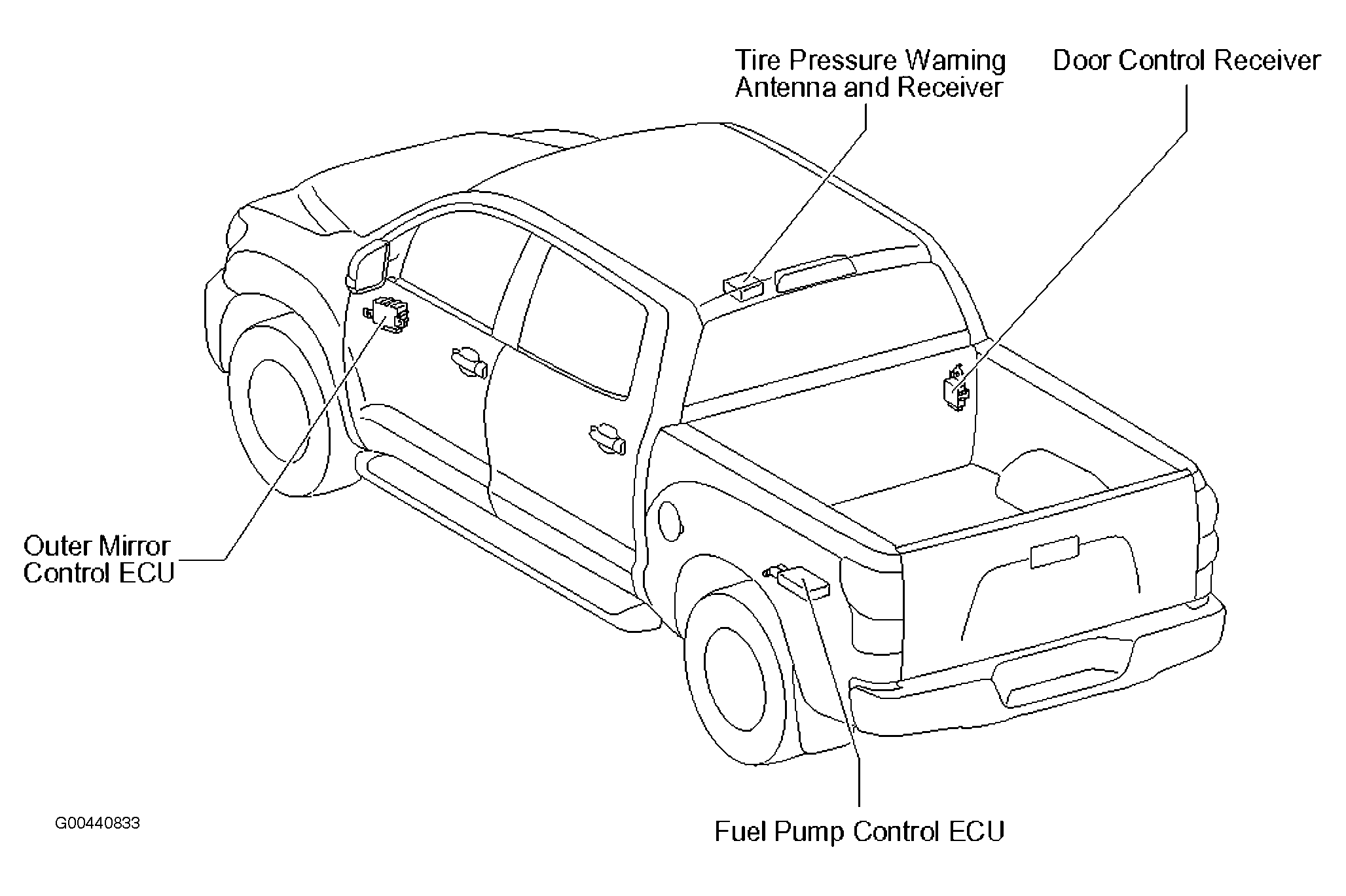

Fig 4: Vehicle Overview (Double Cab)

G00440833

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

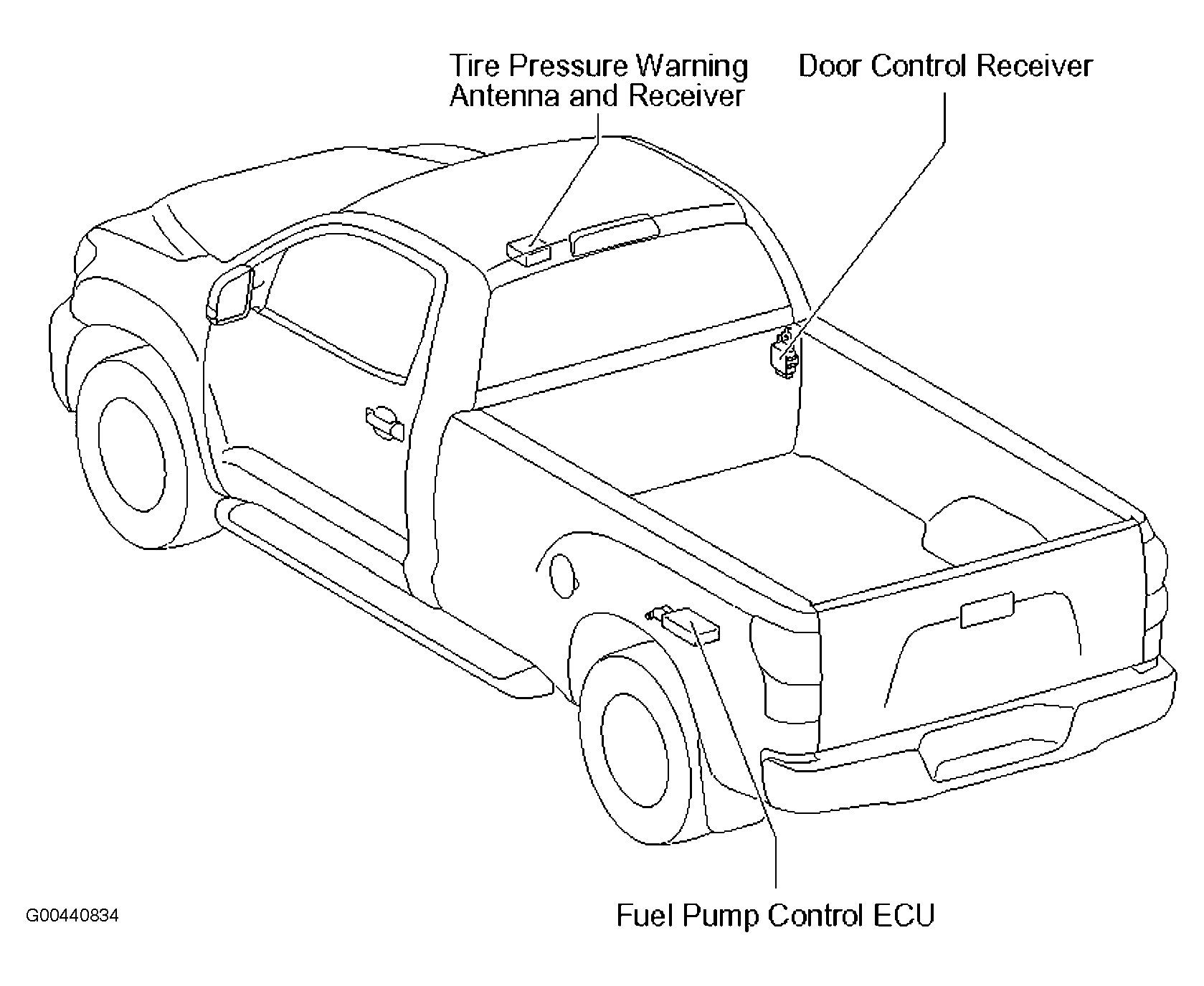

Fig 5: Vehicle Overview (Regular Cab)

G00440834

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

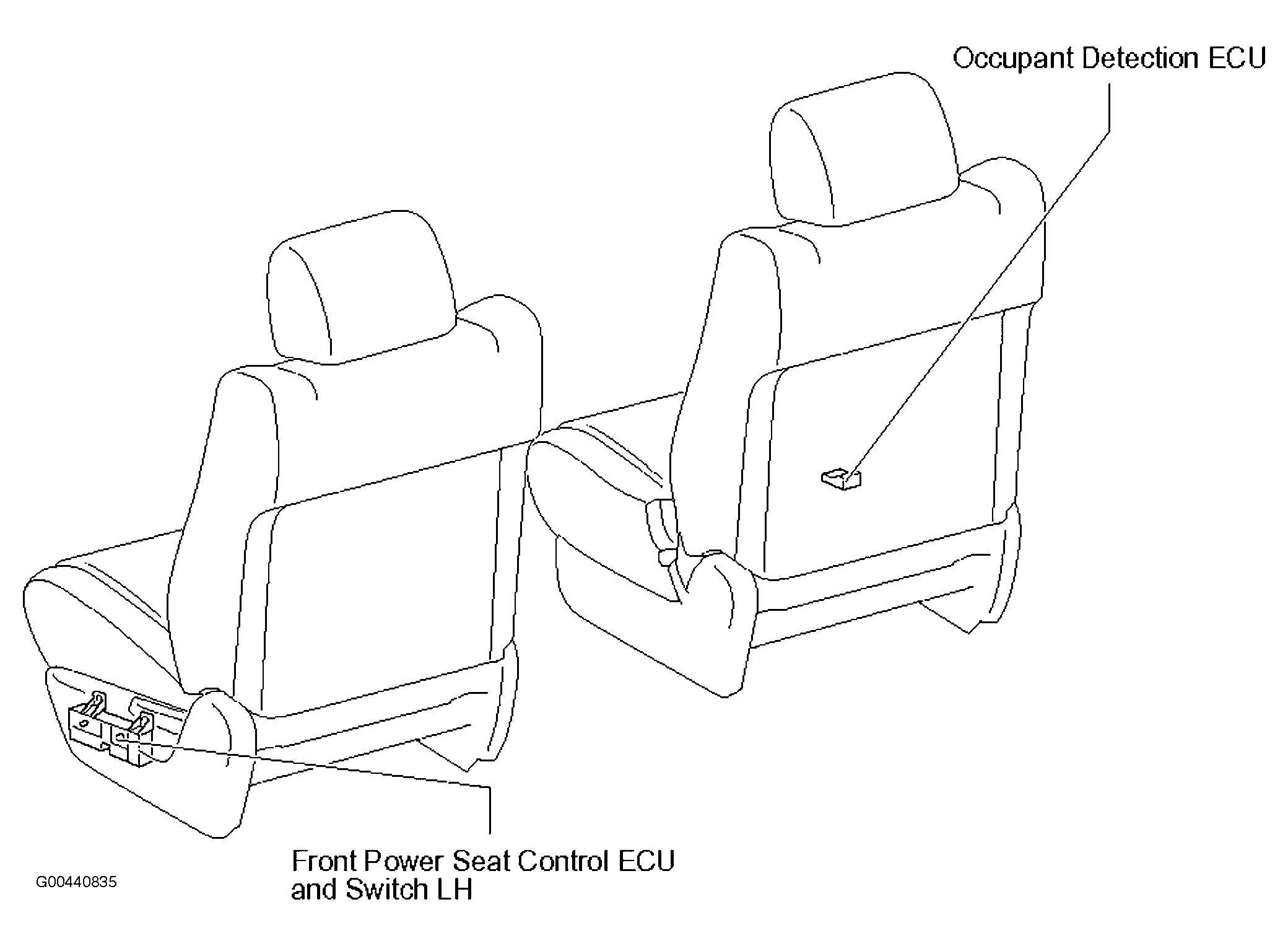

Fig 6: Seats (Separate Seat)

G00440835

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

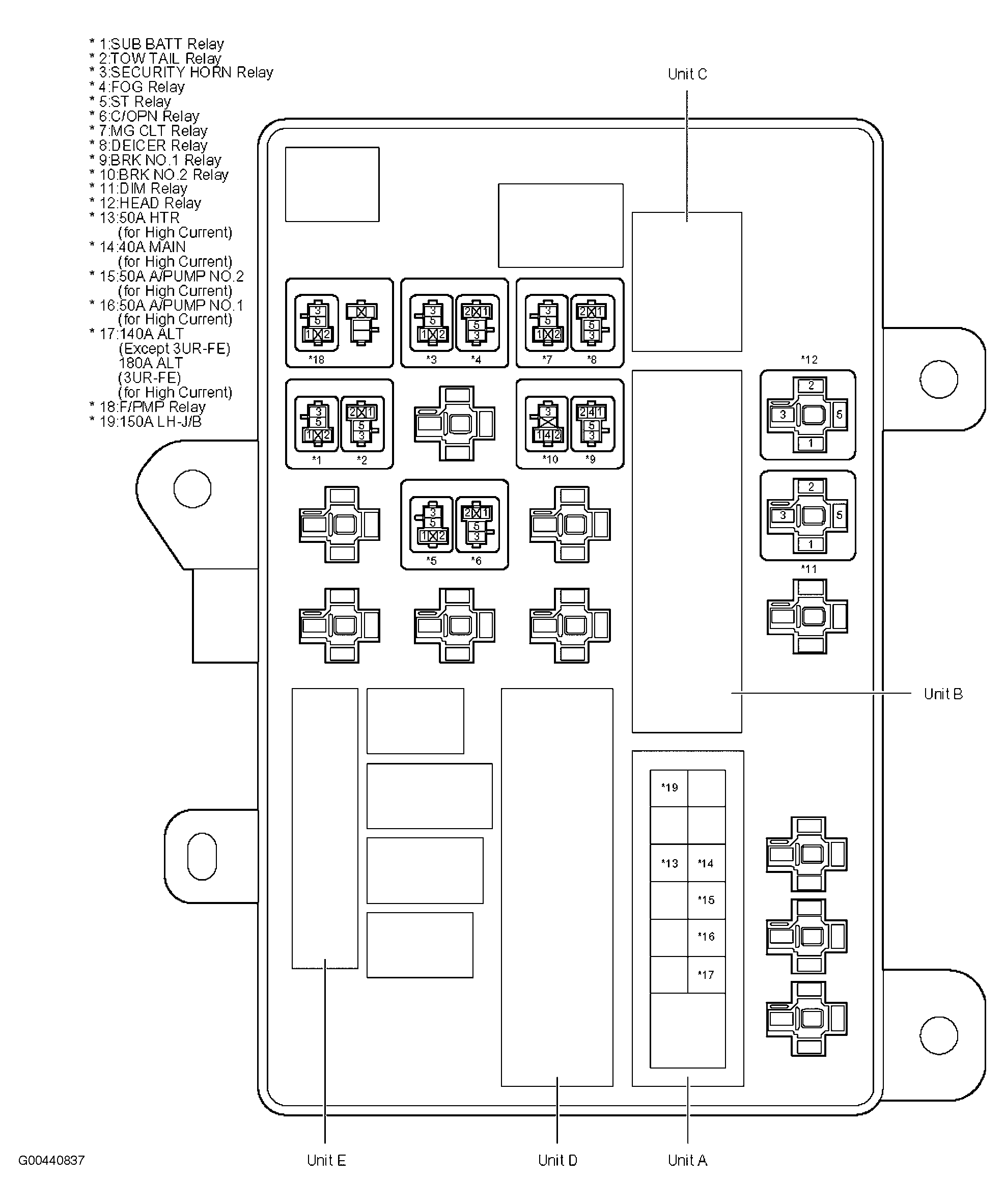

Fig 7: Engine Room R/B & Engine Room J/B

G00440837

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

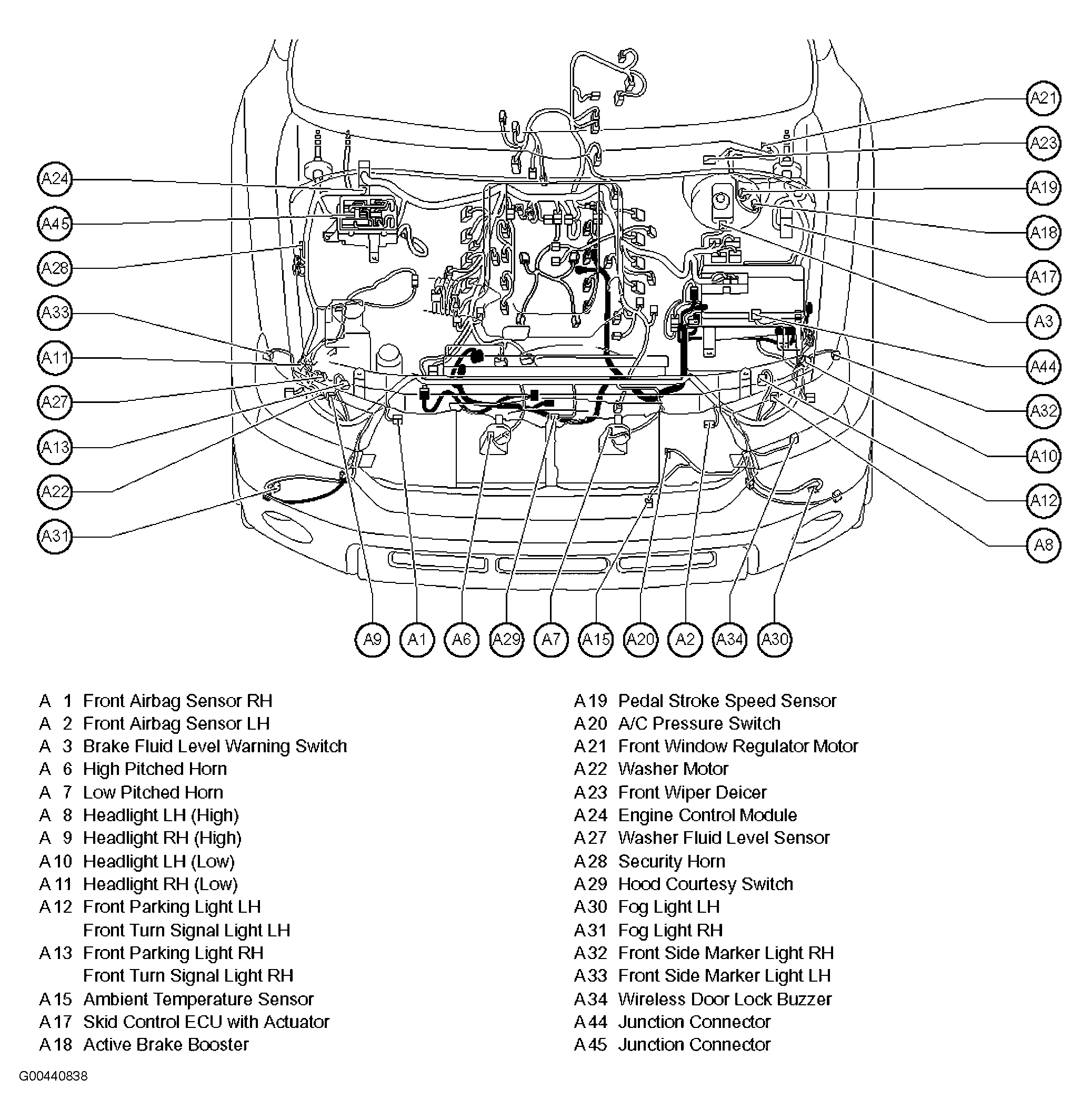

Fig 8: Engine Compartment (3UR-FE)

G00440838

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

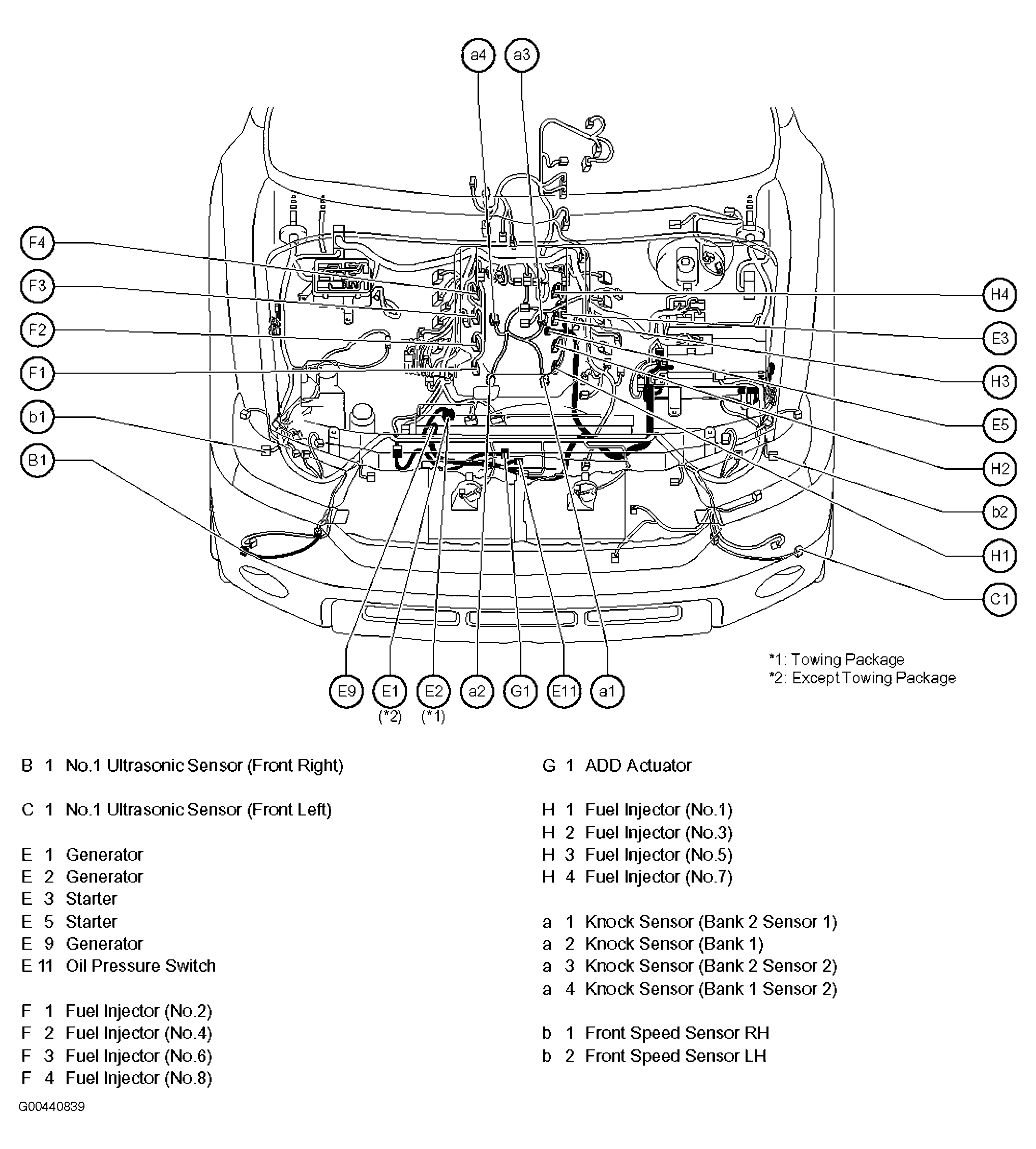

Fig 9: Engine Compartment (3UR-FE)

G00440839

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

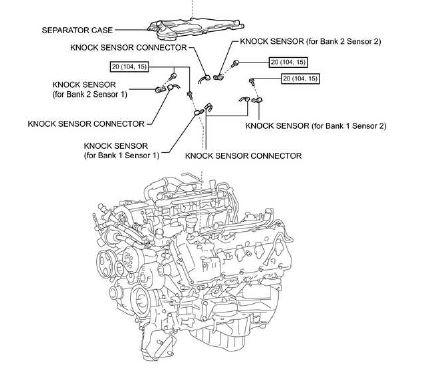

Fig 10: Knock Sensors (3UR-FE)

G00405710

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

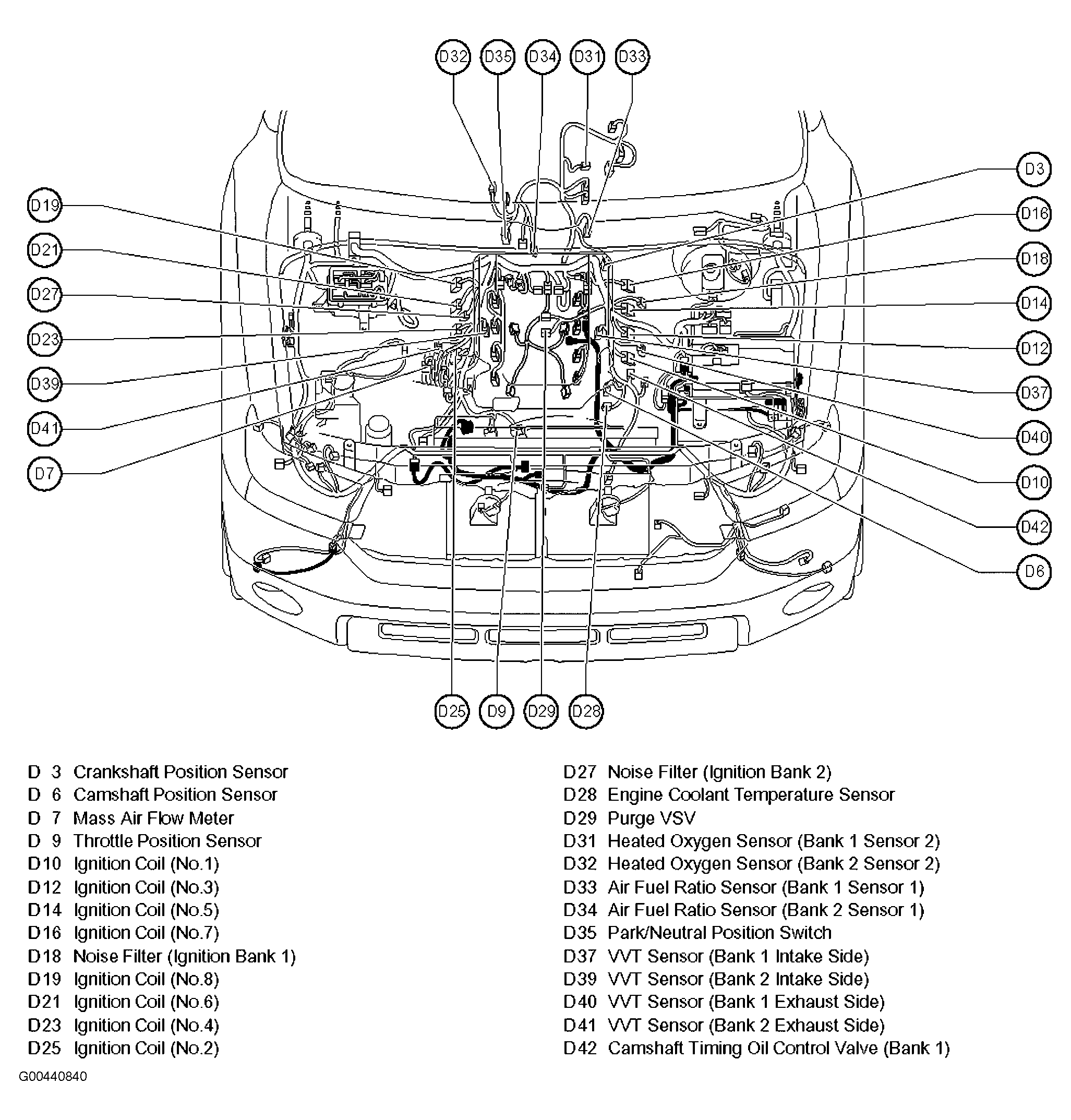

Fig 11: Engine Compartment (3UR-FE)

G00440840

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

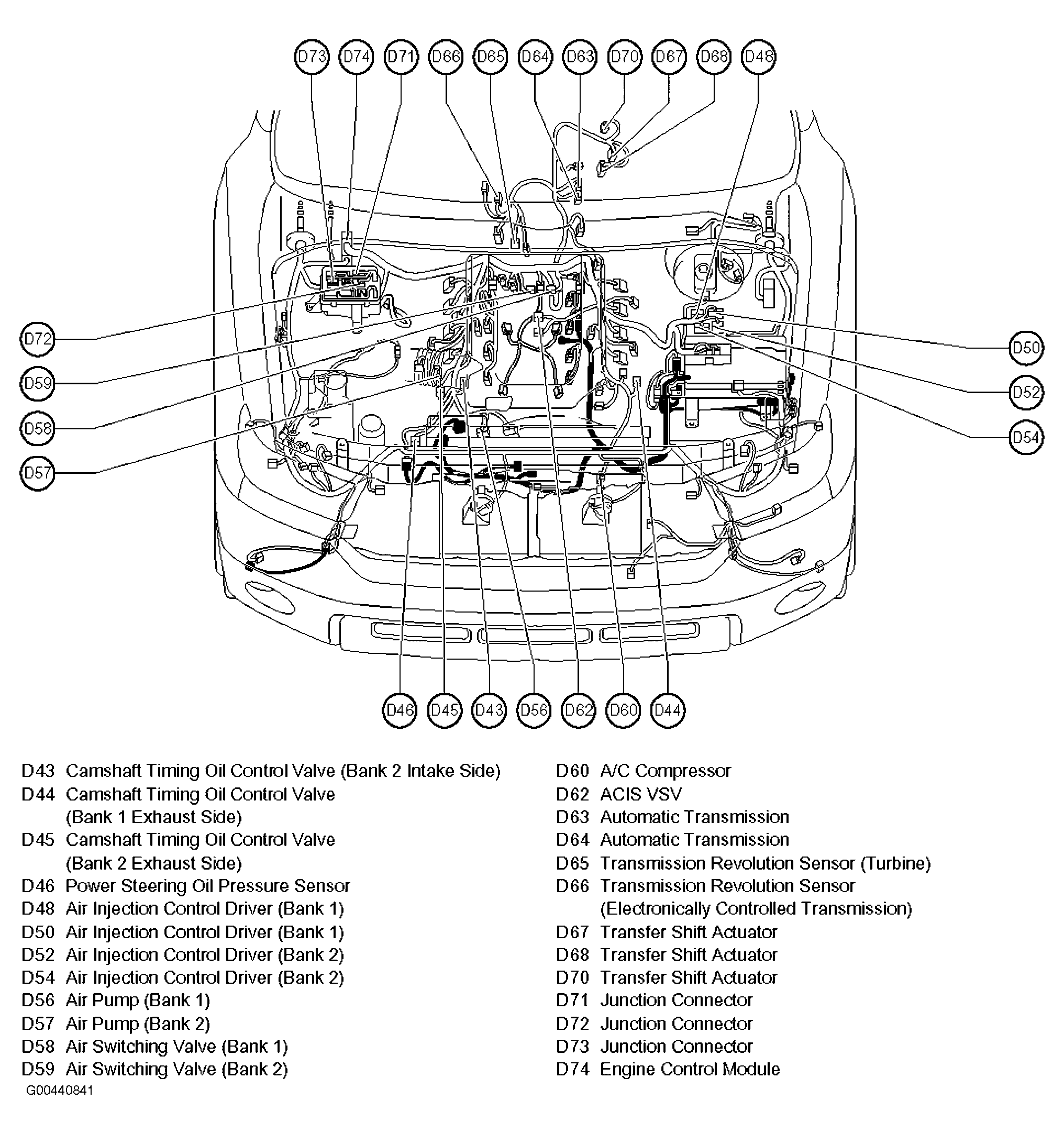

Fig 12: Engine Compartment (3UR-FE)

G00440841

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

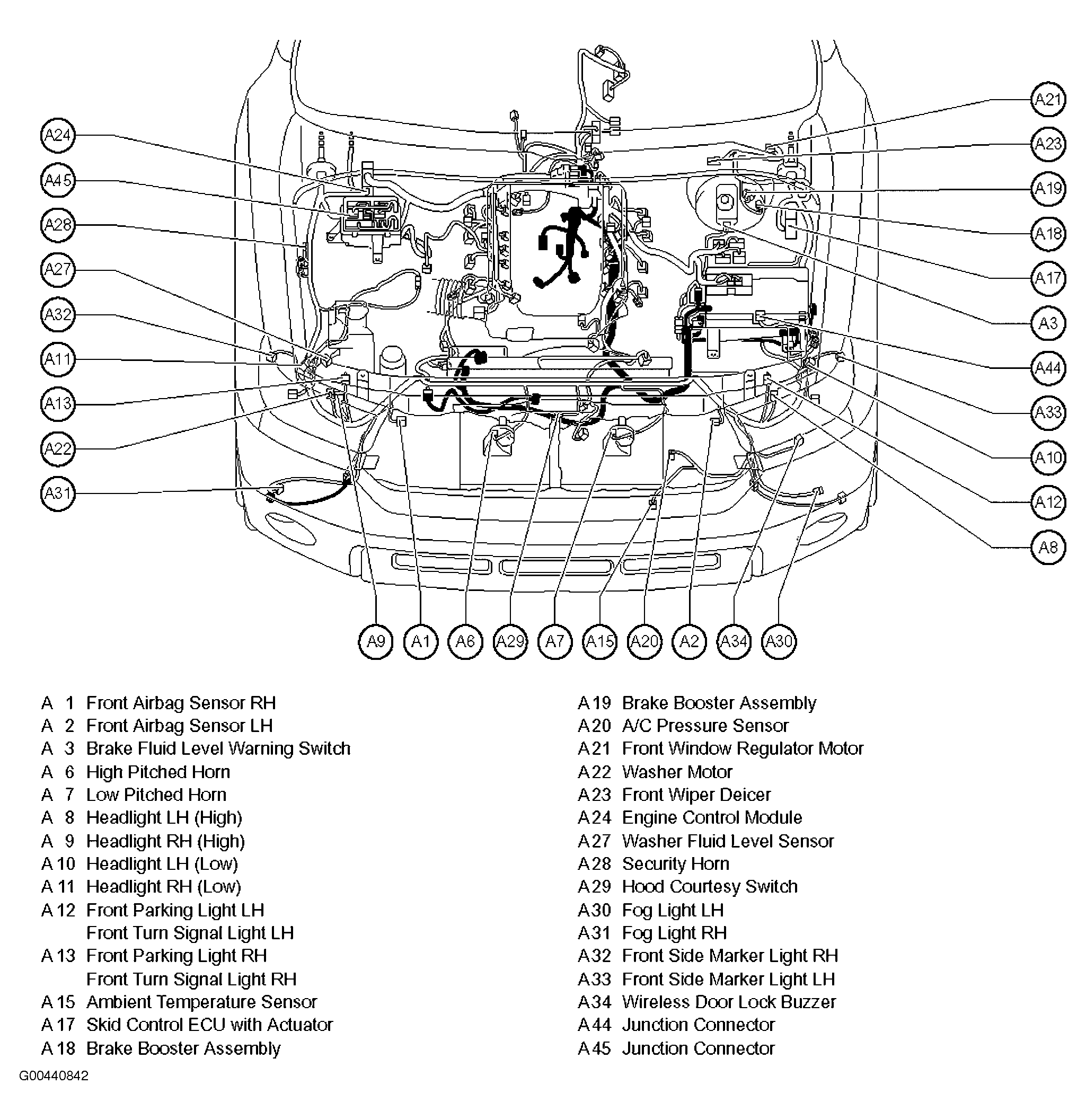

Fig 13: Engine Compartment (2UZ-FE)

G00440842

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

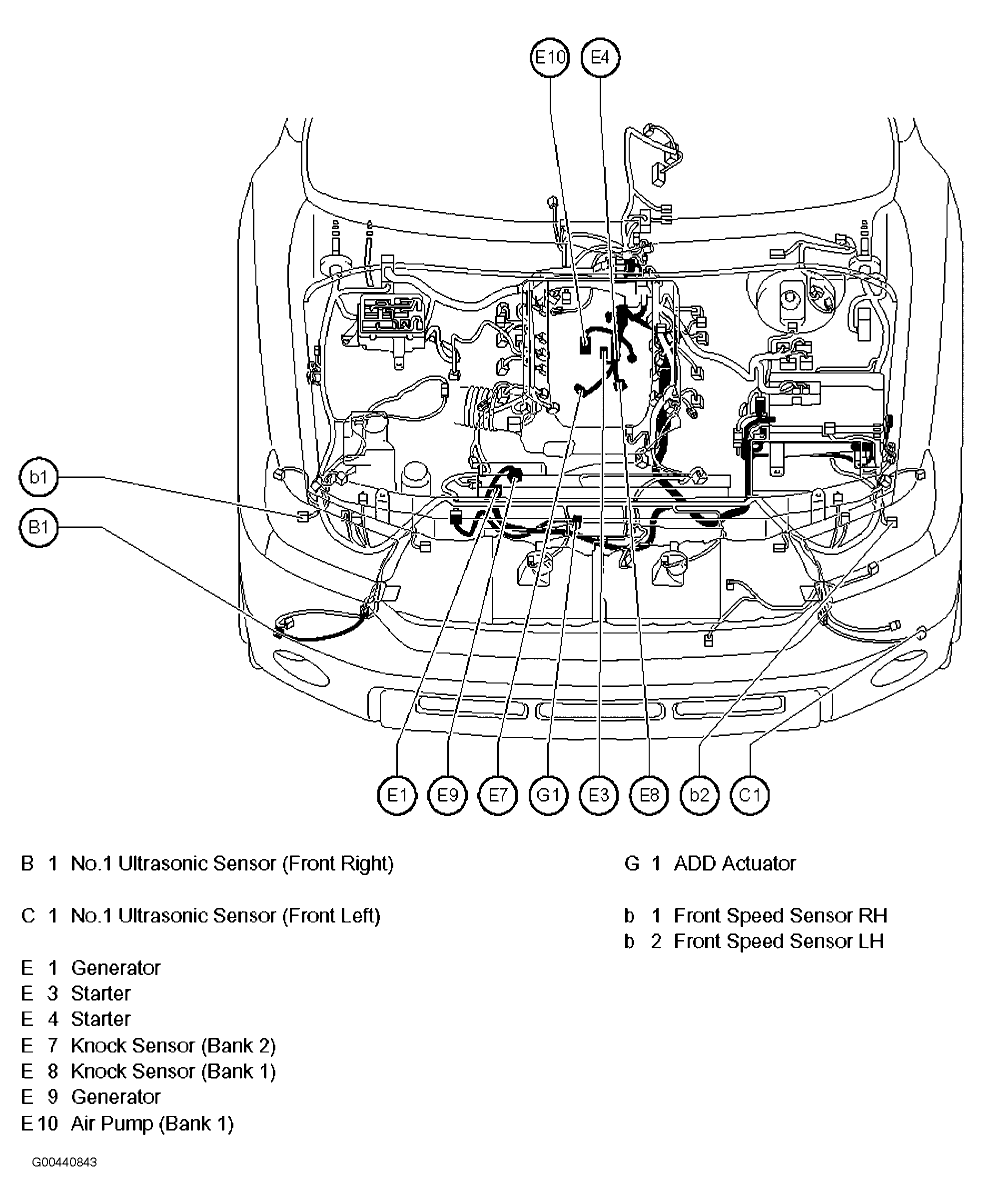

Fig 14: Engine Compartment (2UZ-FE)

G00440843

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 15: Engine Compartment (2UZ-FE)

G00440844

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

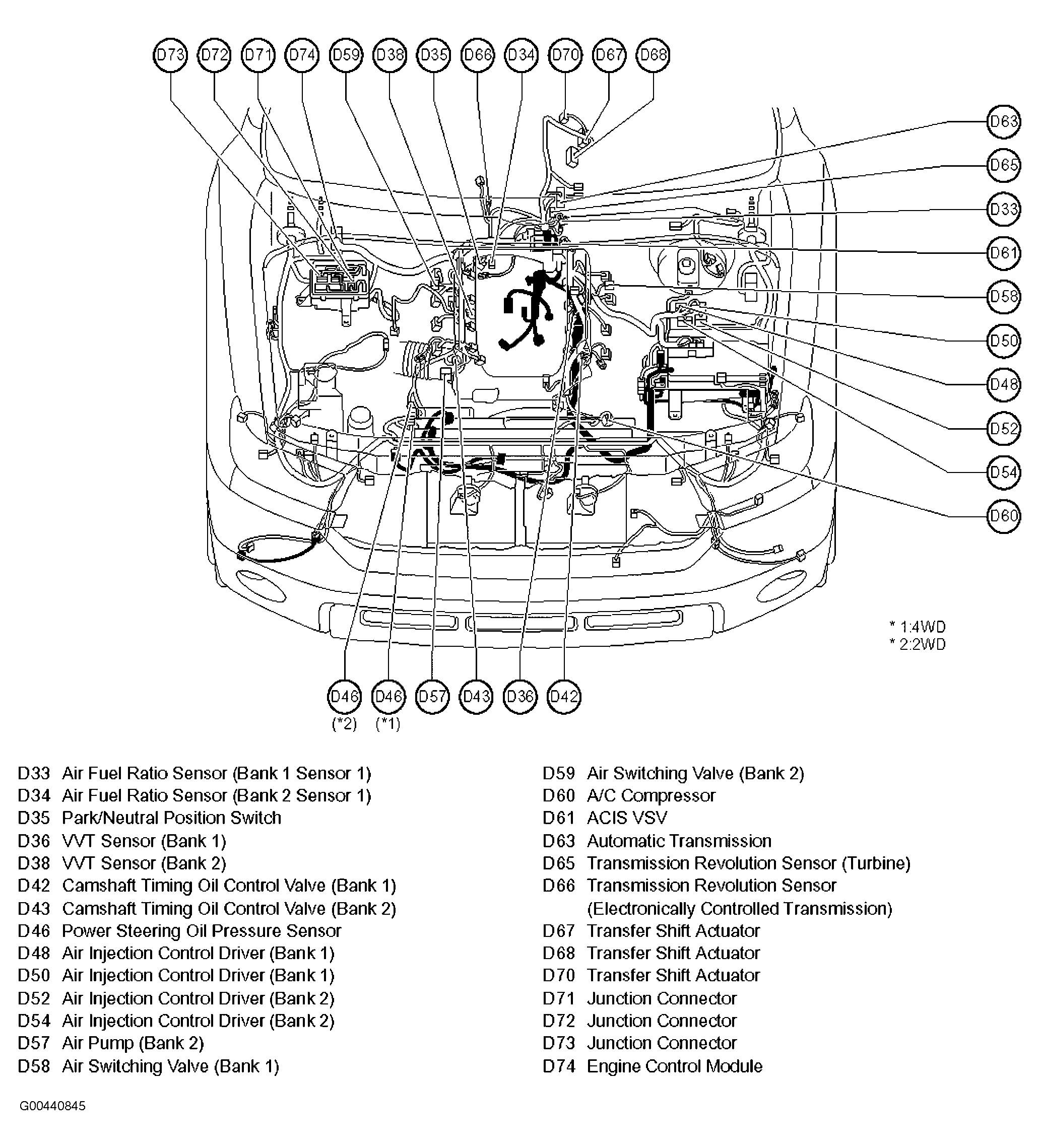

Fig 16: Engine Compartment (2UZ-FE)

G00440845

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

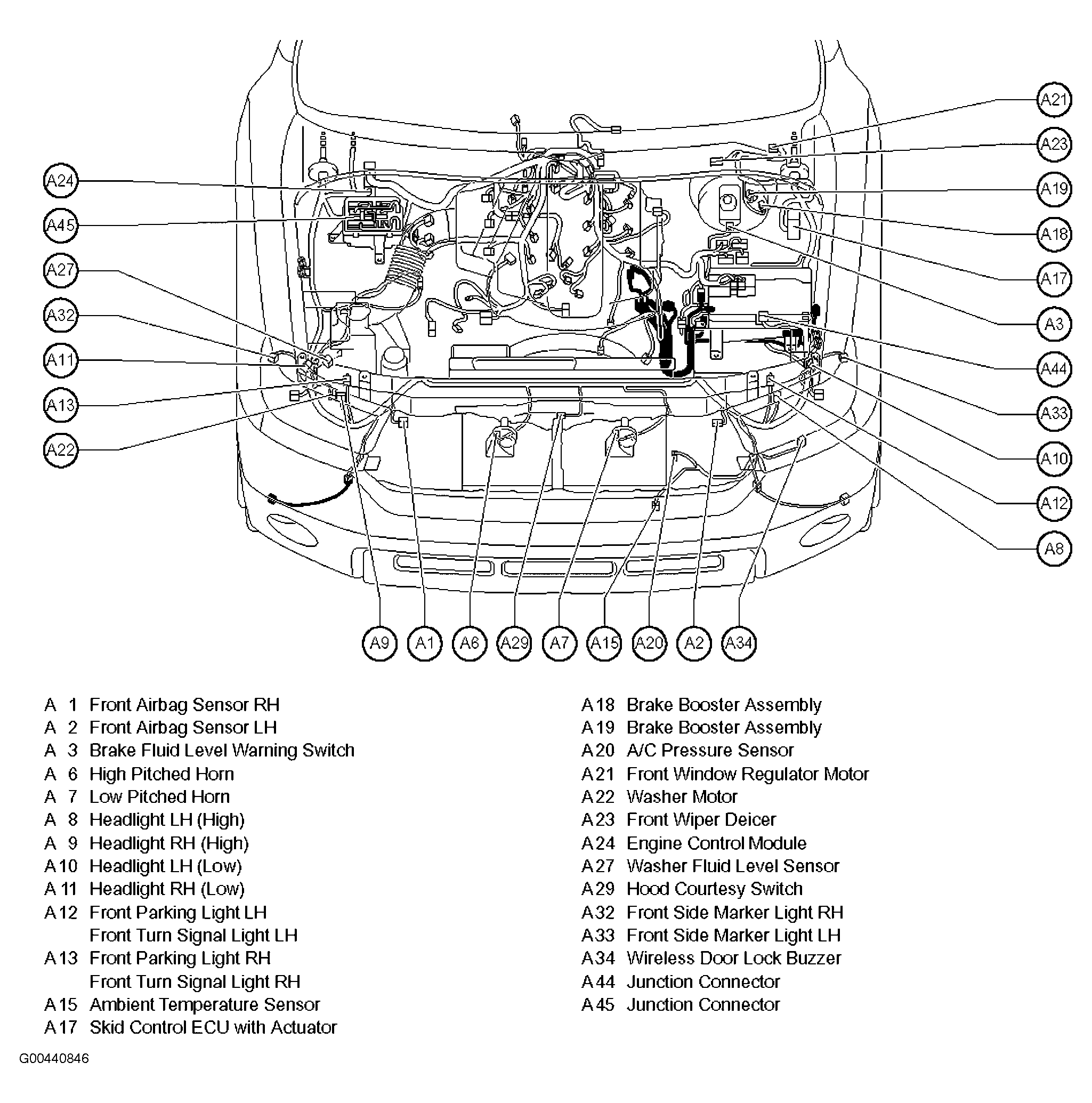

Fig 17: Engine Compartment (1GR-FE)

G00440846

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 18: Engine Compartment (1GR-FE)

G00440847

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

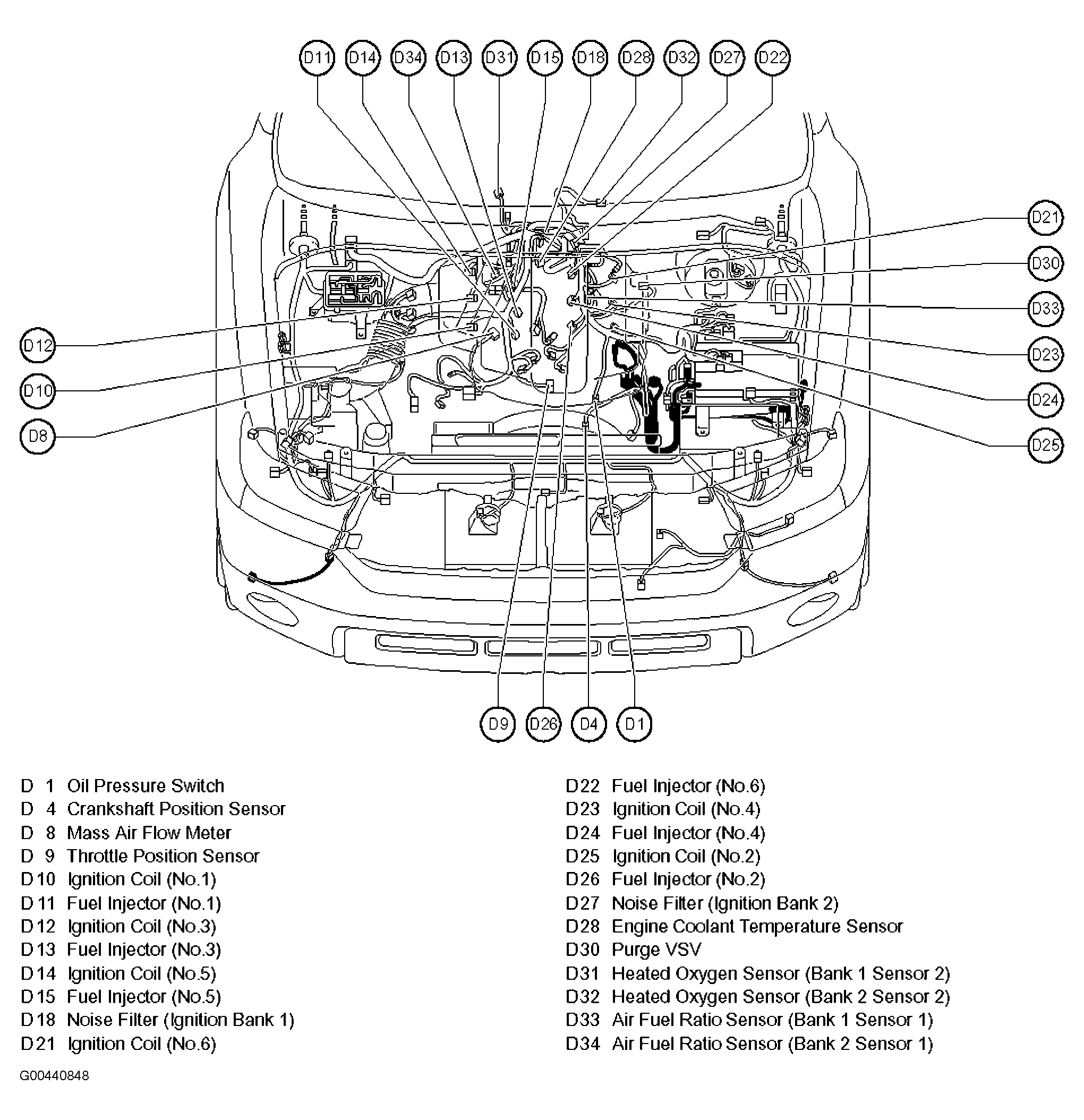

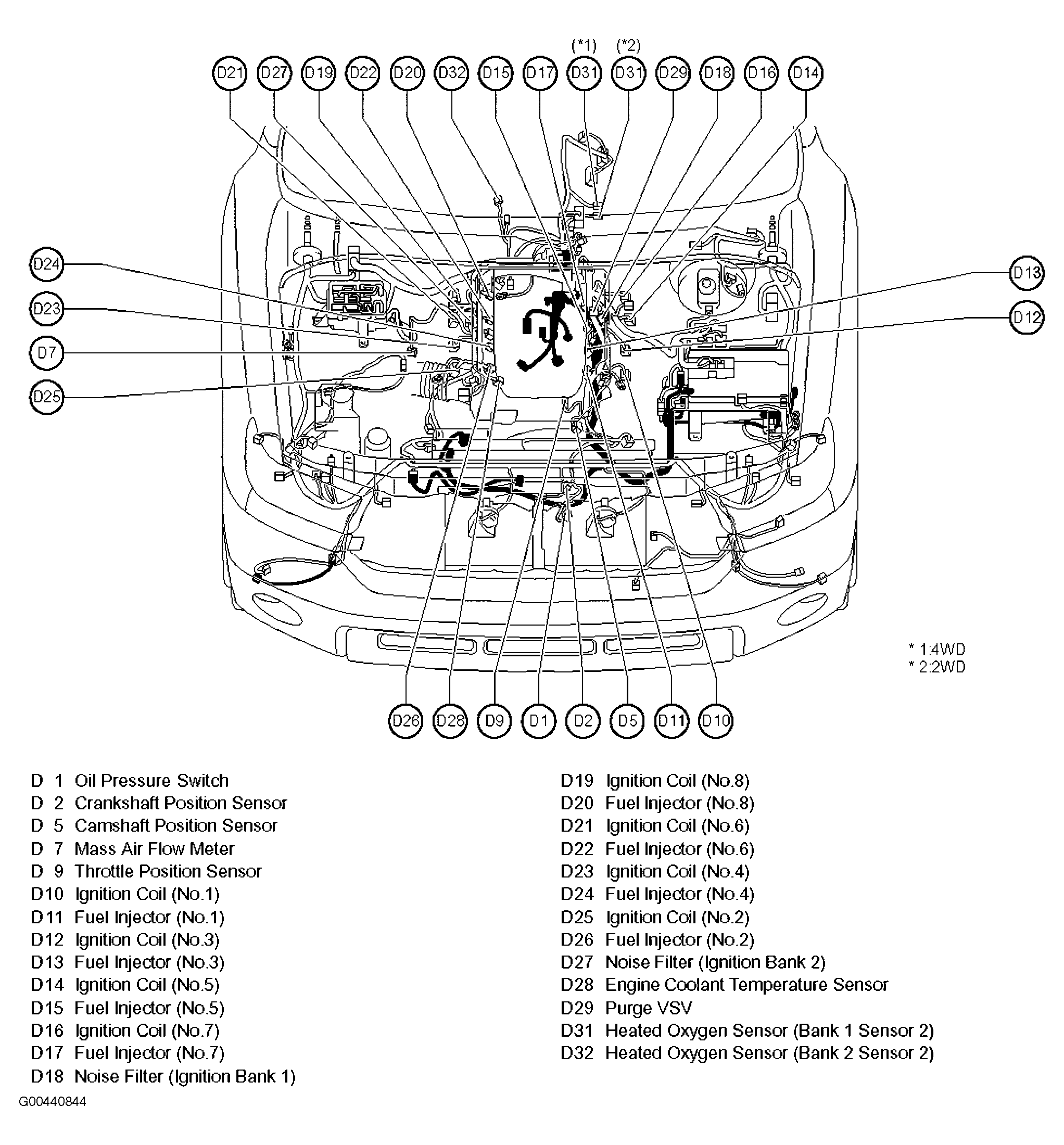

Fig 19: Engine Compartment (1GR-FE)

G00440848

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

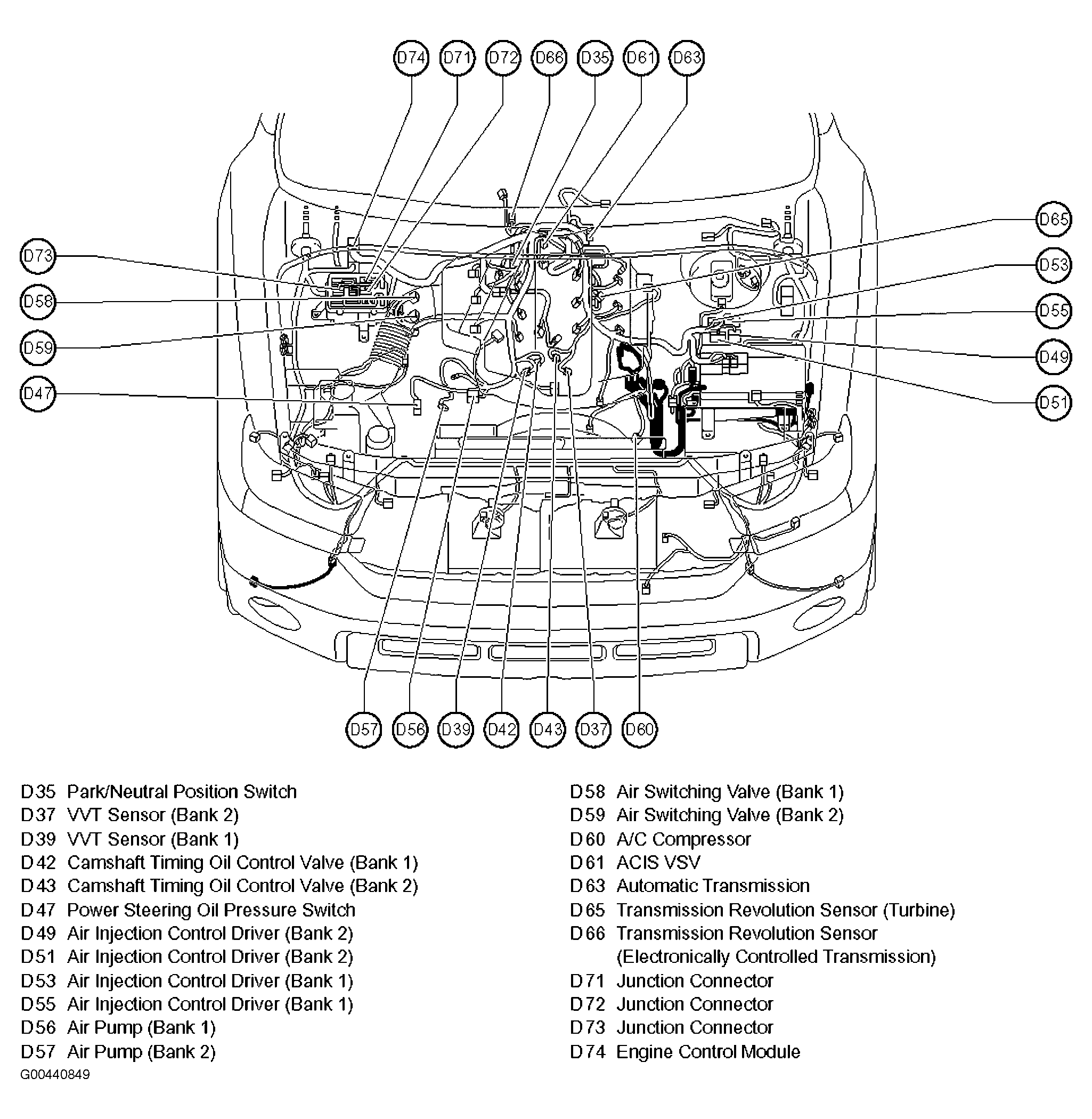

Fig 20: Engine Compartment (1GR-FE)

G00440849

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

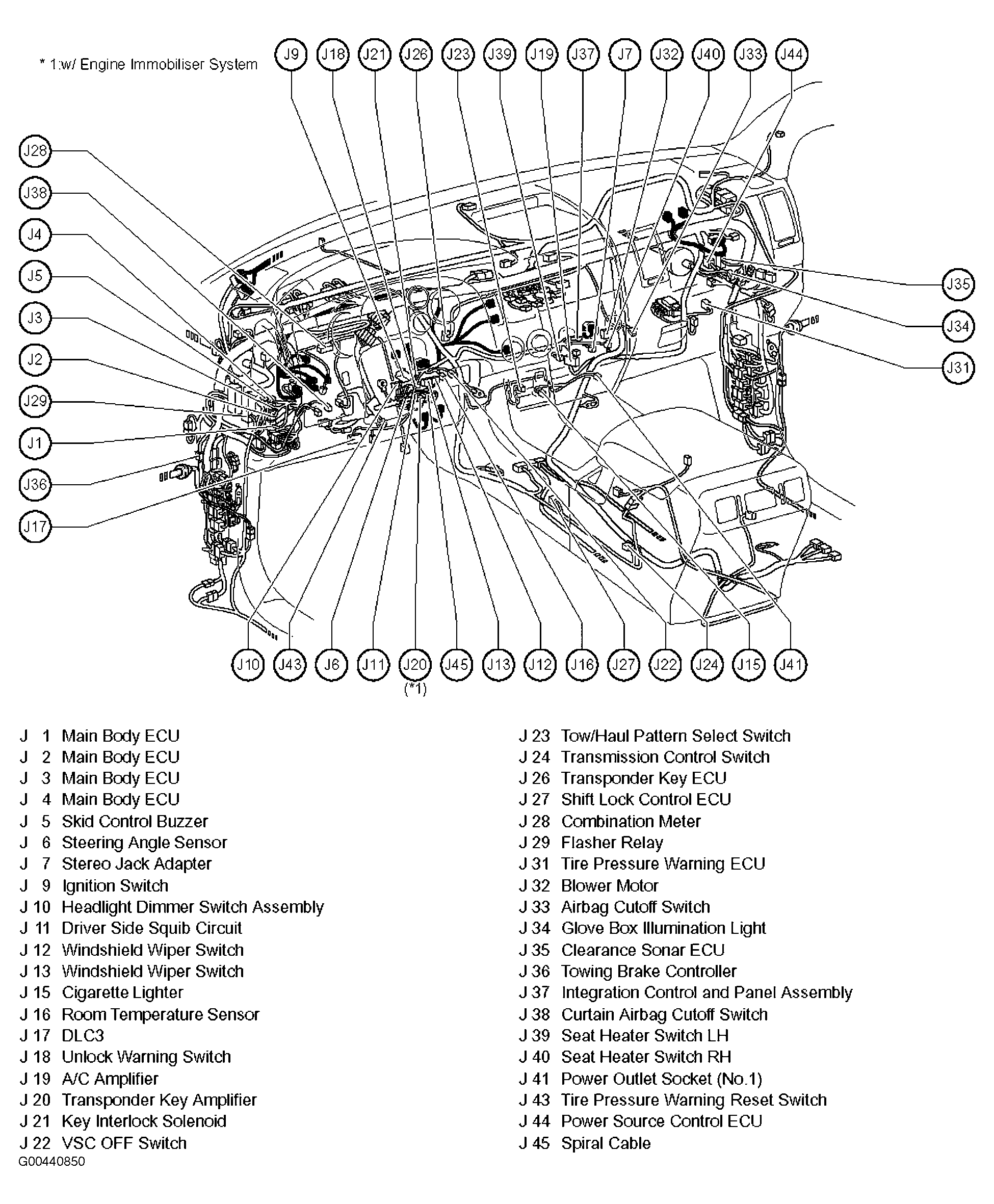

Fig 21: Dash (Floor Shift)

G00440850

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

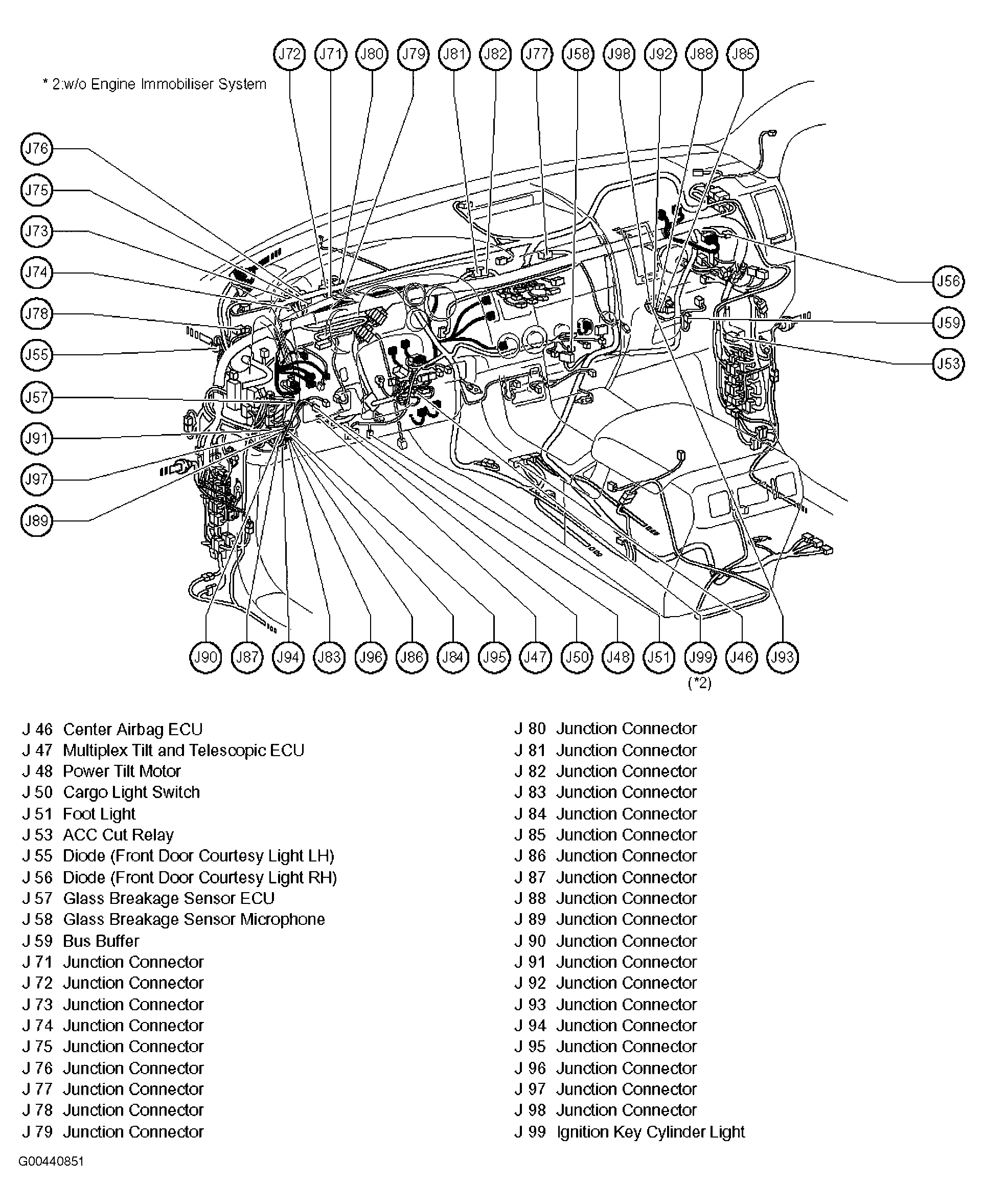

Fig 22: Dash (Floor Shift)

G00440851

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

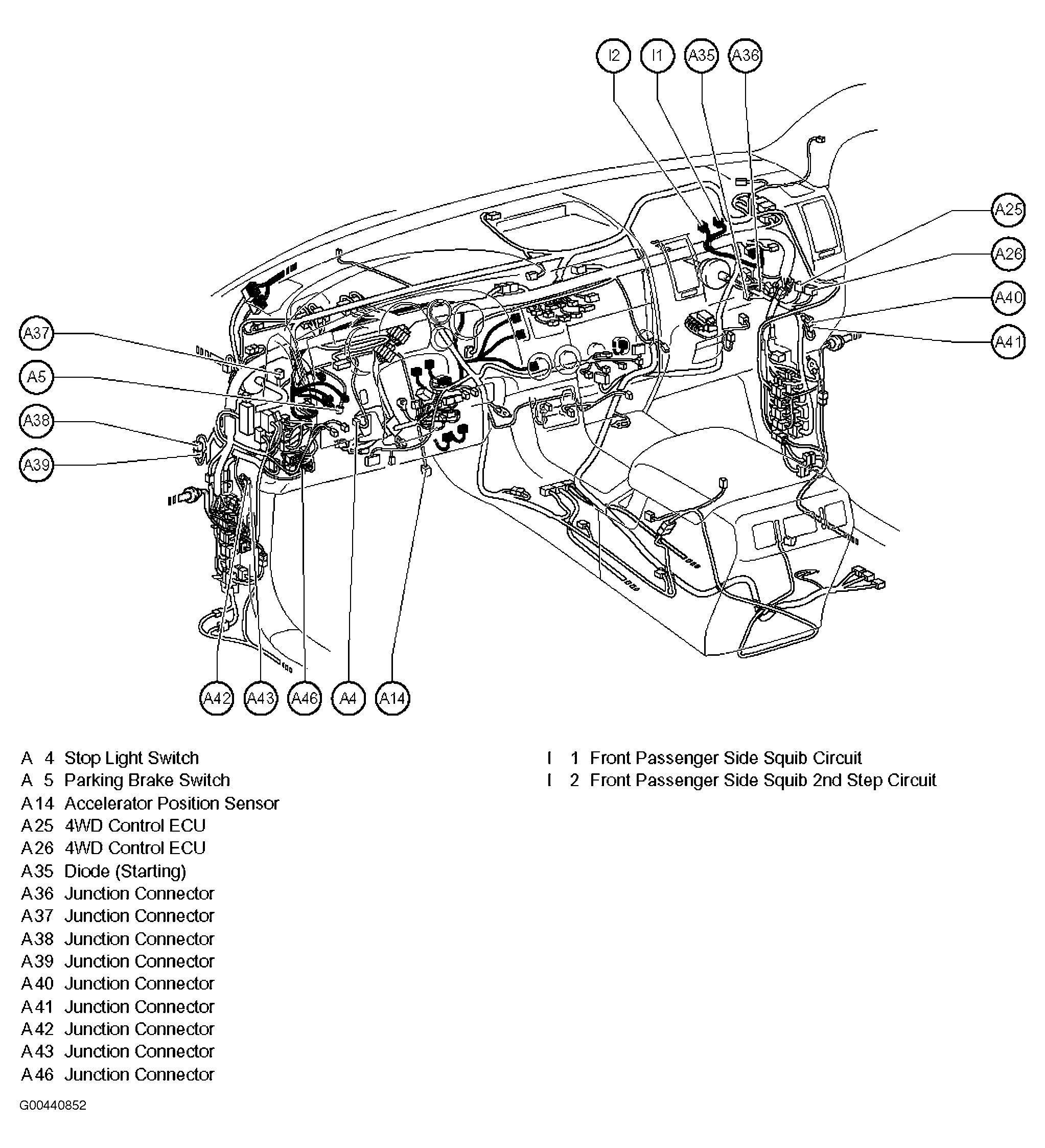

Fig 23: Dash (Floor Shift)

G00440852

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

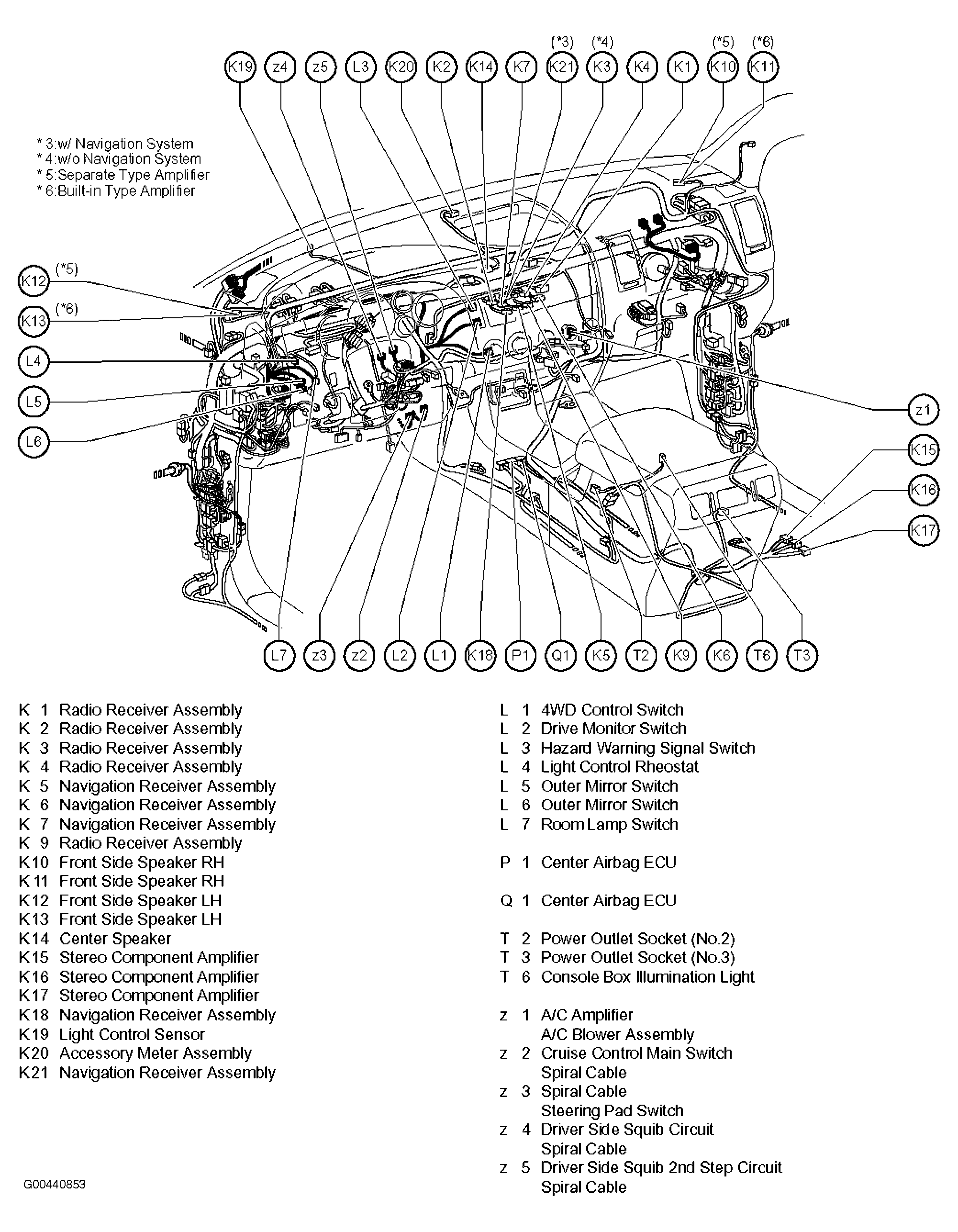

Fig 24: Dash (Floor Shift)

G00440853

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

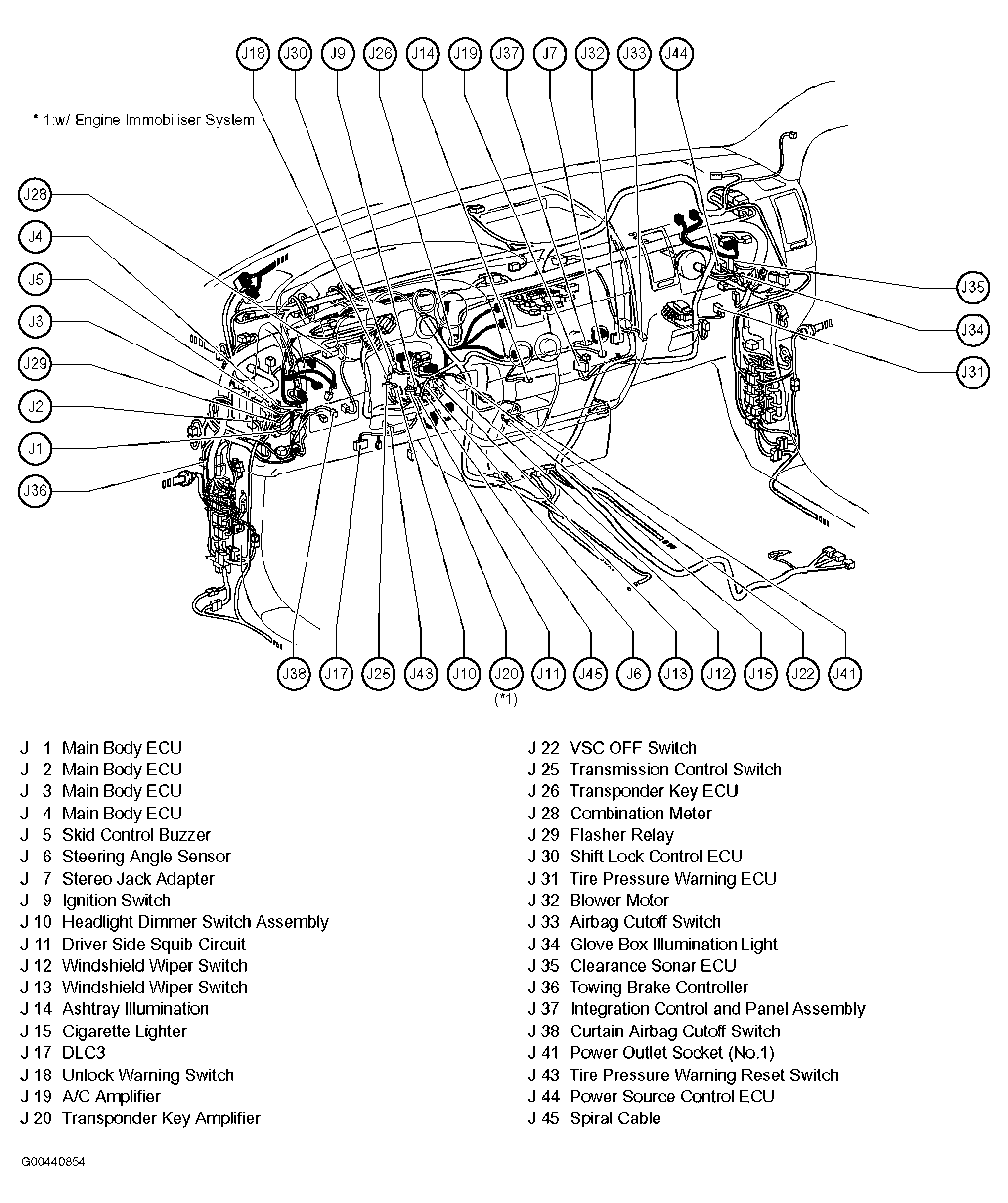

Fig 25: Dash (Column Shift)

G00440854

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 26: Dash (Column Shift)

G00440855

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

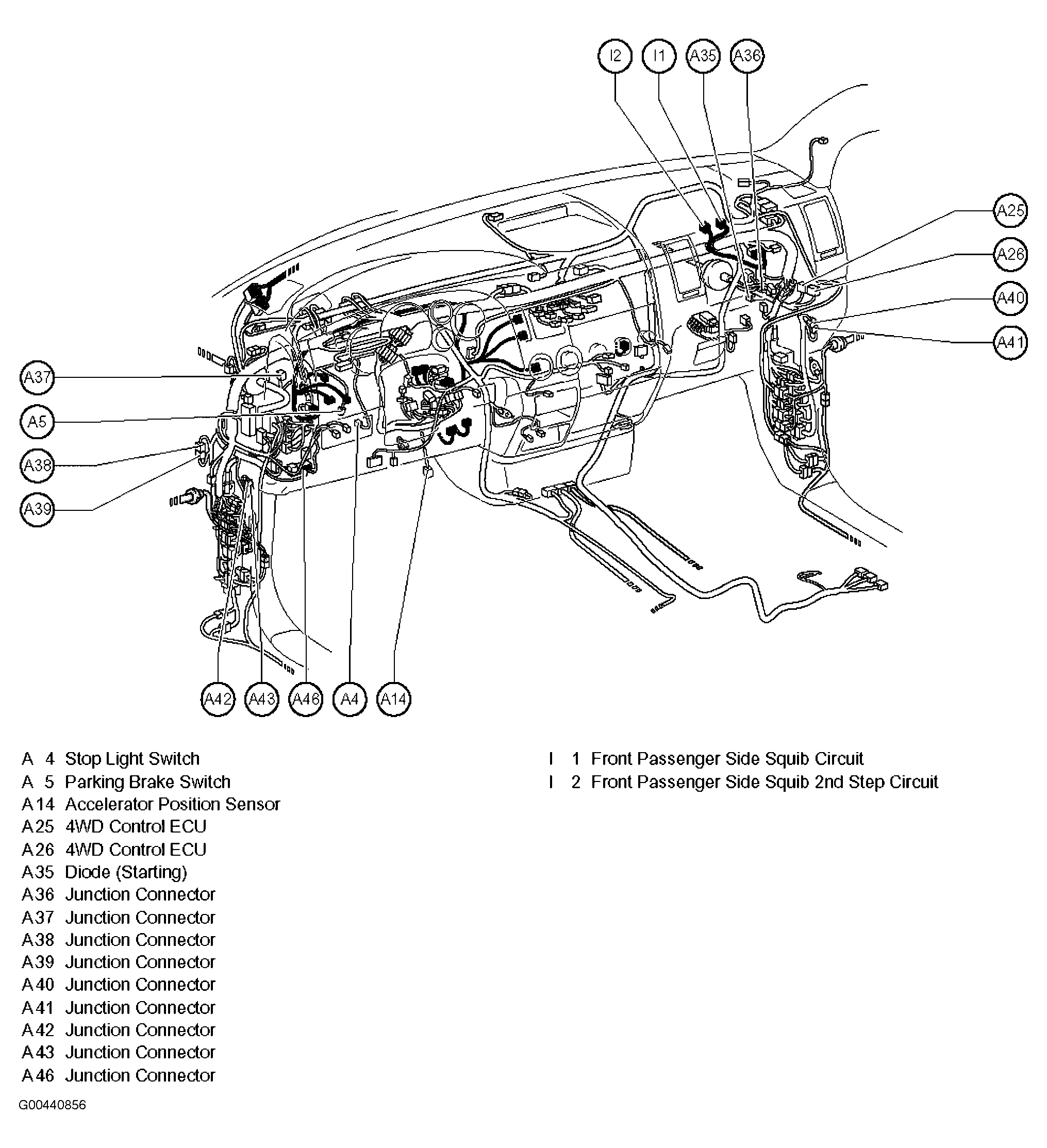

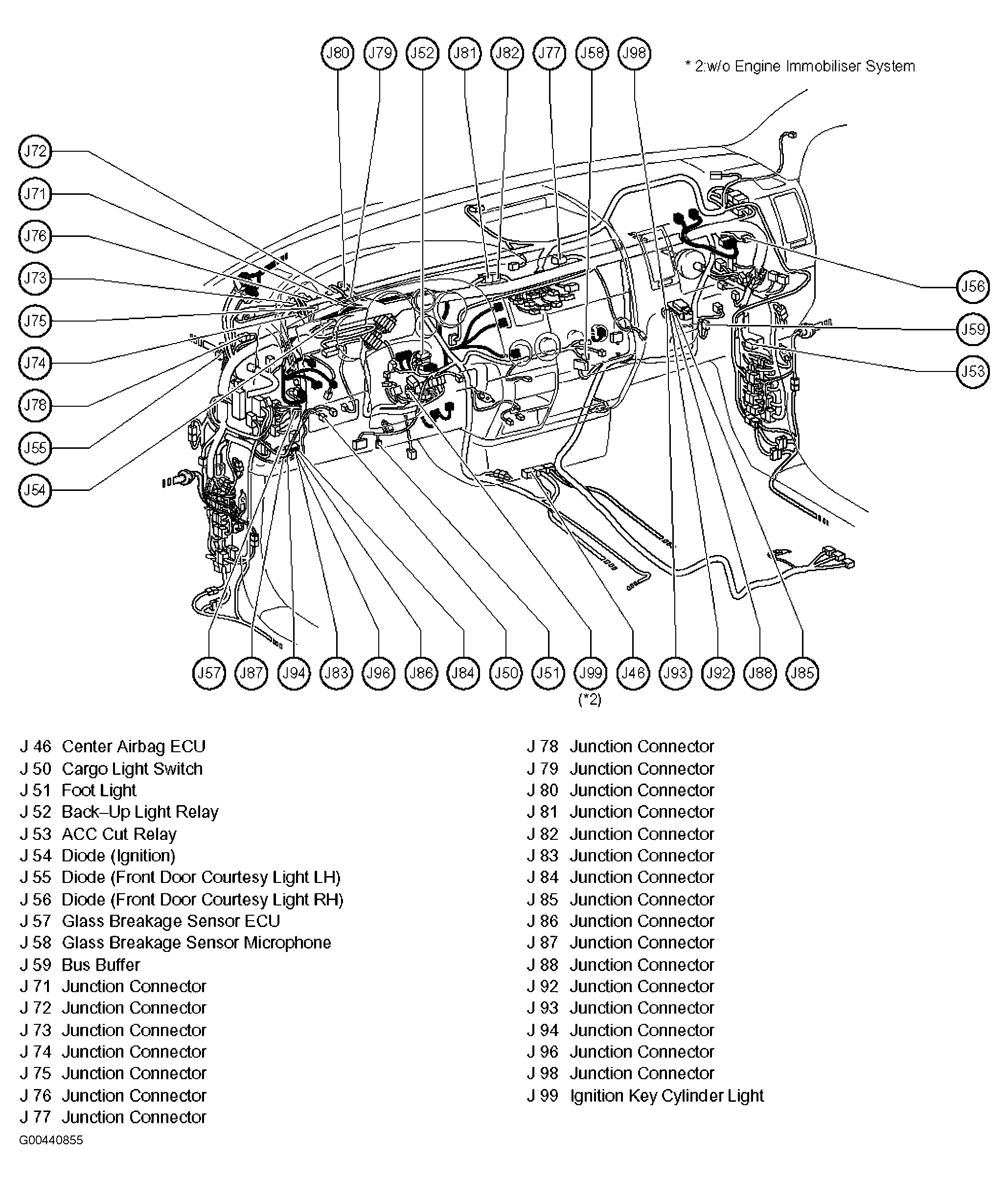

Fig 27: Dash (Column Shift)

G00440856

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

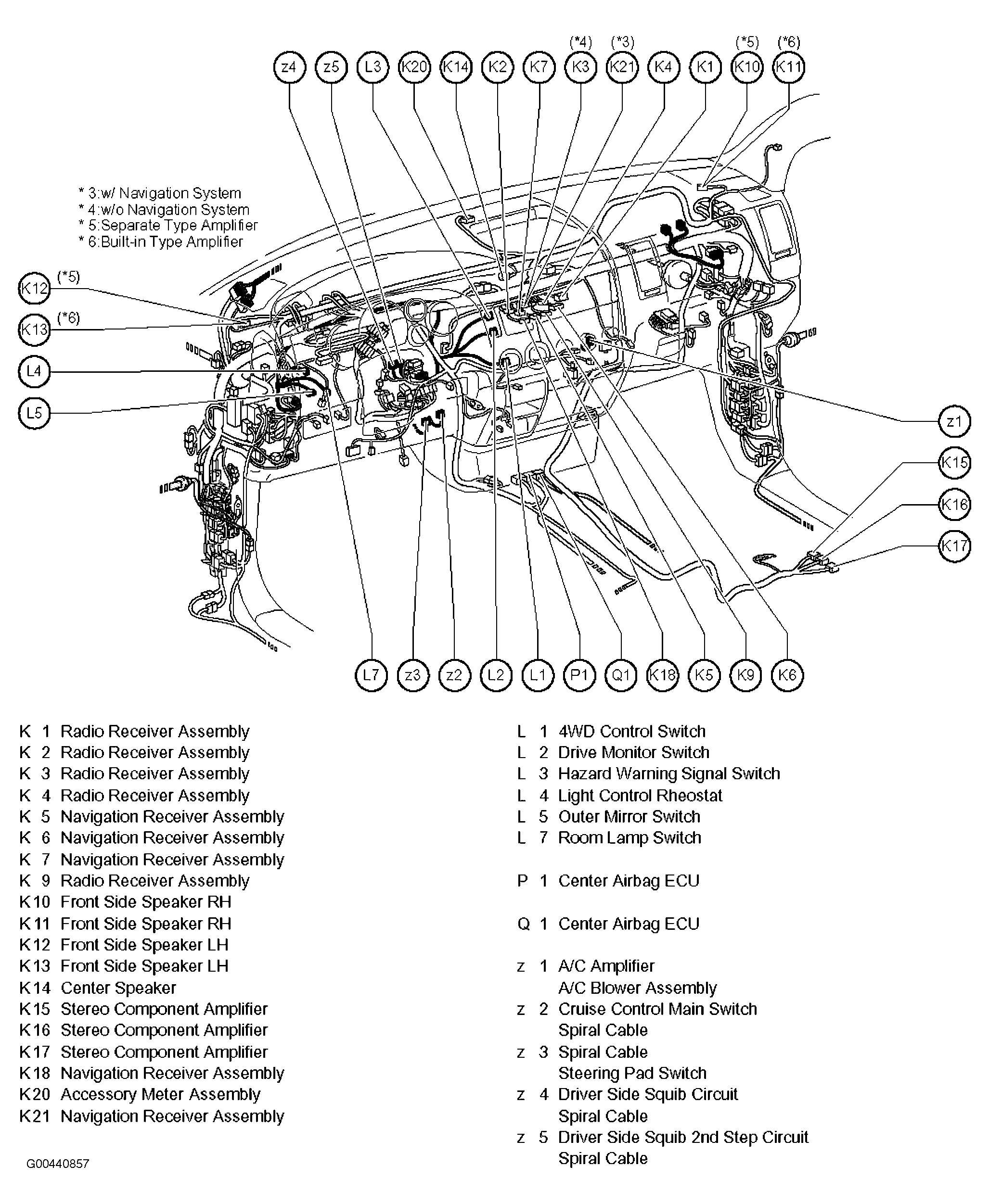

Fig 28: Dash (Column Shift)

G00440857

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

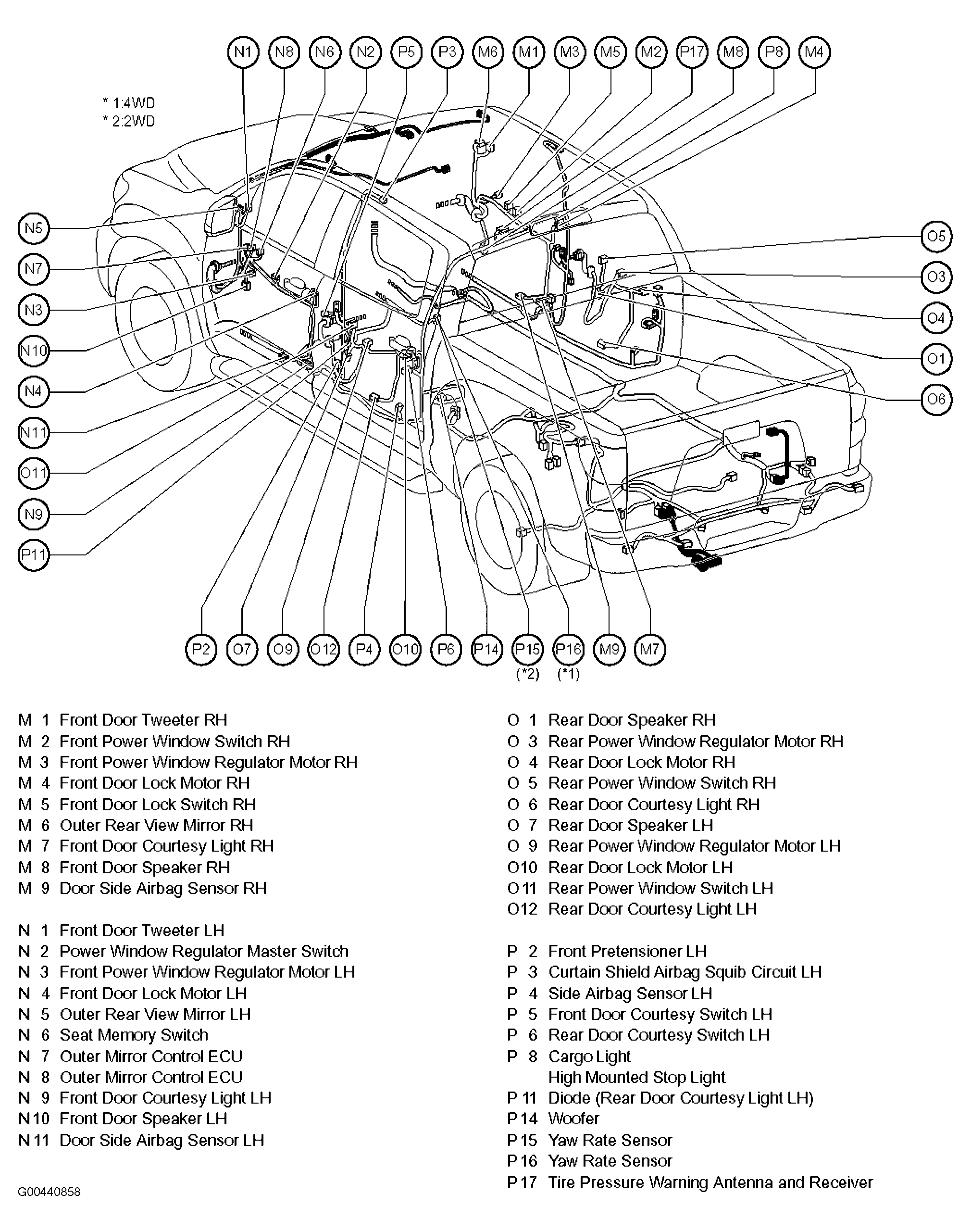

Fig 29: Vehicle Overview (Double Cab)

G00440858

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

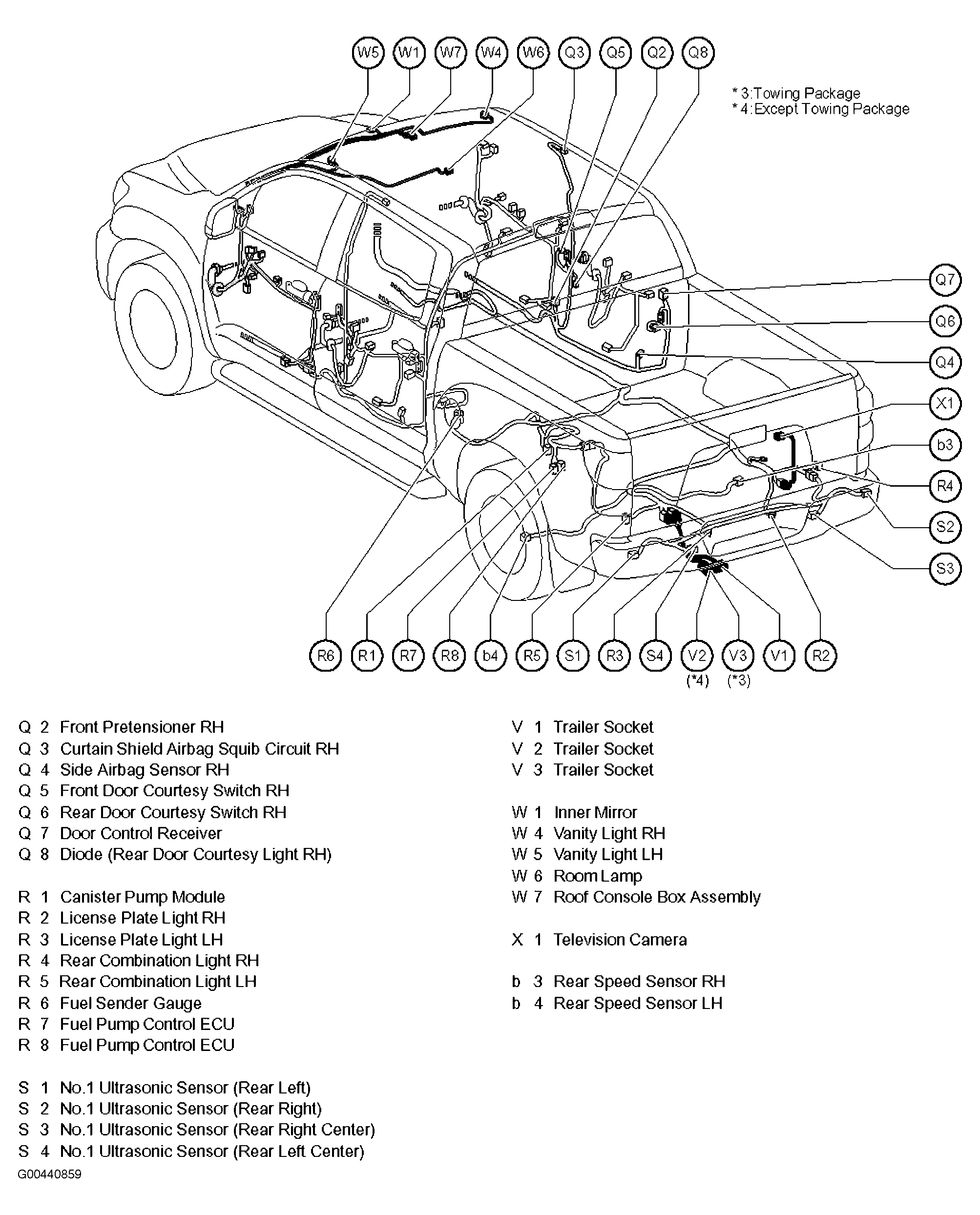

Fig 30: Vehicle Overview (Double Cab)

G00440859

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

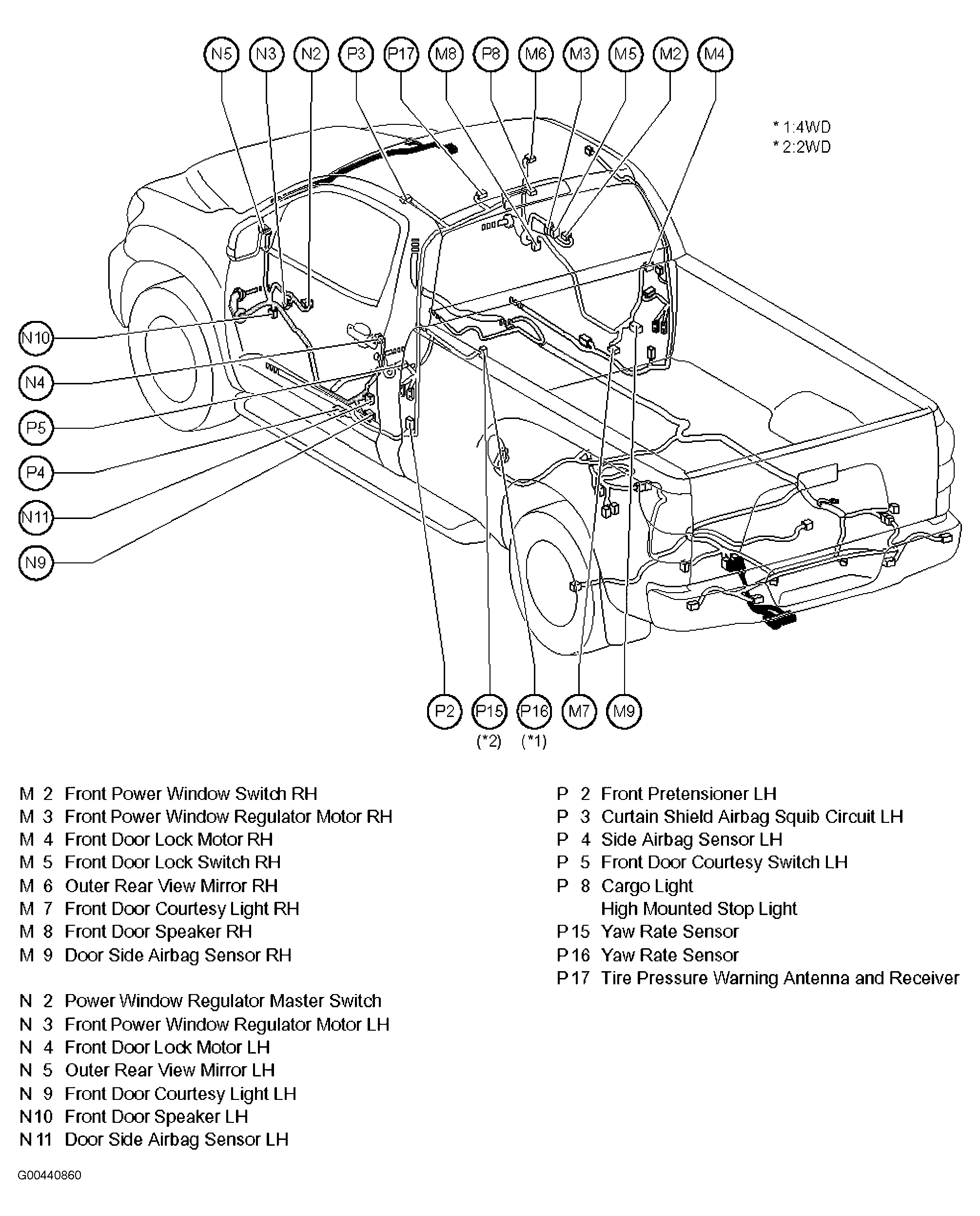

Fig 31: Vehicle Overview (Regular Cab)

G00440860

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

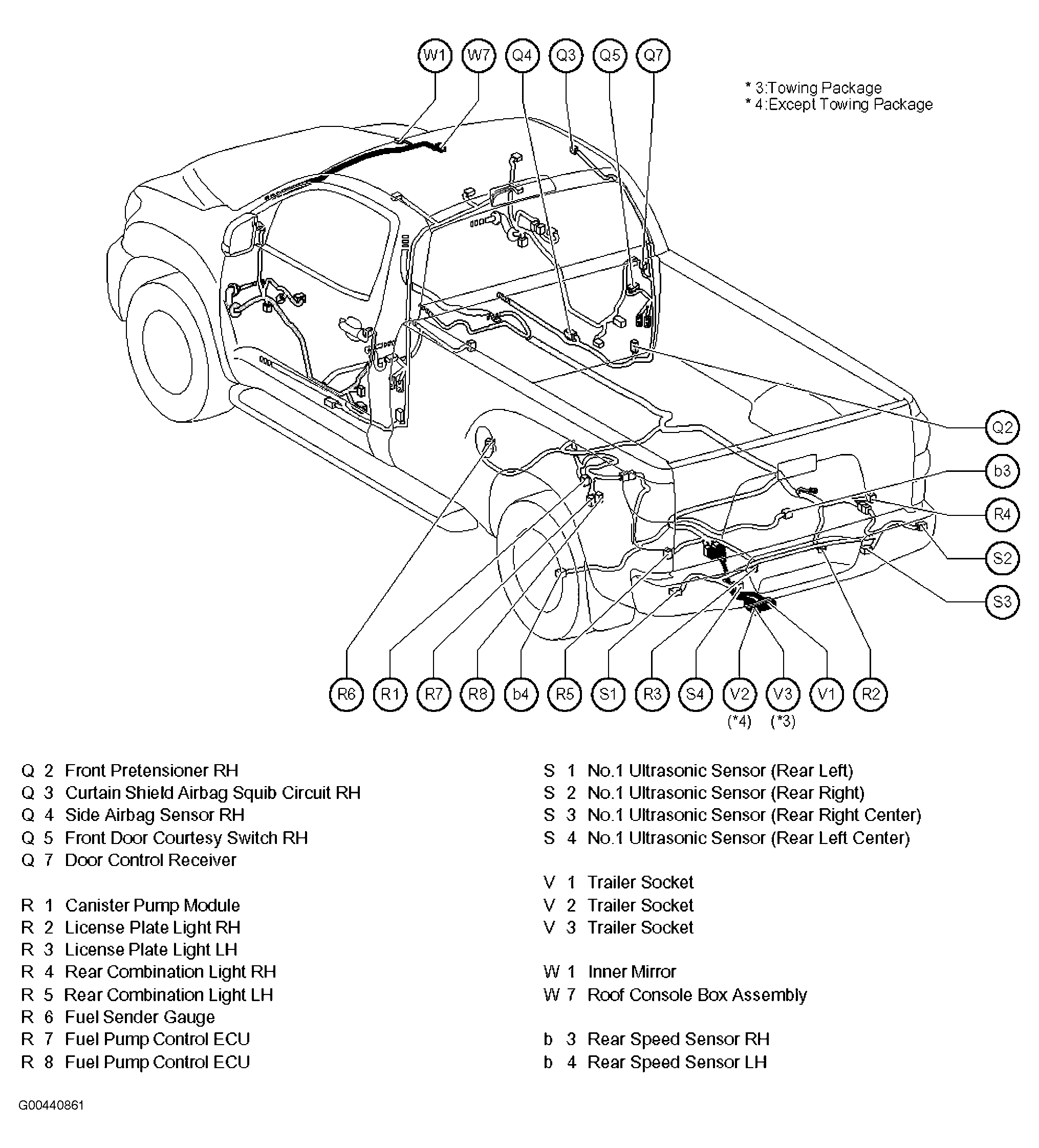

Fig 32: Regular Cab (Regular Cab)

G00440861

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

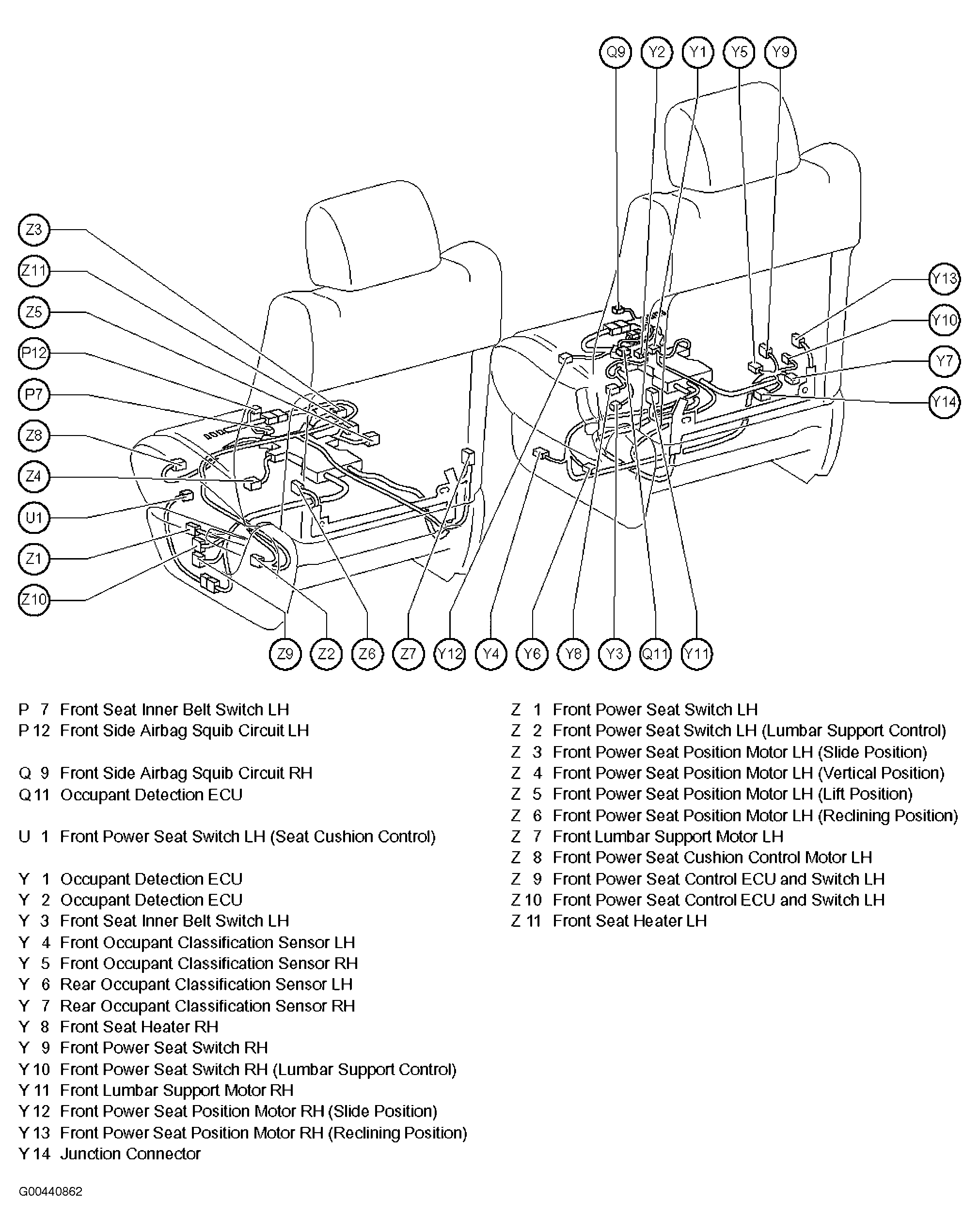

Fig 33: Front Seats (Separate Seat)

G00440862

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

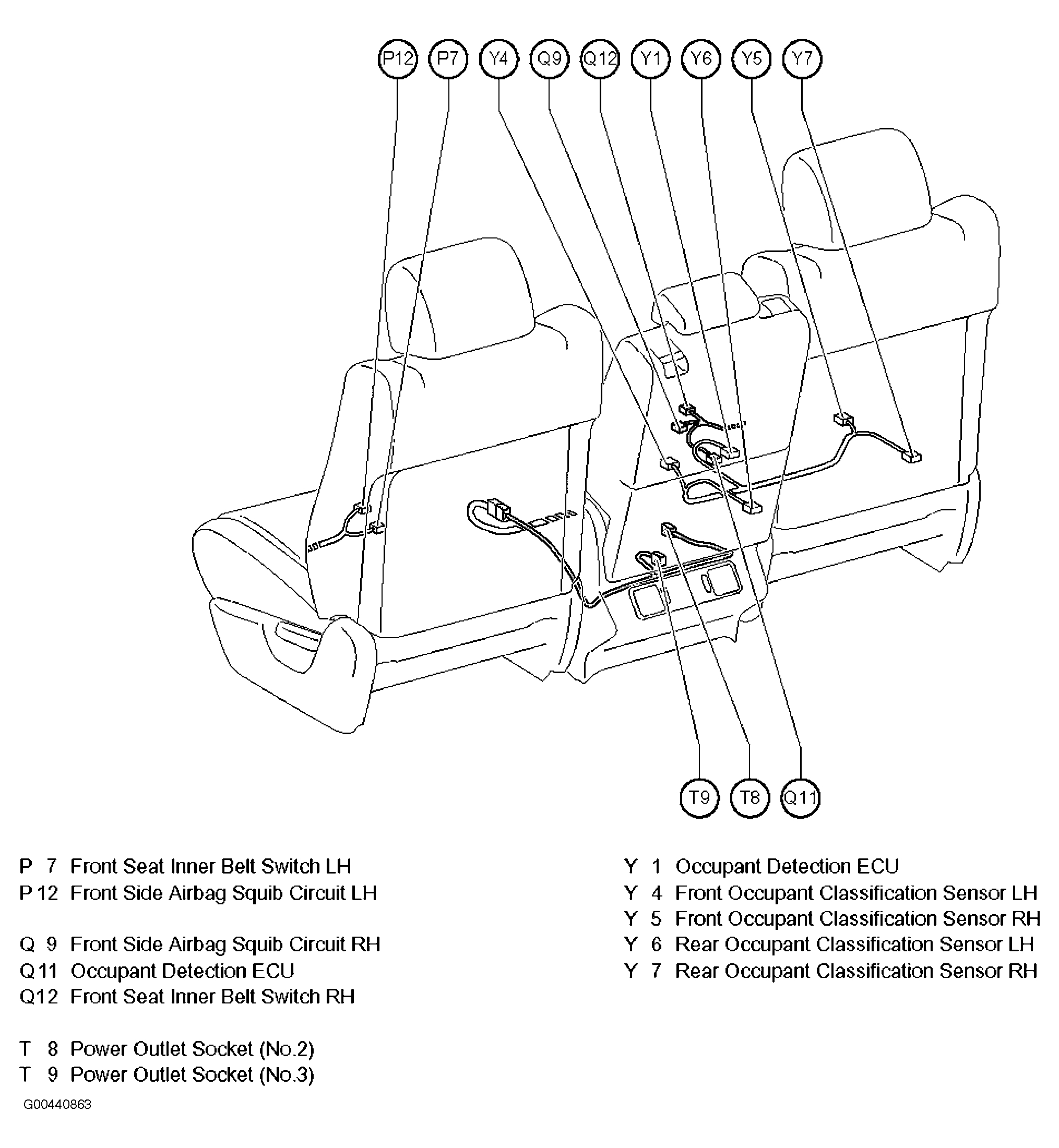

Fig 34: Front Seat (Bench Seat)

G00440863

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

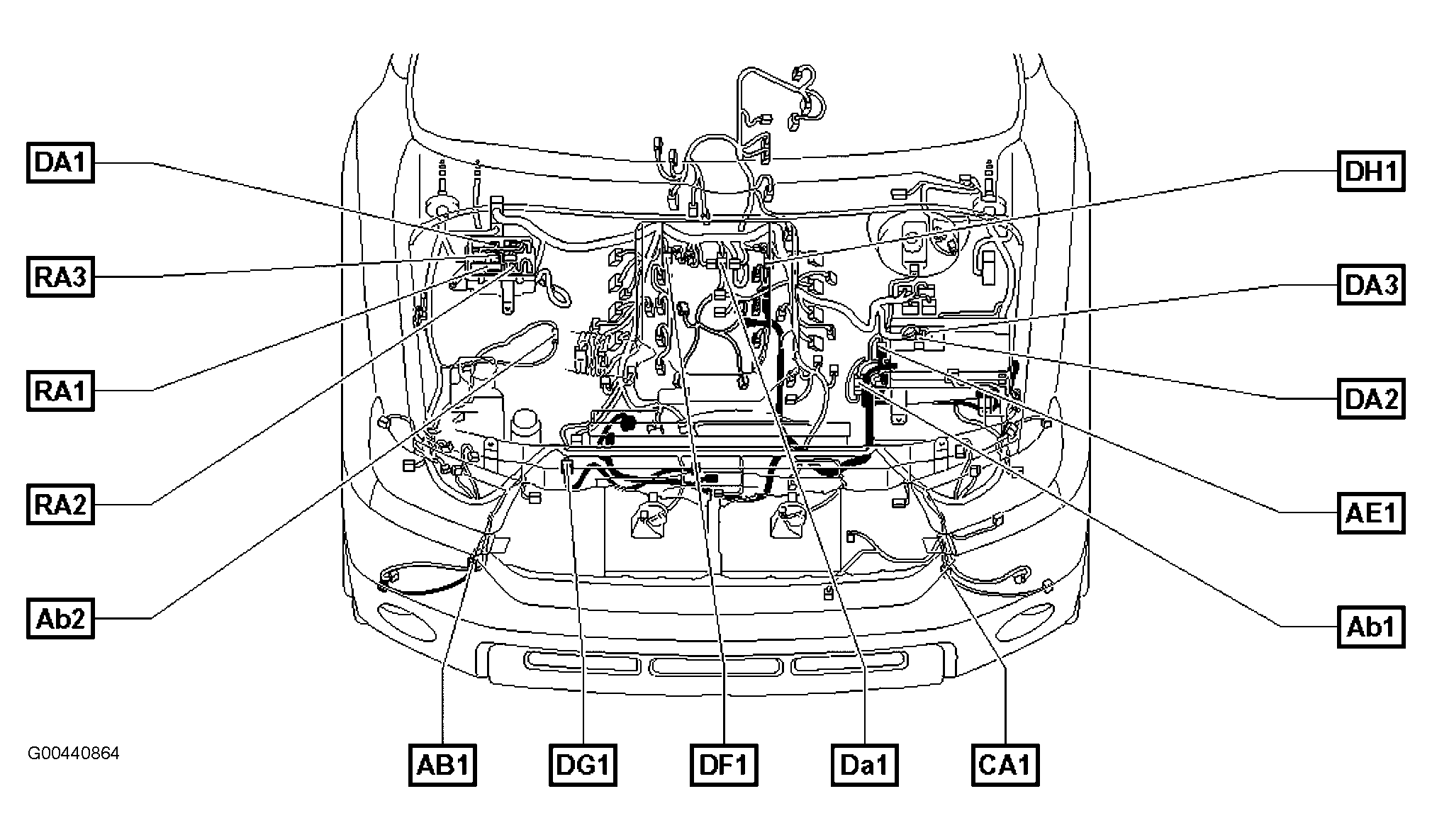

Fig 35: Engine Compartment (3UR-FE)

G00440864

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

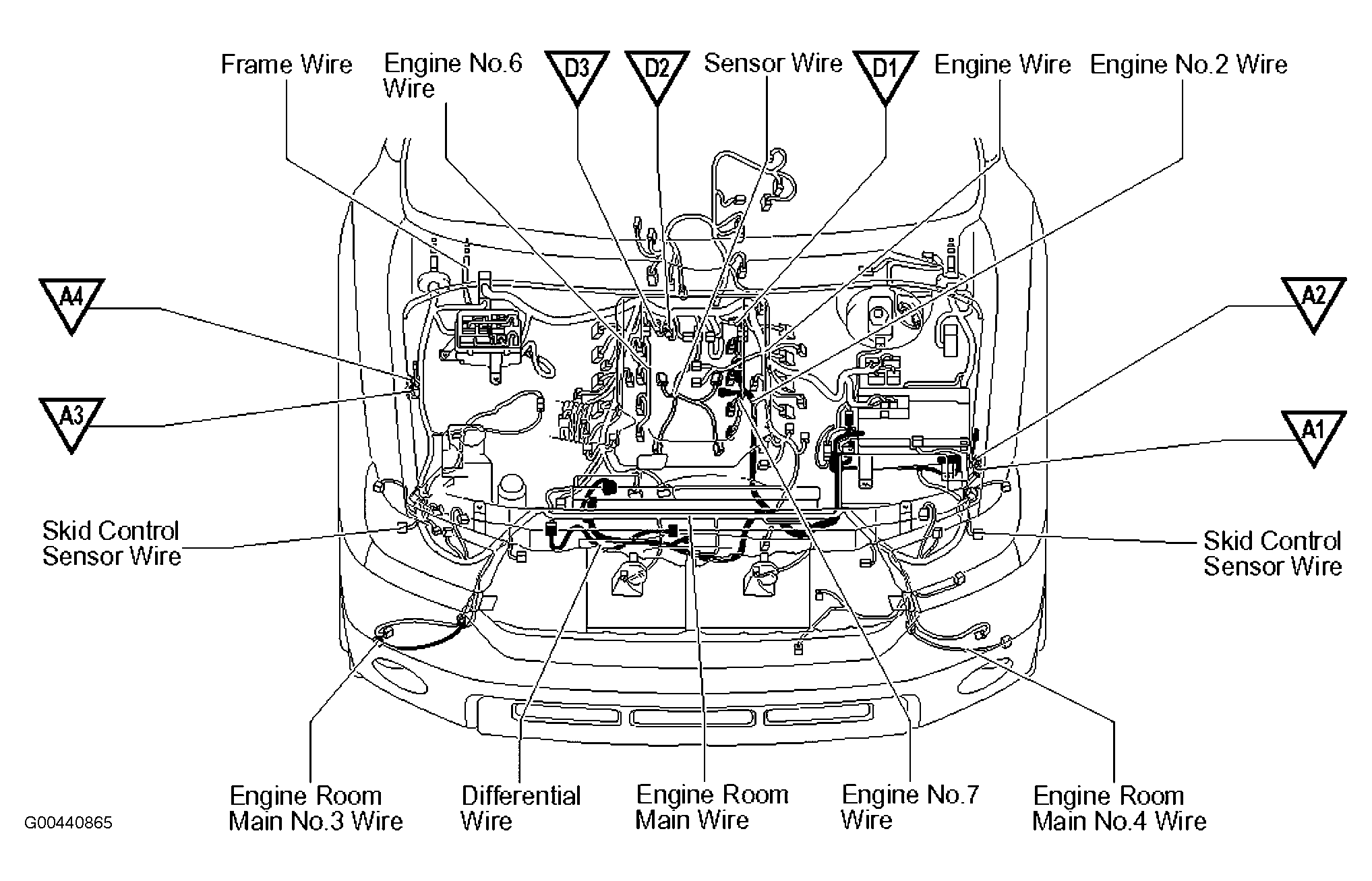

Fig 36: Engine Compartment (3UR-FE)

G00440865

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 37: Engine Compartment (2UZ-FE)

G00440866

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

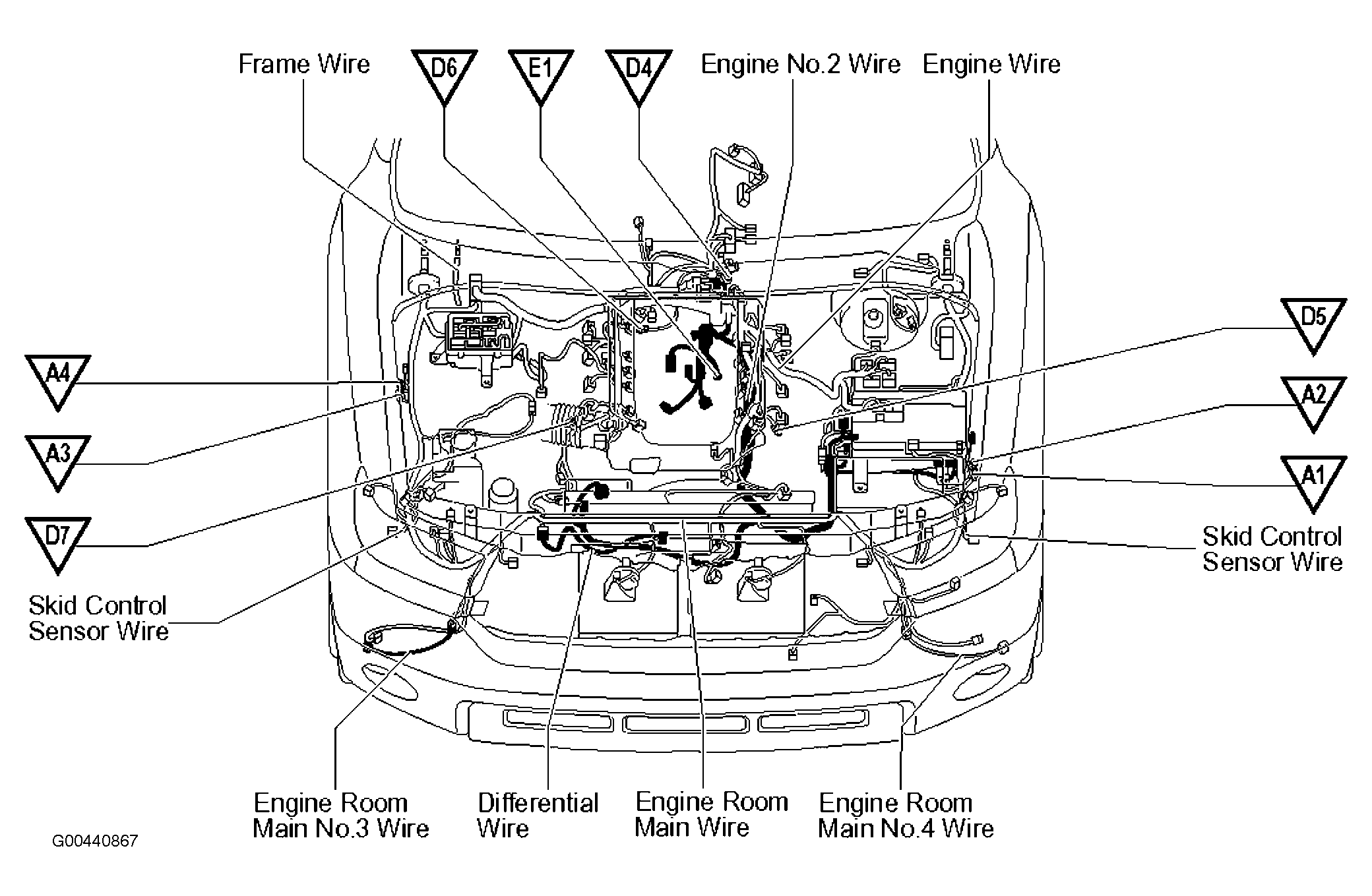

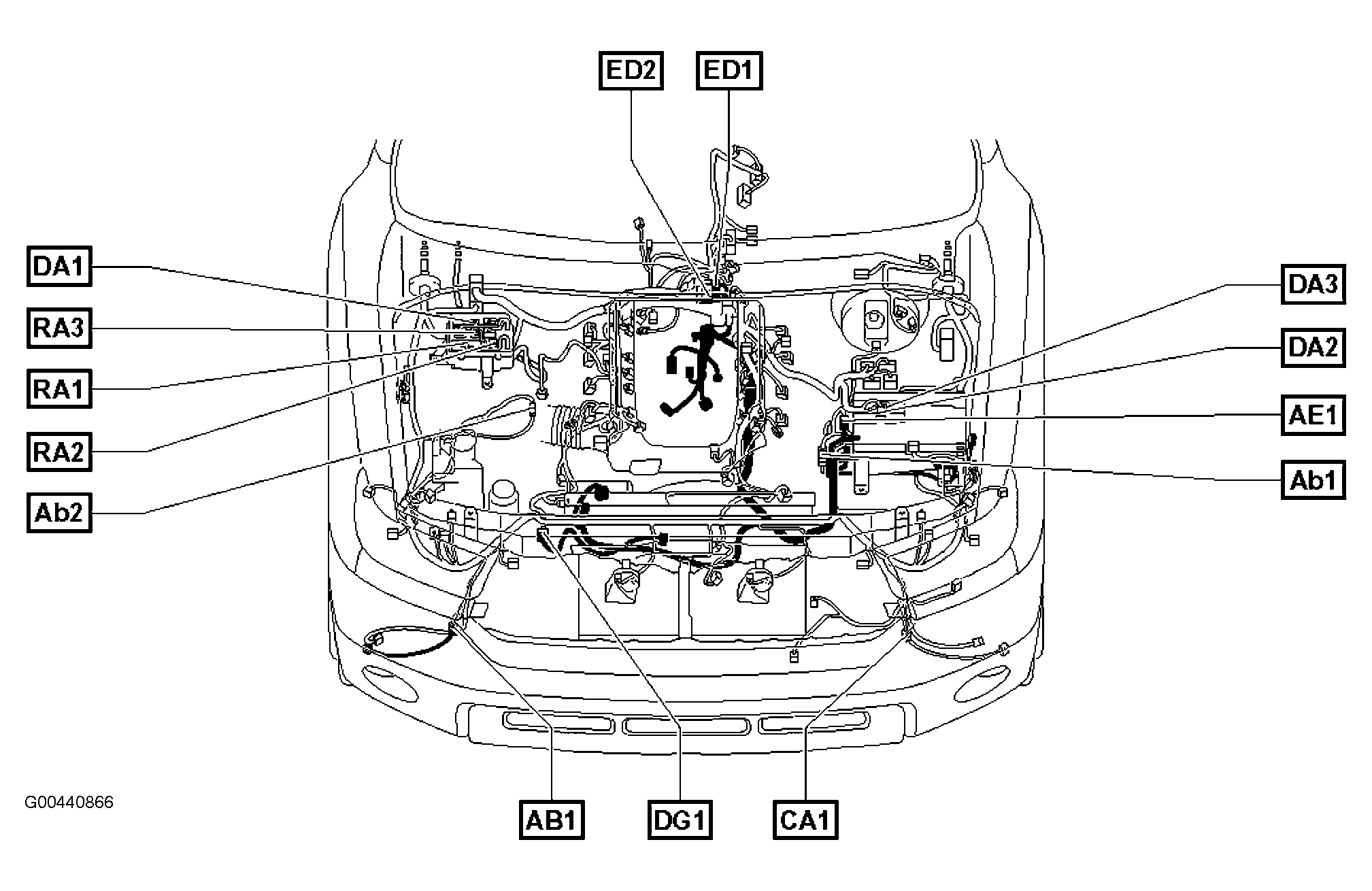

Fig 38: Engine Compartment (2UZ-FE)

G00440867

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

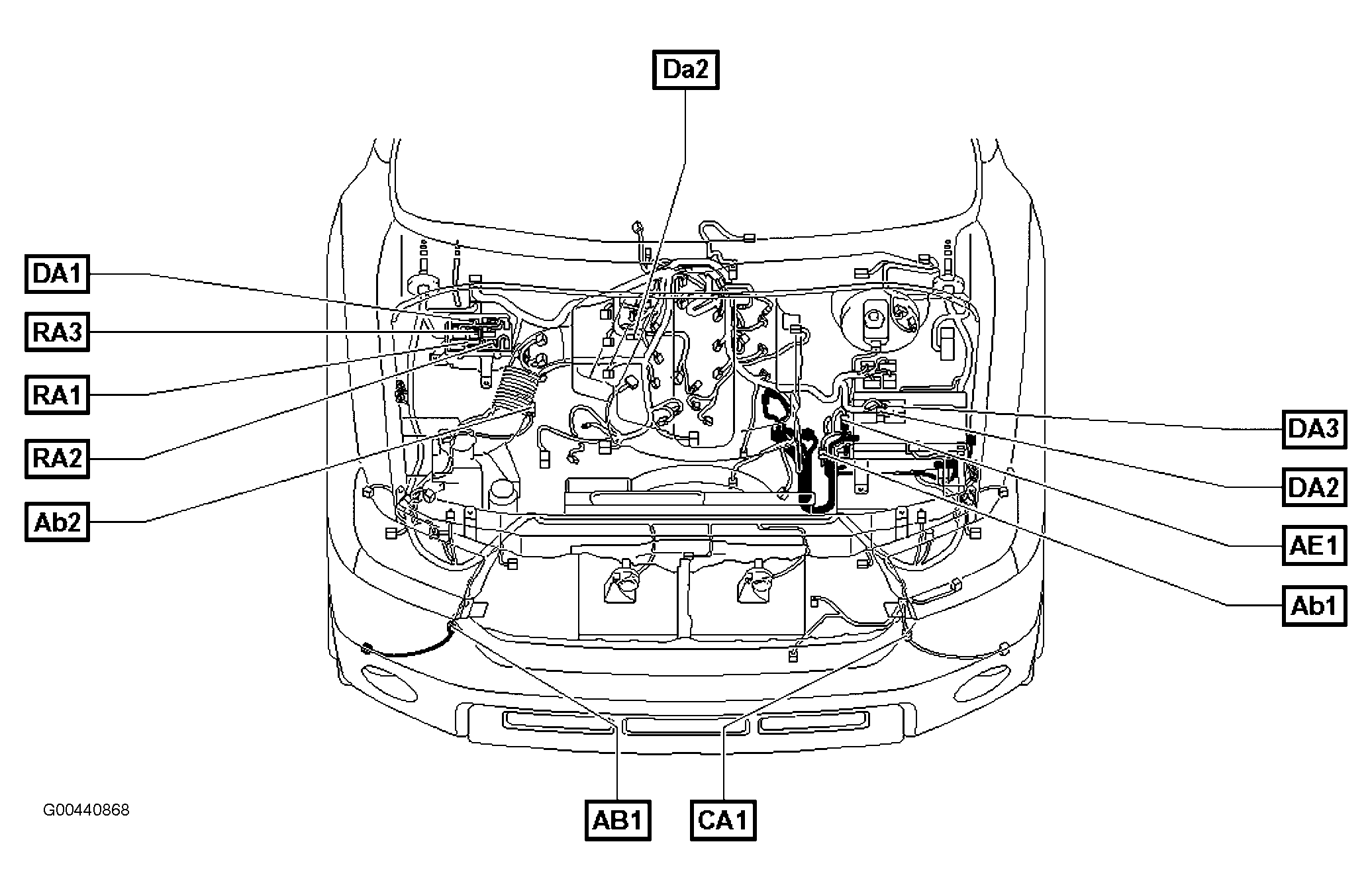

Fig 39: Engine Compartment (1GR-FE)

G00440868

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

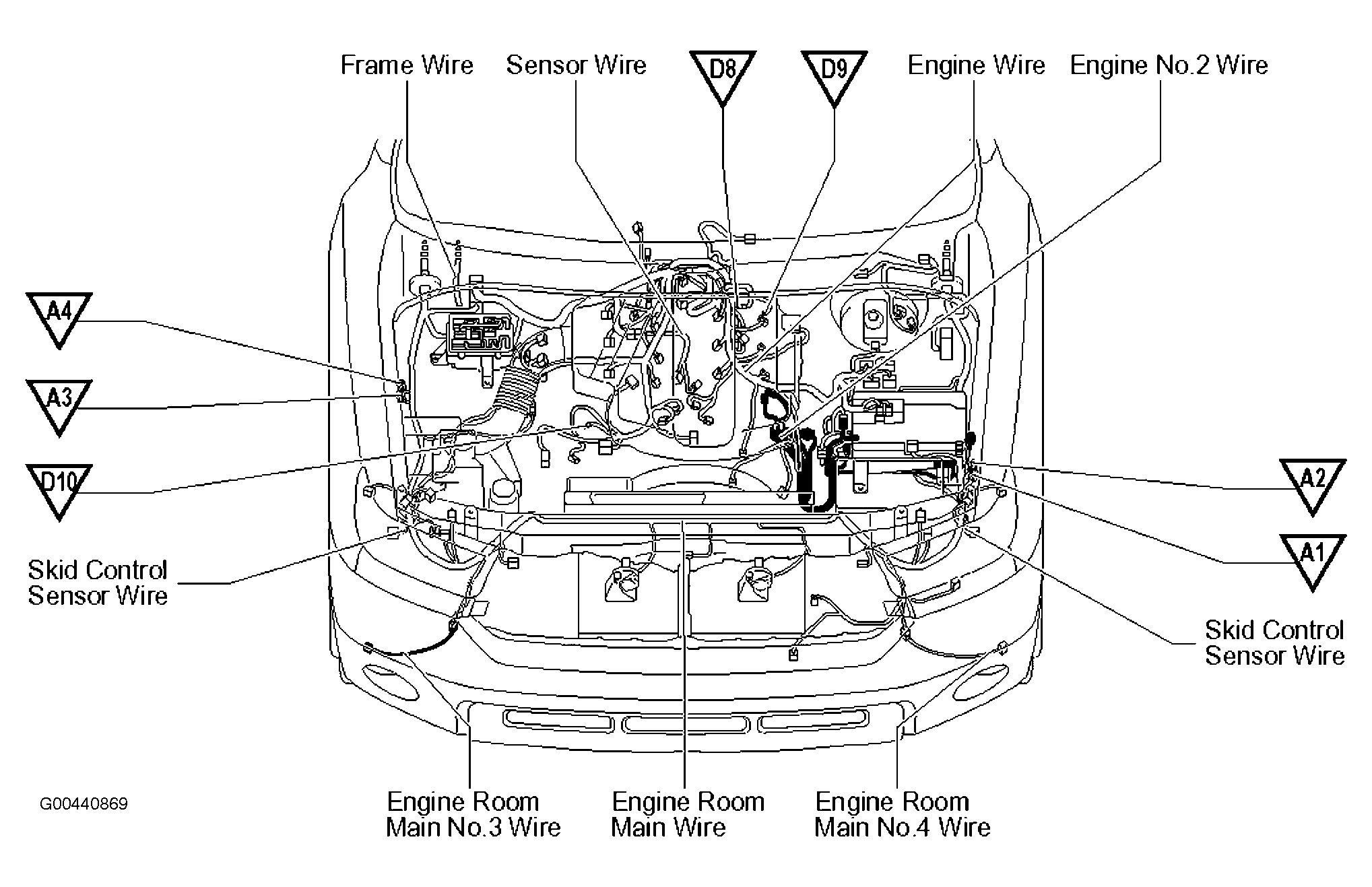

Fig 40: Engine Compartment (1GR-FE)

G00440869

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 41: Dash (Floor Shift)

G00440870

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

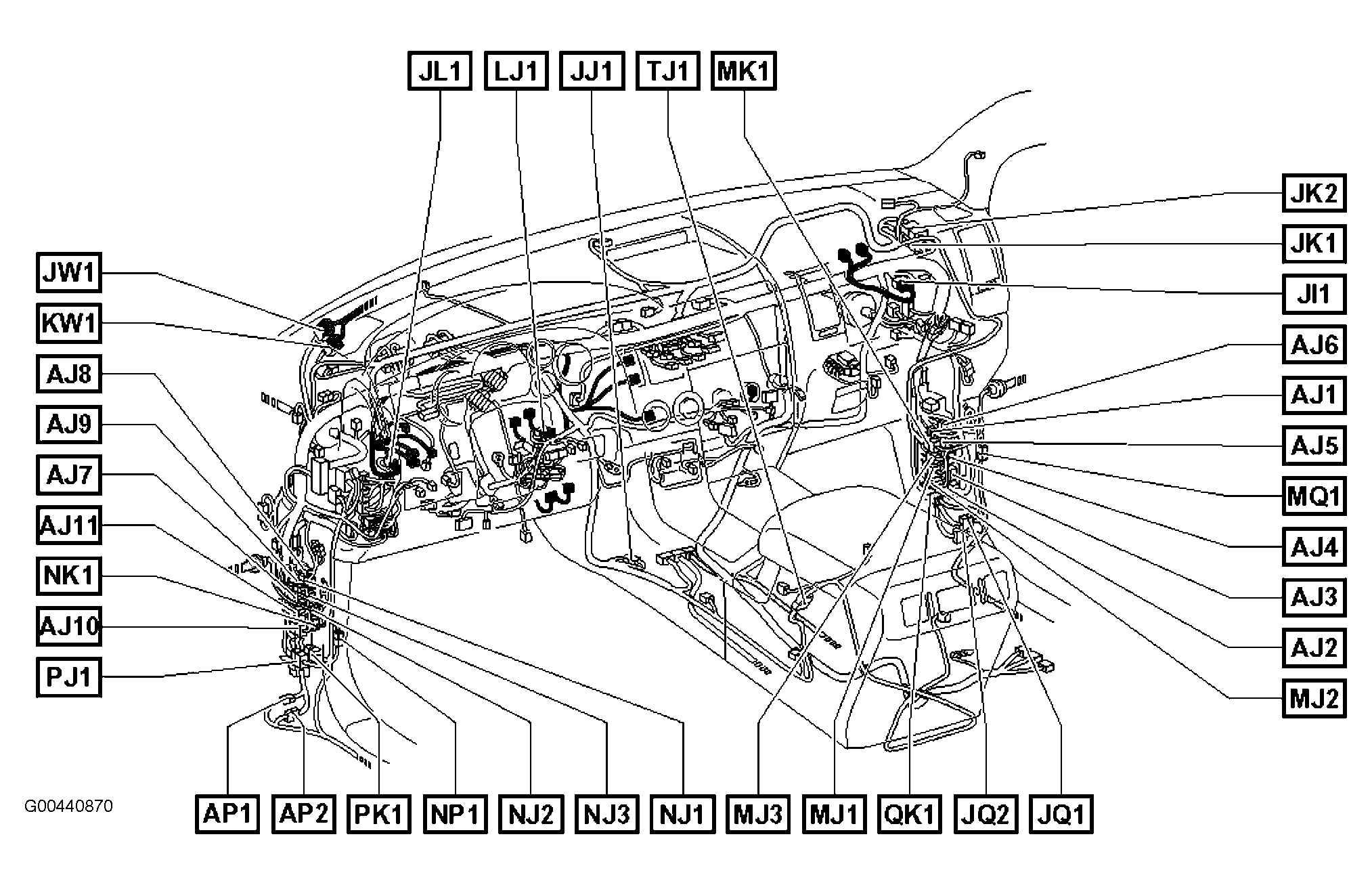

Fig 42: Dash (Floor Shift)

G00440871

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

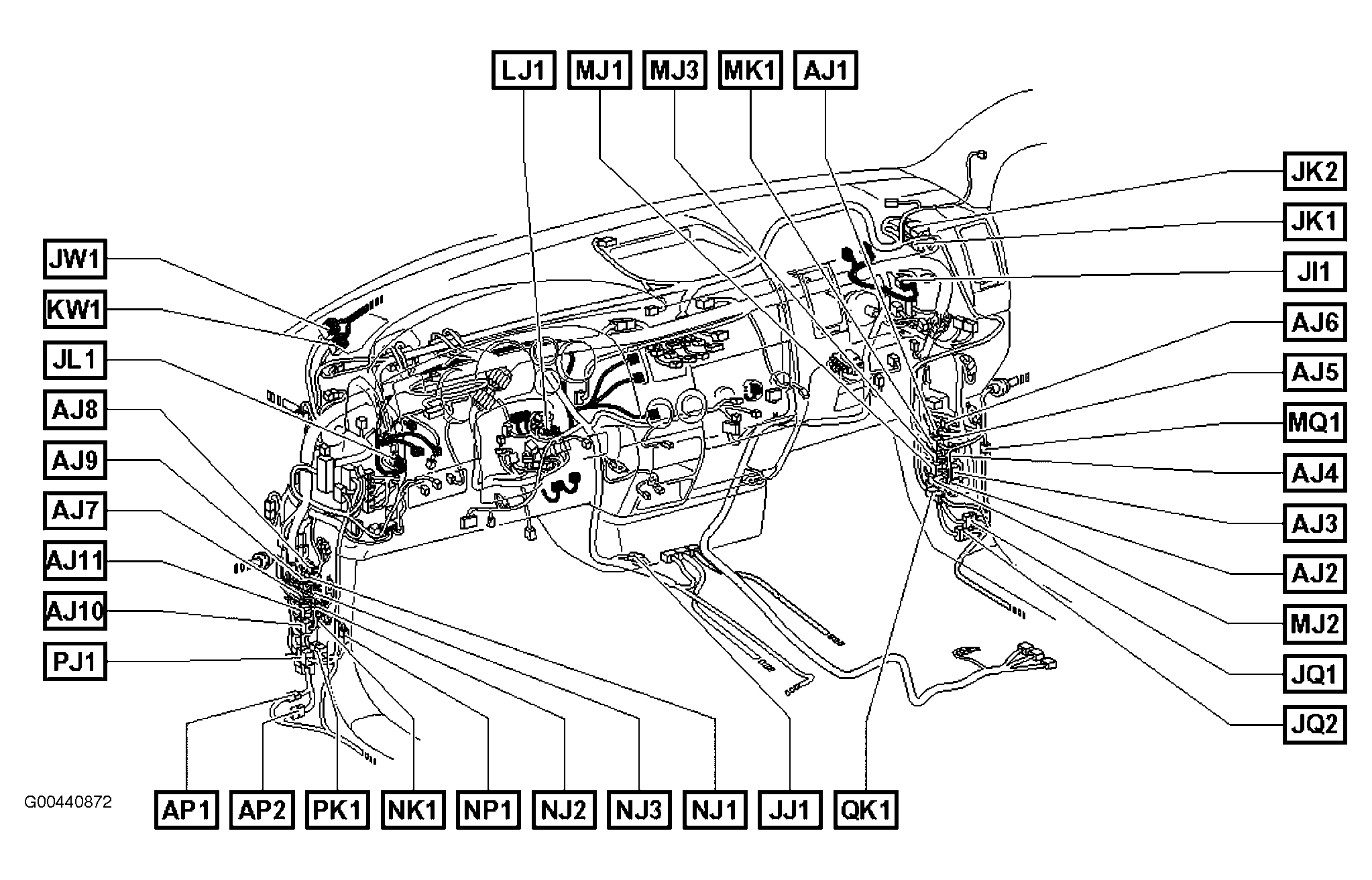

Fig 43: Dash (Column Shift)

G00440872

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

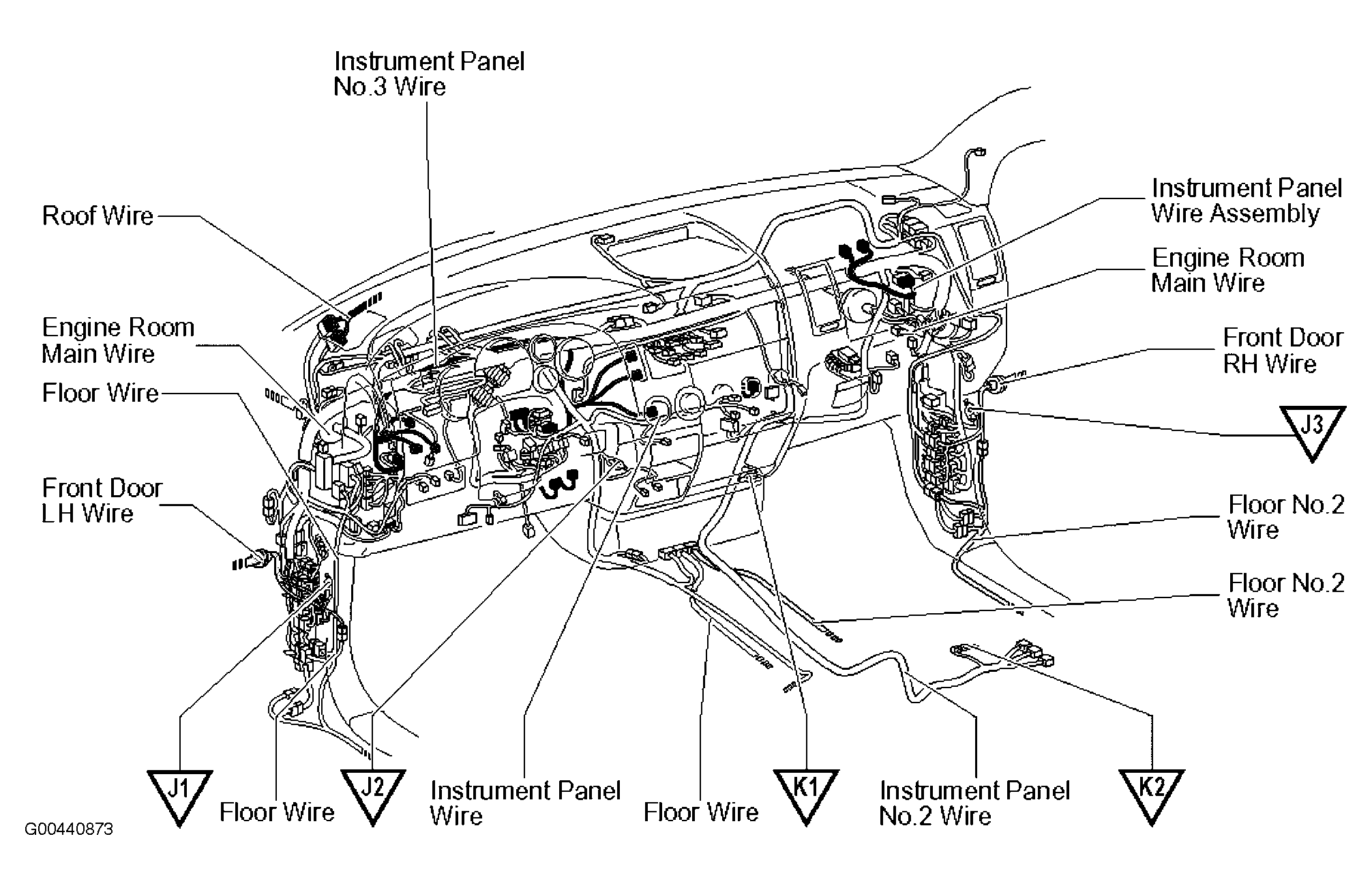

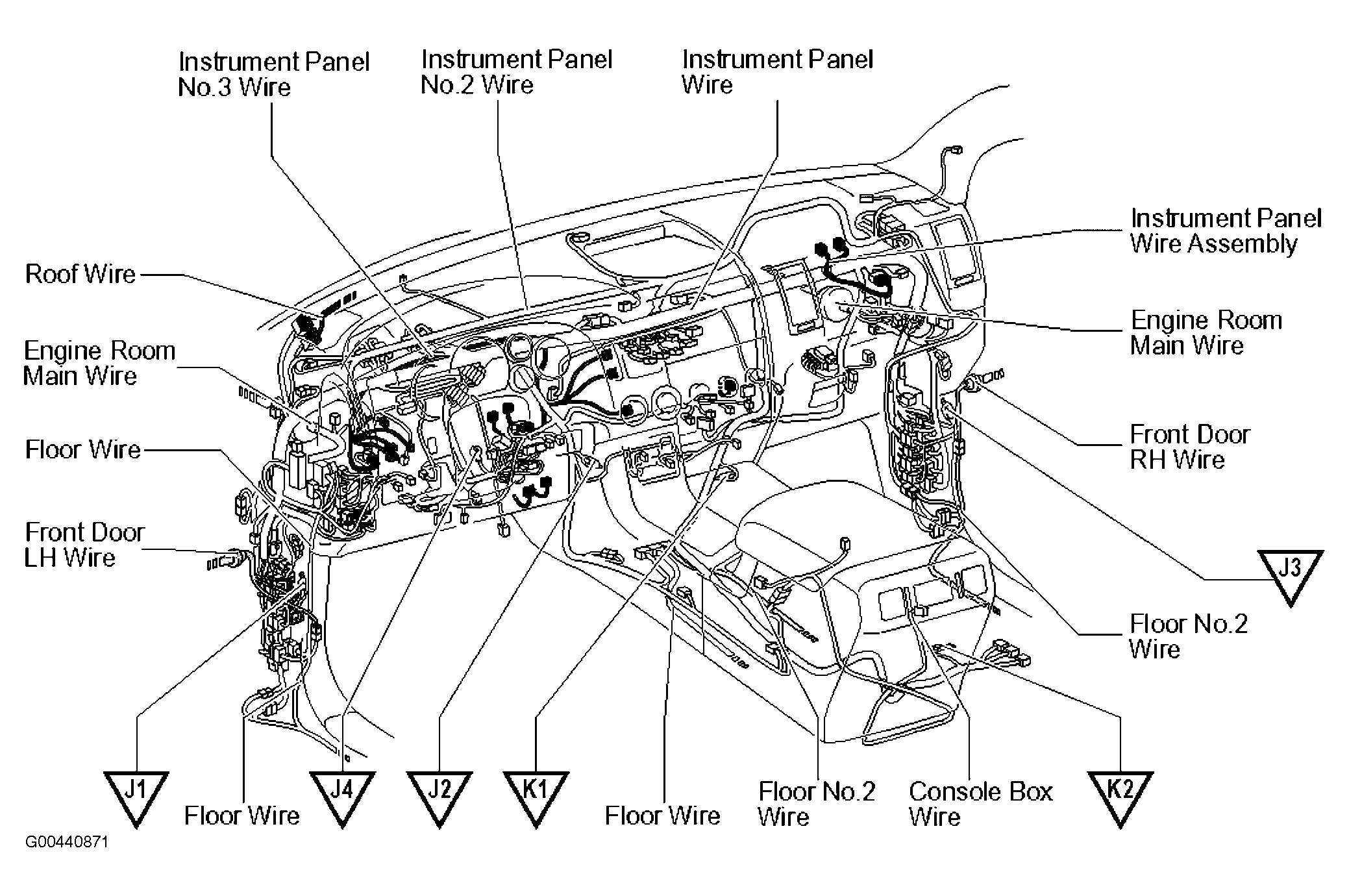

Fig 44: Dash (Column Shift)

G00440873

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

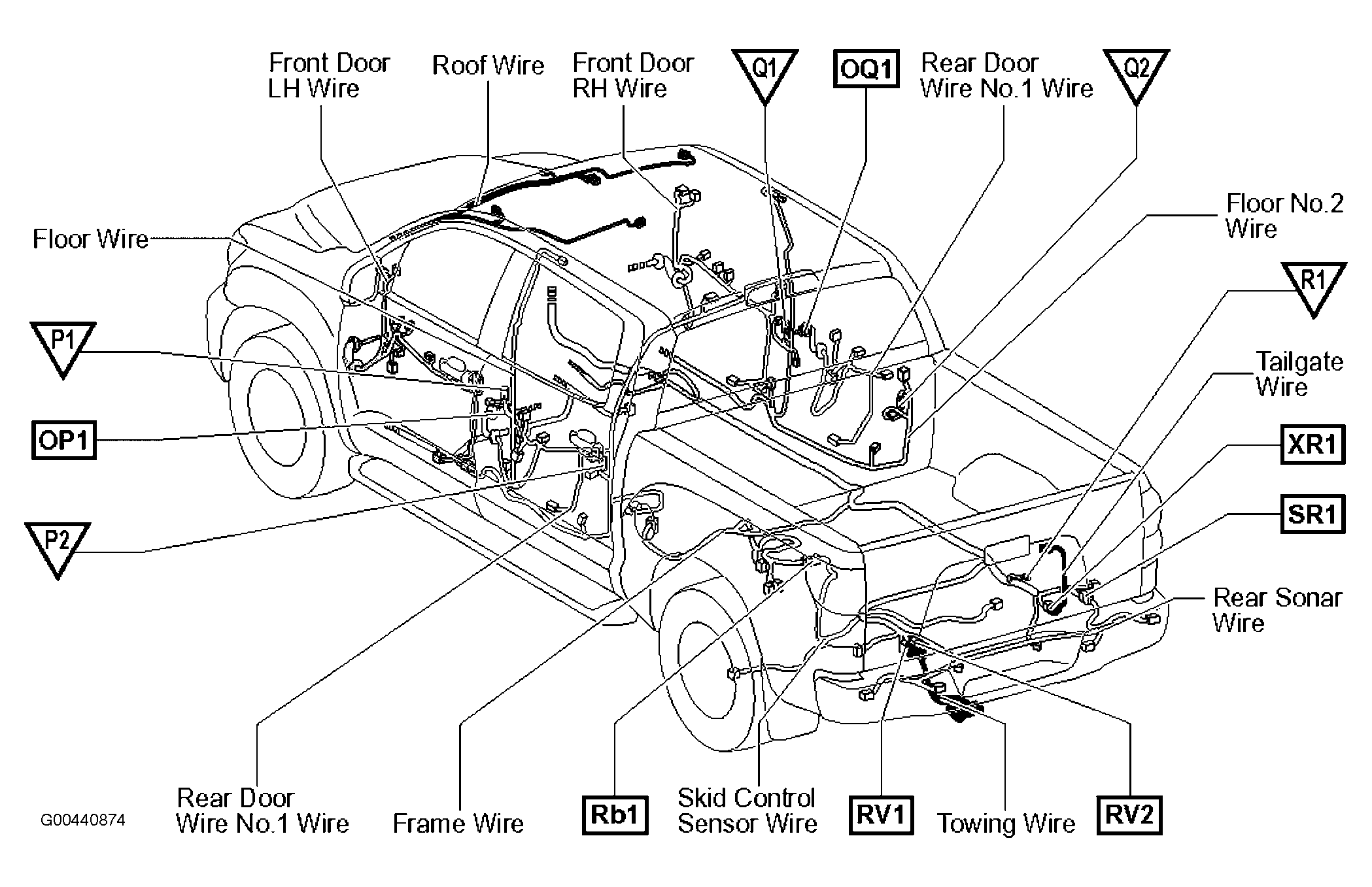

Fig 45: Vehicle Overview (Double Cab)

G00440874

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

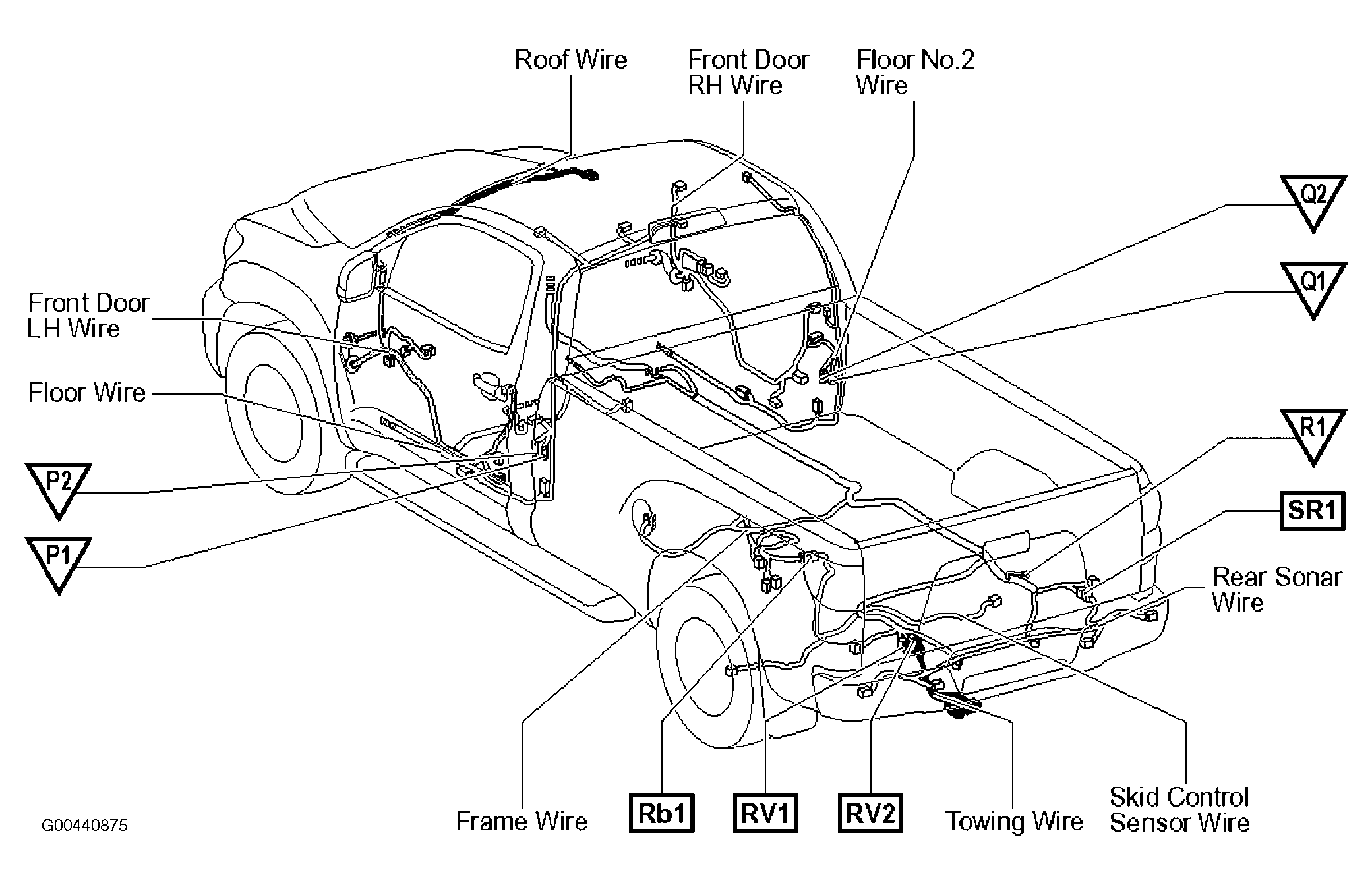

Fig 46: Vehicle Overview (Regular Cab)

G00440875

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

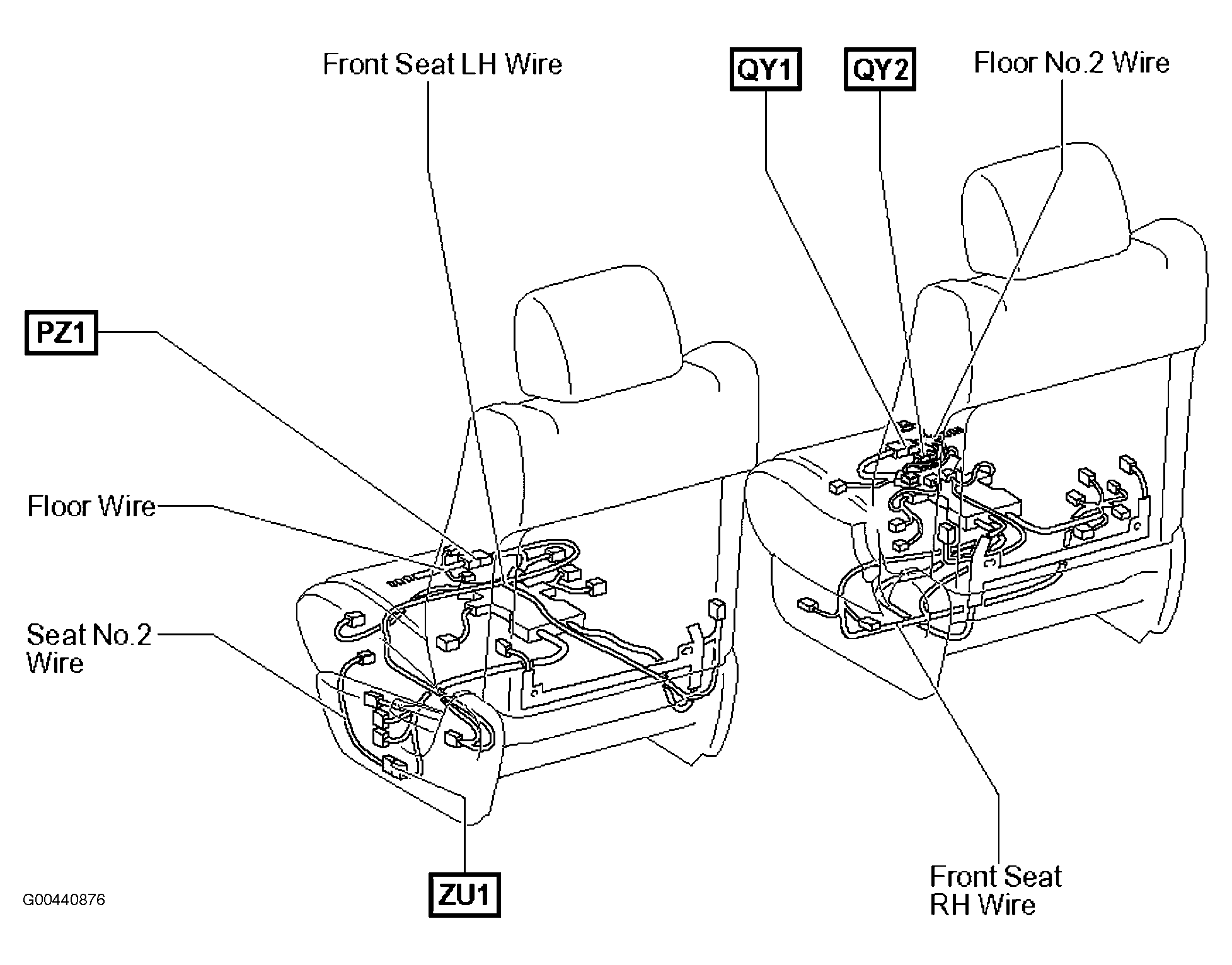

Fig 47: Separate Seat

G00440876

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

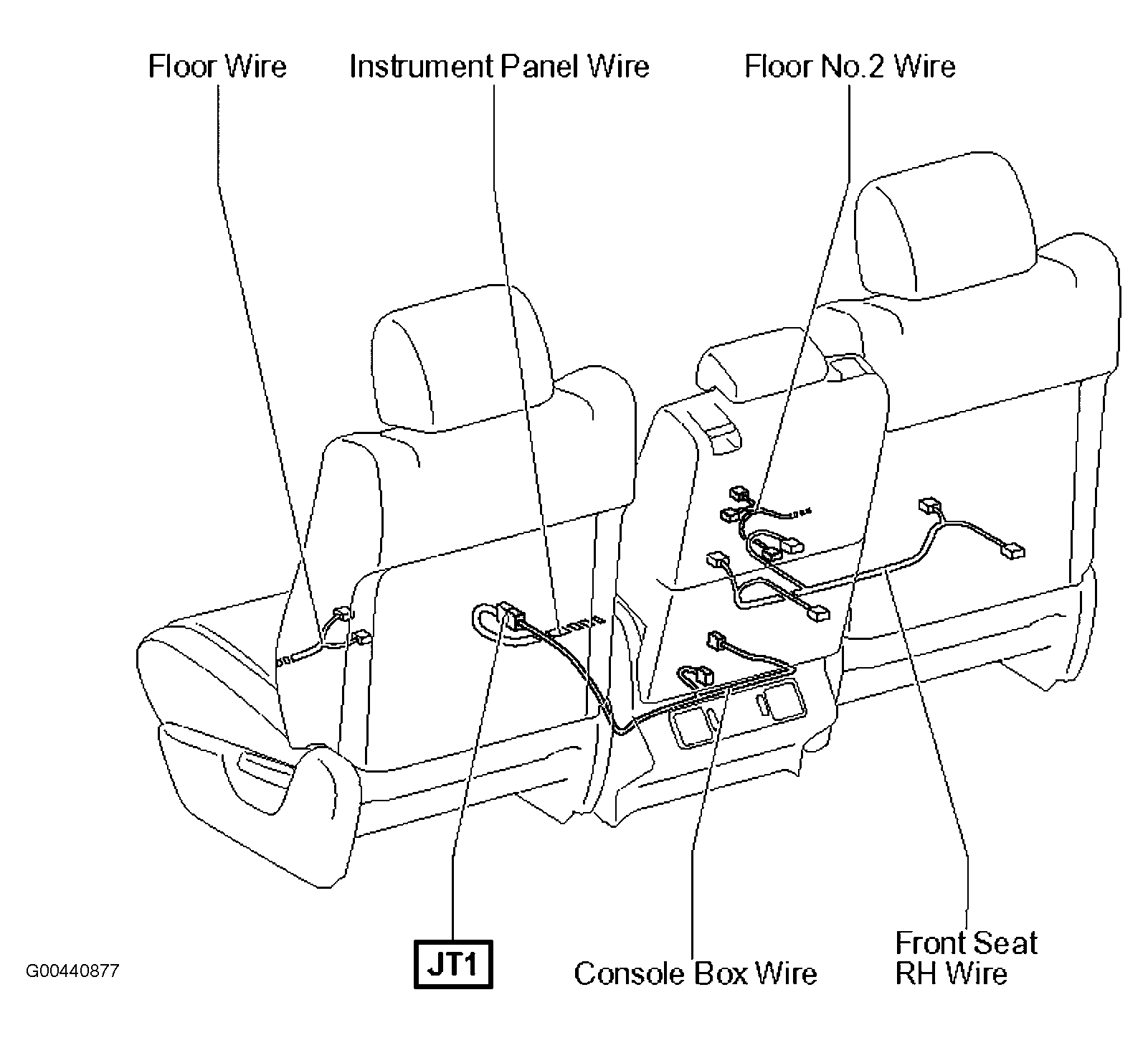

Fig 48: Bench Seat

G00440877

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

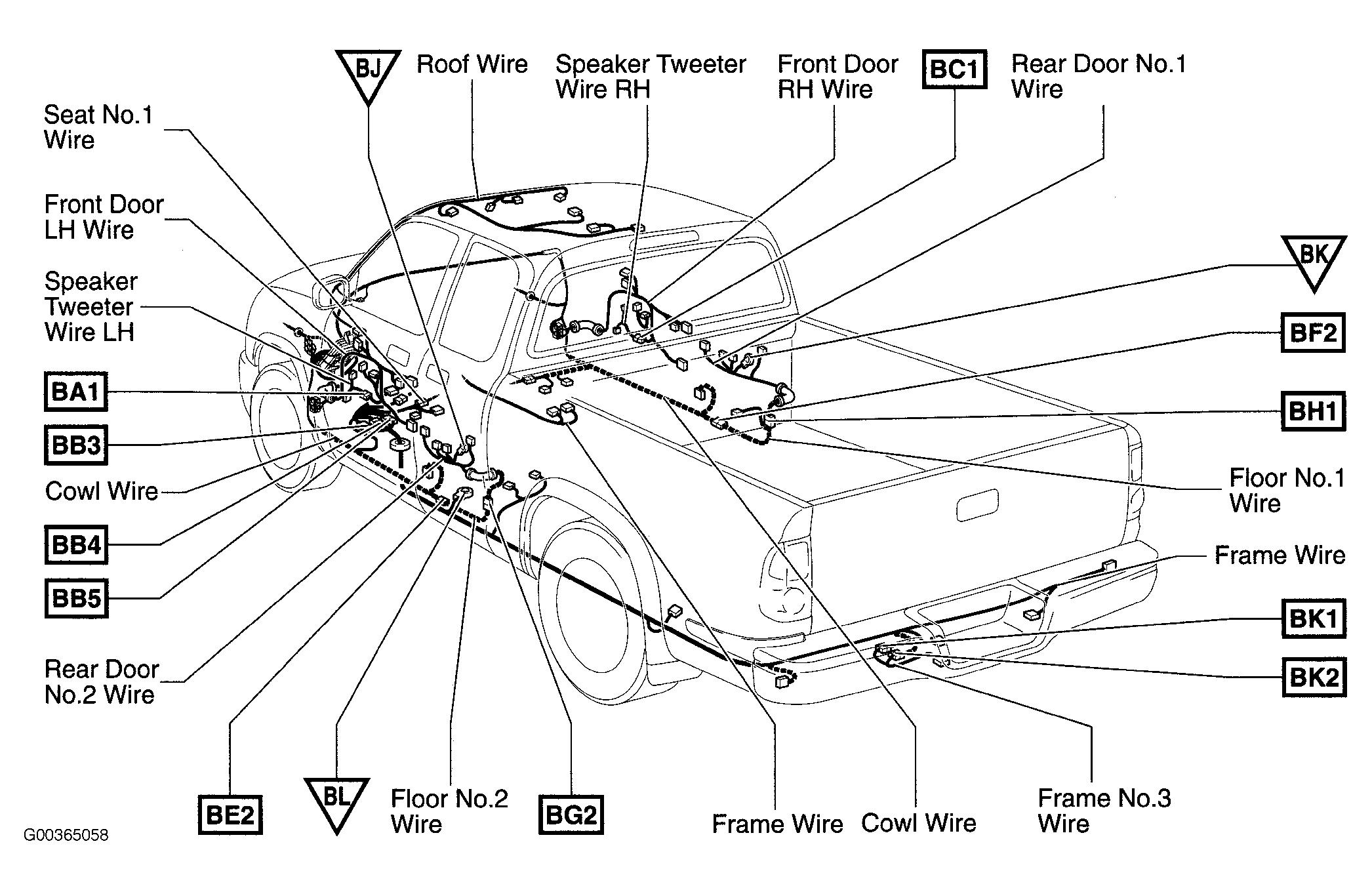

Fig 49: Left Side Of Vehicle

G00365058

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
