Tire Pressure Warning System: Notes

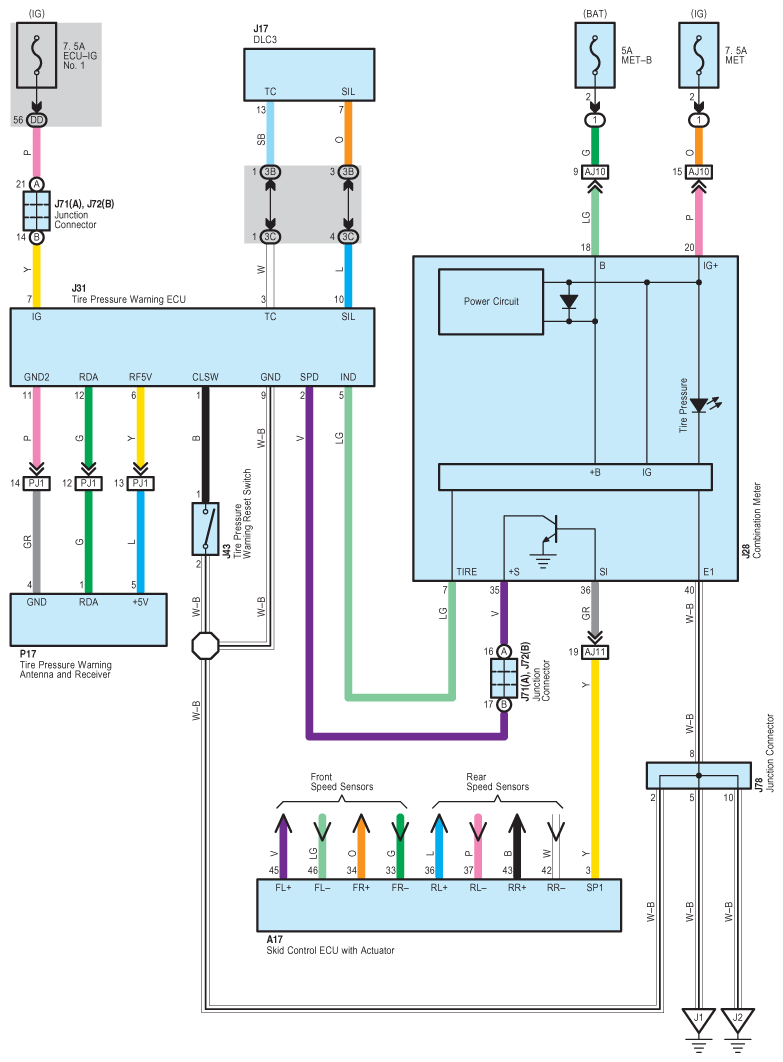

Fig 1: Tire Pressure Warning System Wiring Diagram

G08790949

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
