Sliding Roof: Notes

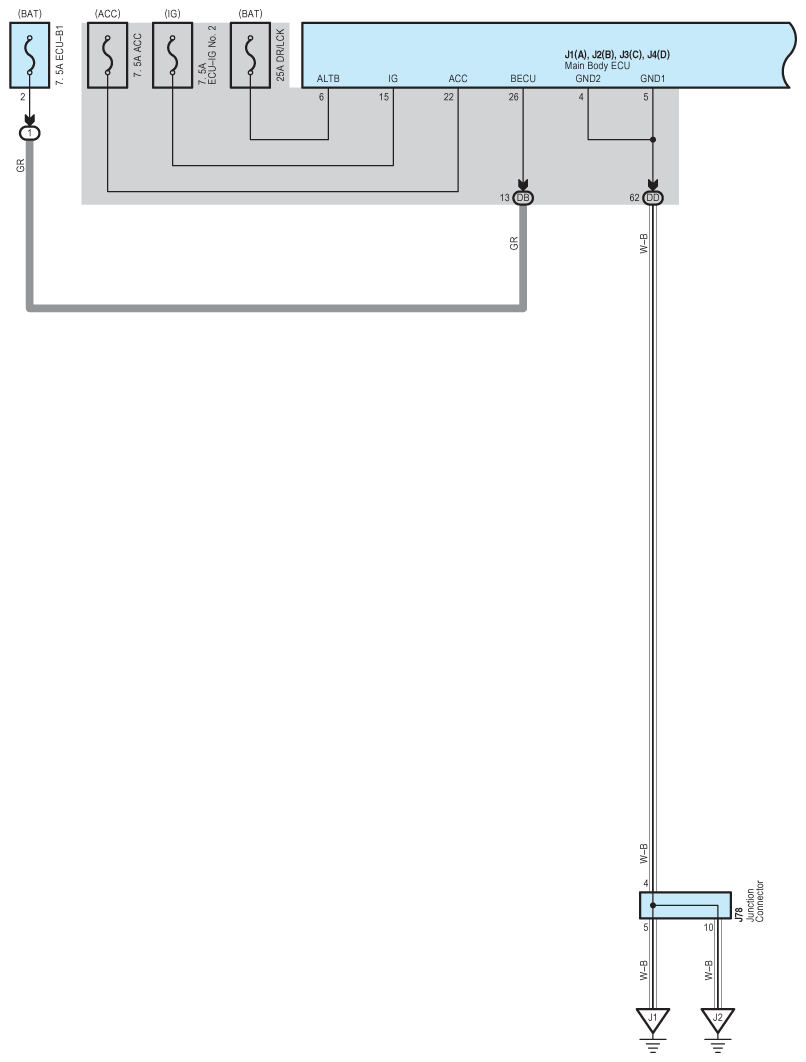

Fig 1: Sliding Roof System Wiring Diagram (1 Of 3)
G08791029Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

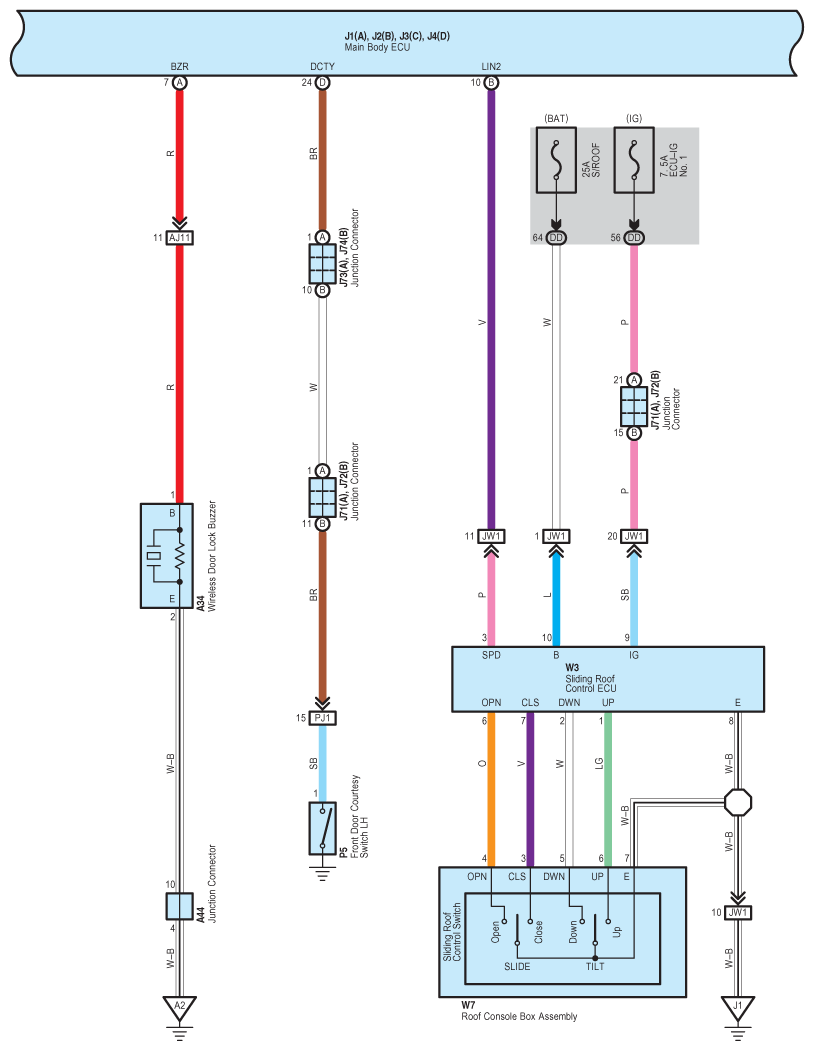

Fig 2: Sliding Roof System Wiring Diagram (2 Of 3)
G08791030Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

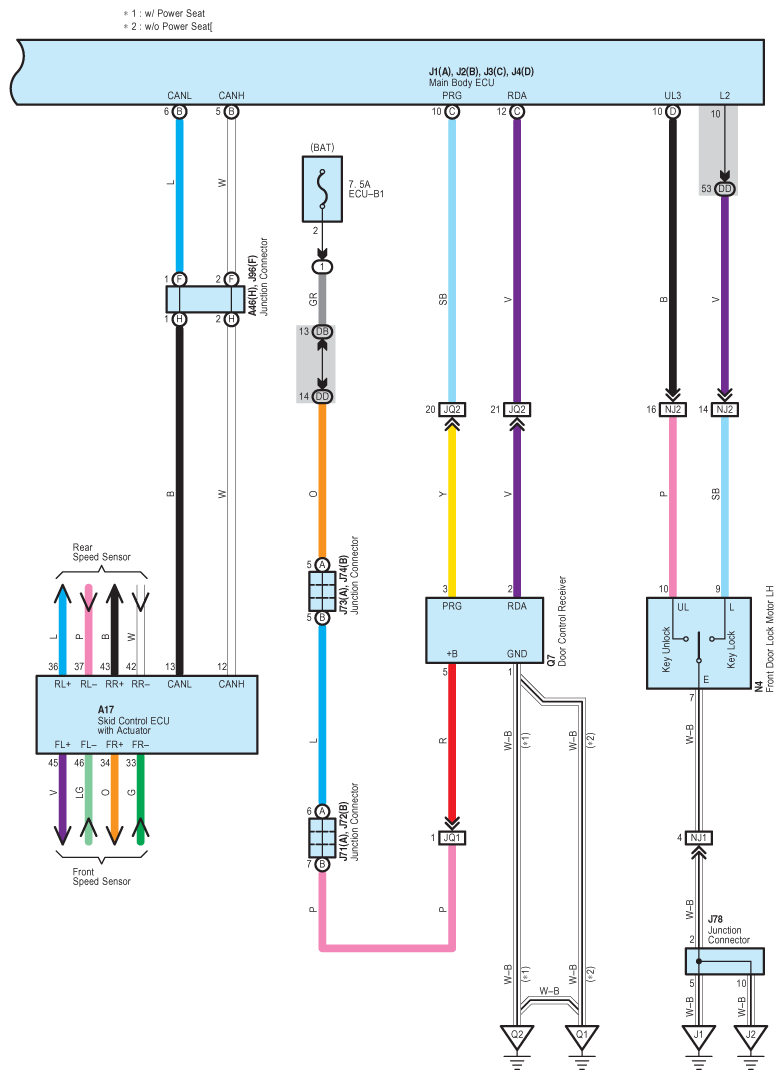

Fig 3: Sliding Roof System Wiring Diagram (3 Of 3)
G08791031Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
