Remote Control Mirror without Seat Position Memory: Notes

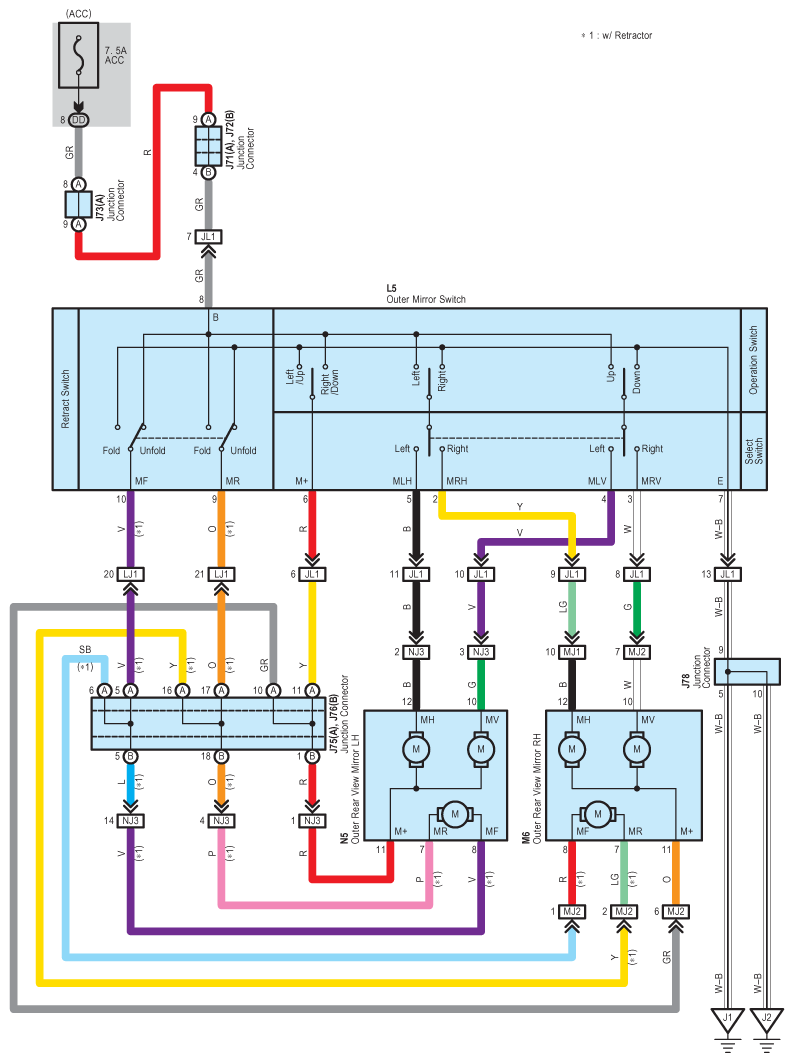

Fig 1: Remote Control Mirror Without Seat Position Memory System Wiring Diagram

G08791016

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
