Ignition for 1GR-FE: Notes

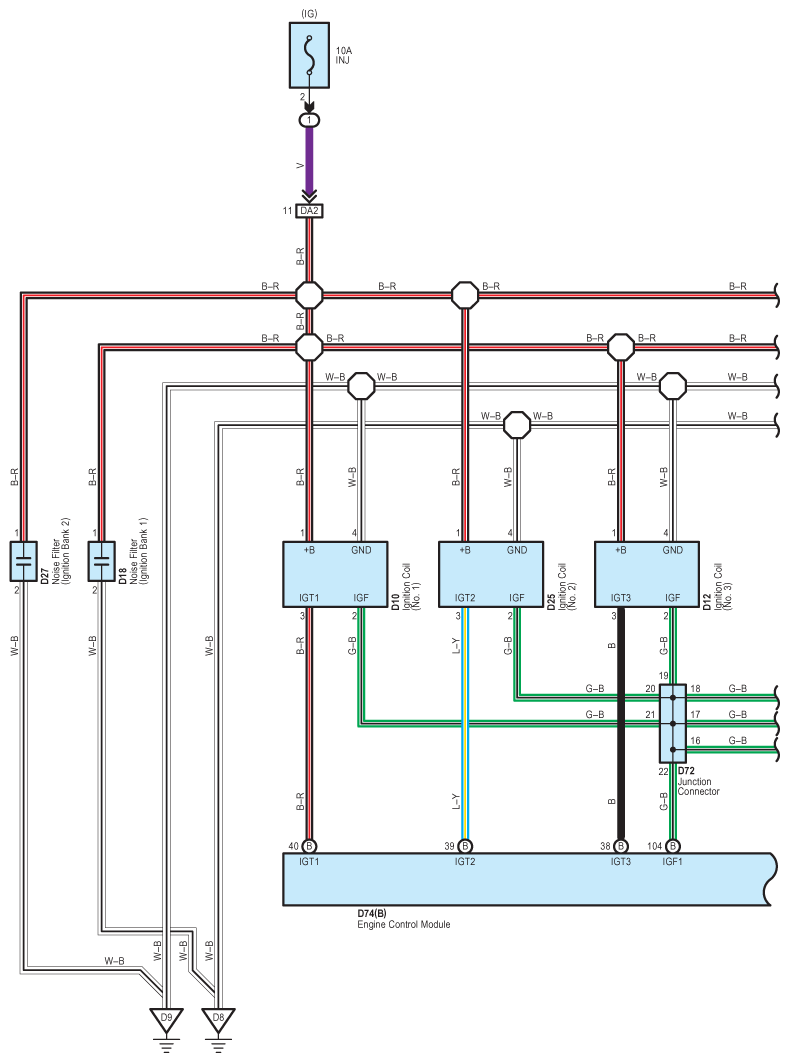

Fig 1: Ignition System Wiring Diagram (1GR-FE; 1 Of 2)
G08790842Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

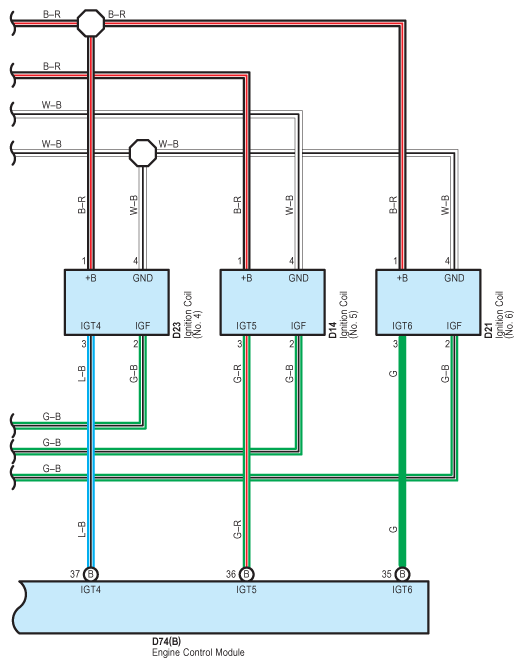

Fig 2: Ignition System Wiring Diagram (1GR-FE; 2 Of 2)
G08790843Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
