Front Fog Light: Notes

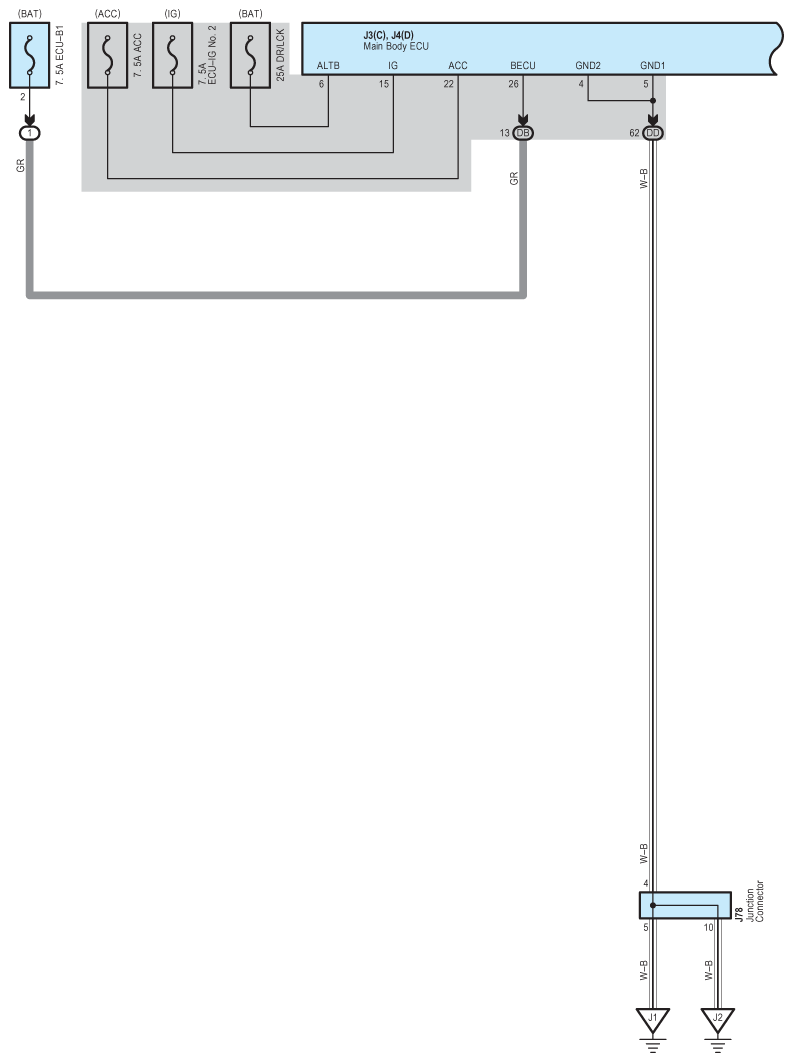

Fig 1: Front Fog Light System Wiring Diagram (1 Of 3)
G08790890Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

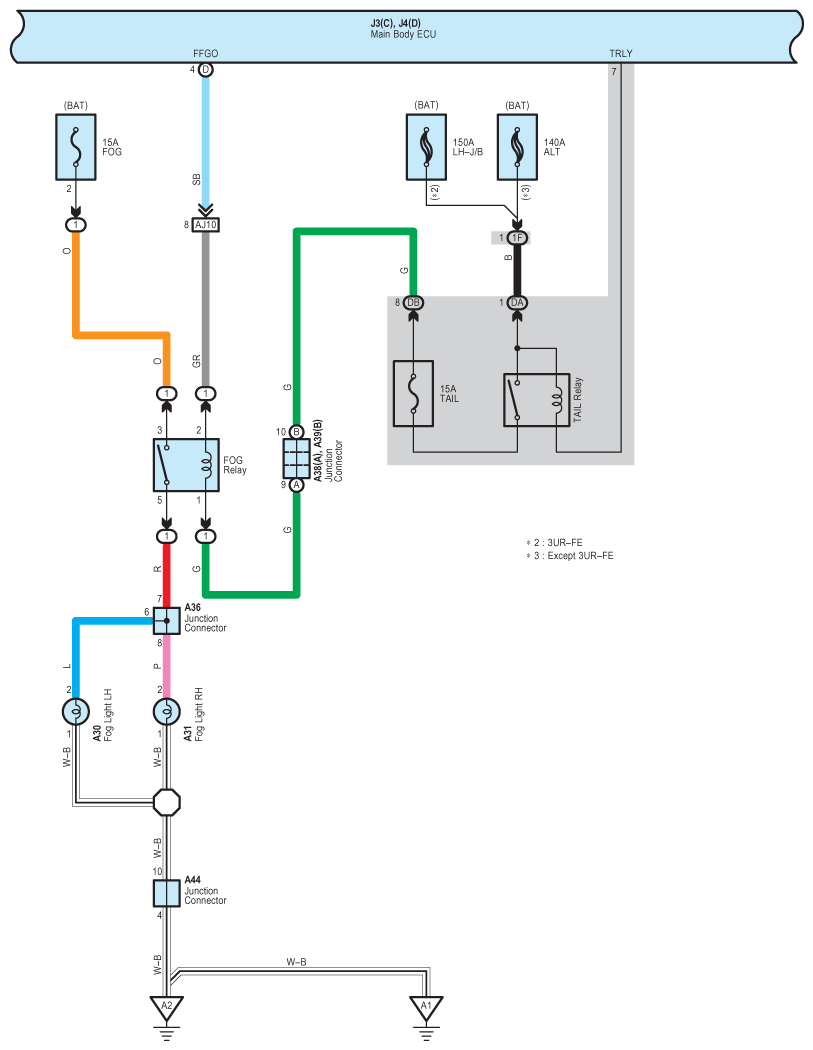

Fig 2: Front Fog Light System Wiring Diagram (2 Of 3)
G08790891Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

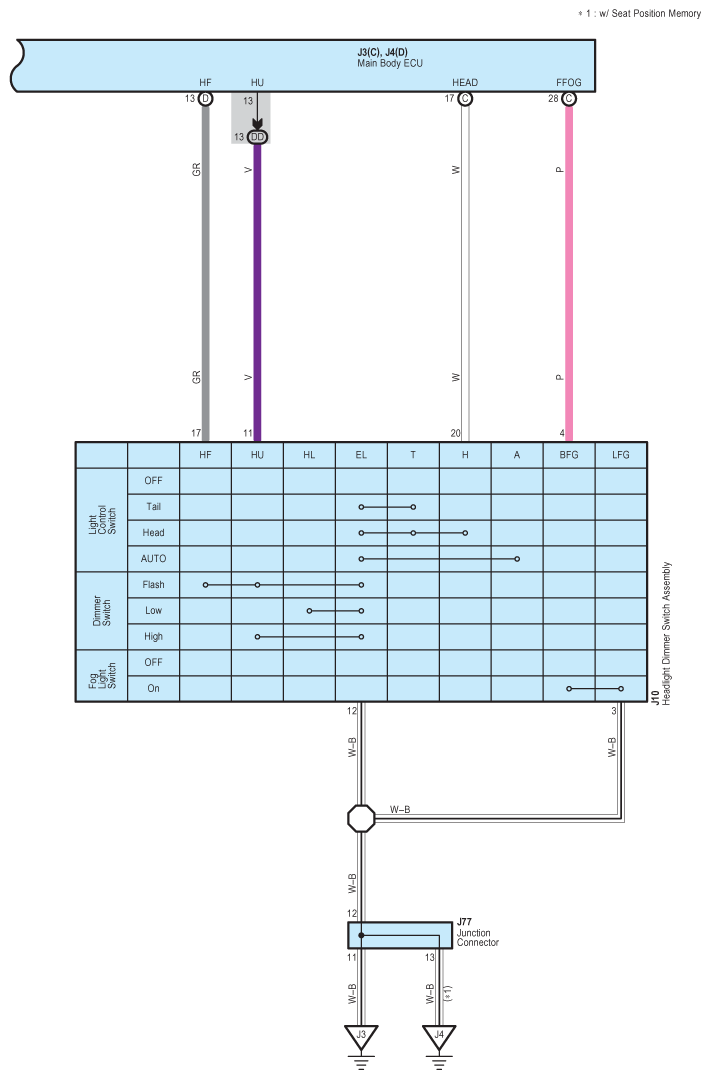

Fig 3: Front Fog Light System Wiring Diagram (3 Of 3)
G08790892Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
