ECT and A/T Indicator for 2UZ-FE: Notes

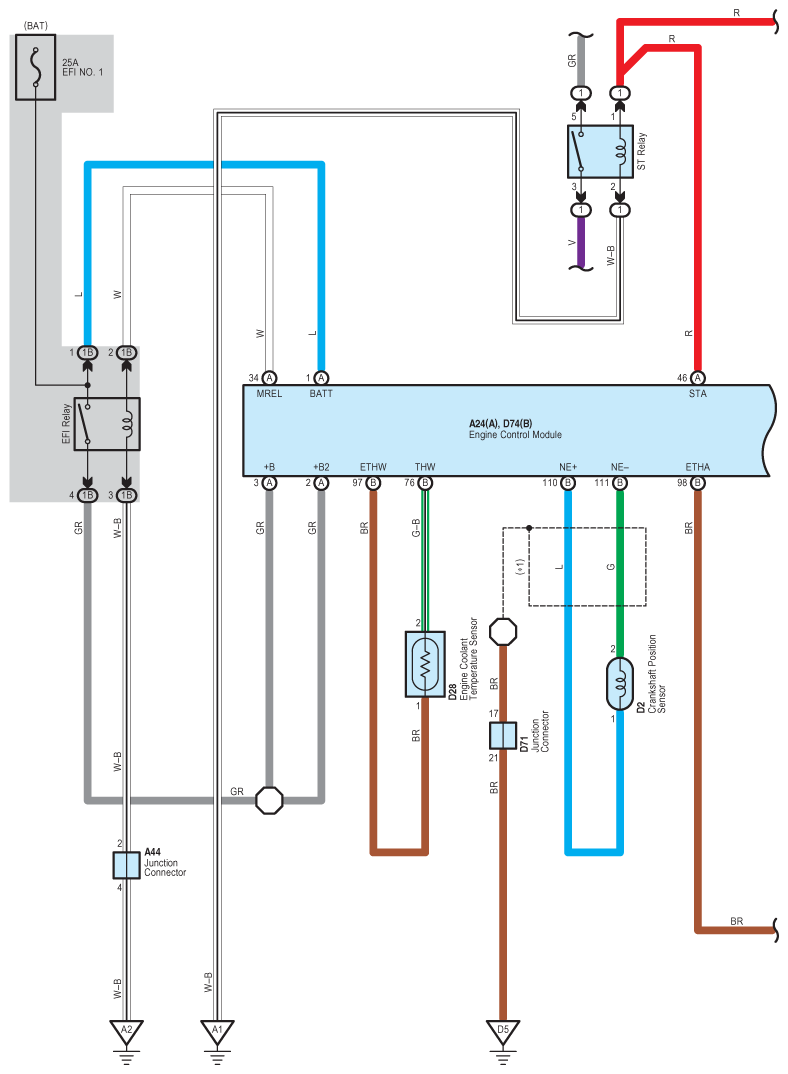

Fig 1: ECT And A/T Indicator System Wiring Diagram (2UZ-FE; 1 Of 8)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

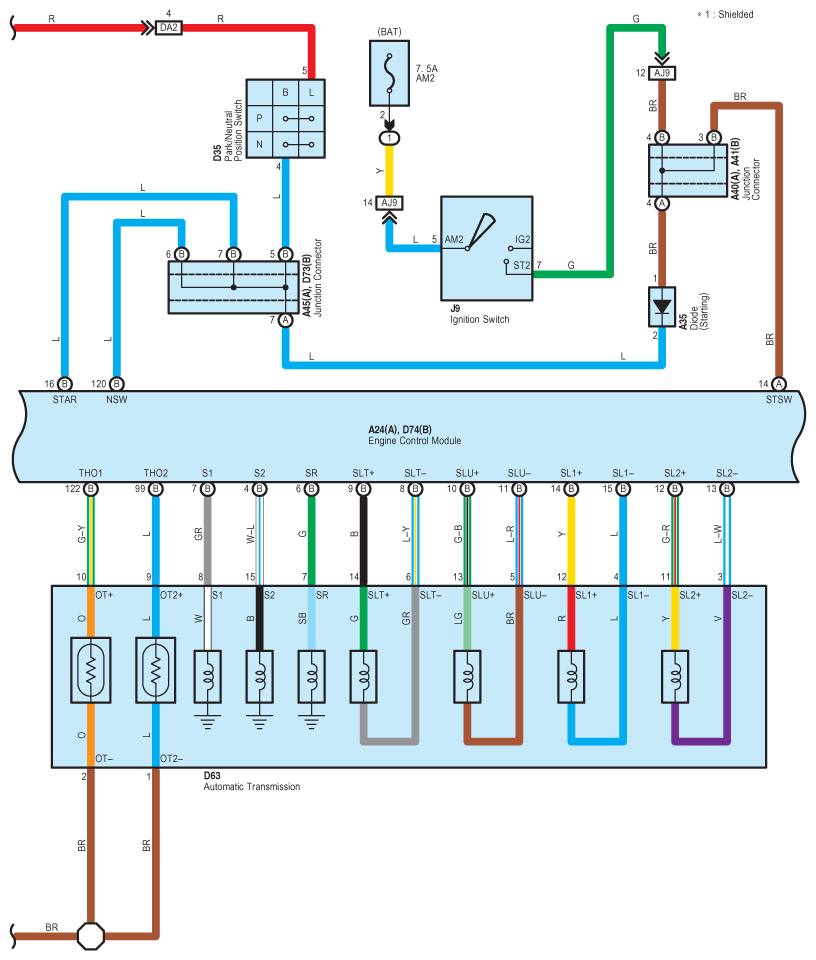

Fig 2: ECT And A/T Indicator System Wiring Diagram (2UZ-FE; 2 Of 8)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

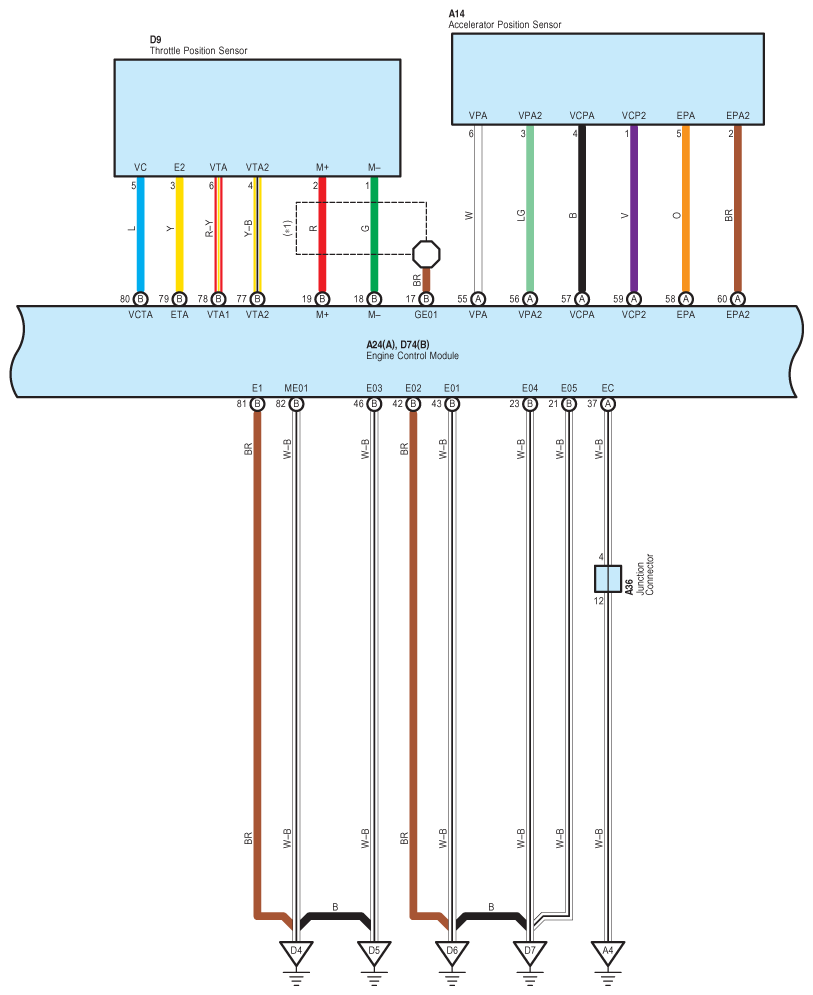

Fig 3: ECT And A/T Indicator System Wiring Diagram (2UZ-FE; 3 Of 8)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

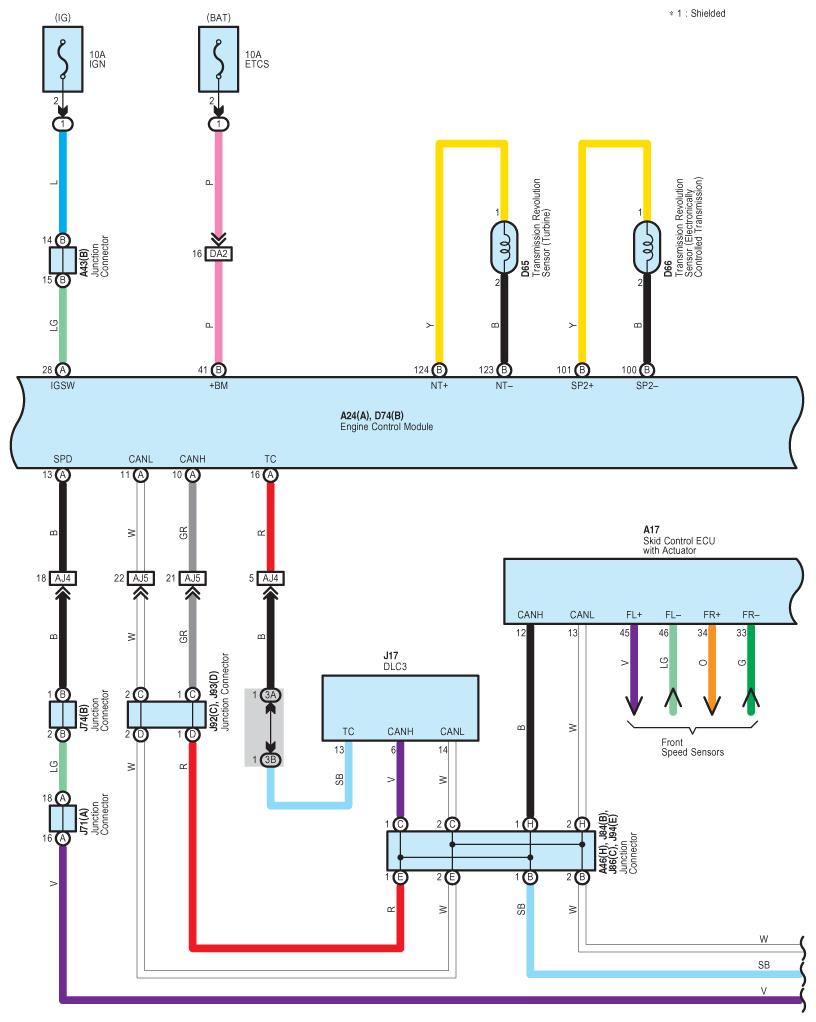

Fig 4: ECT And A/T Indicator System Wiring Diagram (2UZ-FE; 4 Of 8)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

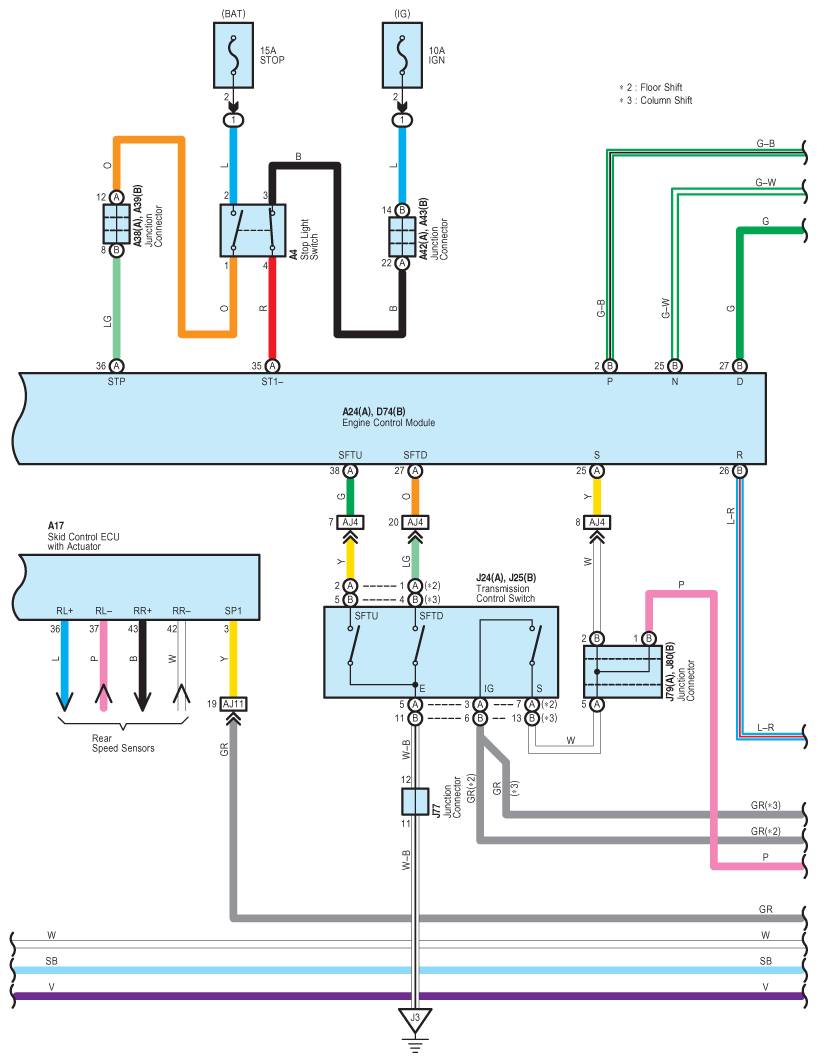

Fig 5: ECT And A/T Indicator System Wiring Diagram (2UZ-FE; 5 Of 8)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

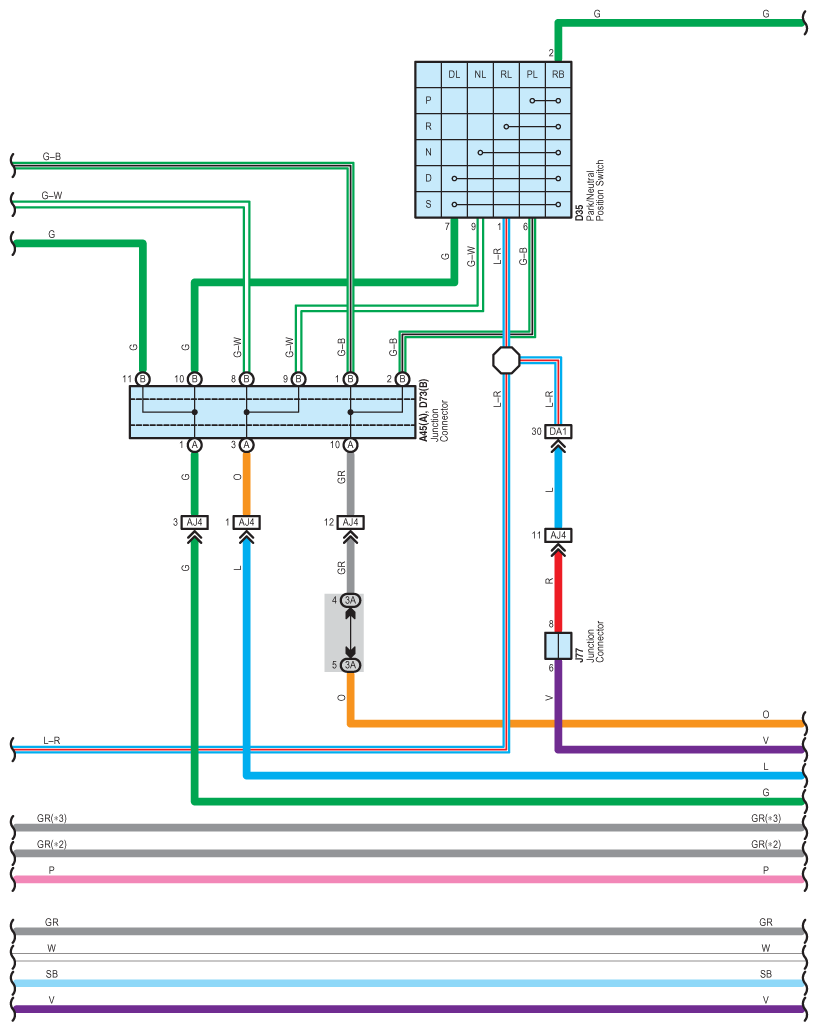

Fig 6: ECT And A/T Indicator System Wiring Diagram (2UZ-FE; 6 Of 8)

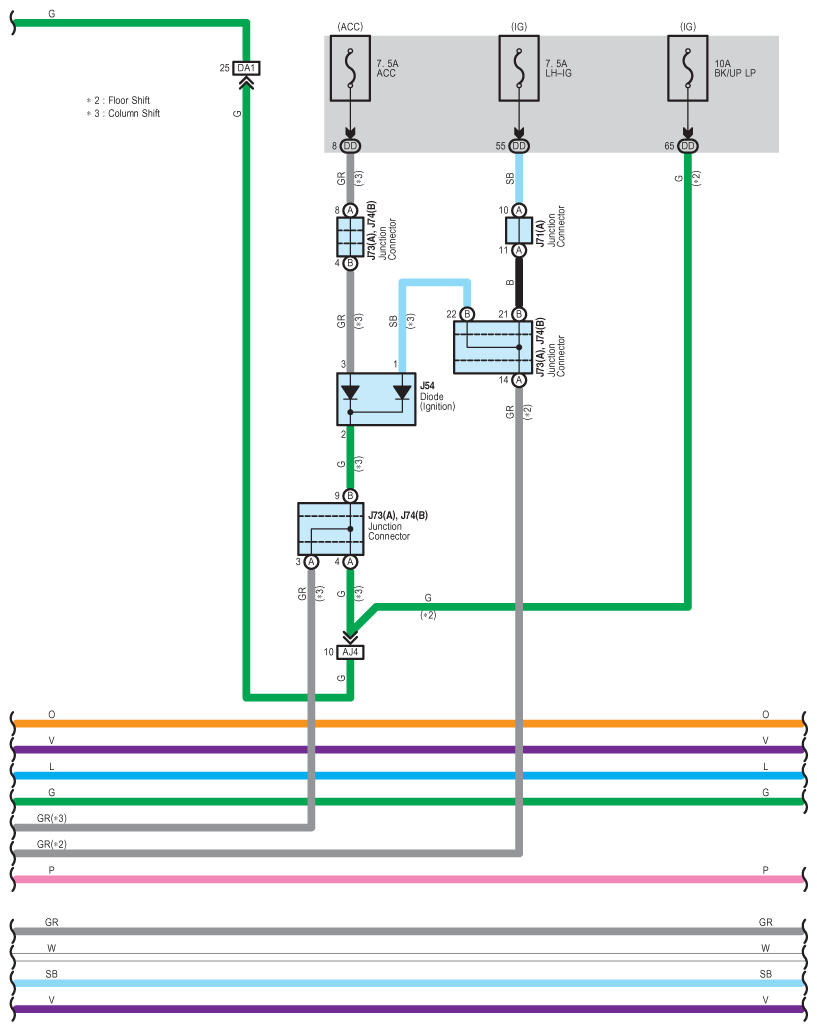

Fig 7: ECT And A/T Indicator System Wiring Diagram (2UZ-FE; 7 Of 8)

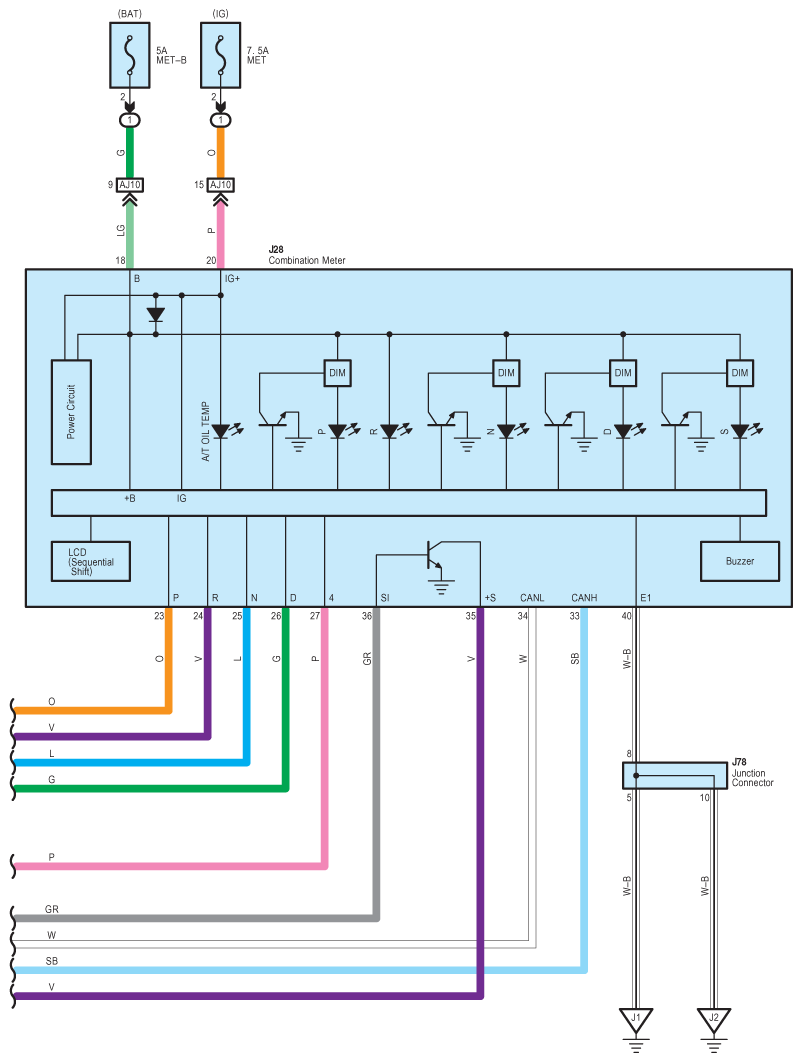

Fig 8: ECT And A/T Indicator System Wiring Diagram (2UZ-FE; 8 Of 8)
