Cruise Control for 1GR-FE: Notes

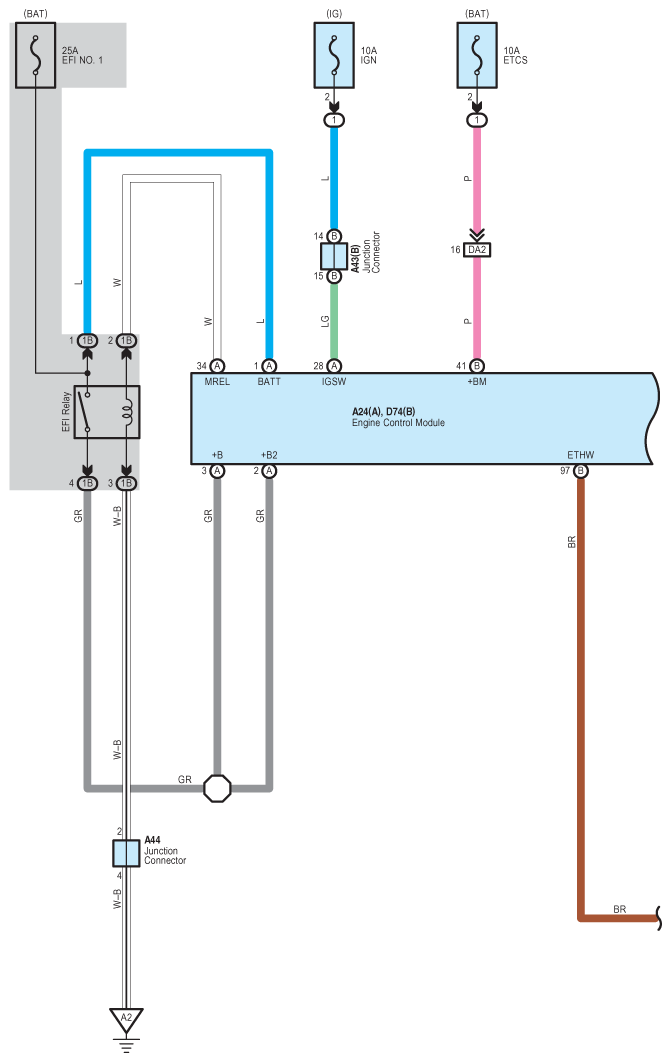

Fig 1: Cruise Control System Wiring Diagram (1GR-FE; 1 Of 7)
G08790964Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

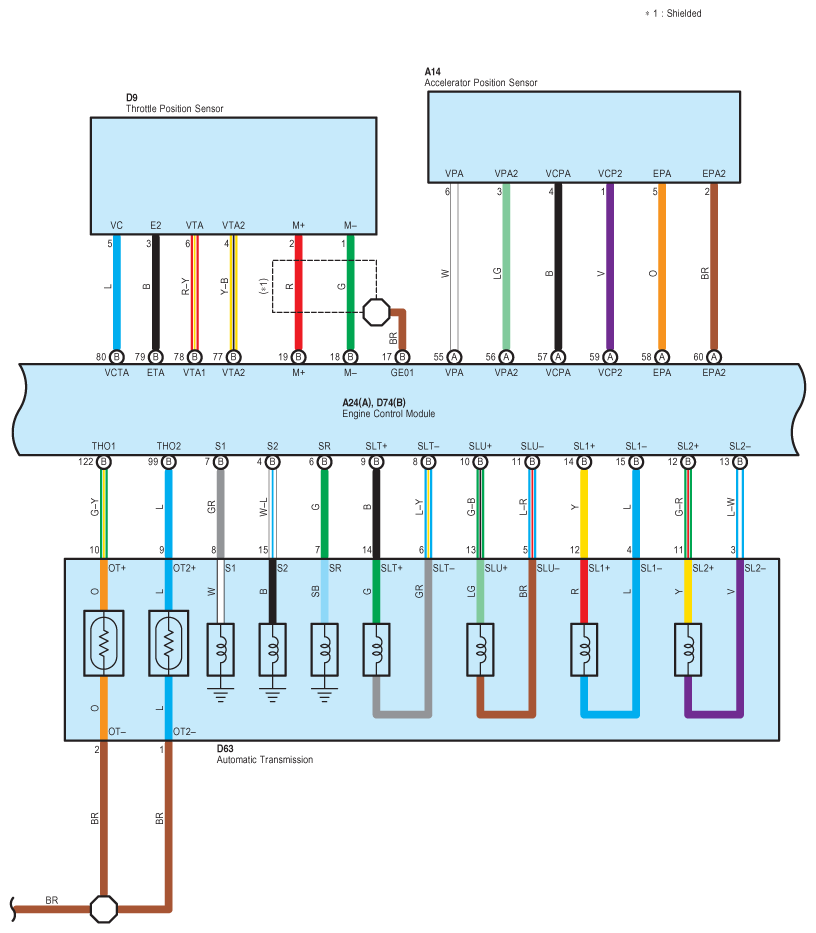

Fig 2: Cruise Control System Wiring Diagram (1GR-FE; 2 Of 7)
G08790965Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

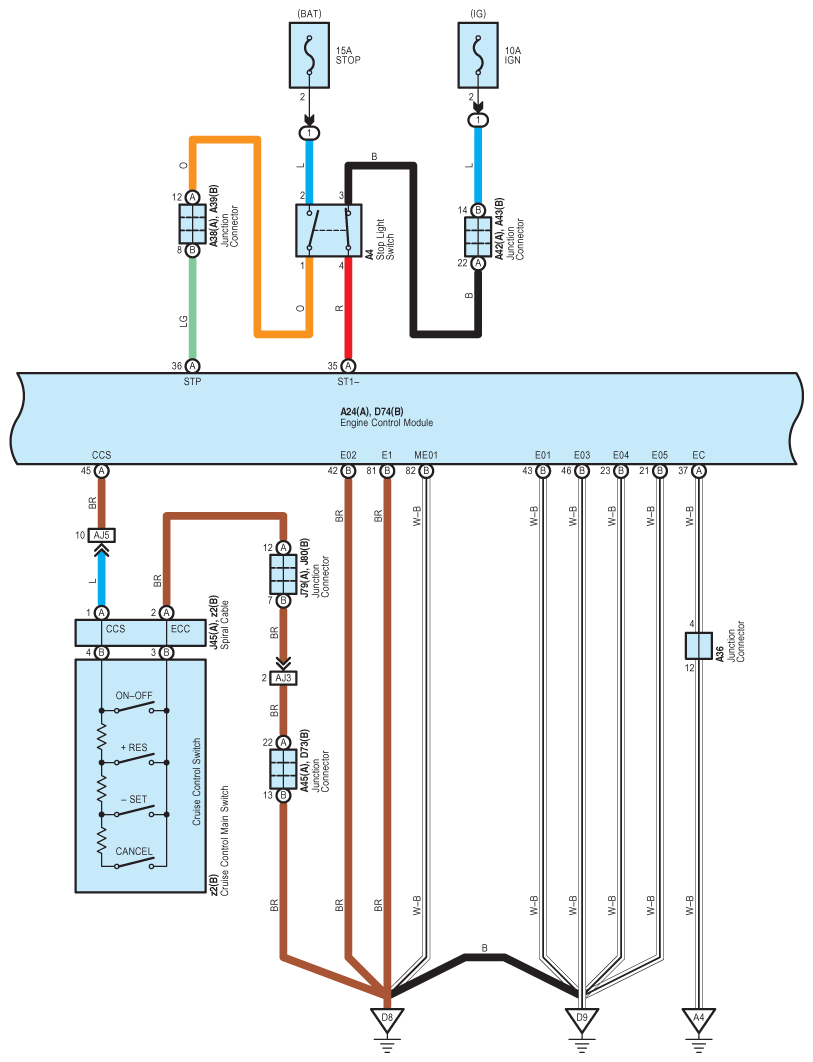

Fig 3: Cruise Control System Wiring Diagram (1GR-FE; 3 Of 7)
G08790966Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

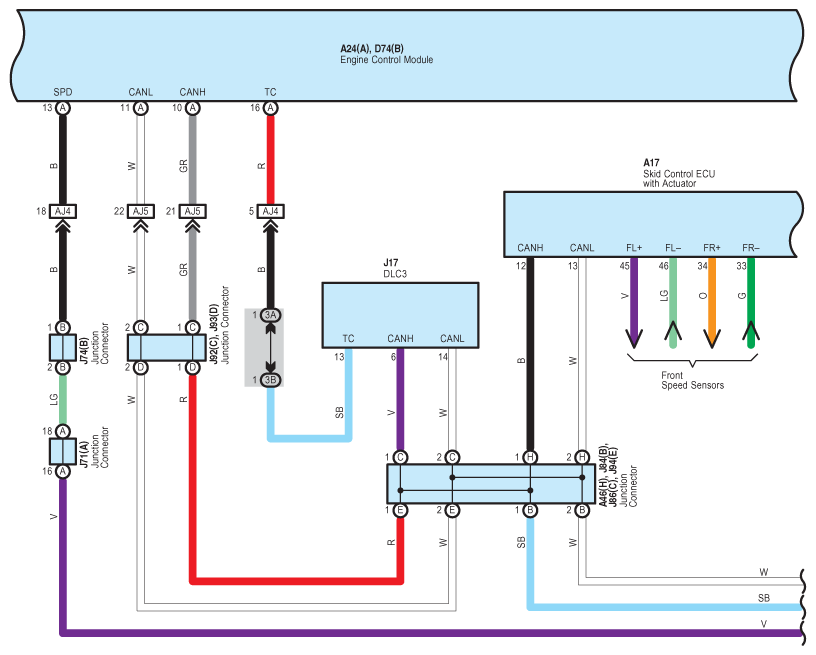

Fig 4: Cruise Control System Wiring Diagram (1GR-FE; 4 Of 7)
G08790967Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

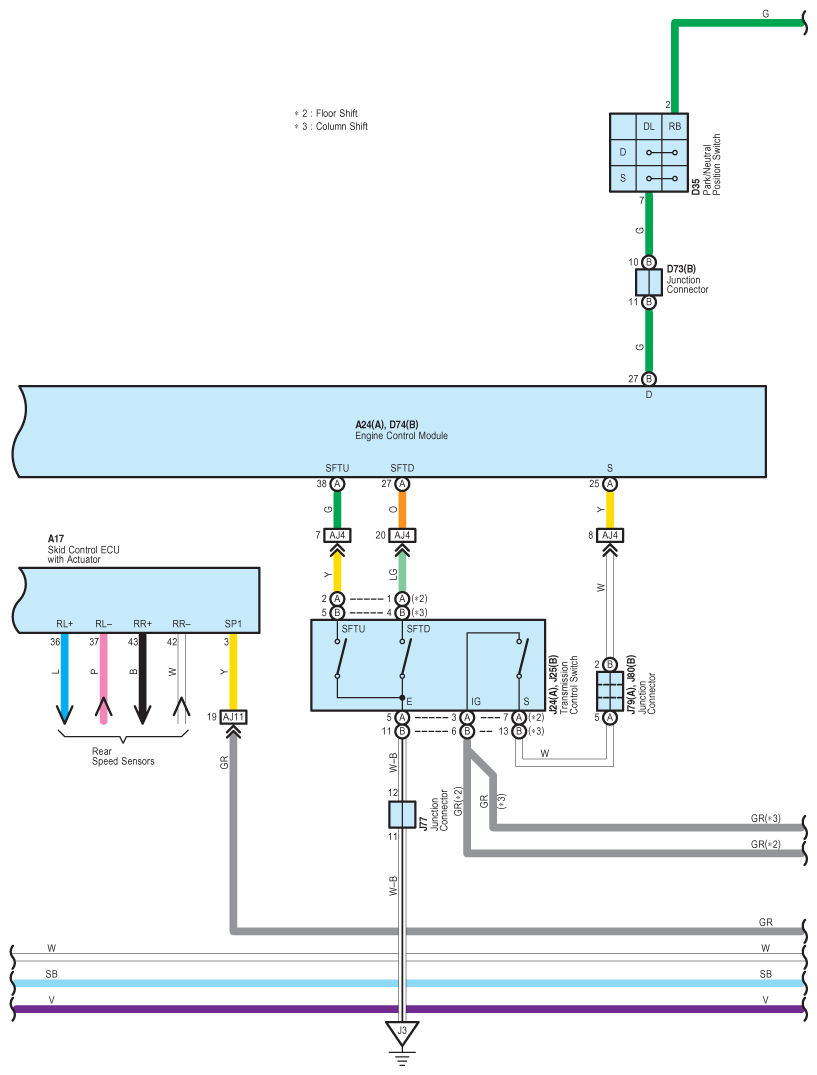

Fig 5: Cruise Control System Wiring Diagram (1GR-FE; 5 Of 7)
G08790968Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

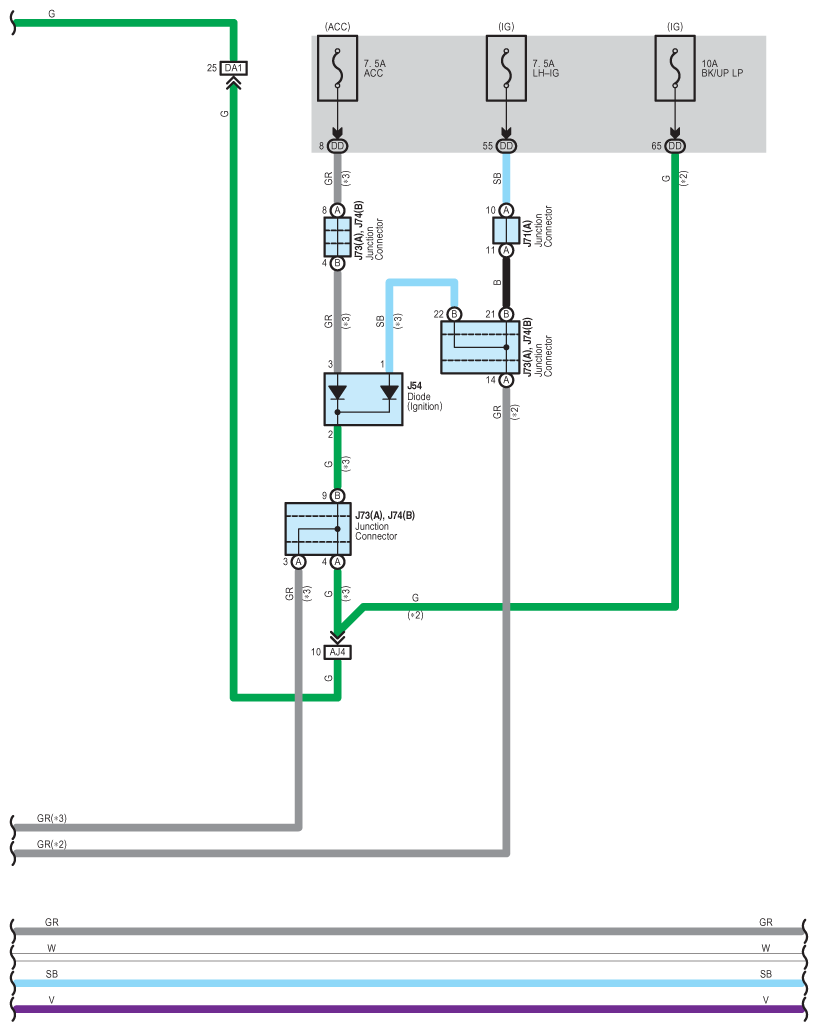

Fig 6: Cruise Control System Wiring Diagram (1GR-FE; 6 Of 7)
G08790969Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

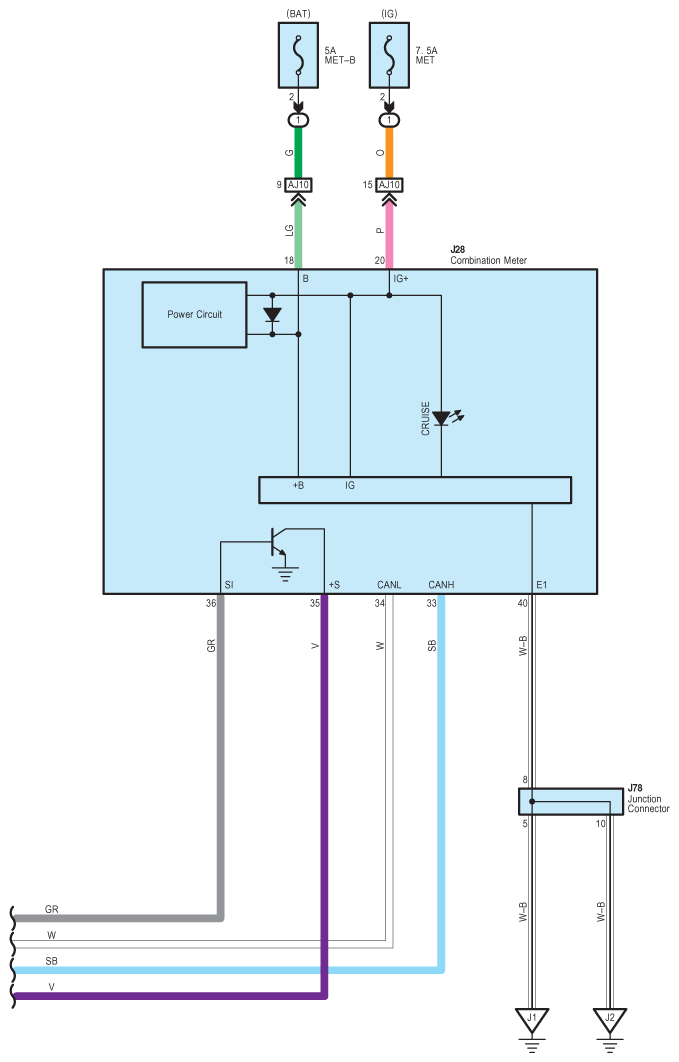

Fig 7: Cruise Control System Wiring Diagram (1GR-FE; 7 Of 7)
G08790970Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
