Air Conditioning: Notes — 2007 Toyota Tundra Base, 4.0 U Service Manual ~ LEMON Manuals

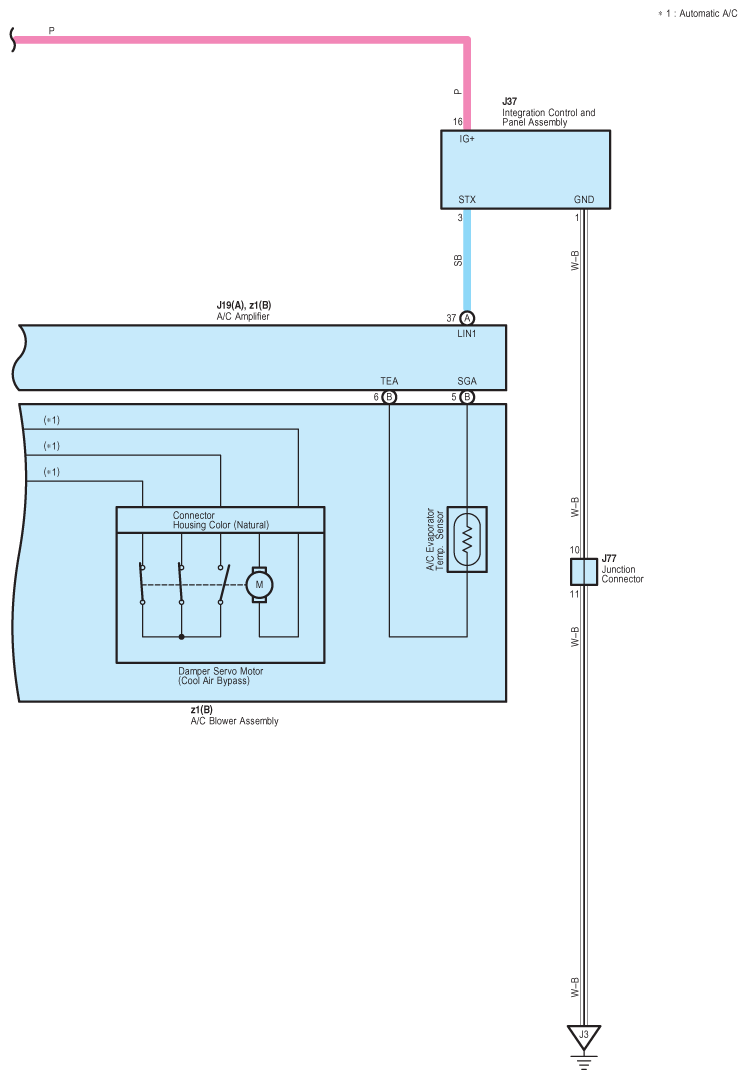

Fig 1: Air Conditioning System Wiring Diagram (1 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

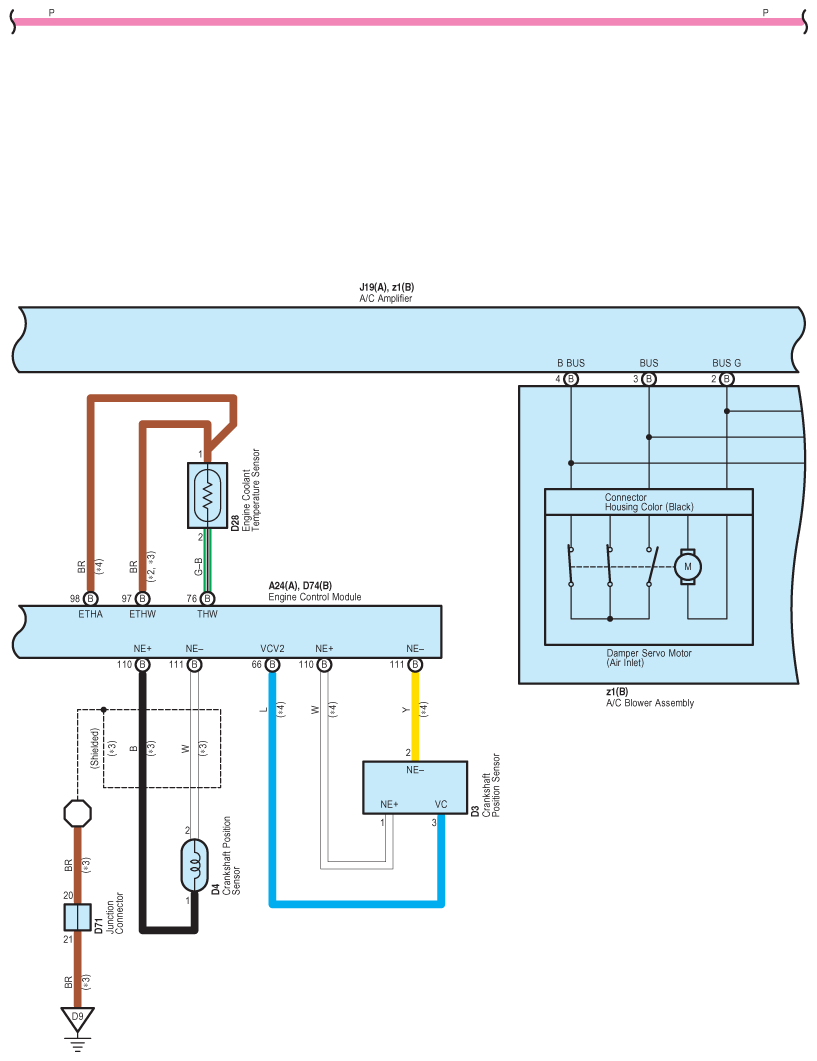

Fig 2: Air Conditioning System Wiring Diagram (2 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

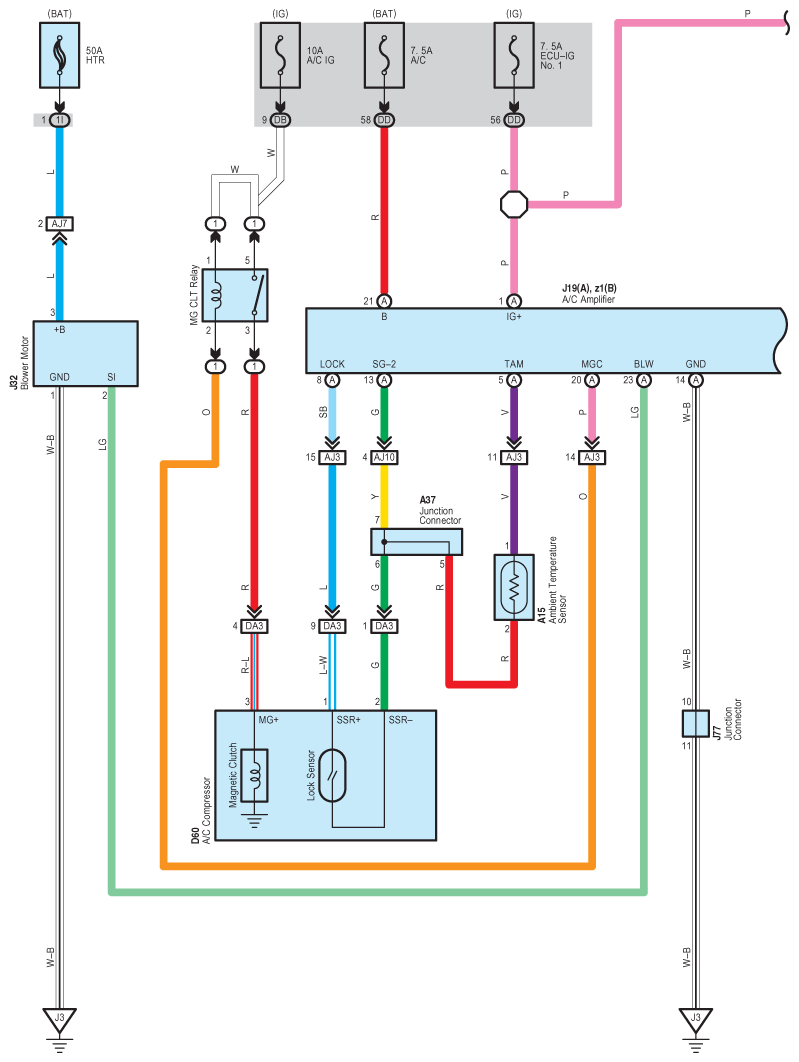

Fig 3: Air Conditioning System Wiring Diagram (3 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

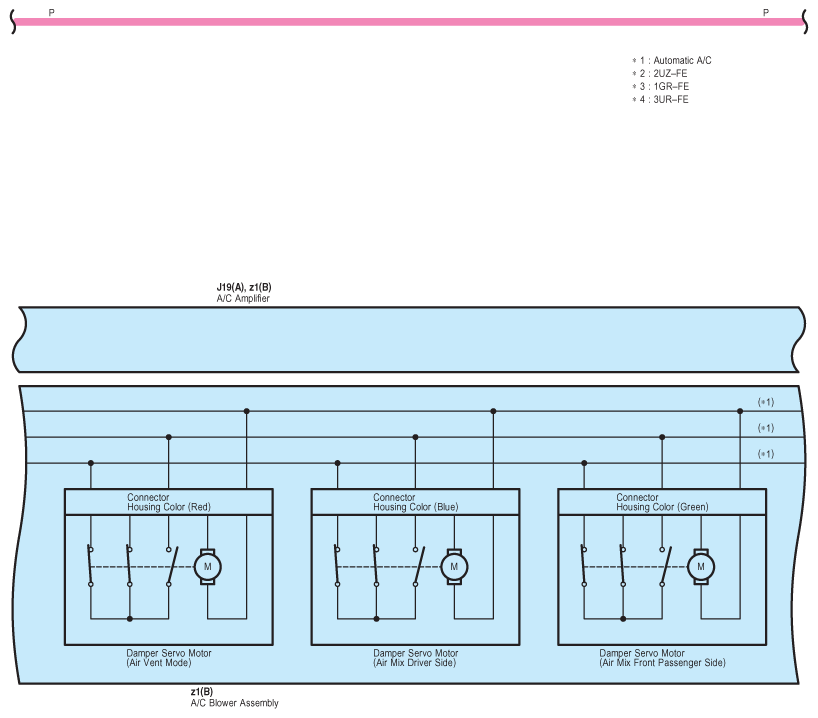

Fig 4: Air Conditioning System Wiring Diagram (4 Of 5)

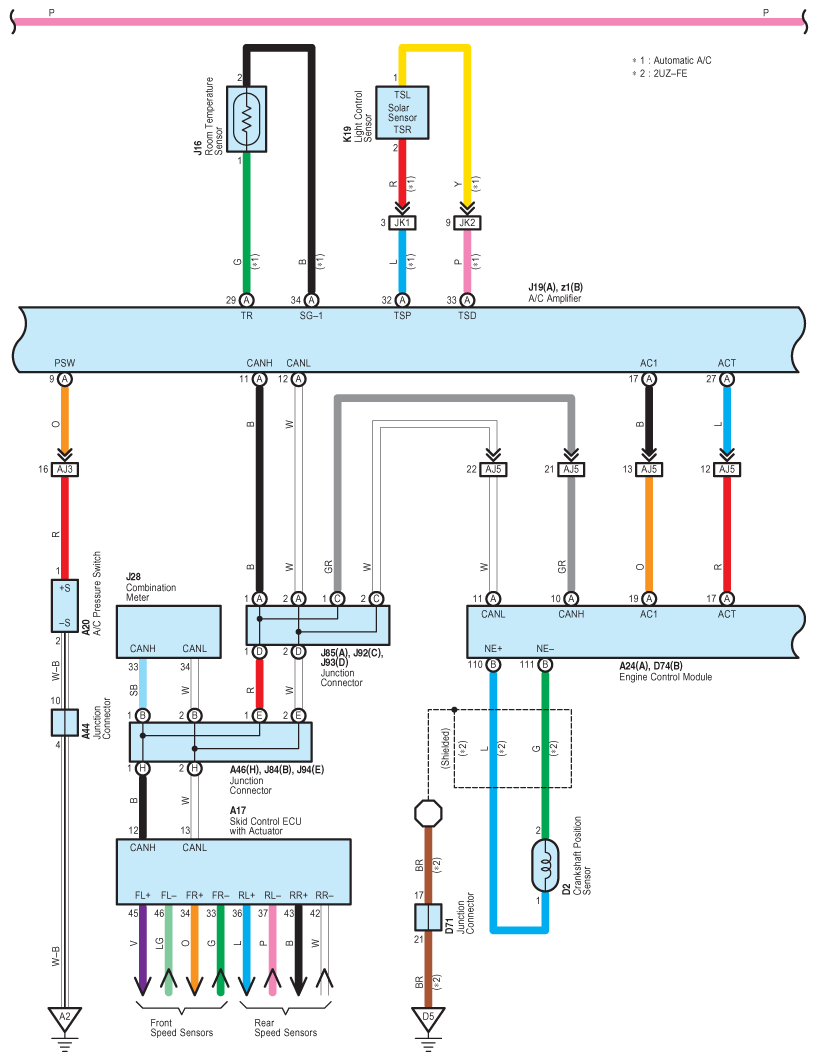

Fig 5: Air Conditioning System Wiring Diagram (5 Of 5)
