Power Window Master Switch: Components

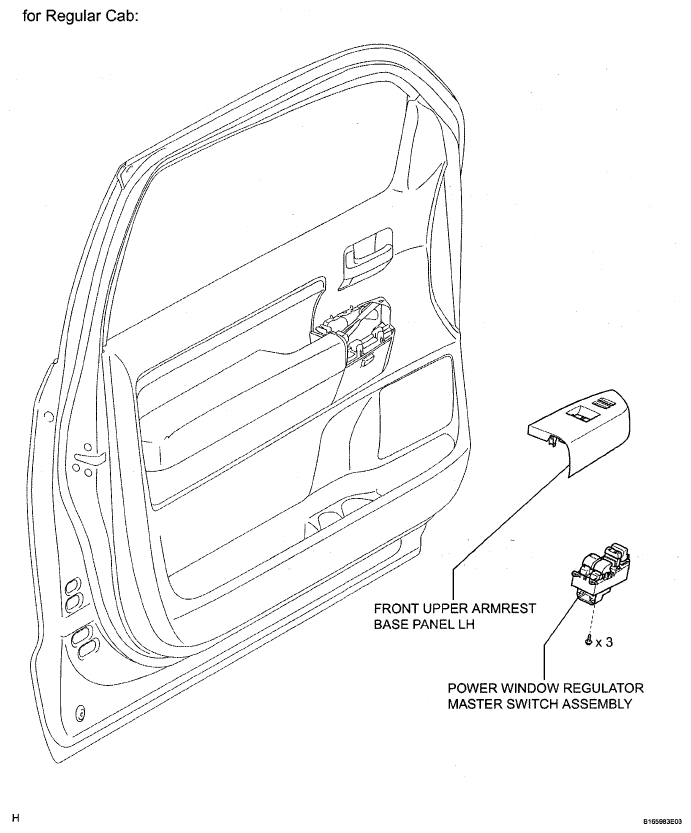

Fig 1: Identifying Power Window Master Switch Components (1 Of 2)
G05161462Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

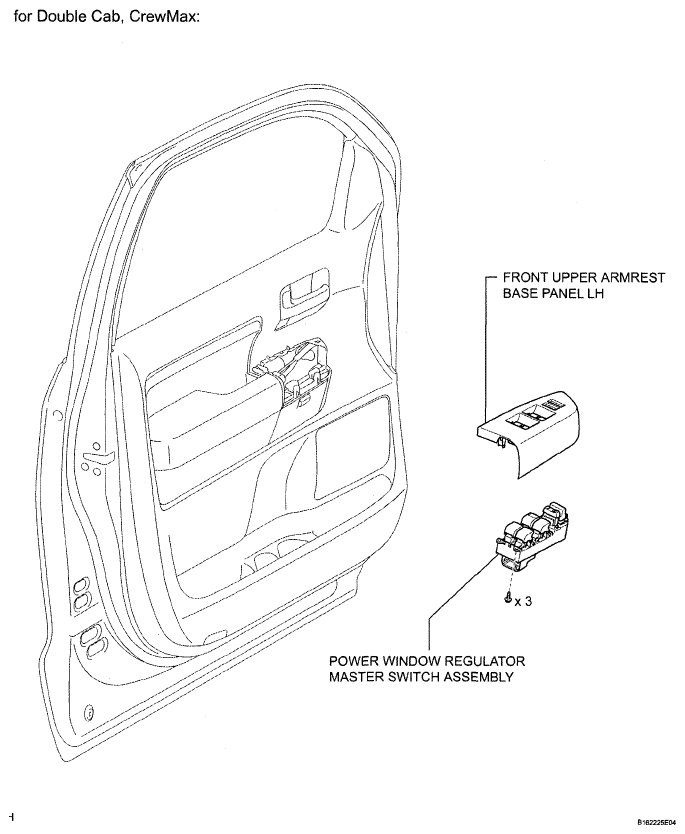

Fig 2: Identifying Power Window Master Switch Components (2 Of 2)
G05161463Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
