System Diagram

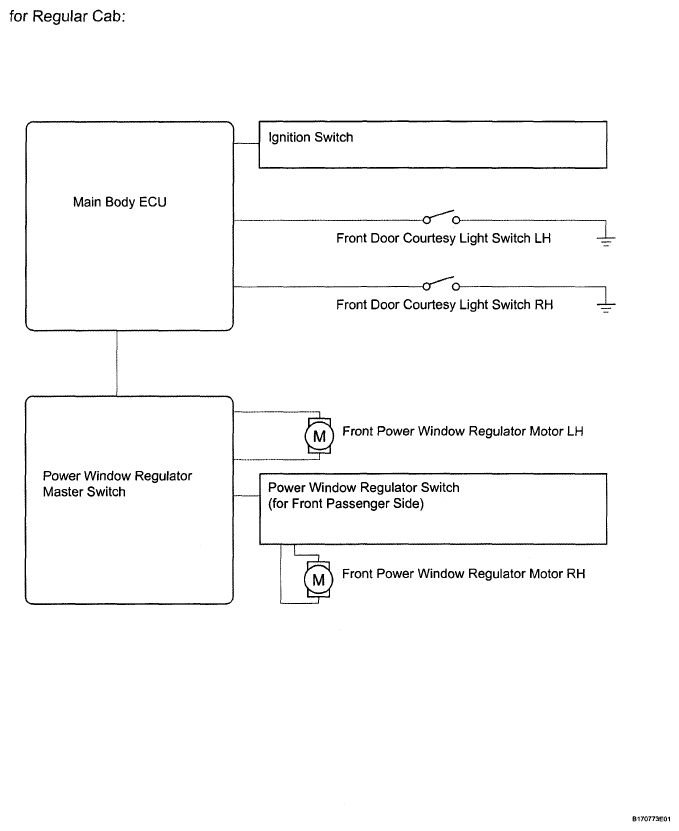

Fig 1: Power Window Control System Diagram (1 Of 2)
G05161427Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

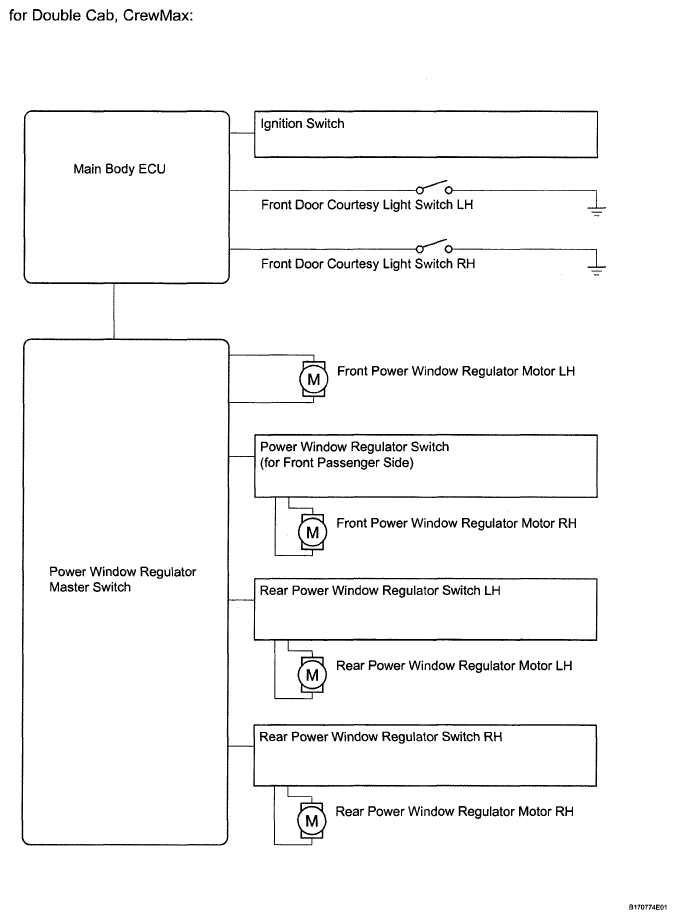

Fig 2: Power Window Control System Diagram (2 Of 2)
G05161428Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
