Rear Power Window RH does not Operate with Rear Power Window Switch RH: Wiring Diagram

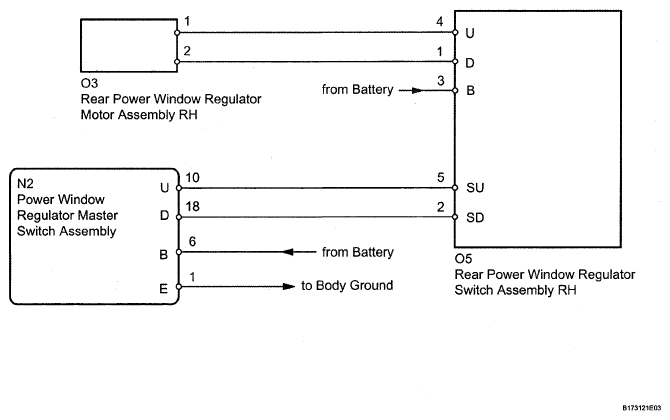

Fig 1: Rear Power Window Regulator Motor Assembly RH Wiring Diagram
G05161451Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
