Rear Power Window LH does not Operate with Rear Power Window Switch LH: Wiring Diagram

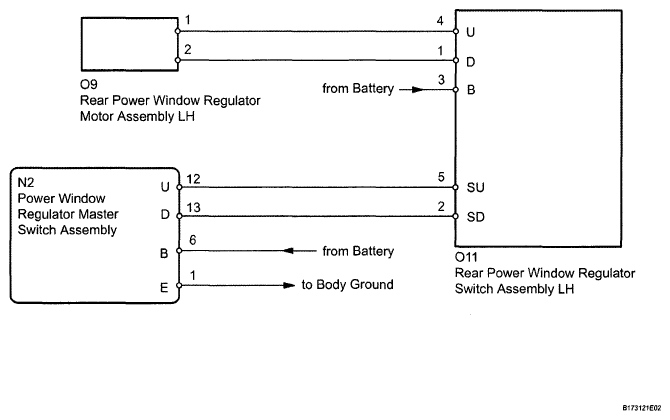

Fig 1: Rear Power Window Regulator Motor Assembly LH Wiring Diagram
G05161444Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
