Knock Sensor, Intake Manifold: Components

WARNING: This page is about a different variant/trim than selected.

Fig 1: Fuel Injector Replacement Components & Torque Specification (1 Of 2)

Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

Fig 2: Fuel Injector Replacement Components & Torque Specification (1 Of 2)

Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

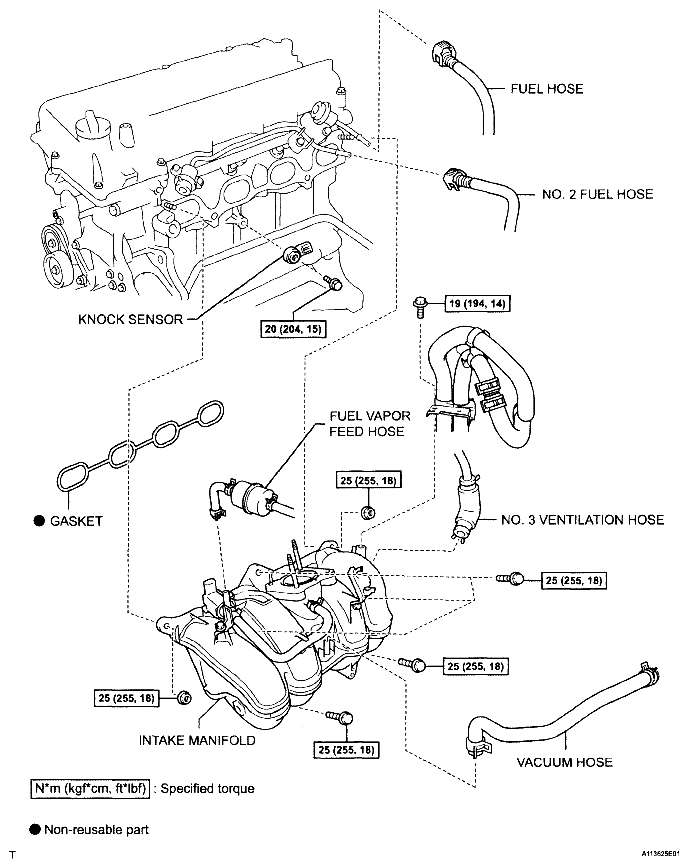

Fig 3: Knock Sensor Replacement Components With Torque Specifications (3 Of 3)

Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
