Ignition Coil: Removal

  1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
  2. REMOVE V-BANK COVER (See  REMOVAL  )
  3. REMOVE AIR CLEANER ASSEMBLY (See  REMOVAL  )
  4. DISCONNECT VENTILATION HOSE
    1. Disconnect the ventilation hose from the intake air surge tank.

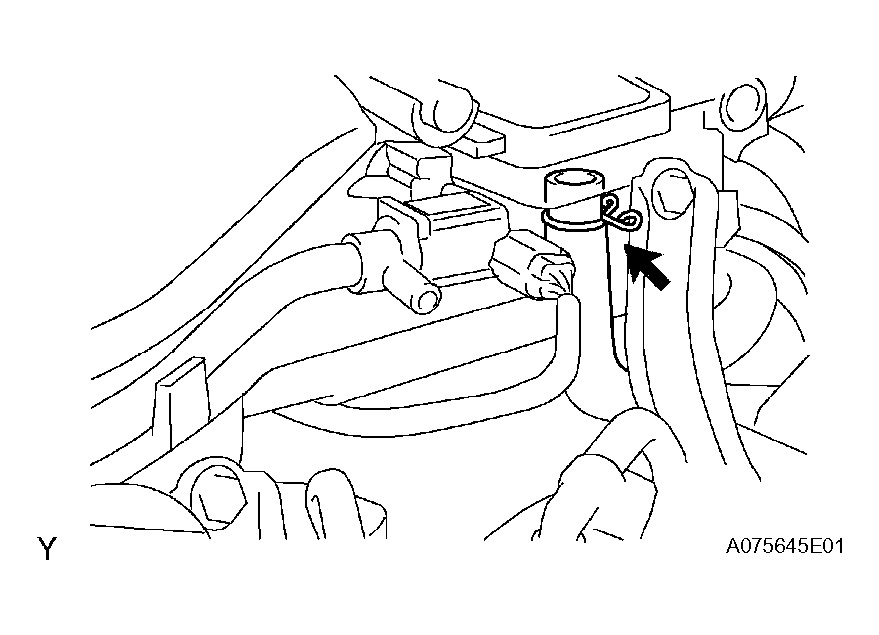

      Fig 1: Disconnecting Ventilation Hose
      G04409599Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. REMOVE IGNITION COIL ASSEMBLY
    1. Disconnect the 6 connectors.
    2. Remove the 6 bolts, then remove the 6 ignition coils.

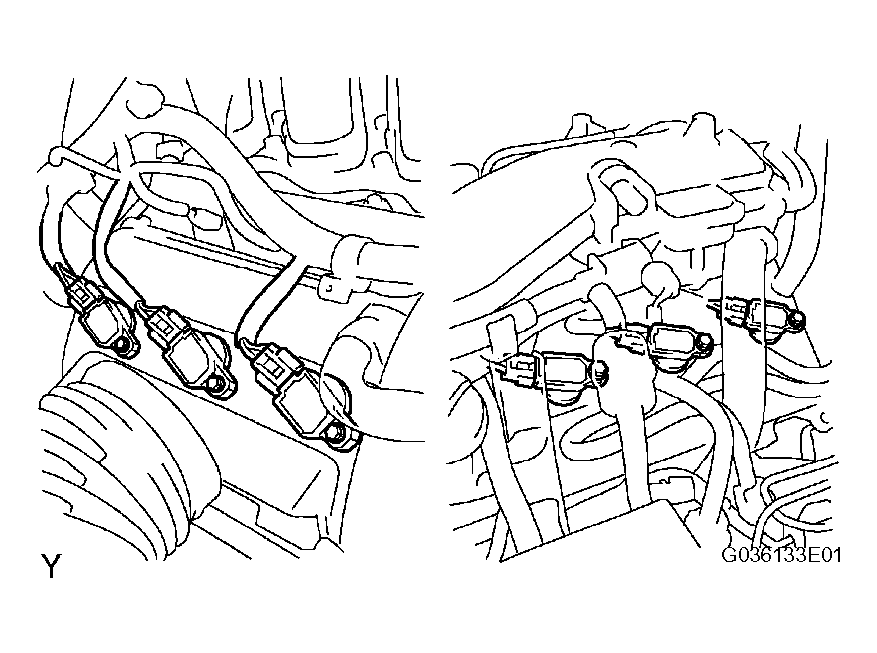

      Fig 2: Removing Bolts
      G04409600Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
