ACIS Control Circuit: Wiring Diagram

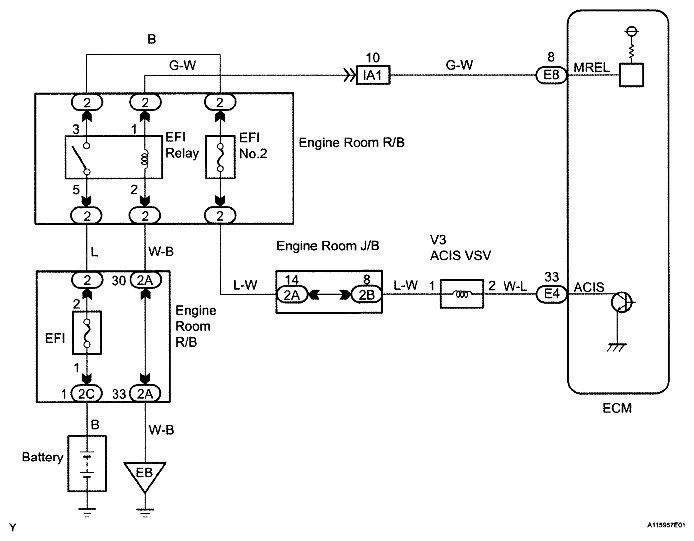

Fig 1: ACIS Control Circuit Diagram

G05197989

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
