KNOCK SENSOR (for 2WD): Installation

INSTALL KNOCK SENSOR

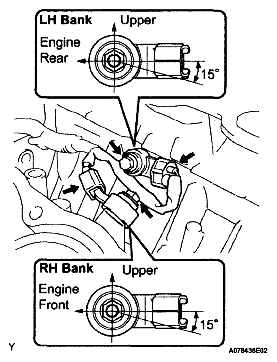

1. Install the 2 knock sensors with the 2 bolts as shown in the illustration.
  Torque: 20 N*m (204 kgf*cm, 15 ft.*lbf)
2. Connect the 2 knock sensor connectors.
INSTALL WATER OUTLET PIPE NO.1
1. Install the water outlet pipe with the 3 bolts.
  Torque: 9.0 N*m (92 kgf*cm, 80 in.*lbf)
2. Install the 4 wire harness clamps.
CONNECT HEATER WATER INLET HOSE
INSTALL CYLINDER HEAD SET BOLT (See INSTALLATION )
INSTALL CYLINDER HEAD SUB-ASSEMBLY (See INSTALLATION )
INSTALL CAMSHAFT BEARING NO.2
INSTALL CAMSHAFTS (See INSTALLATION )
INSTALL CHAIN TENSIONER ASSEMBLY NO.2 (See INSTALLATION )
INSTALL CAMSHAFT TIMING GEARS AND NO.2 CHAIN (RH BANK) (See INSTALLATION )
INSTALL CHAIN VIBRATION DAMPER NO.1 (See INSTALLATION )
INSTALL WATER BY-PASS JOINT RR (See INSTALLATION )
INSTALL INTAKE MANIFOLD (See INSTALLATION )
INSTALL EXHAUST MANIFOLD SUB-ASSEMBLY RH (See INSTALLATION )
INSTALL MANIFOLD STAY (See INSTALLATION )
INSTALL EXHAUST PIPE ASSEMBLY FRONT (See INSTALLATION )
INSTALL EXHAUST FRONT PIPE ASSEMBLY NO.2 (See INSTALLATION )
INSTALL COOL AIR INLET NO.1
1. Install the cool air inlet with the 2 bolts.
  Torque: 12 N*m (122 kgf*cm, 9.0 ft.*lbf)
INSTALL CHAIN TENSIONER SLIPPER
INSTALL CHAIN TENSIONER ASSEMBLY NO.1 (See INSTALLATION )
INSTALL CHAIN SUB-ASSEMBLY (See INSTALLATION )
INSTALL TIMING CHAIN OR BELT COVER SUB-ASSEMBLY
(See INSTALLATION )
INSTALL ENGINE ASSEMBLY
(See INSTALLATION )
INSTALL BATTERY
ADD ENGINE COOLANT (See REPLACEMENT )
ADD ENGINE OIL (See INSTALLATION )
CHECK FOR ENGINE COOLANT LEAKAGE (See REPLACEMENT )
CHECK FOR ENGINE OIL LEAKAGE
CHECK FOR FUEL LEAKAGE
CHECK FOR EXHAUST GAS LEAKAGE
INSPECT IGNITION TIMING (See ON-VEHICLE INSPECTION )
INSPECT ENGINE IDLING SPEED (See ON-VEHICLE INSPECTION )
INSPECT CO/HC (See ON-VEHICLE INSPECTION )
