Power Point Socket: Removal

  1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
  2. REMOVE INSTRUMENT PANEL UNDER TRAY (for Pedal Type Parking Brake) (See step 24 in  REMOVAL  )
  3. REMOVE INSTRUMENT PANEL HOLE COVER (for Lever Type Parking Brake) (See step 25 in  REMOVAL  )
  4. REMOVE CONSOLE UPPER REAR PANEL SUB-ASSEMBLY (for Automatic Transmission on Separate Seat Type) (Step 26 in  REMOVAL  )
  5. REMOVE CONSOLE UPPER REAR PANEL SUB-ASSEMBLY (for Manual Transmission on Separate Seat Type) (See step 27 in  REMOVAL  )
  6. REMOVE REAR CONSOLE BOX ASSEMBLY (for Separate Seat Type) (See step 28 in  REMOVAL  )
  7. REMOVE INSTRUMENT PANEL CUP HOLDER TRAY (for Automatic Transmission on Separate Seat Type) (See step 29 in  REMOVAL  )
  8. REMOVE FRONT CONSOLE BOX (for Automatic Transmission on Separate Seat Type) (See step 30 in  REMOVAL  )
  9. REMOVE FRONT CONSOLE BOX (for Manual Transmission on Separate Seat Type) (See step 31 in  REMOVAL  )
  10. REMOVE FRONT CONSOLE BOX (for Automatic Transmission on Bench Seat Type) (See step 32 in  REMOVAL  )
  11. REMOVE FRONT CONSOLE BOX (for Manual Transmission on Bench Seat Type) (Step 33 in  REMOVAL  )
  12. REMOVE AIR CONDITIONING CONTROL ASSEMBLY (See step 58 in  REMOVAL  )
  13. REMOVE RADIO RECEIVER ASSEMBLY (See  REMOVAL  )
  14. SEPARATE HOOD LOCK CONTROL LEVER SUB-ASSEMBLY (See  DISASSEMBLY  )
  15. REMOVE NO. 1 LOWER INSTRUMENT PANEL FINISH PANEL (See step 37 in  REMOVAL  )
  16. REMOVE INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY (See step 38 in  REMOVAL  )
  17. REMOVE INSTRUMENT CLUSTER CENTER FINISH PANEL SUB-ASSEMBLY (See step 40 in  REMOVAL  )
  18. REMOVE LOWER INSTRUMENT PANEL LH (See step 43 in  REMOVAL  )
  19. REMOVE INSTRUMENT LOWER COVER SUB-ASSEMBLY (step 44 in  REMOVAL  )
  20. REMOVE POWER POINT SOCKET ASSEMBLY
    1. Turn the socket counterclockwise as shown in the illustration, disengage the claw between socket and the power point socket cover, and push the socket out towards the room side.

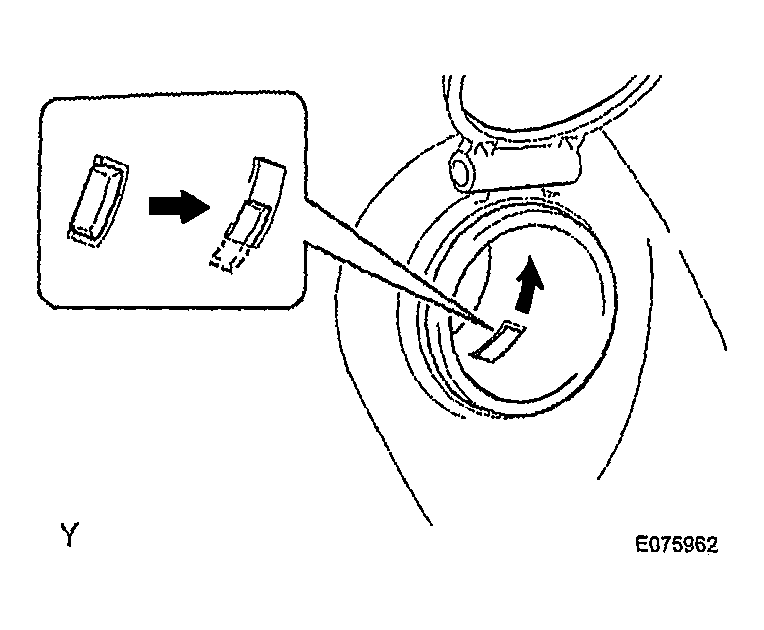

      Fig 1: Turning Socket Counterclockwise
      G00438105Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Align the socket with the notch on the power point socket cover, and remove the power point socket assembly on the room side.

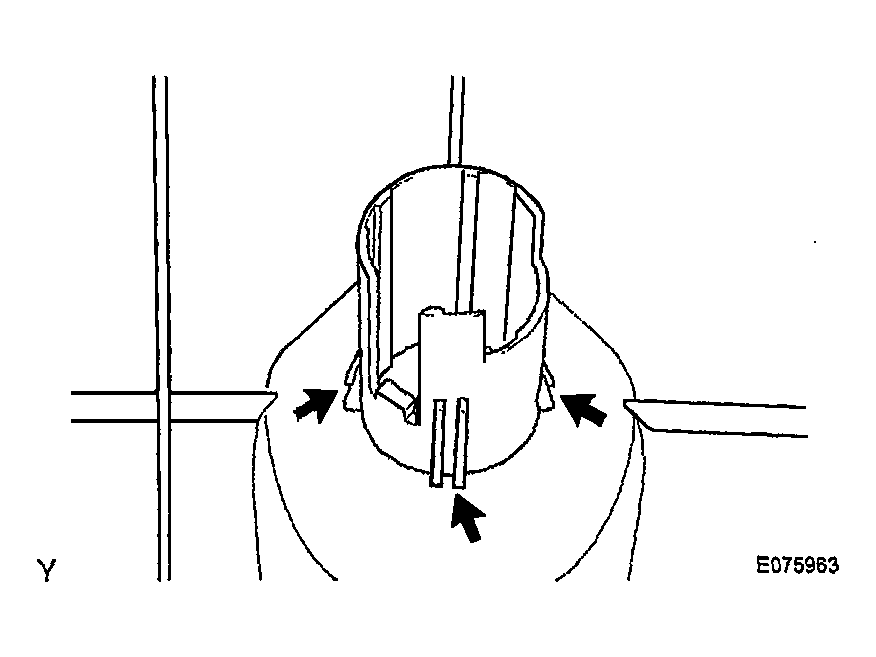

      Fig 2: Aligning Socket With Notch
      G00438106Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
