Power Outlet Socket: Removal

  1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
  2. REMOVE POWER OUTLET SOCKET ASSEMBLY
    1. Using a Torx® socket wrench T30, remove the 4 screws.

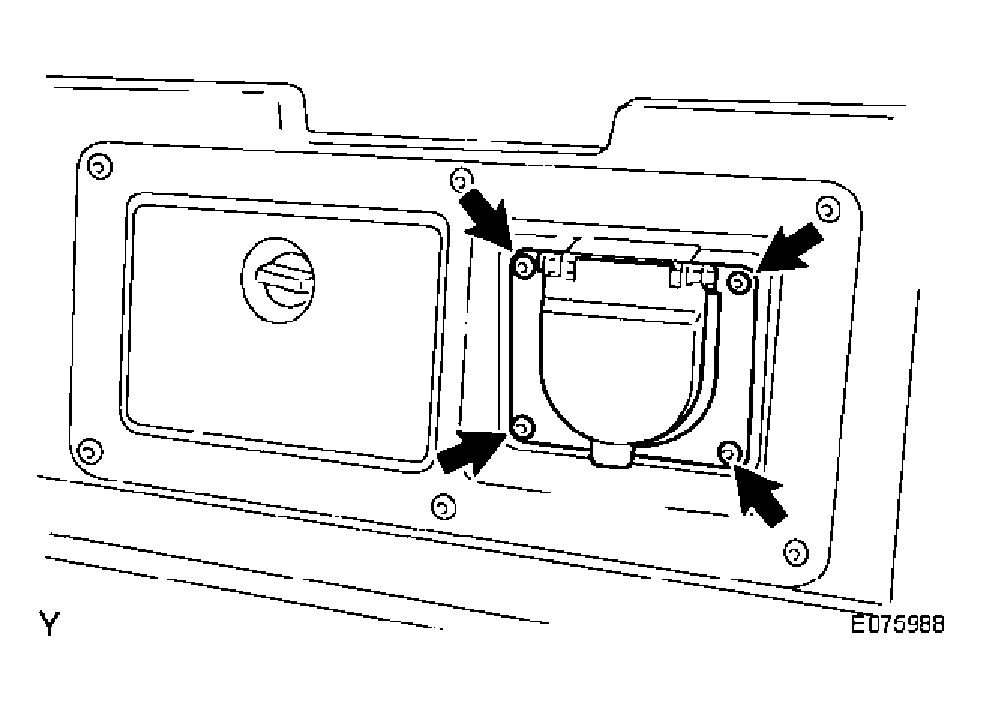

      Fig 1: Removing Screws Using Socket Wrench
      G04414051Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disconnect the connector.
    3. Remove the clamp and the power outlet socket assembly.

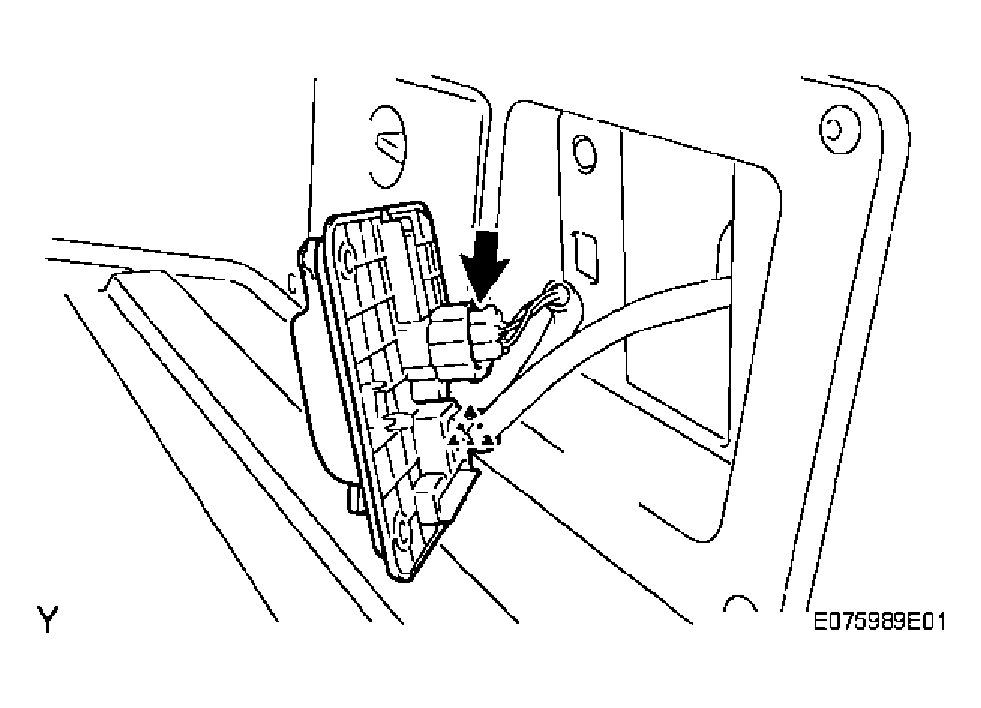

      Fig 2: Removing Clamp & Power Outlet Socket Assembly
      G04414052Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
