Power Outlet Socket: Installation

1. Install the clamp.
2. Connect the connector.
   Fig 1: Installing Clamp

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Using a Torx® socket wrench T30, install the 4 screws and the power outlet socket assembly.

   Torque: 5.0 N*m (51 kgf*cm, 44 in.*lbf)

   NOTE: Install the screws in the order shown in Fig 2.

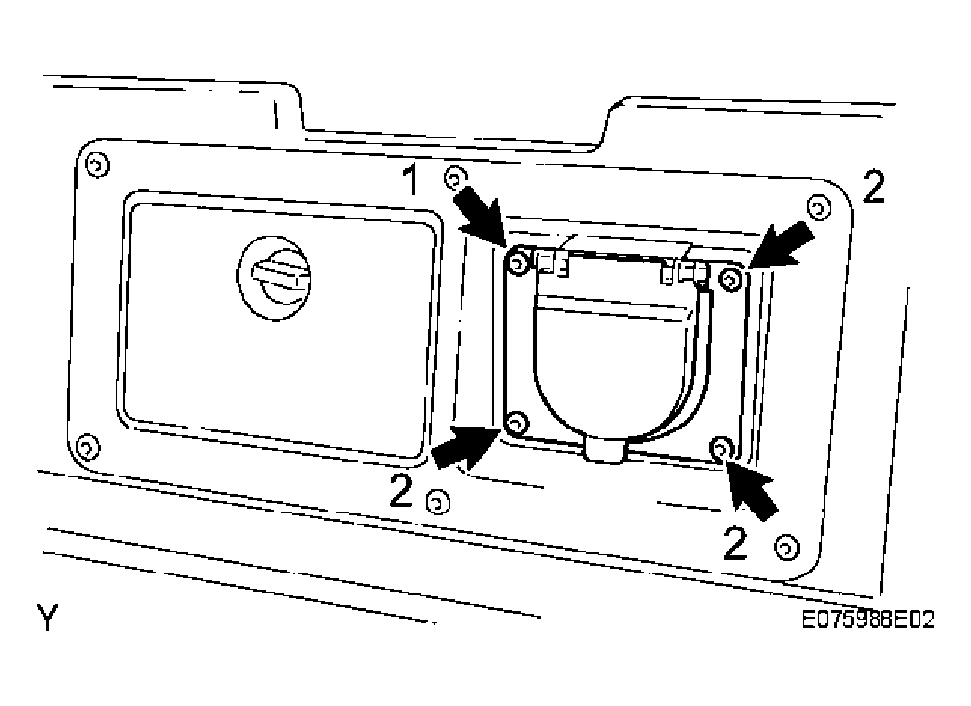

   Fig 2: Installing Screws & Power Outlet Socket Assembly Using Socket Wrench

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Torque: 3.9 N*m (40 kgf*cm, 35 in.*lbf)
