Cigarette Lighter: Installation

  1. INSTALL CIGARETTE LIGHTER ASSEMBLY
    1. Align the socket with the notch on the cigarette lighter bezel stay, and push the cigarette lighter assembly firmly into the cover to install it.
    2. Install the cigarette lighter knob and element assembly.
  2. INSTALL CIGARETTE LIGHTER COVER
    1. Engage the 2 claws and install the cigarette lighter cover.

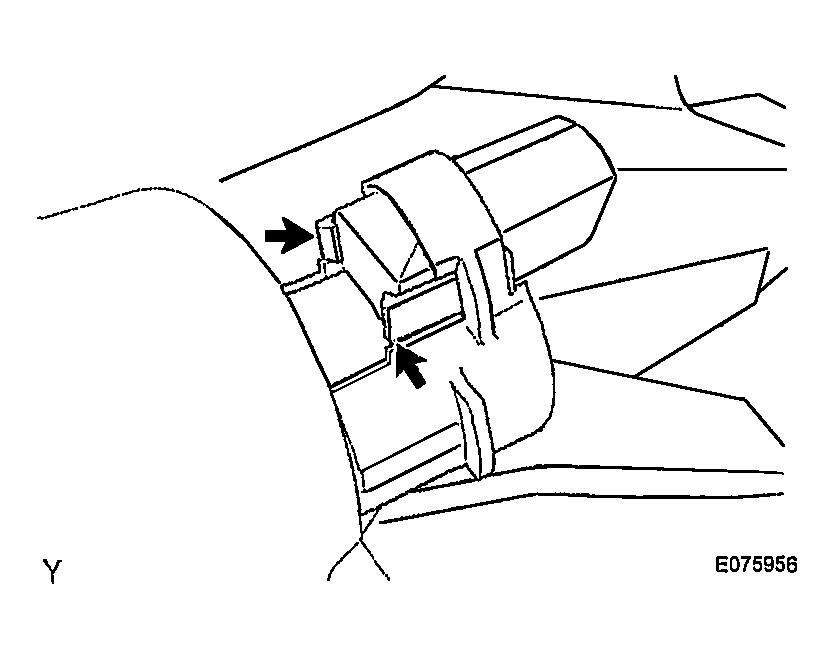

    Fig 1: Identifying Cigarette Lighter Cover
    G00438103Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. INSTALL INSTRUMENT LOWER COVER SUB-ASSEMBLY (See step 13 in  INSTALLATION  )
  4. INSTALL LOWER INSTRUMENT PANEL LH (See step 14 in  INSTALLATION  )
  5. INSTALL INSTRUMENT CLUSTER CENTER FINISH PANEL SUB-ASSEMBLY (See step 17 in  INSTALLATION  )
  6. INSTALL INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY (See step 19 in  INSTALLATION  )
  7. INSTALL NO. 1 LOWER INSTRUMENT PANEL FINISH PANEL (See step 20 in  INSTALLATION  )
  8. INSTALL HOOD LOCK CONTROL LEVER SUB-ASSEMBLY (See  REASSEMBLY  )
  9. INSTALL RADIO RECEIVER ASSEMBLY (See  INSTALLATION  )
  10. INSTALL AIR CONDITIONING CONTROL ASSEMBLY (See  INSTALLATION  )
  11. INSTALL FRONT CONSOLE BOX (for Manual Transmission on Bench Seat Type) (See step 24 in  INSTALLATION  )
  12. INSTALL FRONT CONSOLE BOX (for Automatic Transmission On Bench Seat Type) (See step 25 in  INSTALLATION  )
  13. INSTALL FRONT CONSOLE BOX (for Manual Transmission on Separate Seat Type) (See step 26 in  INSTALLATION  )
  14. INSTALL FRONT CONSOLE BOX (for Automatic Transmission on Separate Seat Type) (See step 27 in  INSTALLATION  )
  15. INSTALL INSTRUMENT PANEL CUP HOLDER TRAY (for Automatic Transmission on Separate Seat Type) (See step 28 in  INSTALLATION  )
  16. INSTALL REAR CONSOLE BOX ASSEMBLY (for Separate Seat Type) (See step 29 in  INSTALLATION  )
  17. INSTALL CONSOLE UPPER REAR PANEL SUB-ASSEMBLY (for Manual Transmission on Separate Seat Type) (See step 30 in  INSTALLATION  )
  18. INSTALL CONSOLE UPPER REAR PANEL SUB-ASSEMBLY (for Automatic Transmission on Separate Seat Type) (See step 31 in  INSTALLATION  )
  19. INSTALL INSTRUMENT PANEL HOLE COVER (for Lever Type Parking Brake) (See step 32 in  INSTALLATION  )
  20. INSTALL INSTRUMENT PANEL UNDER TRAY (for Pedal Type Parking Brake) (See step 33 in  INSTALLATION  )
  21. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL

    Torque: 3.9 N.m (40 kgf.cm, 35 in.lbf)
