Wiper and Washer without INT Time SW: Notes

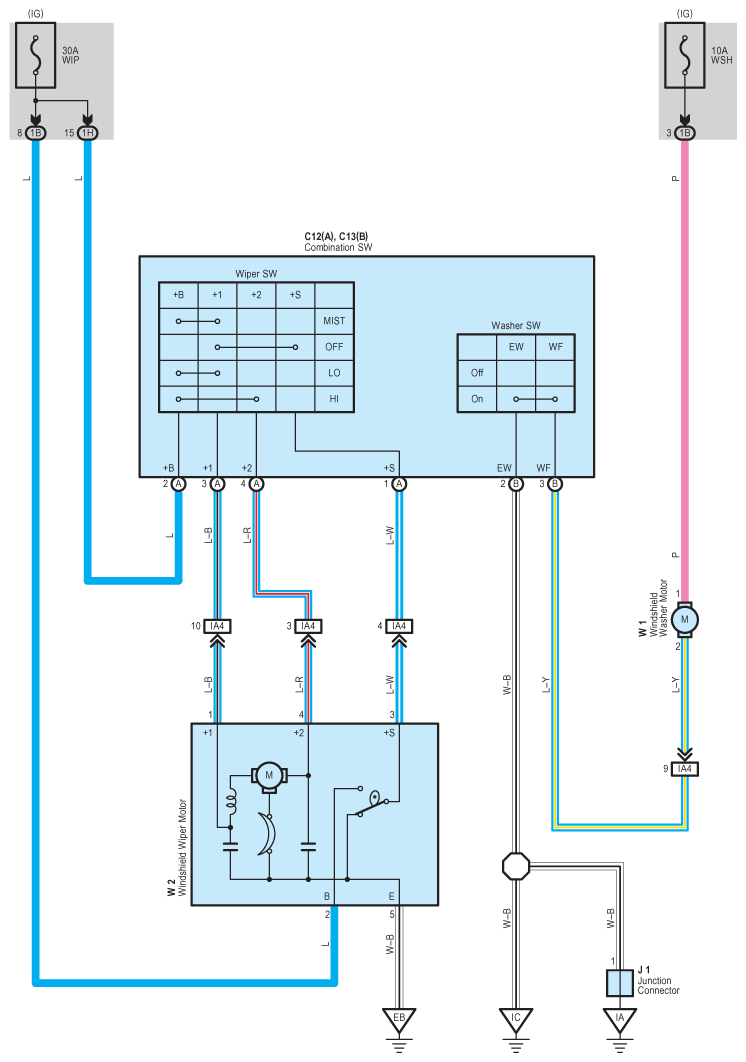

Fig 1: Wiper And Washer Without INT Time SW System Wiring Diagram

G08796858

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
