Outer Rear View Mirror: Installation

  1. REMOVE OUTER REAR VIEW MIRROR
    1. Engage the 2 claws into the outer rear view mirror.
    2. Engage the 2 claws and install the outer rear view mirror.

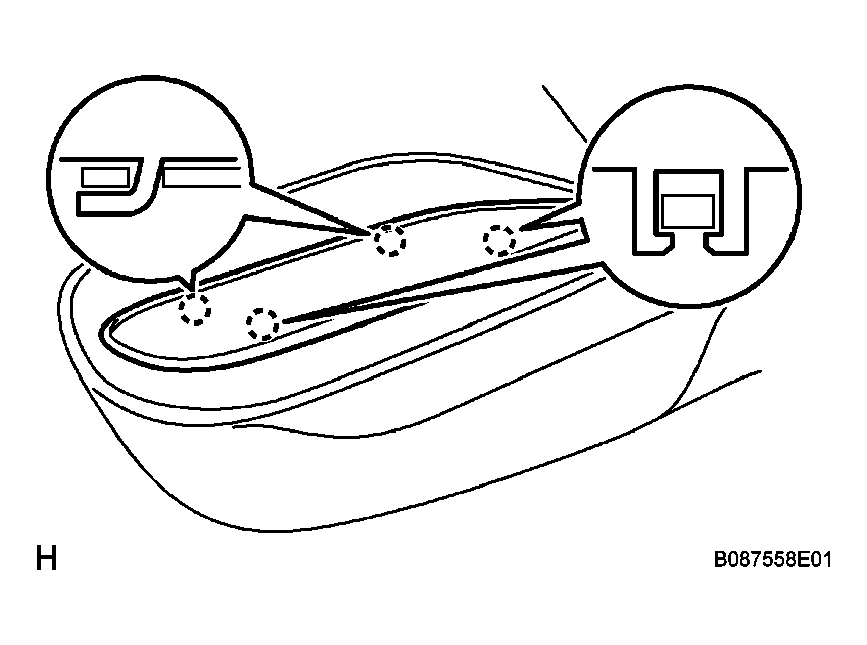

      Fig 1: Installing Outer Rear View Mirror With Claws
      G04412932Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. REMOVE OUTER REAR VIEW MIRROR ASSEMBLY
    1. Engage the claw and install the outer rear view mirror.
    2. Tighten the 3 nuts.

      Torque: 8.0 N*m (80 kgf*cm, 71 in.*lbf)

    3. Connect the outer rear view mirror connector (w / Power Mirror).
  3. REMOVE FRONT DOOR TRIM PANEL ASSEMBLY (w/ Power Window) (See step 6 under  DISASSEMBLY  )
  4. REMOVE FRONT DOOR TRIM PANEL ASSEMBLY (w/o Power Window) (See step 4 under  DISASSEMBLY  )

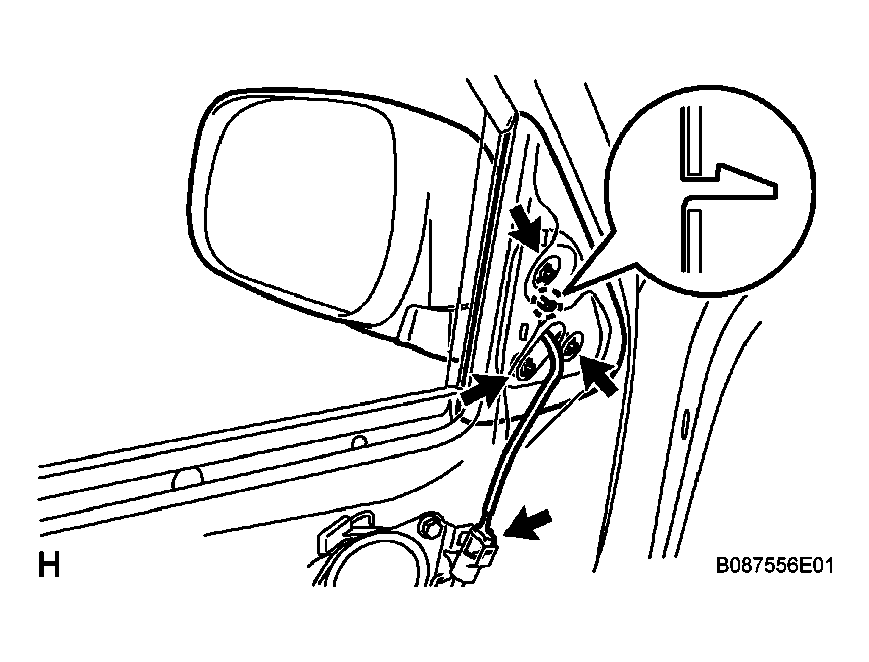

    Fig 2: Installing Outer Rear View Mirror With Claws
    G04412933Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. REMOVE POWER WINDOW REGULATOR MASTER SWITCH ASSEMBLY (for Double Cab) (See step 3 under  DISASSEMBLY  )
  6. REMOVE POWER WINDOW REGULATOR MASTER SWITCH ASSEMBLY (for Access Cab) (See step 4 under  DISASSEMBLY  )
  7. REMOVE FRONT DOOR WINDOW REGULATOR HANDLE ASSEMBLY (See step 2 under  DISASSEMBLY  )
  8. REMOVE FRONT DOOR LOWER FRAME BRACKET GARNISH (w/ Power Window) (See step 2 under  DISASSEMBLY  )
  9. REMOVE FRONT DOOR LOWER FRAME BRACKET GARNISH (w/o Power Window) (See step 3 under  DISASSEMBLY  )
  10. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL

    Torque: 3.9 N*m (40 kgf*cm, 35 in.*lbf)
