Outer Mirror Switch: Inspection

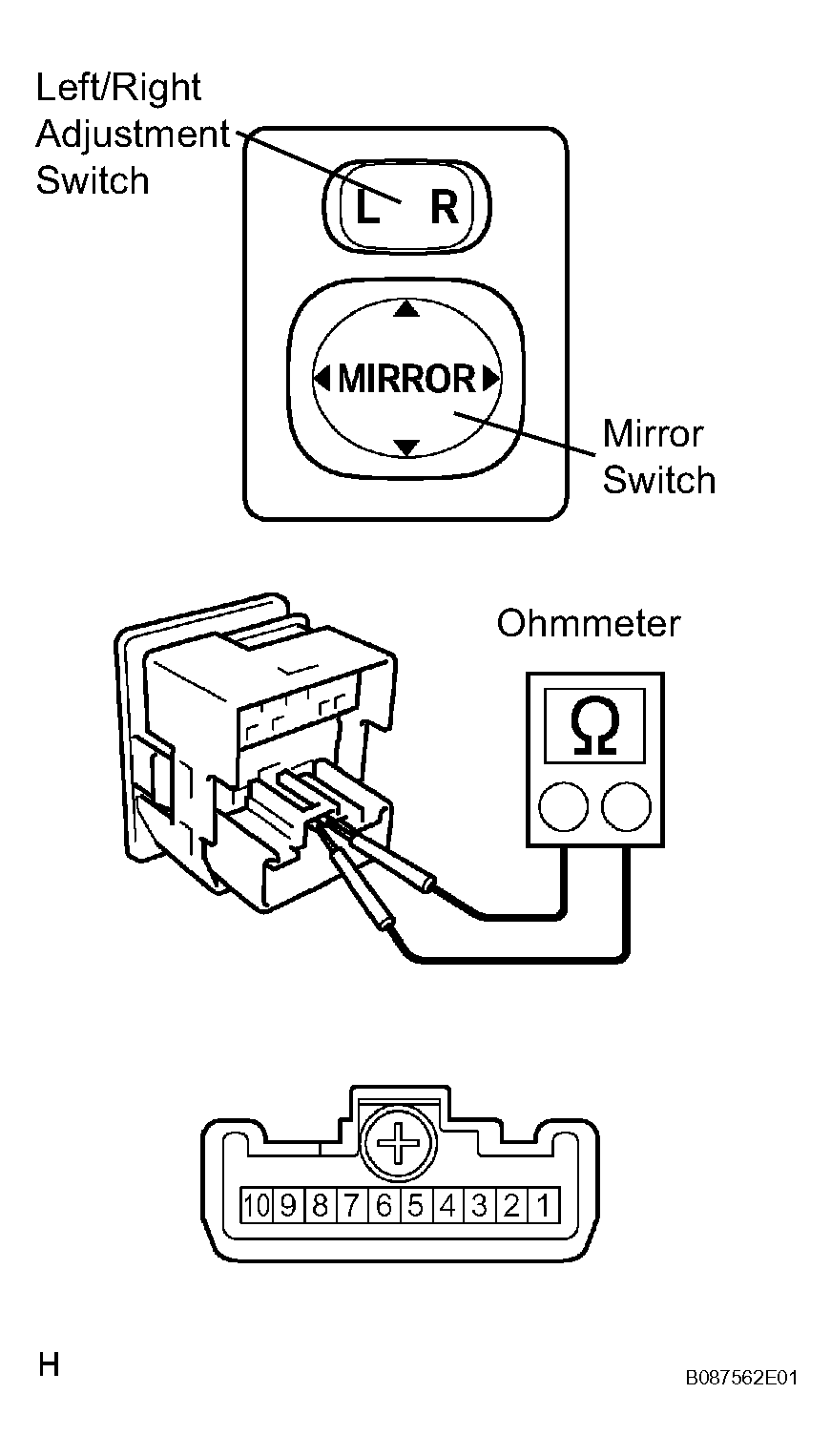

- INSPECT OUTER MIRROR SWITCH ASSEMBLY
- Check the resistance.
- Press L on the left/right adjustment switch.
- Using an ohmmeter, measure the resistance between the terminals.
Standard
TERMINAL CONNECTION SPECIFIED CONDITION TABLETerminal Connection Mirror Switch Condition Specified Condition 4 (VL) - 8 (B)
6 (M+) - 7 (E)UP Below 1 Ω 4 (VL) - 7 (E)
6 (M+) - 8 (B)DOWN Below 1 Ω 5 (HL) - 8 (B)
6 (M+) - 7 (E)LEFT Below 1 Ω 5 (HL) - 7 (E)
6 (M+) - 8 (B)RIGHT Below 1 Ω If the result is not as specified, replace the outer mirror switch.
- Press R on the left/right adjustment switch.
- Using an ohmmeter, measure the resistance between the terminals.
Standard
TERMINAL CONNECTION SPECIFIED CONDITION TABLETerminal Connection Mirror Switch Condition Specified Condition 3 (VR) - 8 (B)
6 (M+) - 7 (E)UP Below 1 Ω 3 (VR) - 7 (E)
6 (M+) - 8 (B)DOWN Below 1 Ω 2 (HR) - 8 (B)
6 (M+) - 7 (E)LEFT Below 1 Ω 2 (HR) - 7 (E)
6 (M+) - 8 (B)RIGHT Below 1 Ω Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
If the result is not as specified, replace the outer mirror switch.
- Check the resistance.
