Fuel Injector: Components

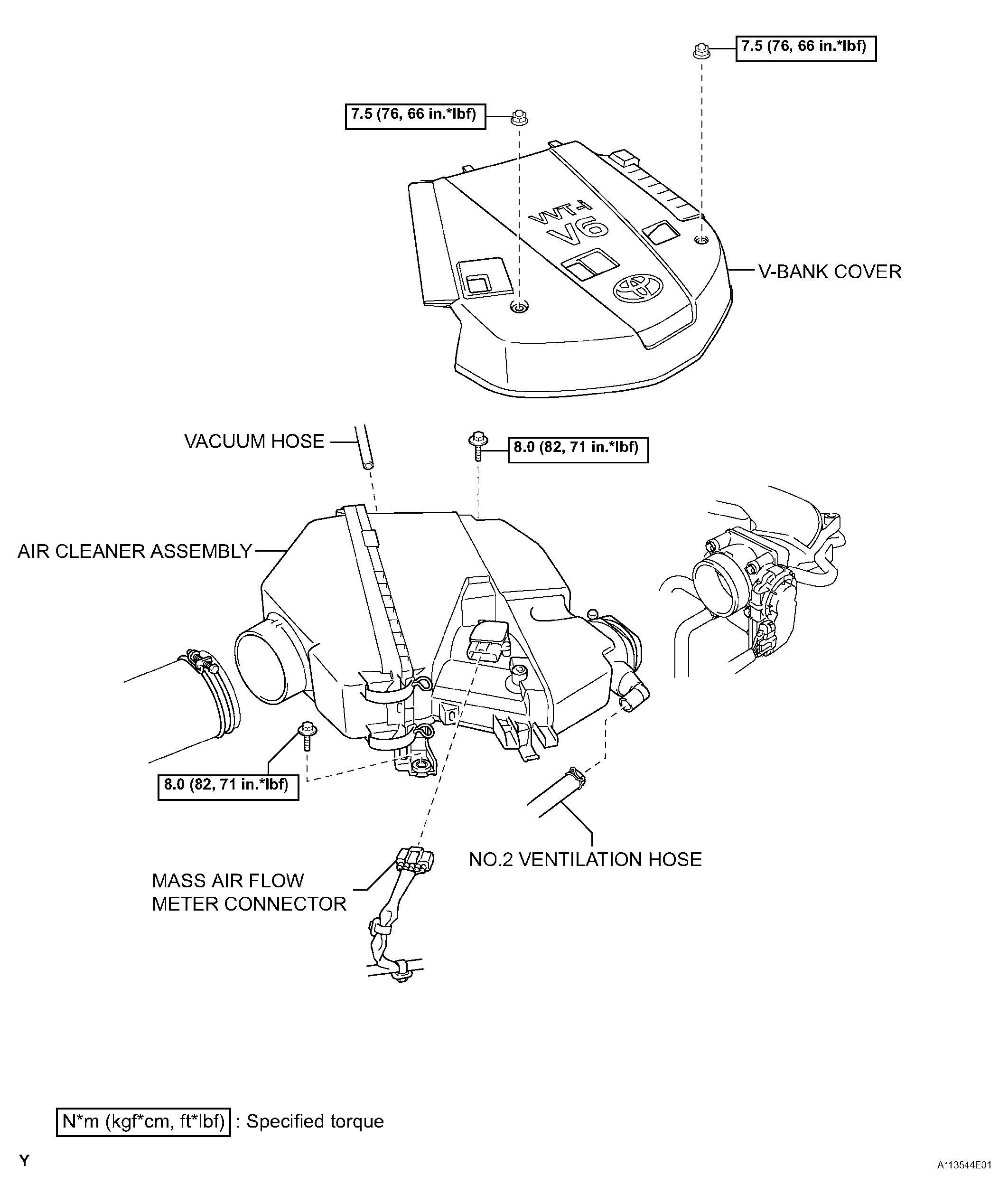

Fig 1: Fuel Injector Replacement Components With Torque Specifications (1 Of 2)
G04409120Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

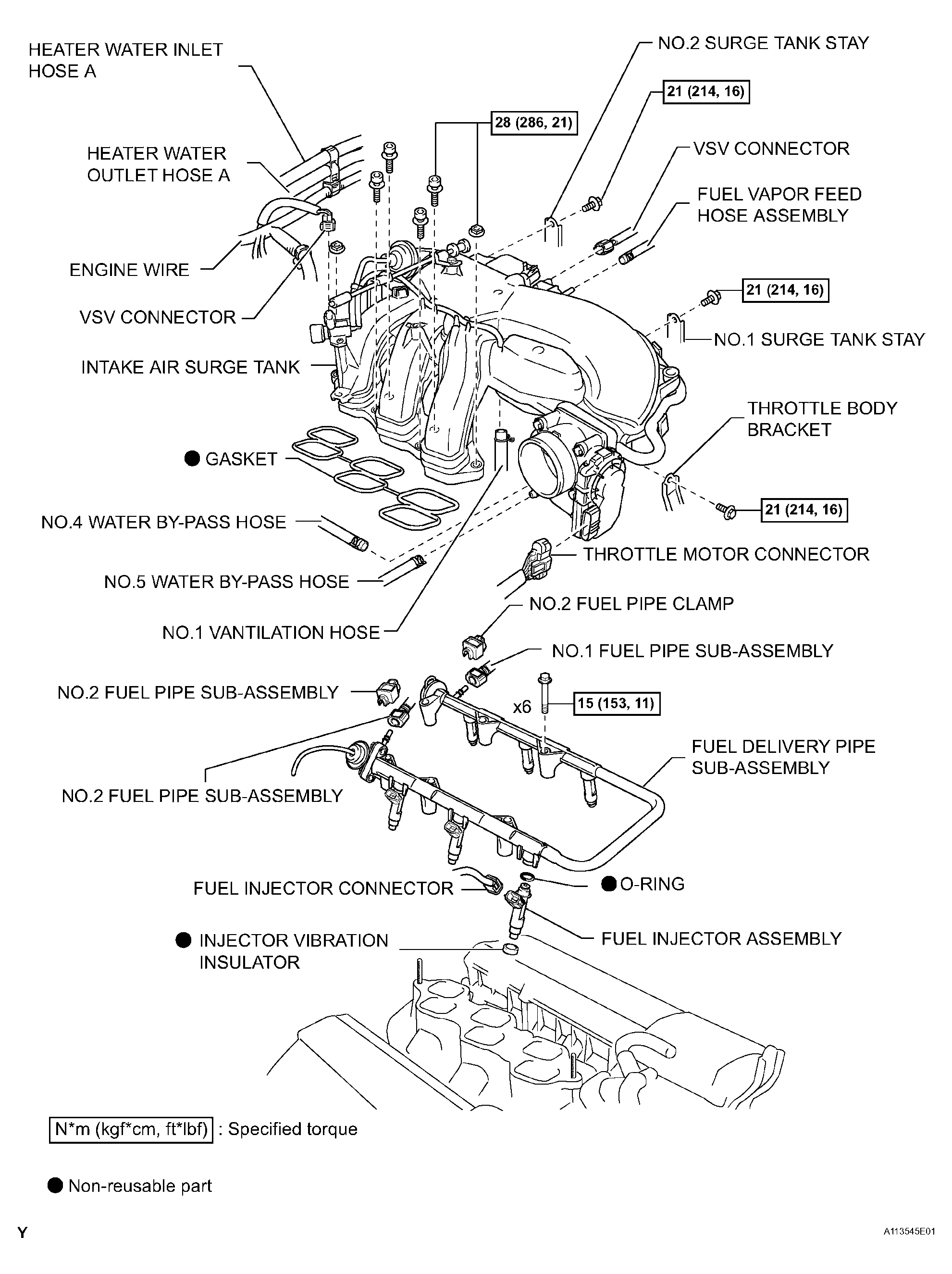

Fig 2: Fuel Injector Replacement Components With Torque Specifications (2 Of 2)
G04409121Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
