Rear Leaf Spring: Installation

INSTALL REAR SPRING SHACKLE SUB-ASSEMBLY NO. 2
1. Install the shackle with the through bolt, washer and nut.
INSTALL REAR LEAF SPRING
1. Place the spring in the rear axle housing.
2. Align the hole of the rear axle housing with the head of the spring center bolt.

  Fig 1: Installing Shackle With Through Bolt & Nut
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Install the through bolt, washer and nut.

  Fig 2: Installing Rear Leaf Spring Bolt & Nut
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. Install the through bolt, washer and nut.

  Fig 3: Installing Bolt & Nut
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL REAR SPRING U BOLT (for 2WD)
1. Install the spring seat, 2 U-bolts, 4 washers and 4 nuts.
  Torque: 50 N*m (510 kgf*cm, 37 ft.*lbf)

  HINT:

  Tighten the U-bolts until the lengths of all the U-bolts under the spring seat are the same.

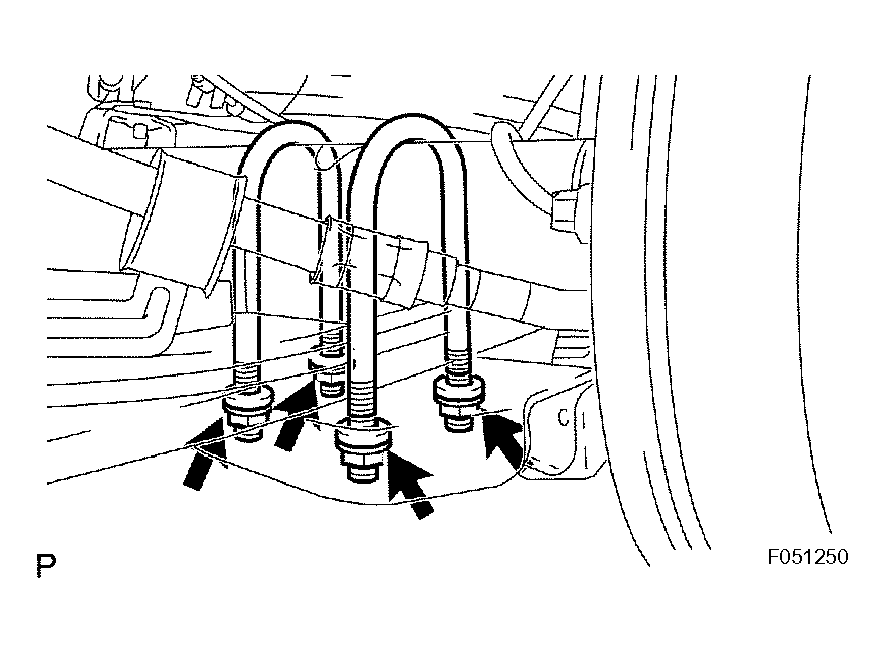

  Fig 4: Installing Spring Seat U-Bolts, Washers & Nuts (For 2WD)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL REAR SPRING U BOLT (for 4WD and Pre-Runner)
1. Install the spring bumper.
2. Install the spring seat, 2 U-bolts, 4 washers and 4 nuts.
  Torque: 50 N*m (510 kgf*cm, 37 ft.*lbf)

  HINT:

  Tighten the U-bolts until the lengths of all the U-bolts under the spring seat are the same.

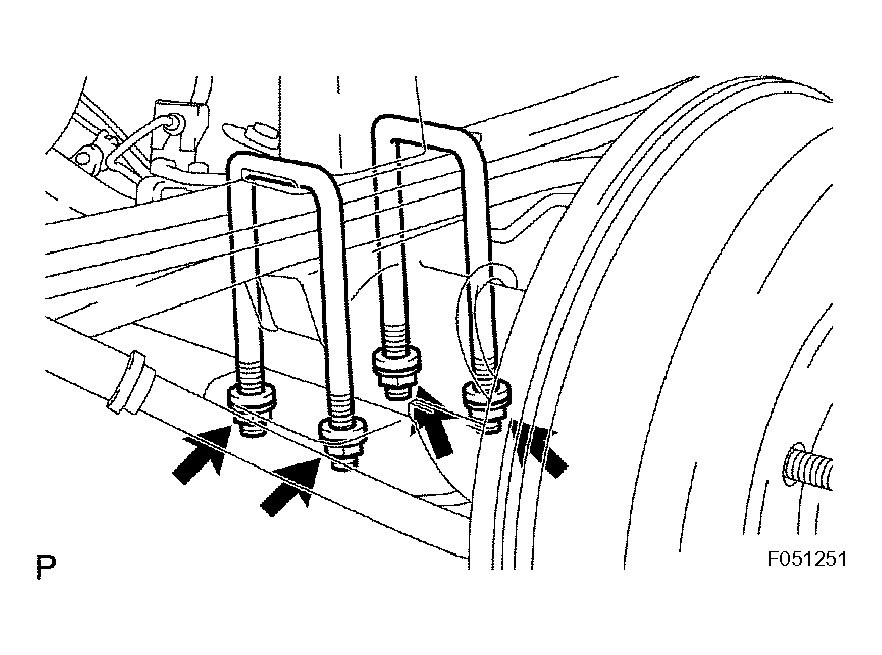

  Fig 5: Installing Spring Seat U-Bolts, Washers & Nuts (For 4WD & Pre-Runner)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL REAR SPRING BUMPER NO. 1 (for 2WD)
1. Install the spring bumper with the 2 nuts.
  Torque: 15 N*m (153 kgf*cm, 11 ft.*lbf)

  Fig 6: Installing Spring Bumper With Nuts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL PARKING BRAKE CABLE ASSEMBLY NO. 3
1. Install the parking brake cable with the bolt.
  Torque: 12.5 N*m (127 kgf*cm, 9 ft.*lbf)

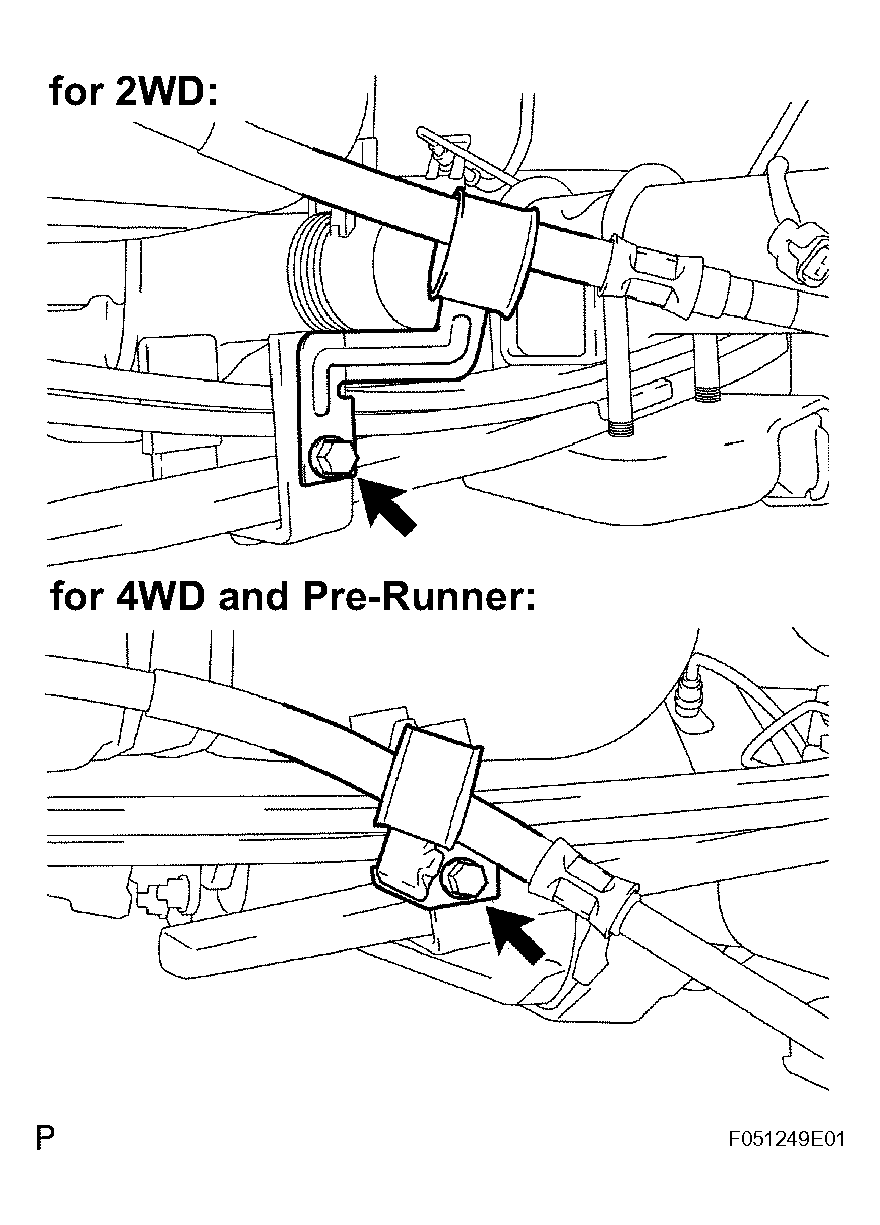

  Fig 7: Installing Parking Brake Cable With Bolt
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL REAR SHOCK ABSORBER
1. Install the shock absorber with the bolt, nut and washer.
INSTALL REAR WHEEL
Torque: 113 N*m (1, 152 kgf*cm, 83 ft.*lbf)
STABILIZE SUSPENSION
1. Jack down the vehicle.
2. Bounce the vehicle up and down several times to stabilize the suspension.

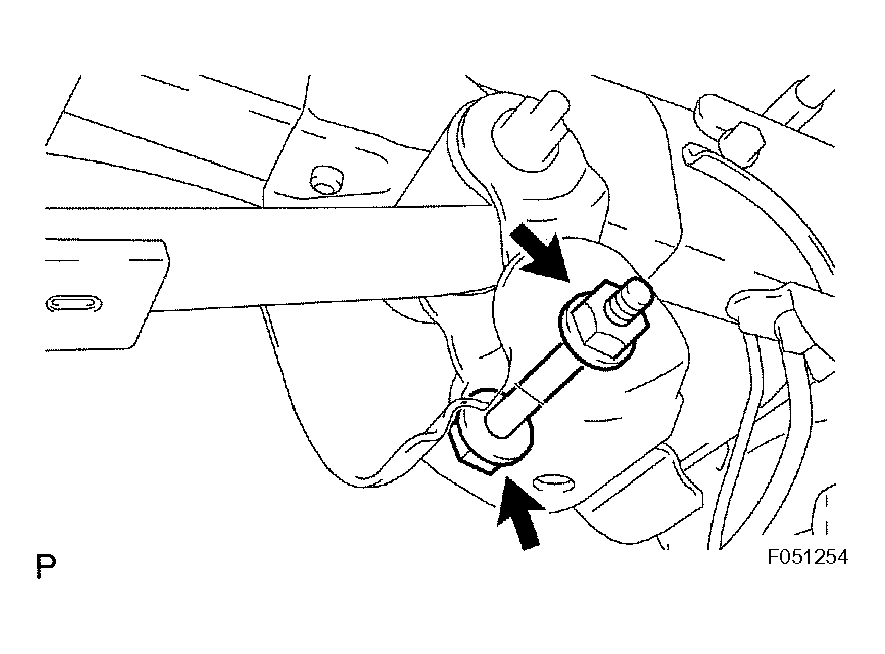

  Fig 8: Installing Shock Absorber With Bolt, Nut & Washer
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

FULLY TIGHTEN REAR SUSPENSION

Tighten the nuts and bolts of the rear suspension parts.

REAR SUSPENSION PARTS TORQUE SPECIFICATION

Part Tightened	N*m	kgf*cm	ft.*lbf
Rear LH spring at Rear spring shackle	120	1, 224	89
Rear LH spring at Frame	120	1, 224	89
Rear spring shackle at Frame	120	1, 224	89
Rear shock absorber at Rear spring seat (2WD)	100	1, 020	74
Rear shock absorber at Rear axle housing (4WD and Pre-Runner)	100	1, 020	74

INSTALL SPARE TIRE (for 4WD and Pre-Runner)
