Rear Leaf Spring: Disassembly

  1. REMOVE BUSH
    1. Fix the spring in a vise.
    2. Using a hack saw, cut both ends off the bushes.
      Fig 1: Cutting Both Ends Off Bushes Using Hack Saw
      G04410473Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Using SST and a press, press out the 2 bushes.

      SST 09950-60010 (09951-00350), 09950-70010 (09951-07100)

      Fig 2: Pressing Out Bushes Using SST & Press
      G04410474Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Using a chisel and hammer, tap out the 2 outer tubes.

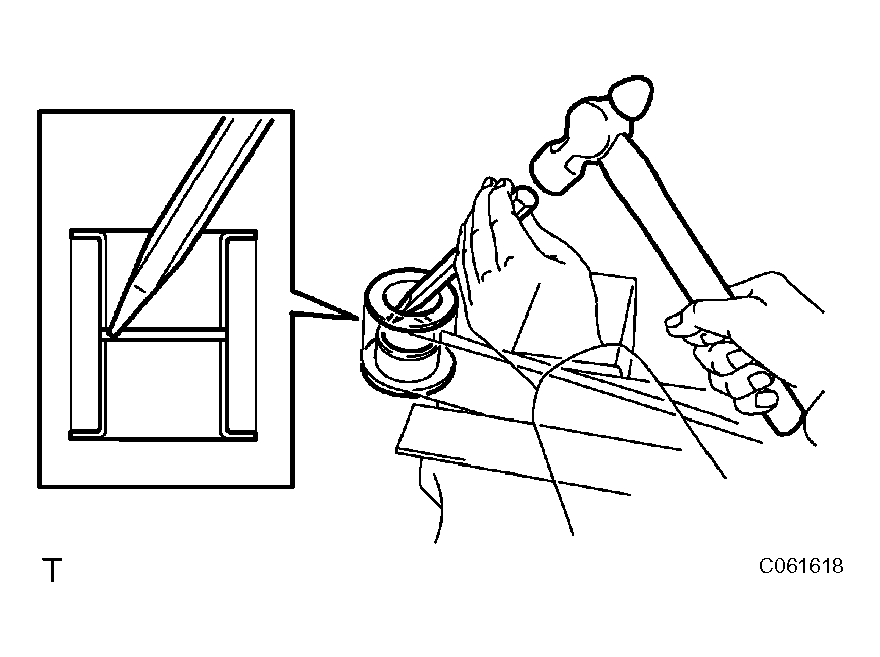

      Fig 3: Tapping Out Outer Tubes Using Chisel & Hammer
      G04410475Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
