Control Units
CONTROL UNITS LOCATION
| Component | Location |
|---|---|

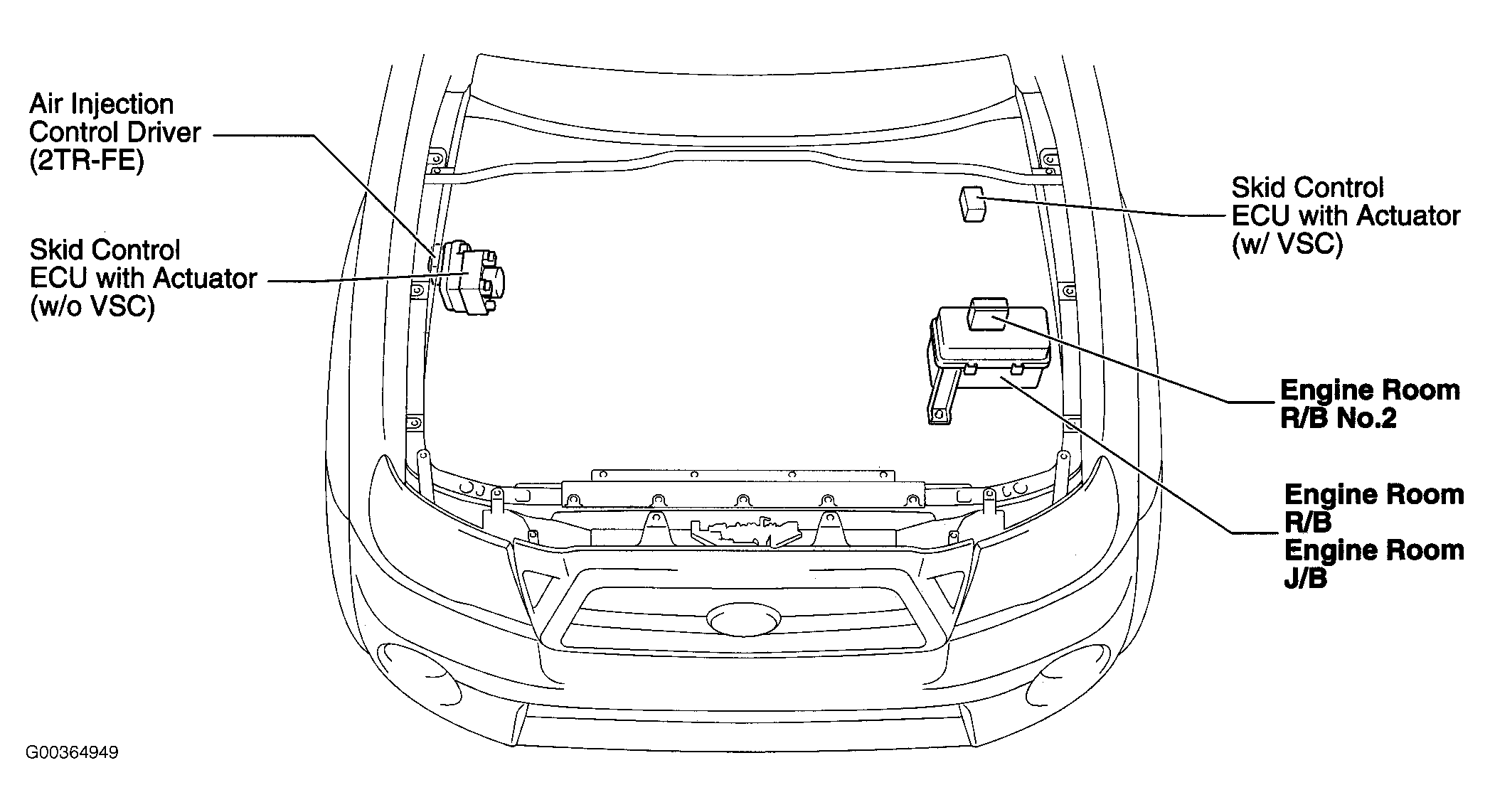

| Air Injection Control Driver | Right side of engine compartment. See Figure. |

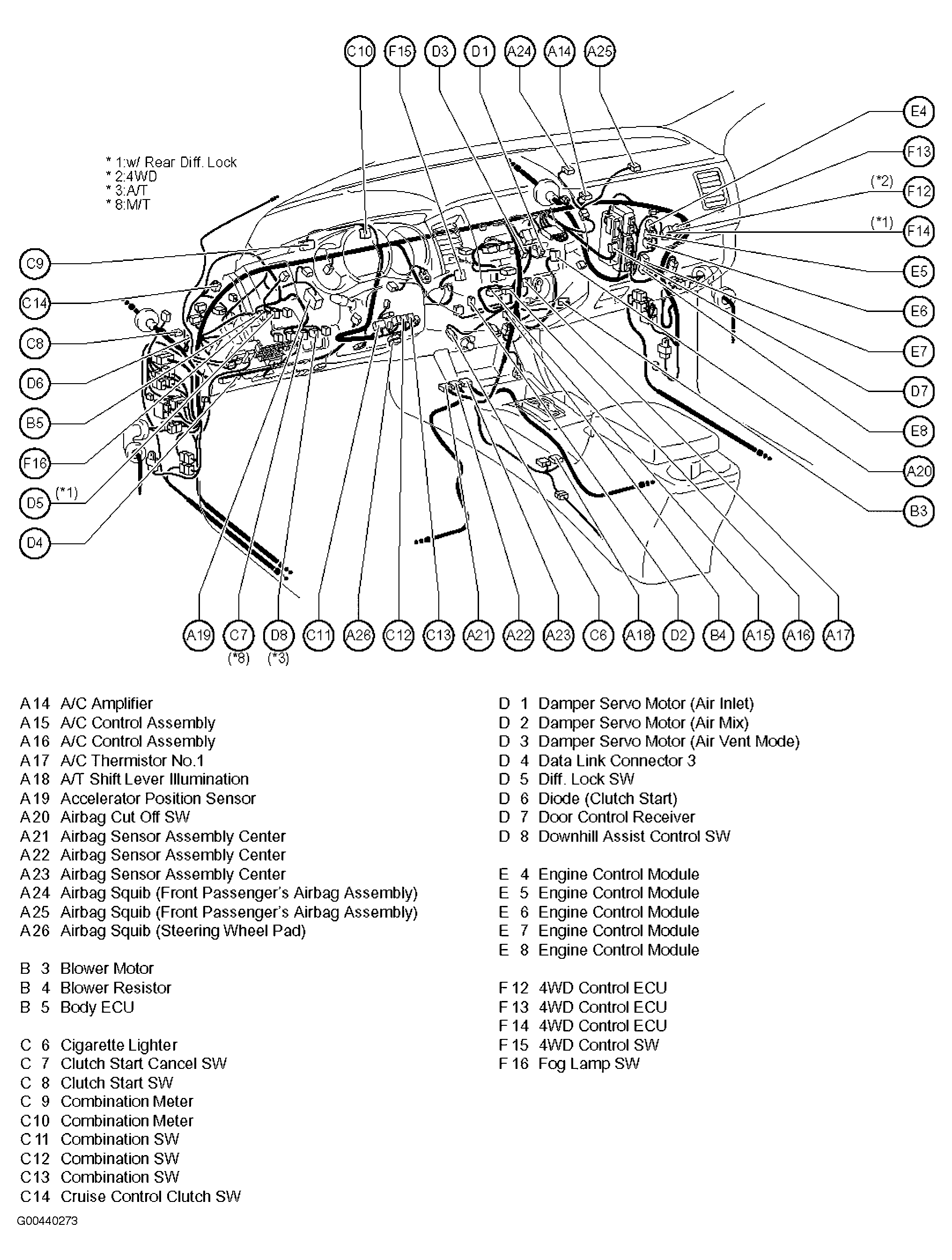

| Body ECU | On J/B No. 1. See Figure. |
| Door Control Receiver | Right side of dash. See Figure. |
| Engine Control Module | Behind right side of dash. See Figure. |

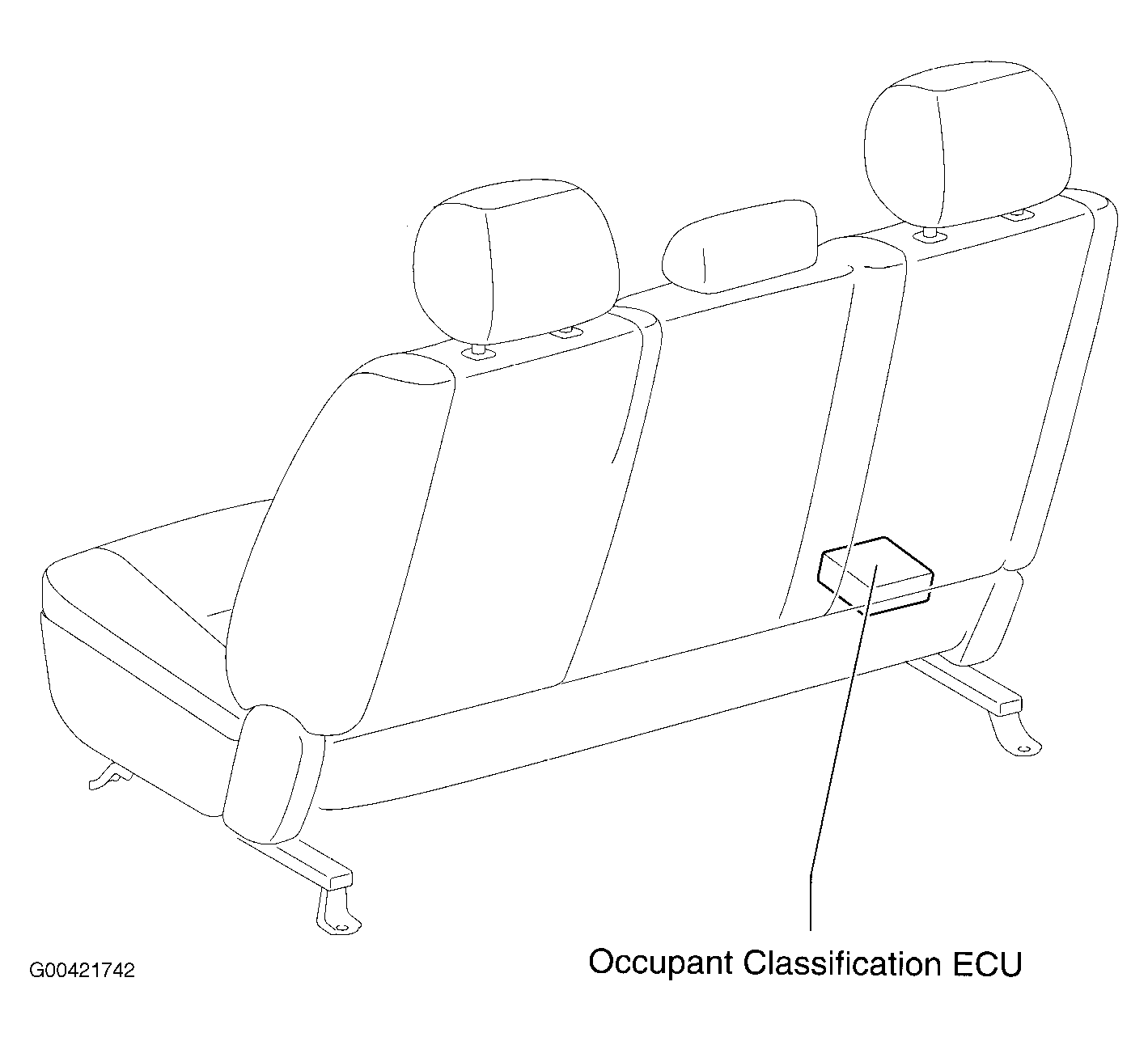

| Occupant Classification ECU (Bench) | In passenger's seat bottom. See Figure. |

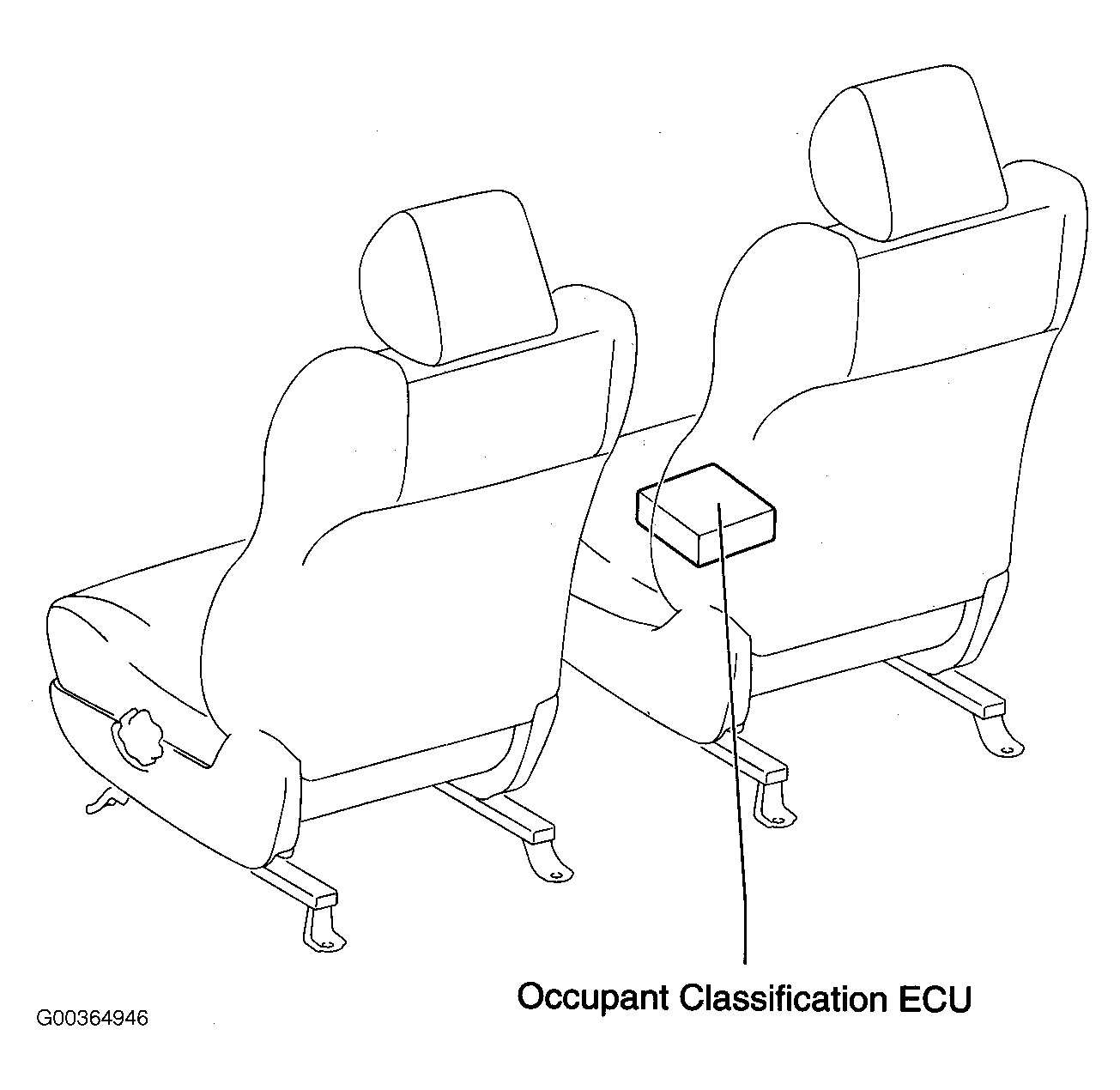

| Occupant Classification ECU (Bucket) | In front passenger's seat bottom. See Figure. |

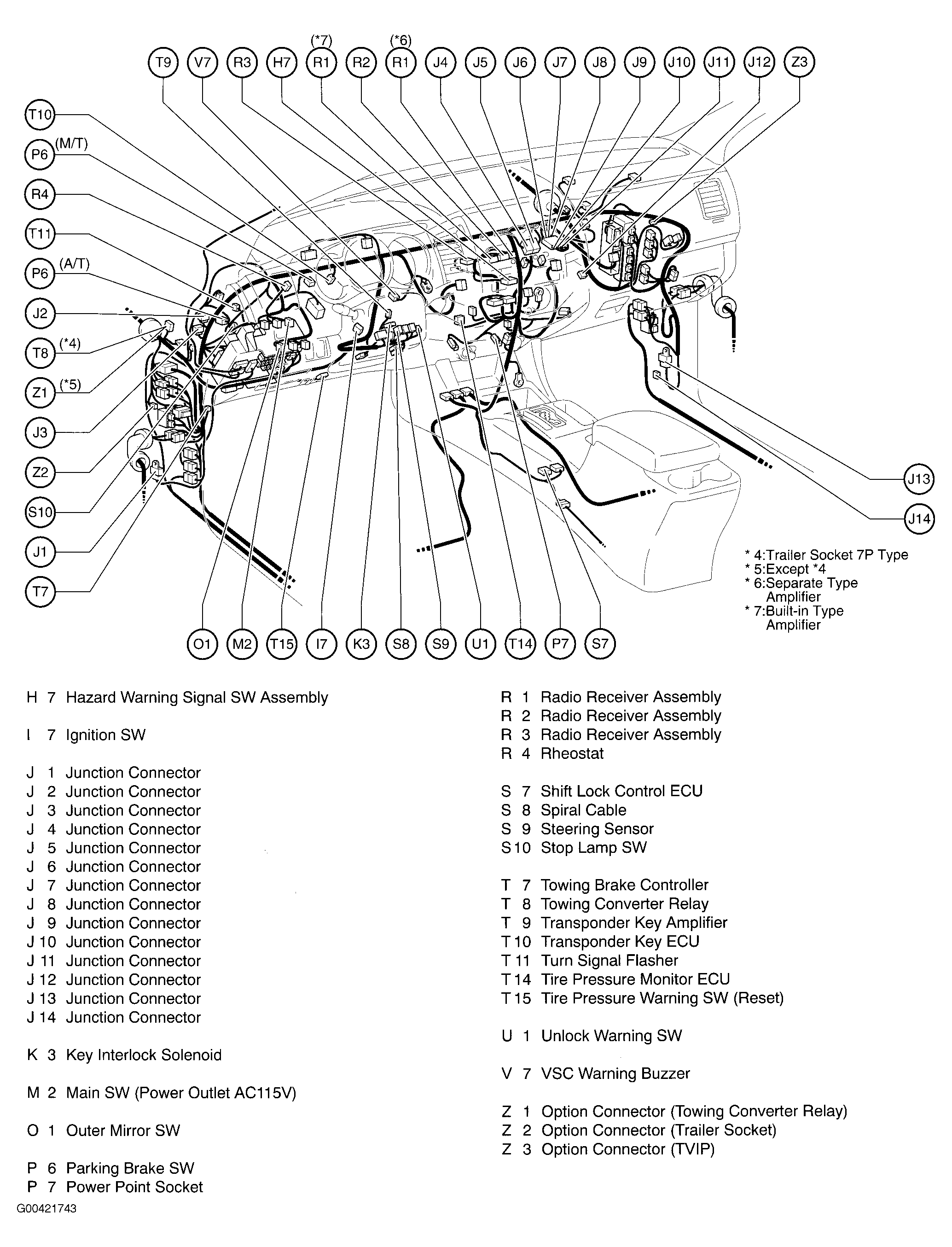

| Shift Lock Control ECU | Under center console. See Figure. |

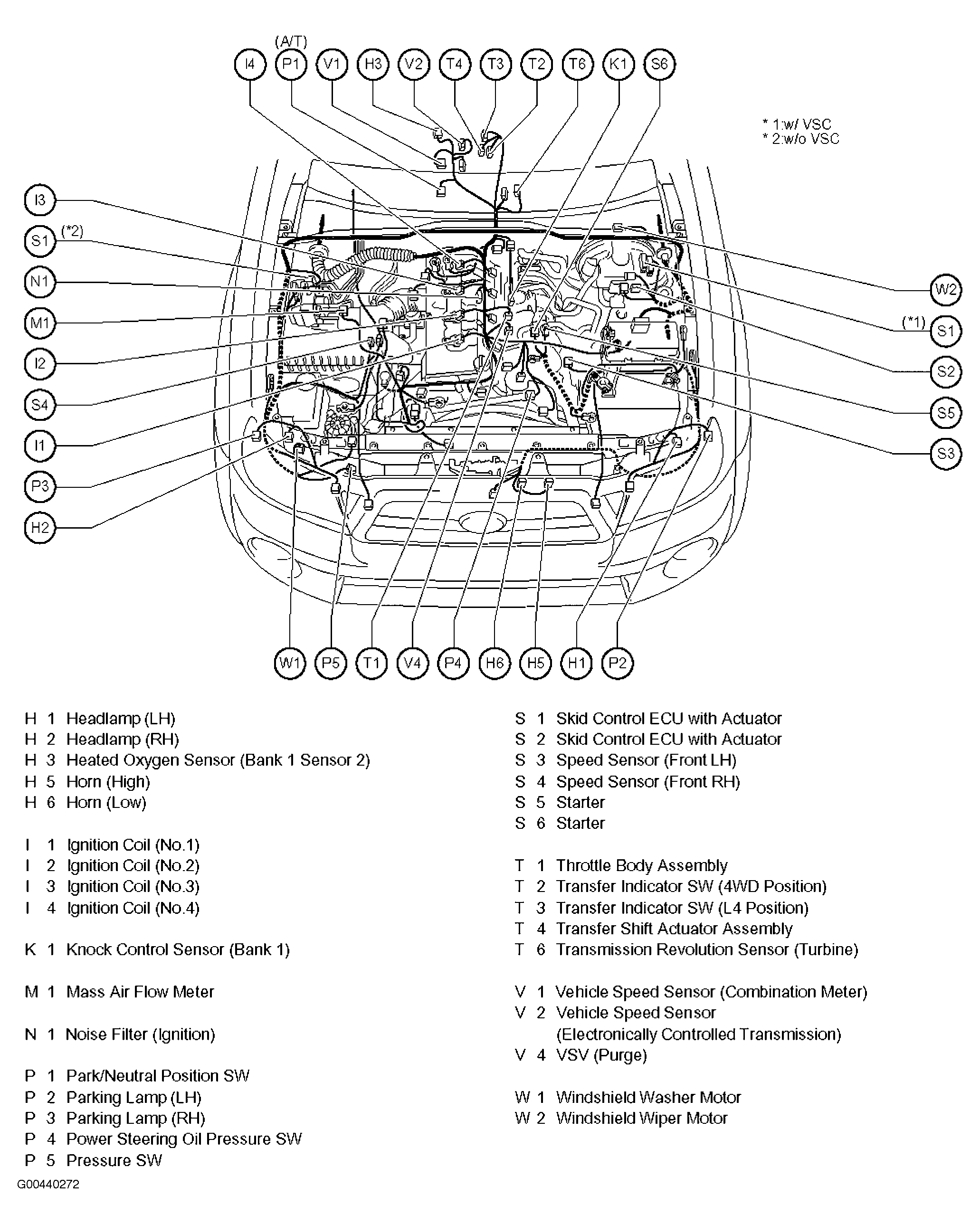

| Skid Control ECU W/ Actuator (W/O VSC) (2.7L) | Right rear of engine compartment. See Figure. |
| Skid Control ECU W/ Actuator (W/O VSC) (4.0L) | Right rear of engine compartment. See Figure. |
| Skid Control ECU W/ Actuator (W/ VSC) (2.7L) | Lower left side of dash. See Figure. |
| Skid Control ECU W/ Actuator (W/ VSC) (4.0L) | Left rear of engine compartment. See Figure. |

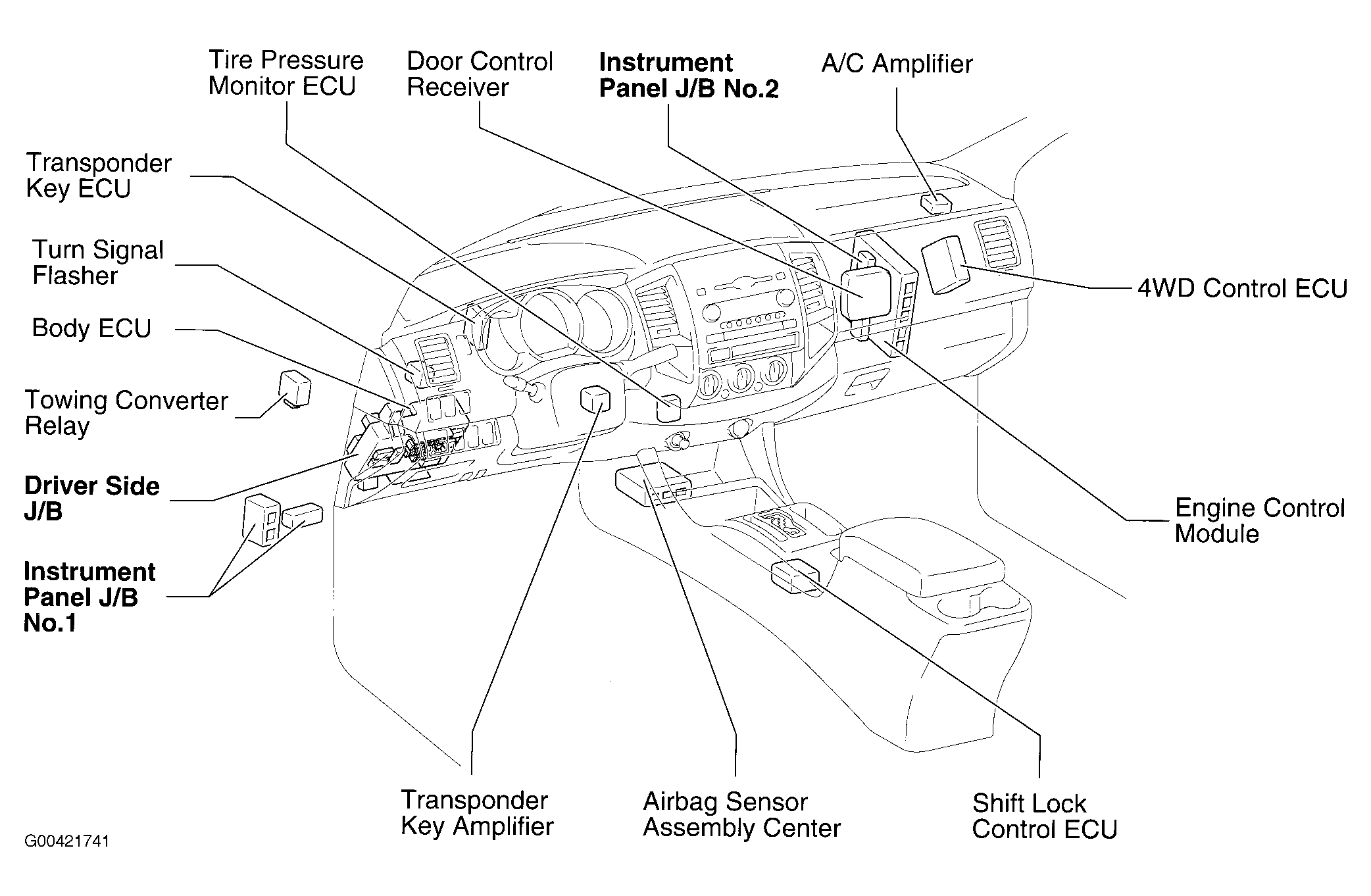

| Tire Pressure Monitor ECU | Center of dash. See Figure. |
| Towing Brake Controller | Left side of dash. See Figure. |
| Transponder Key ECU | Left side of dash. See Figure. |
| 4WD Control ECU | Right side of dash. See Figure. |
