Fuel Injector: Components

Fig 1: Fuel Injector Replacement Components With Torque Specifications (1 Of 3)
G04409194Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: Fuel Injector Replacement Components With Torque Specifications (2 Of 3)
G04409195Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

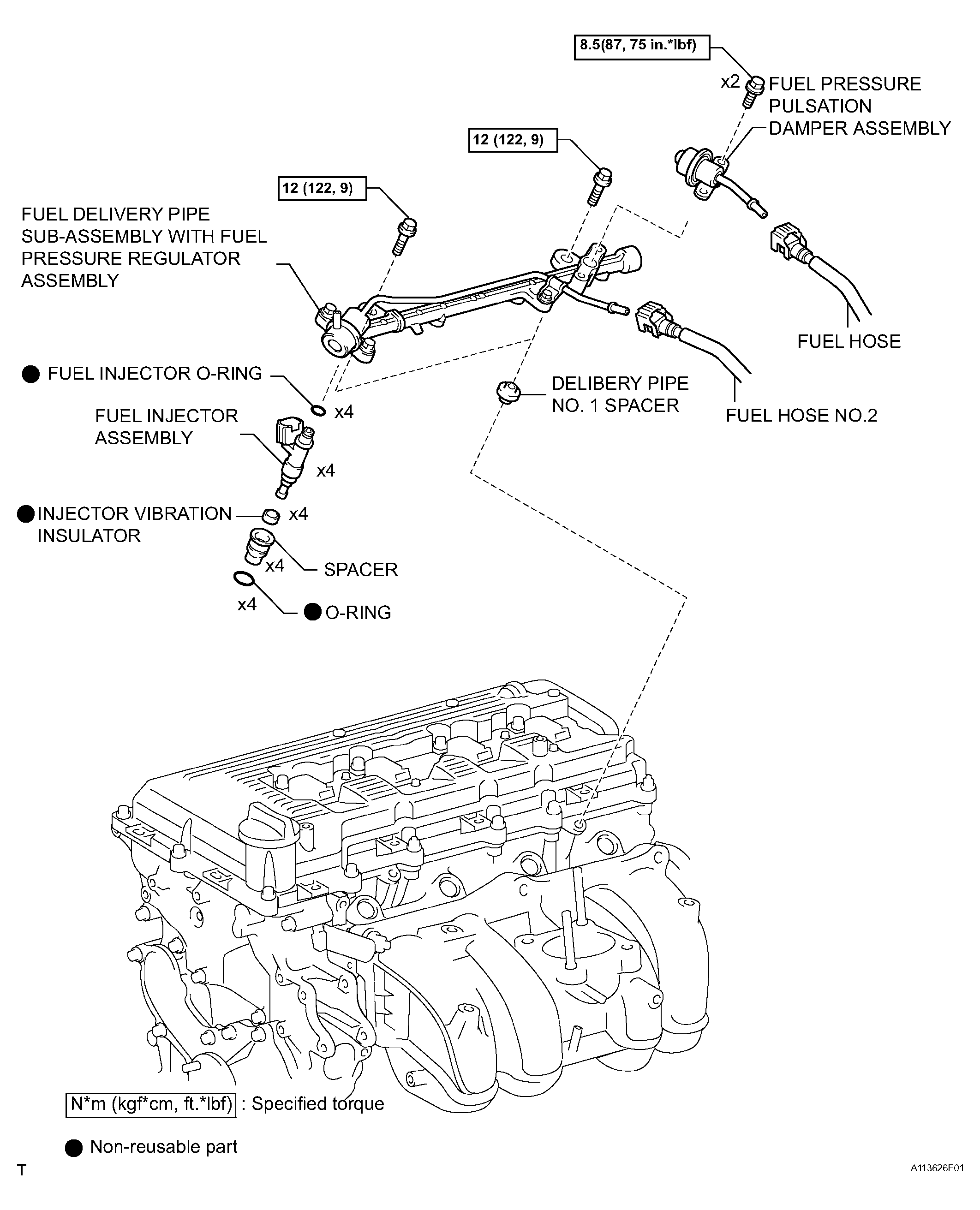

Fig 3: Fuel Injector Replacement Components With Torque Specifications (3 Of 3)
G04409196Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
