Parts Location

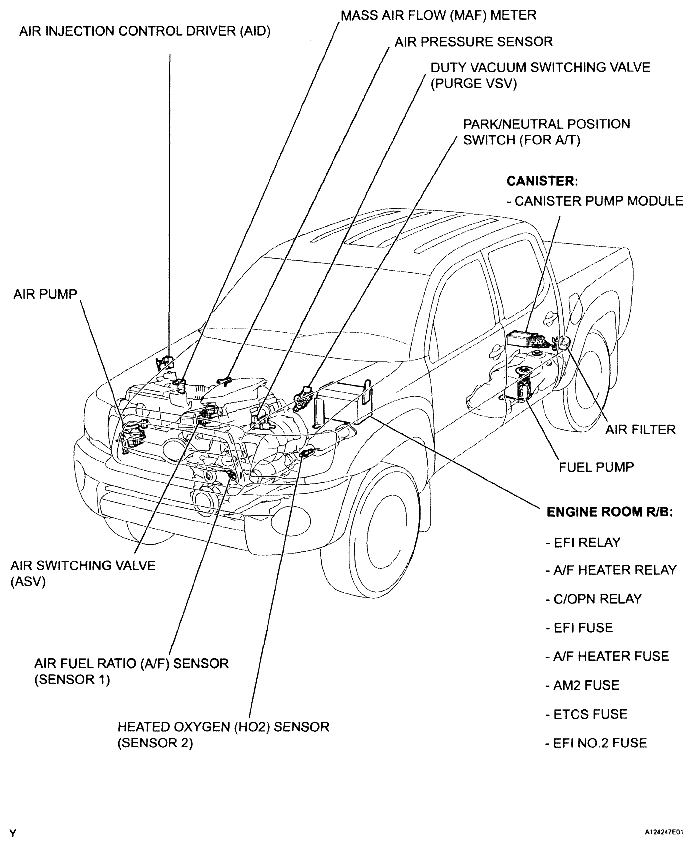

Fig 1: Identifying SFI System Parts Location (1 Of 3)

Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

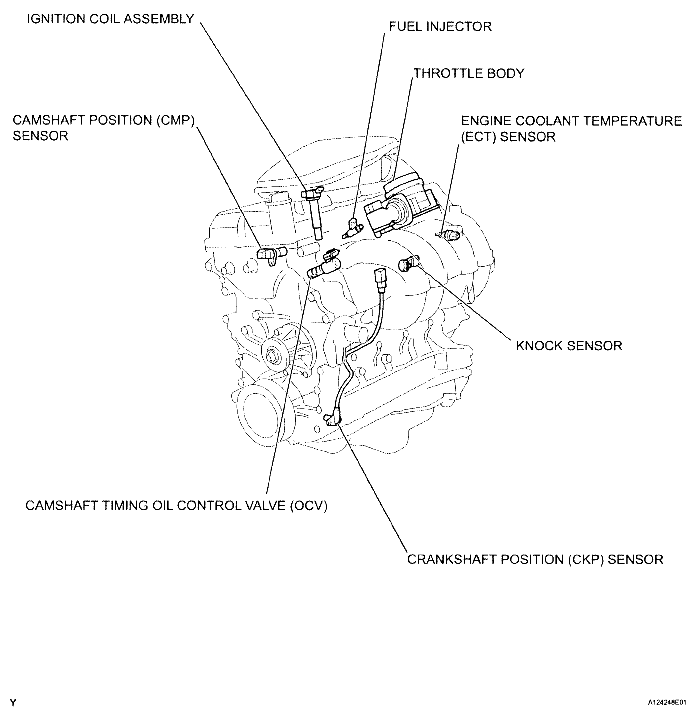

Fig 2: Identifying SFI System Parts Location (2 Of 3)

Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

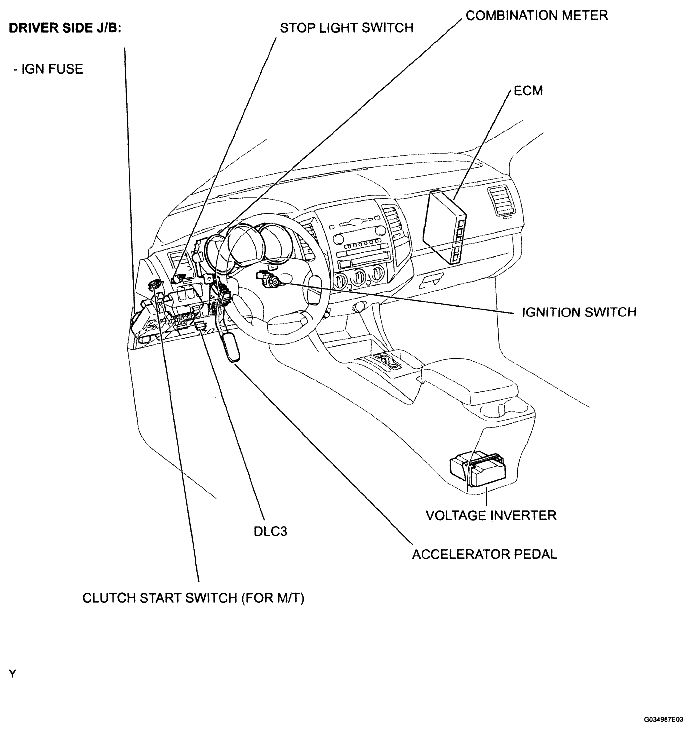

Fig 3: Identifying SFI System Parts Location (3 Of 3)

Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
