Fuel Pump Control Circuit: Wiring Diagram

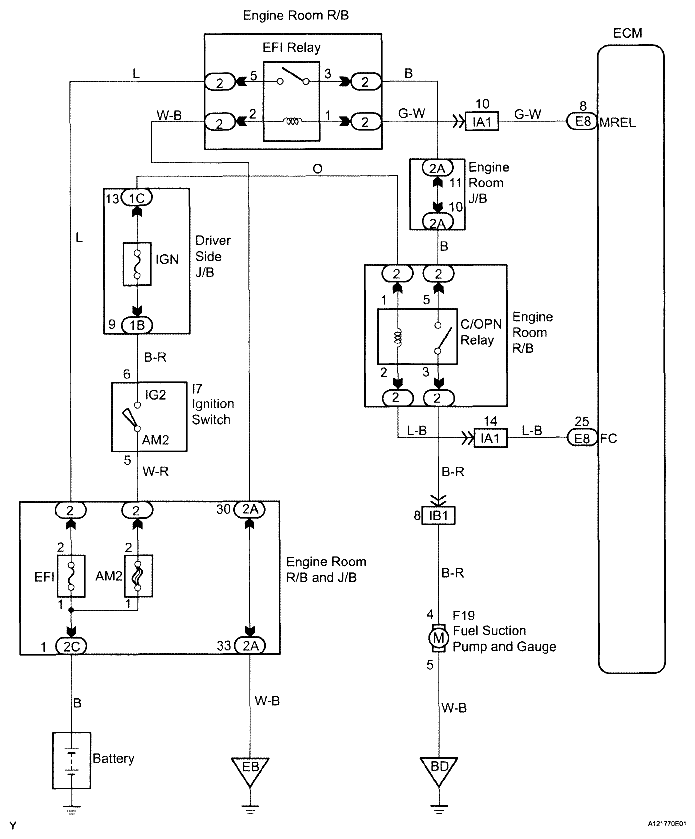

Fig 1: Fuel Pump Control Circuit - Wiring Diagram

G05198380

Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
