ECM Power Source Circuit: Wiring Diagram

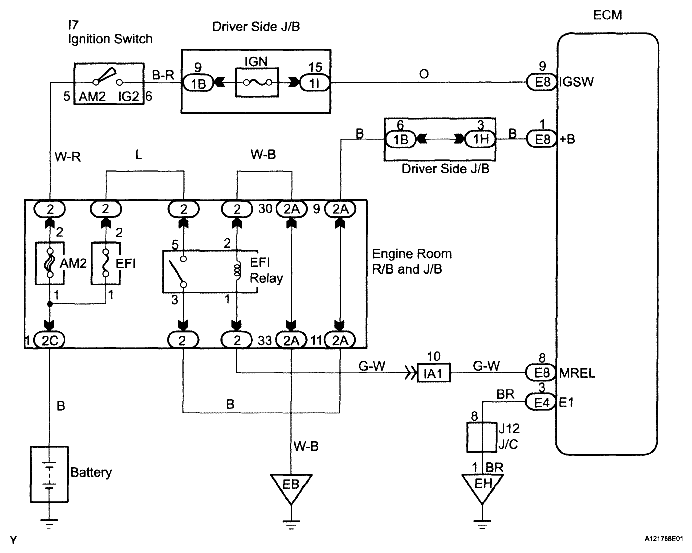

Fig 1: ECM Power Source Circuit - Wiring Diagram

G05198367

Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
