Power Source: Notes

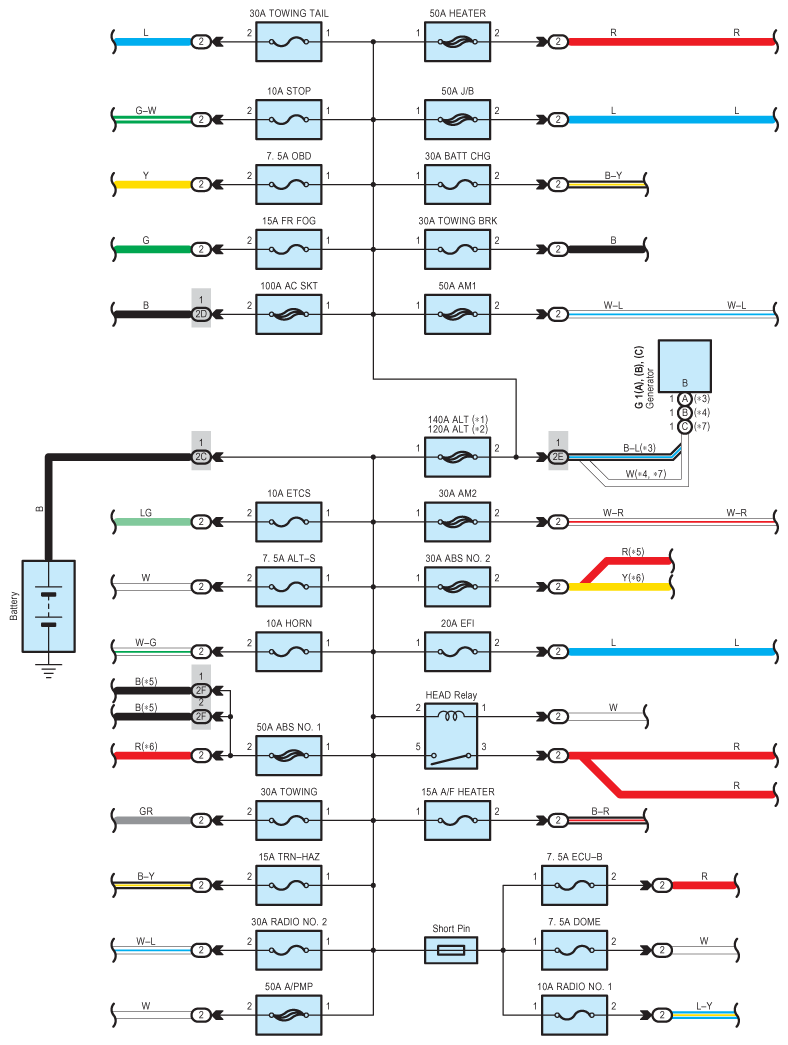

Fig 1: Power Source System Wiring Diagram (1 Of 2)
G08796765Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

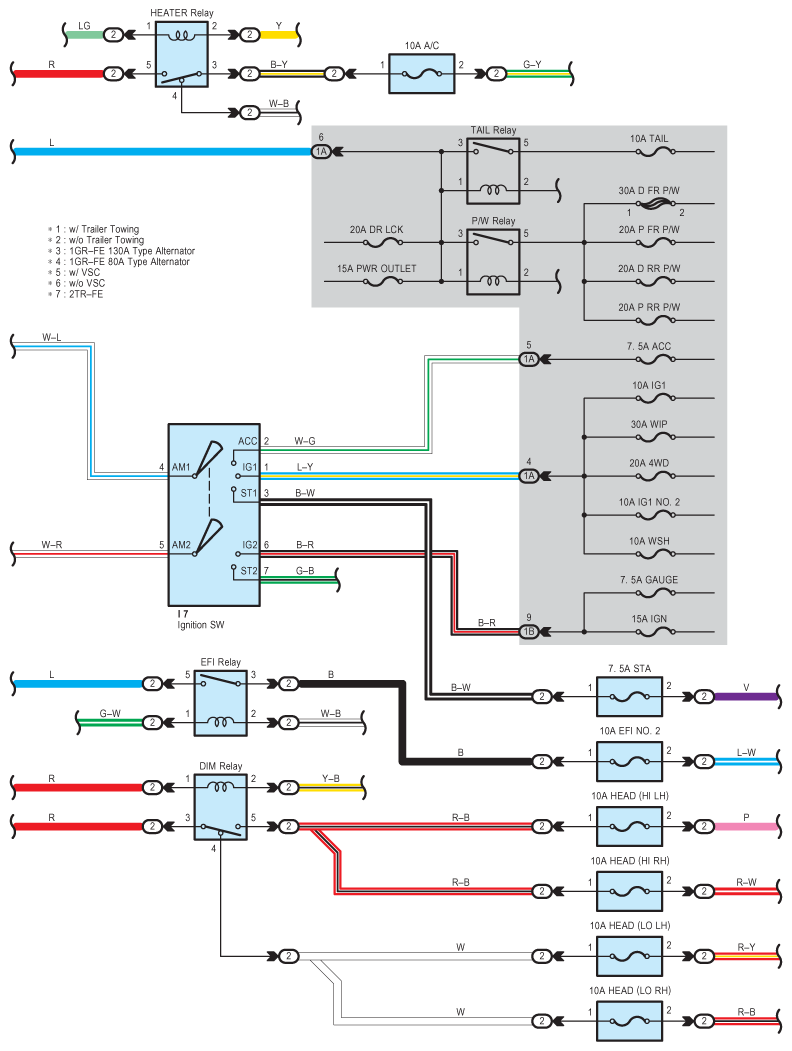

Fig 2: Power Source System Wiring Diagram (2 Of 2)
G08796766Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
