Multiplex Communication System - CAN: Notes

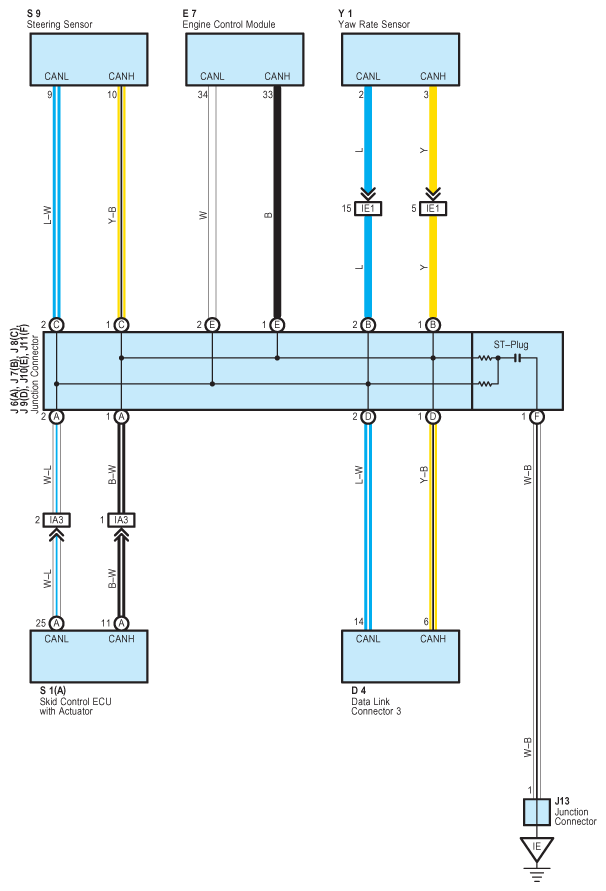

Fig 1: Multiplex Communication System - CAN System Wiring Diagram

G08796827

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
