Light Auto Turn Off System: Notes

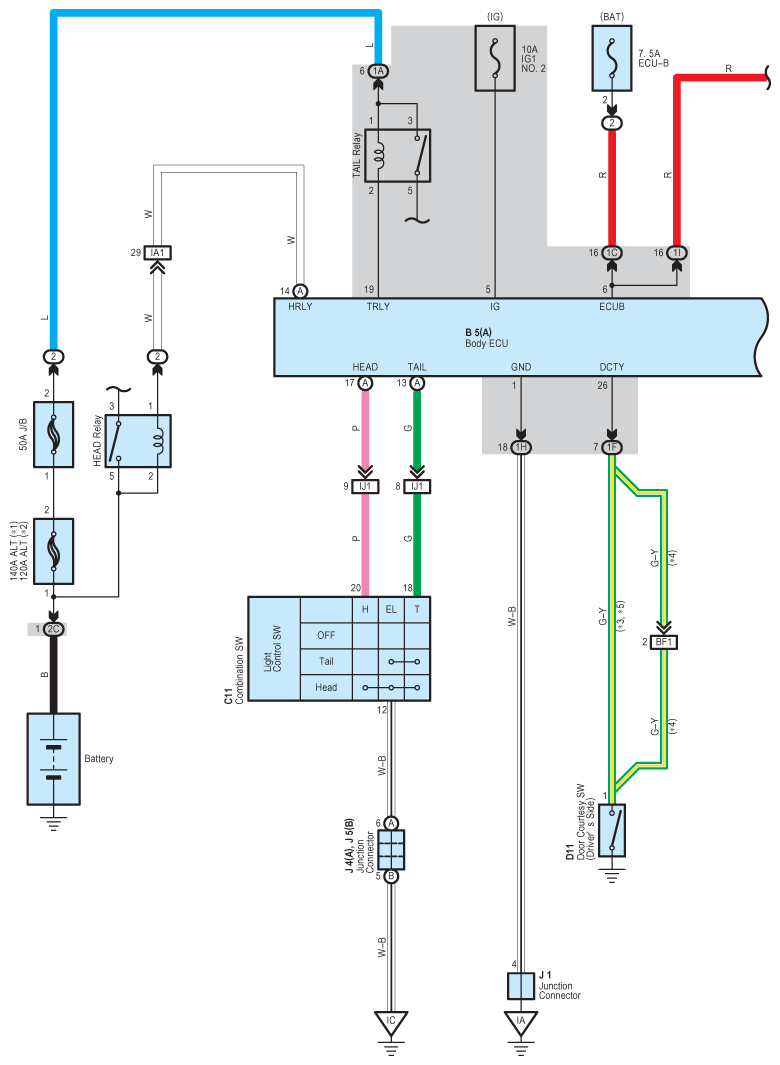

Fig 1: Light Auto Turn Off System Wiring Diagram (1 Of 2)
G08796807Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

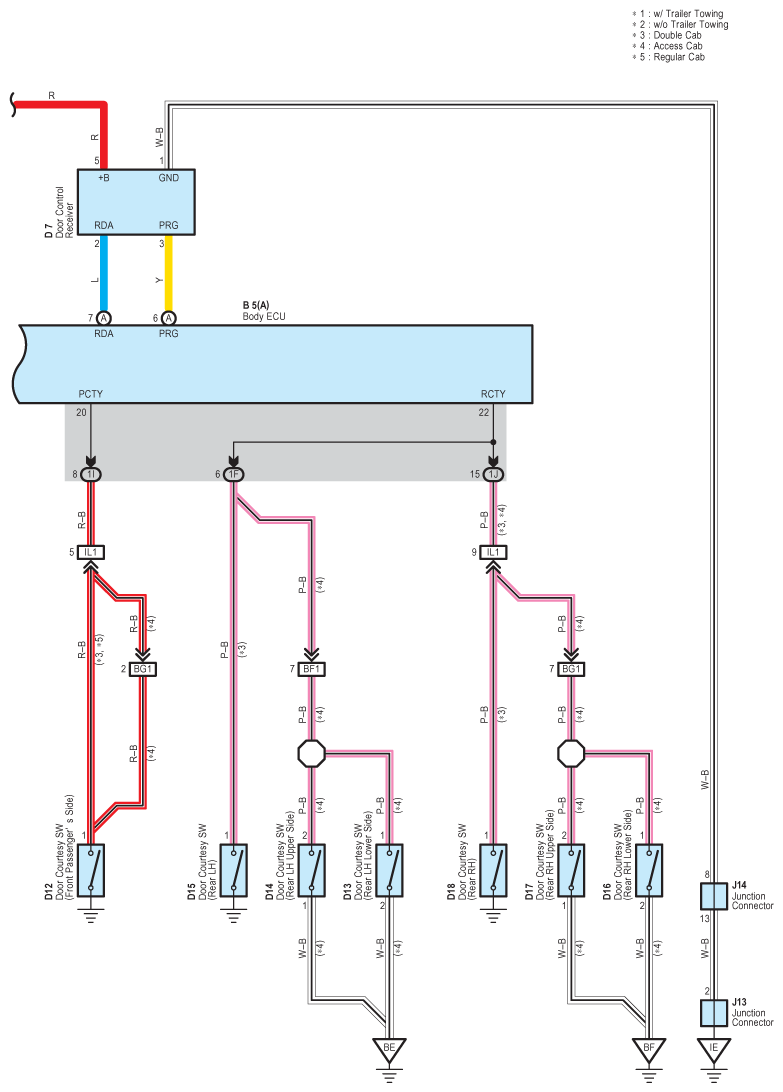

Fig 2: Light Auto Turn Off System Wiring Diagram (2 Of 2)
G08796808Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
