Engine Control for 2TR-FE: Notes

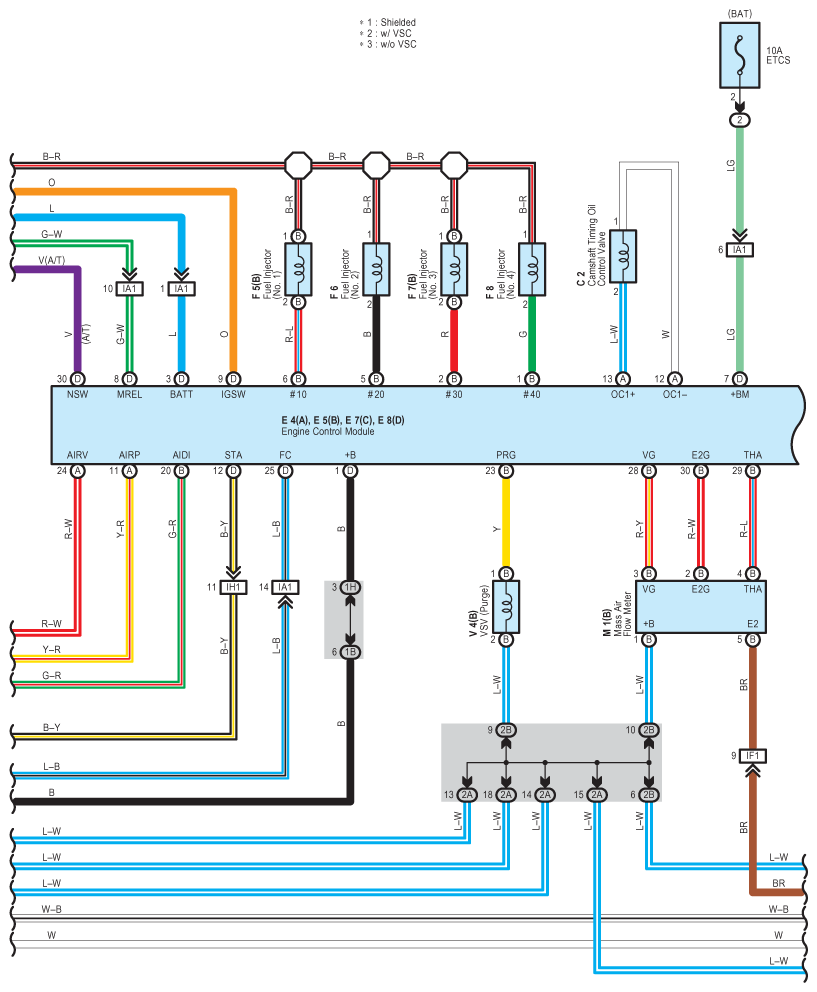

Fig 1: Engine Control For 2TR-FE System Wiring Diagram (1 Of 8)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

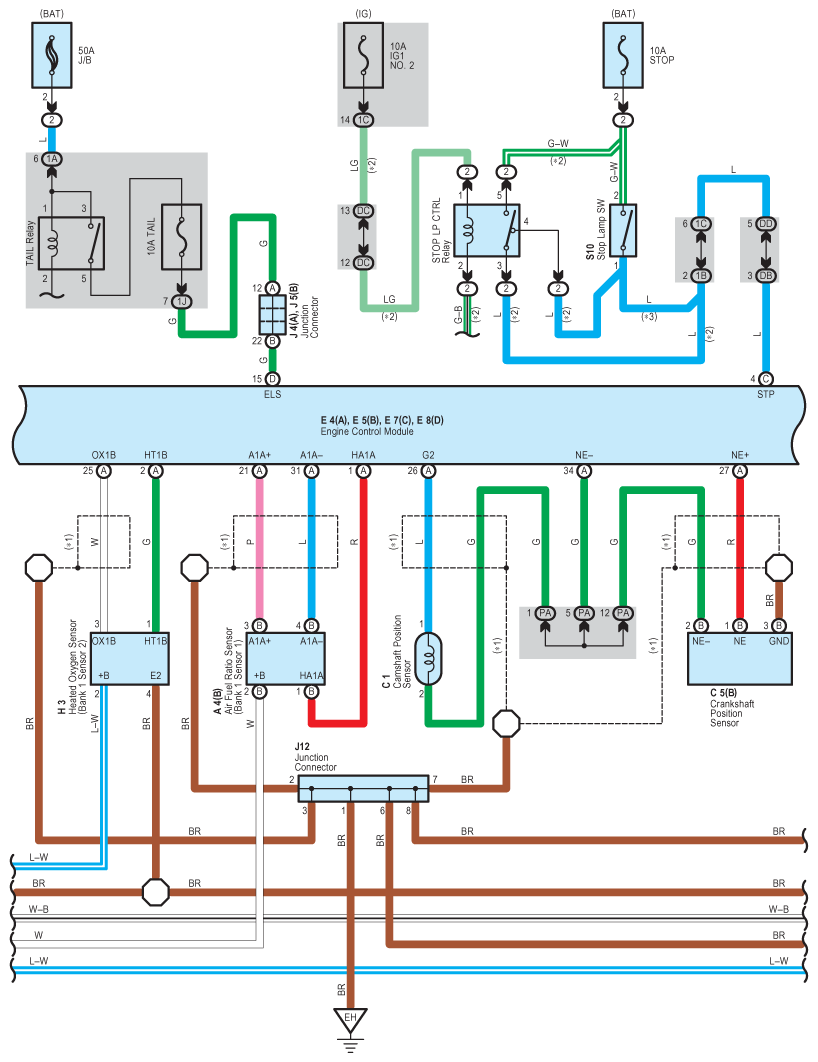

Fig 2: Engine Control For 2TR-FE System Wiring Diagram (2 Of 8)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

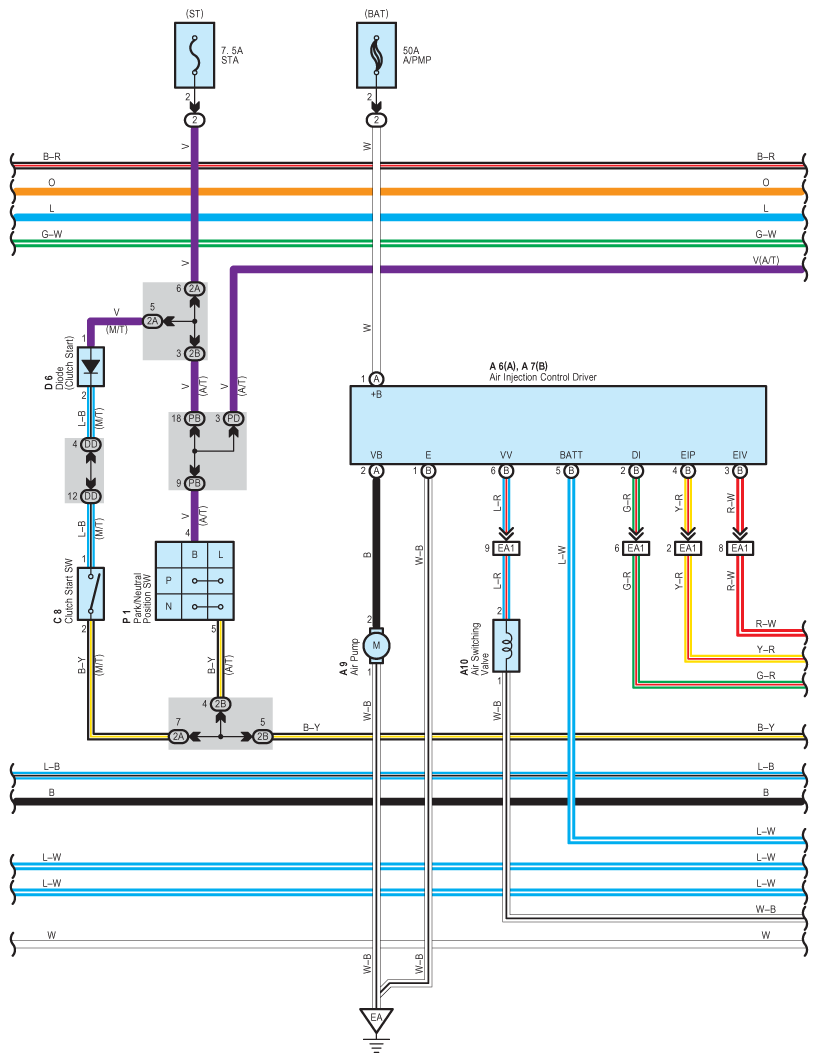

Fig 3: Engine Control For 2TR-FE System Wiring Diagram (3 Of 8)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

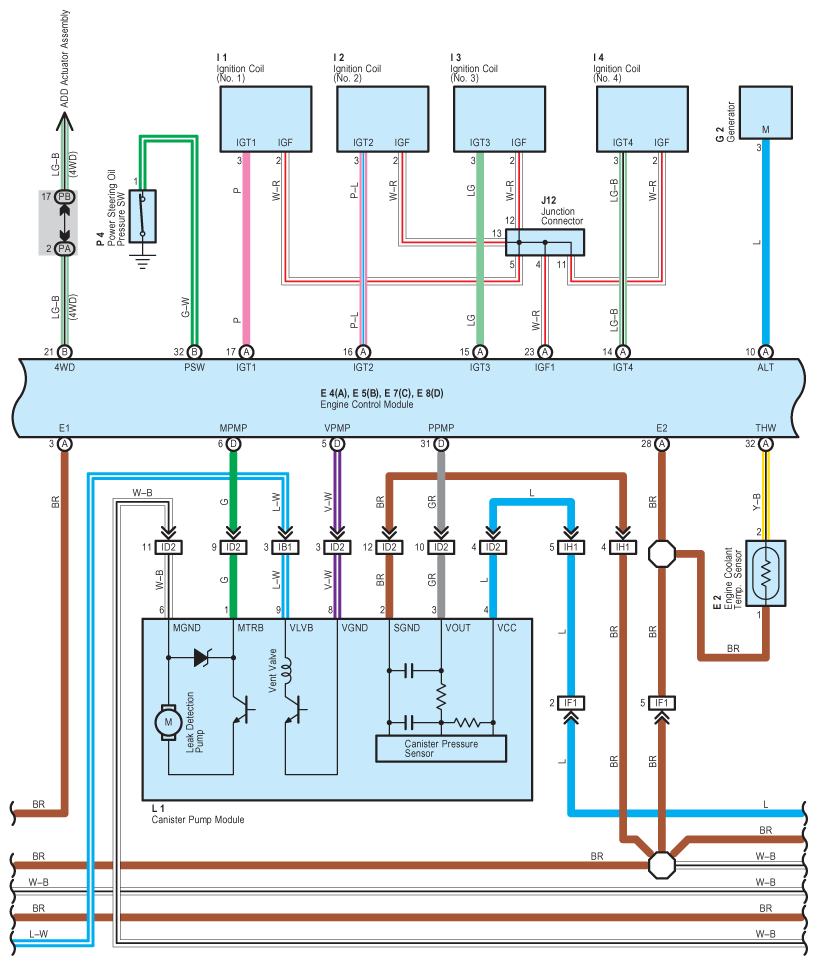

Fig 4: Engine Control For 2TR-FE System Wiring Diagram (4 Of 8)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

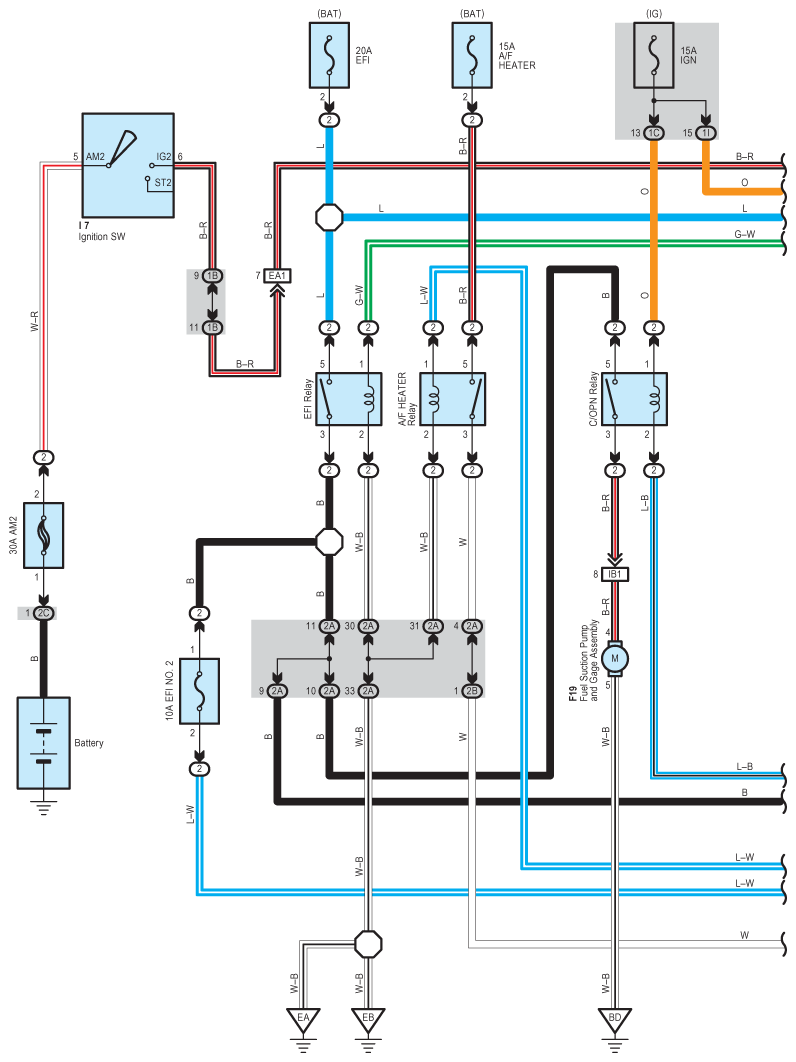

Fig 5: Engine Control For 2TR-FE System Wiring Diagram (5 Of 8)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

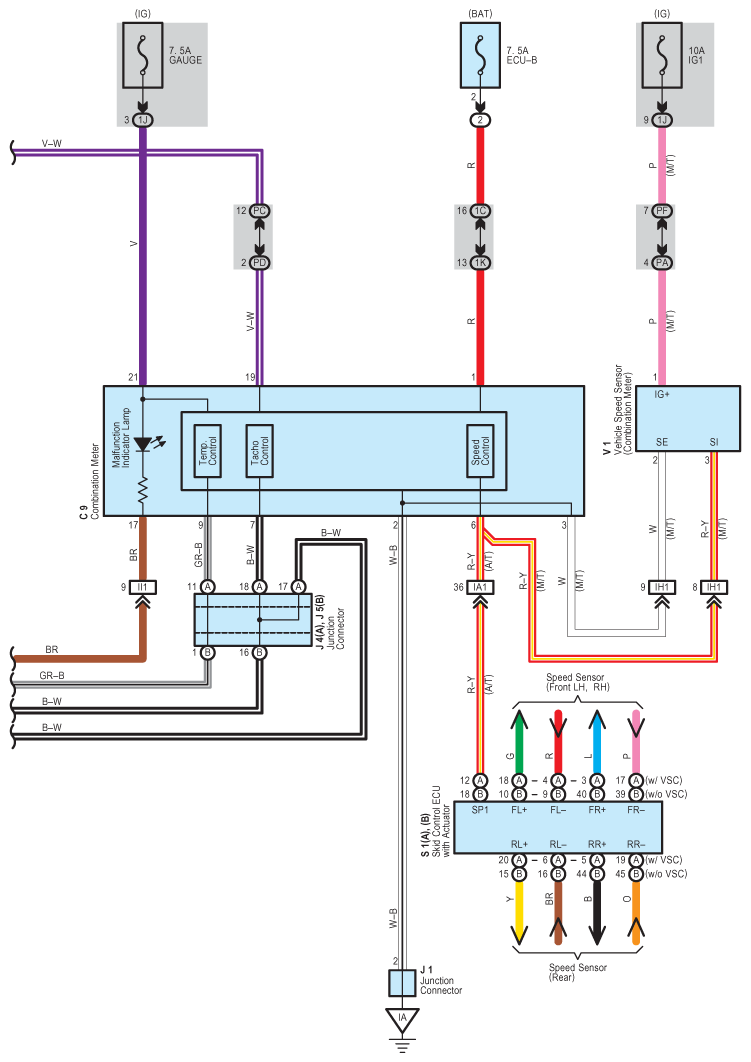

Fig 6: Engine Control For 2TR-FE System Wiring Diagram (6 Of 8)

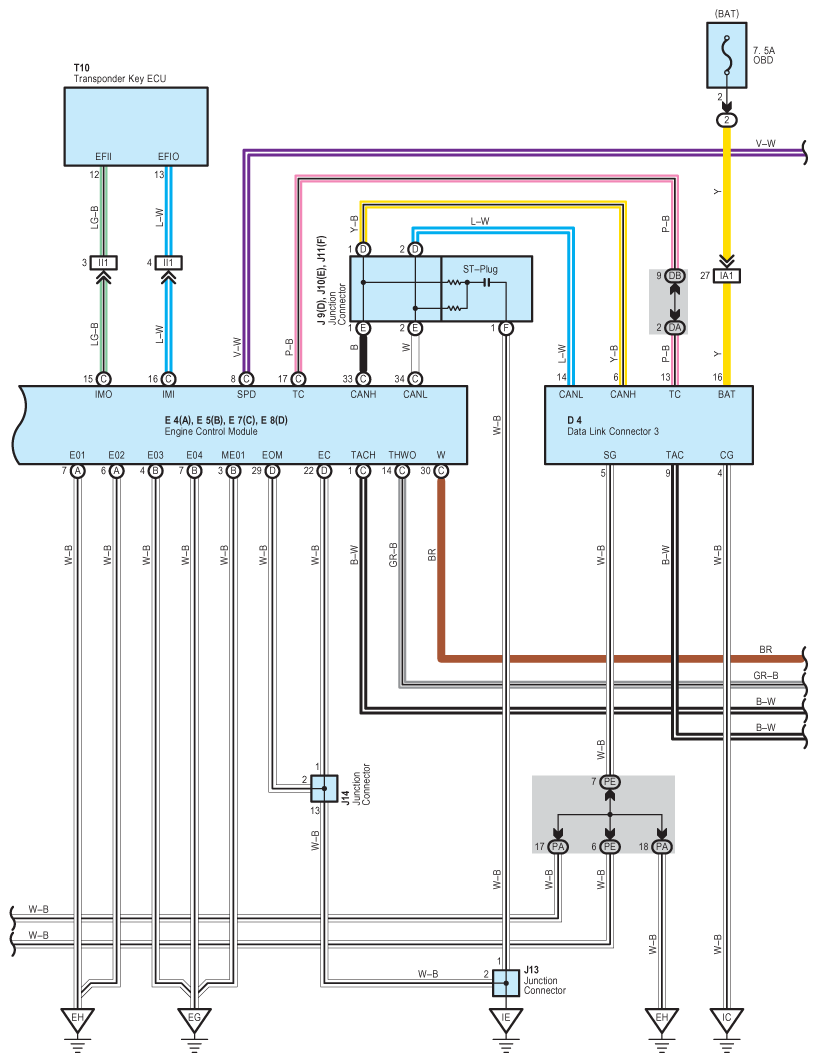

Fig 7: Engine Control For 2TR-FE System Wiring Diagram (7 Of 8)

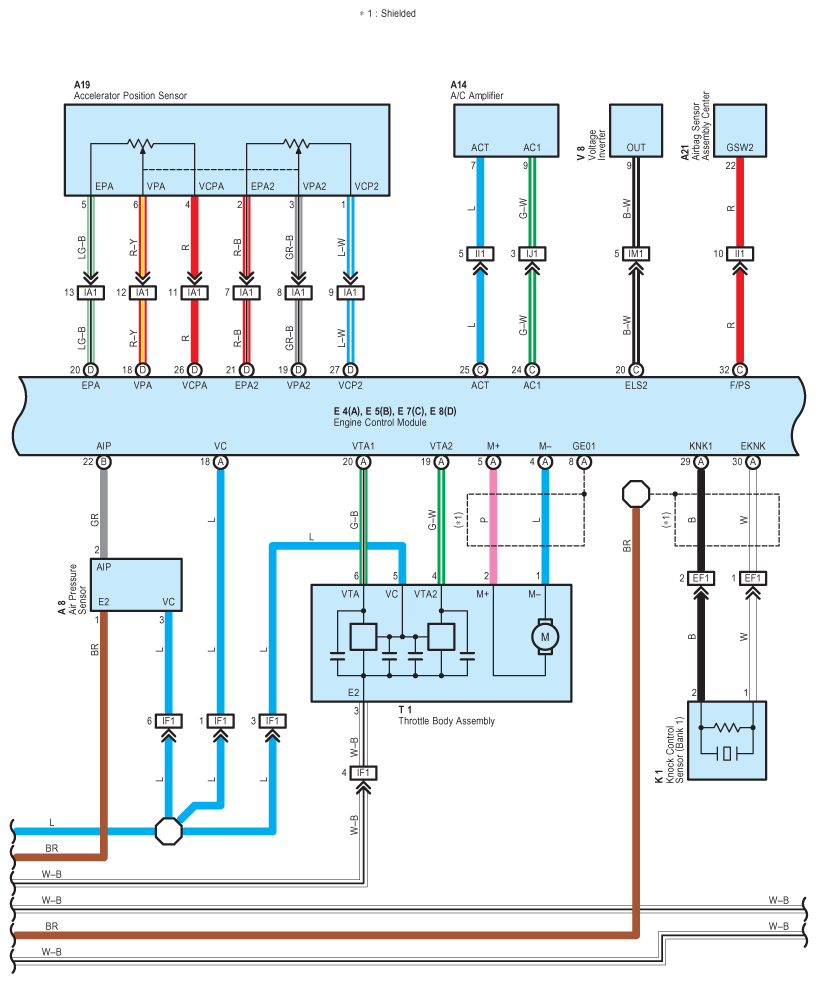

Fig 8: Engine Control For 2TR-FE System Wiring Diagram (8 Of 8)
