Door Lock Control: Notes

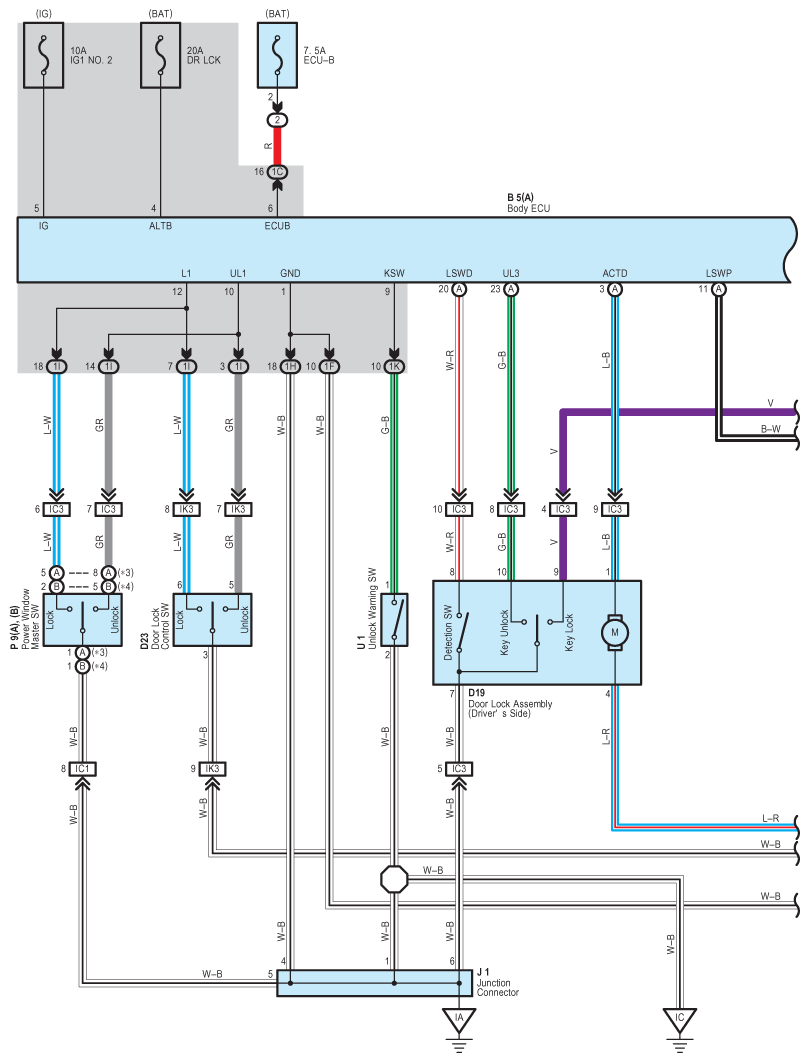

Fig 1: Door Lock Control System Wiring Diagram (1 Of 2)
G08796846Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

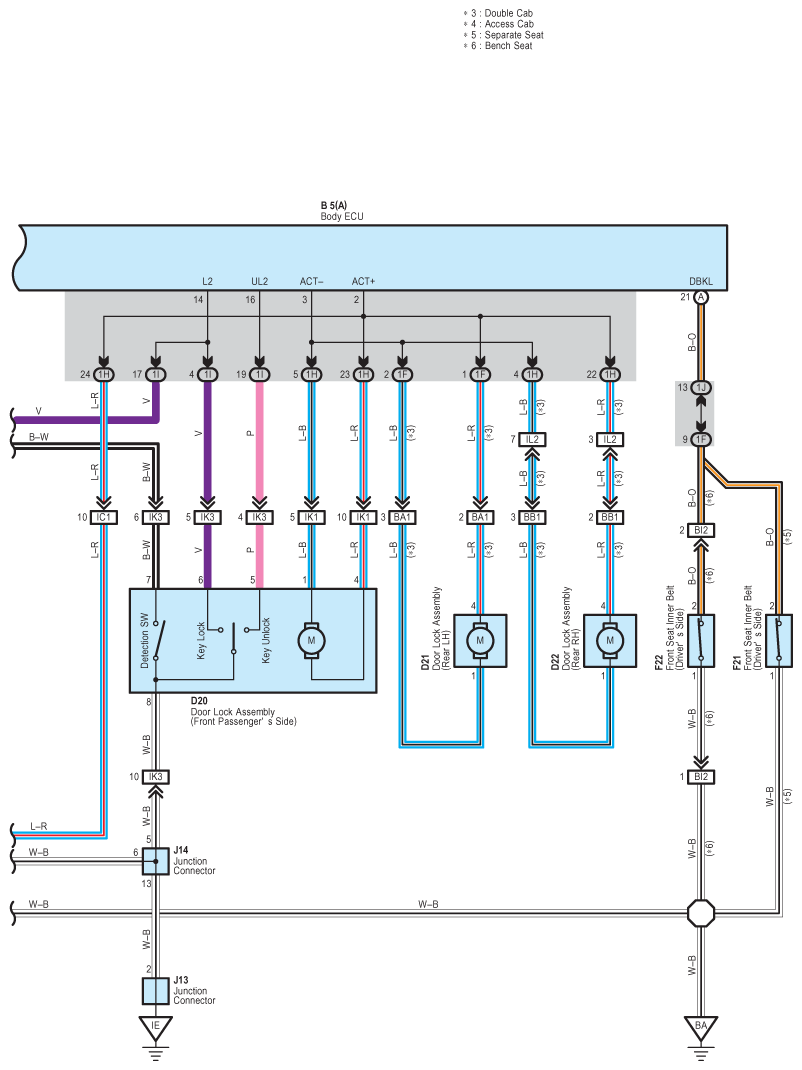

Fig 2: Door Lock Control System Wiring Diagram (2 Of 2)
G08796847Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
