Cruise Control for 1GR-FE: Notes

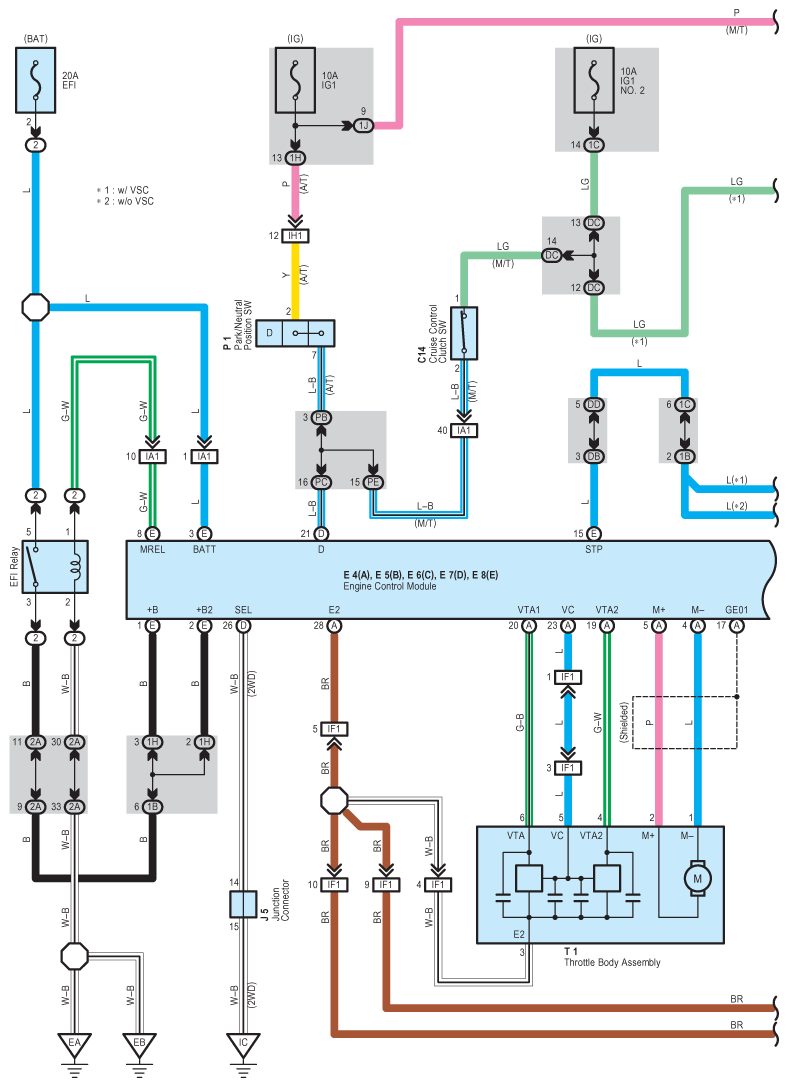

Fig 1: Cruise Control For 1GR-FE System Wiring Diagram (1 Of 4)
G08796819Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

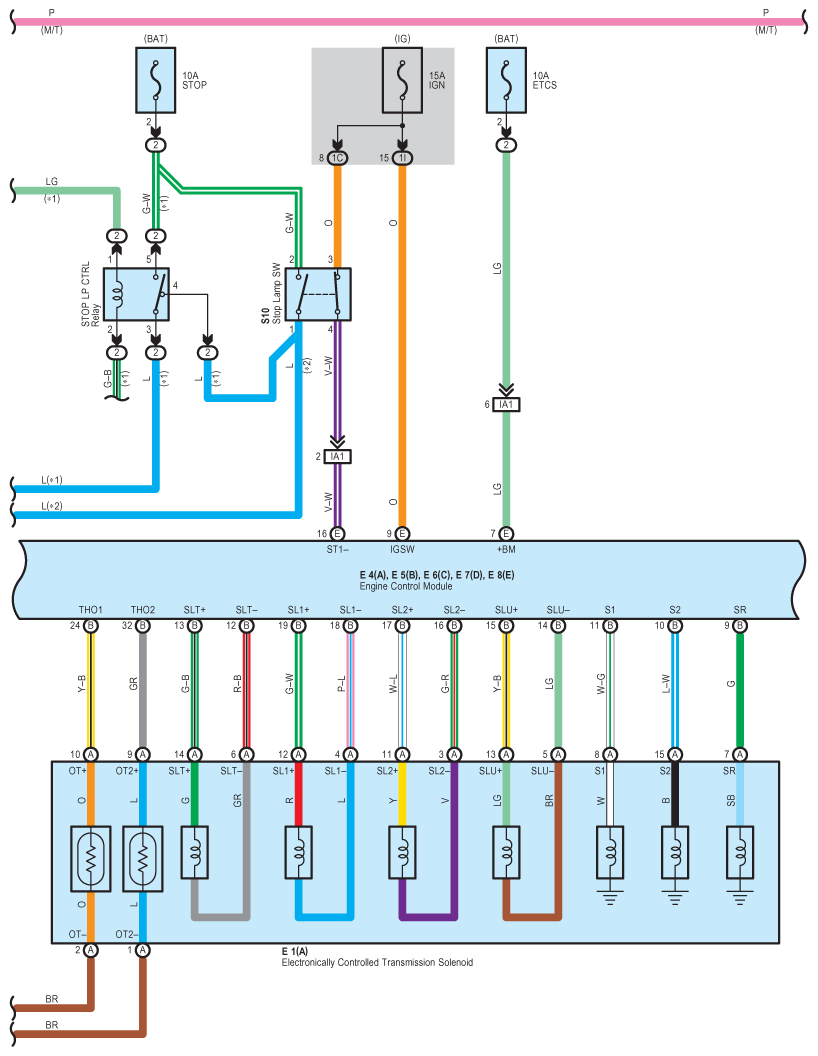

Fig 2: Cruise Control For 1GR-FE System Wiring Diagram (2 Of 4)
G08796820Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

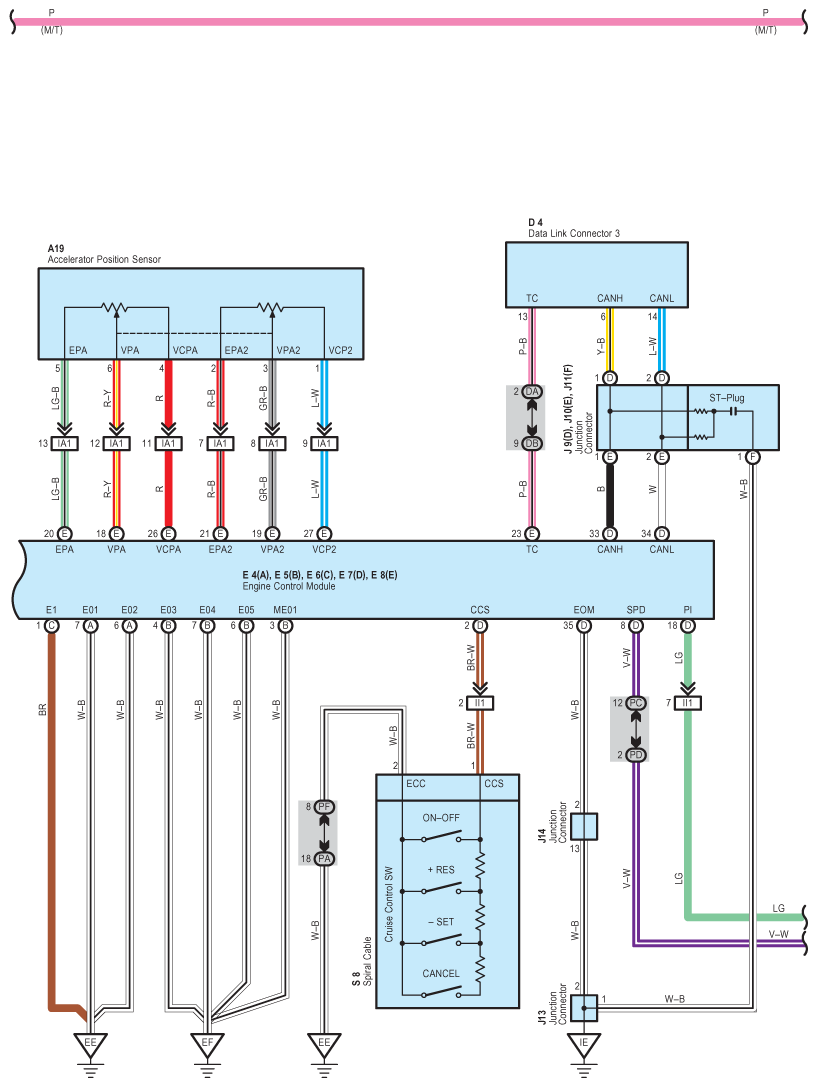

Fig 3: Cruise Control For 1GR-FE System Wiring Diagram (3 Of 4)
G08796821Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

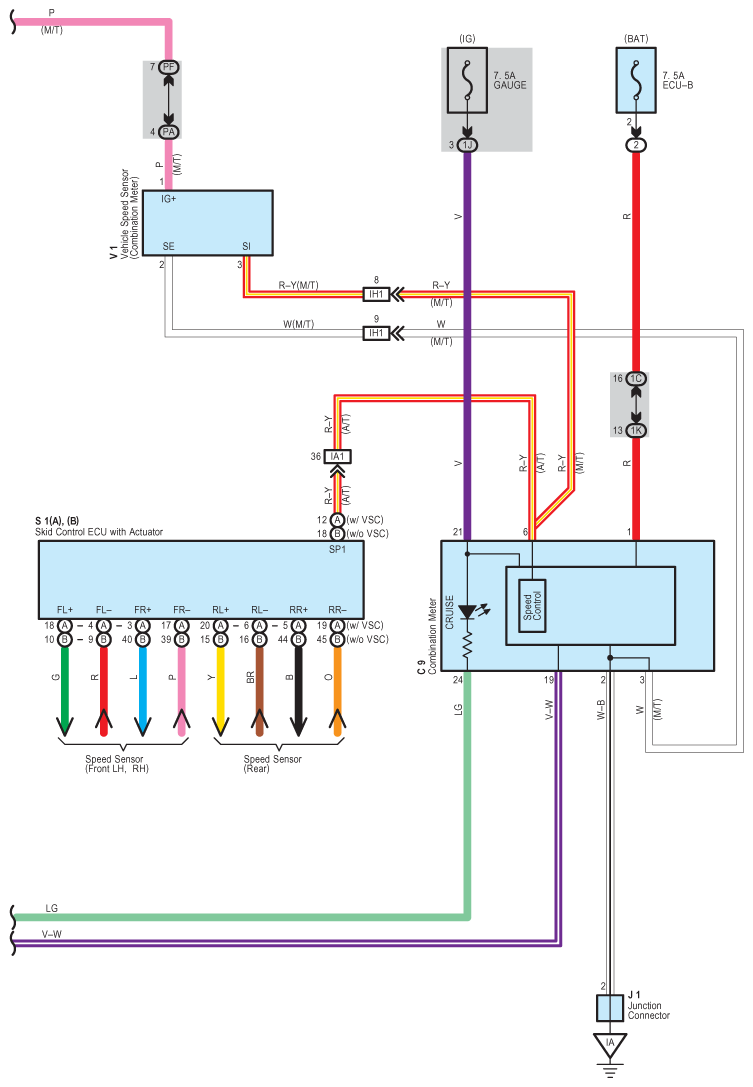

Fig 4: Cruise Control For 1GR-FE System Wiring Diagram (4 Of 4)
G08796822Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
