OEM System Circuits: Charging: Notes

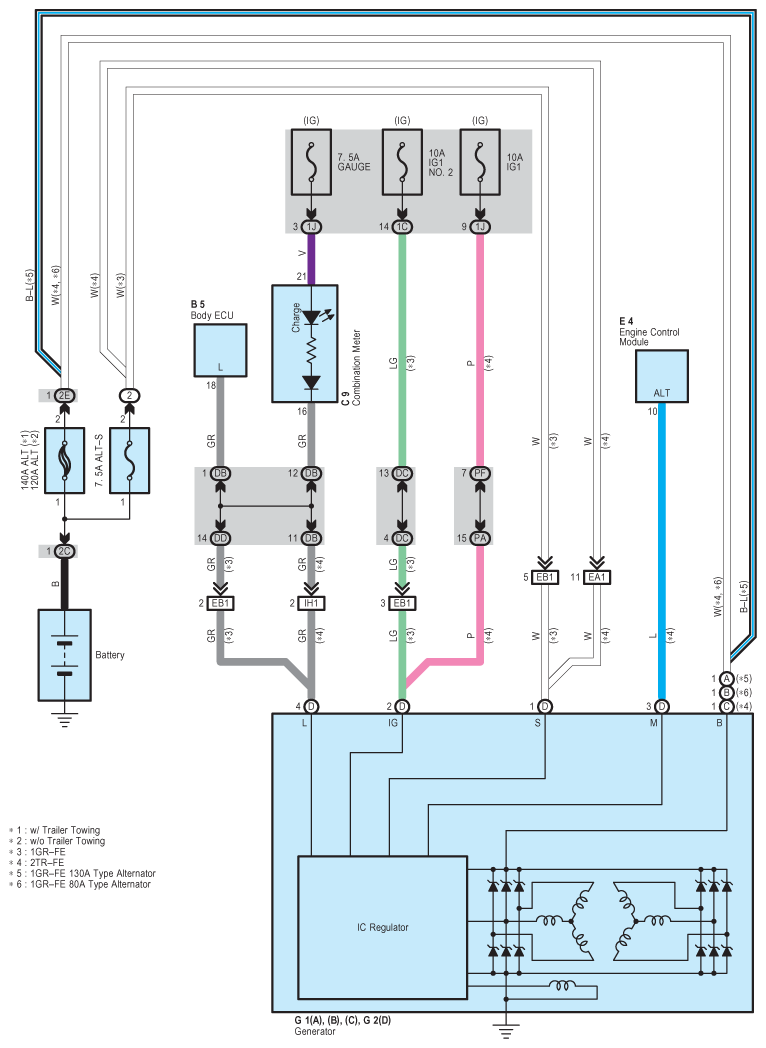

Fig 1: Charging System Wiring Diagram

G08796771

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
