Home >> Toyota >> 2007 >> Tacoma PreRunner, 2D Pickup >> Repair and Diagnosis >> Body & Frame >> Windows >> Windshield/Window Glass >> Windshield Glass >> Components

Windshield Glass: Components

Fig 1: Identifying Windshield Glass Components (1 Of 3)
G04412872Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: Identifying Windshield Glass Components (2 Of 3)
G04412873Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

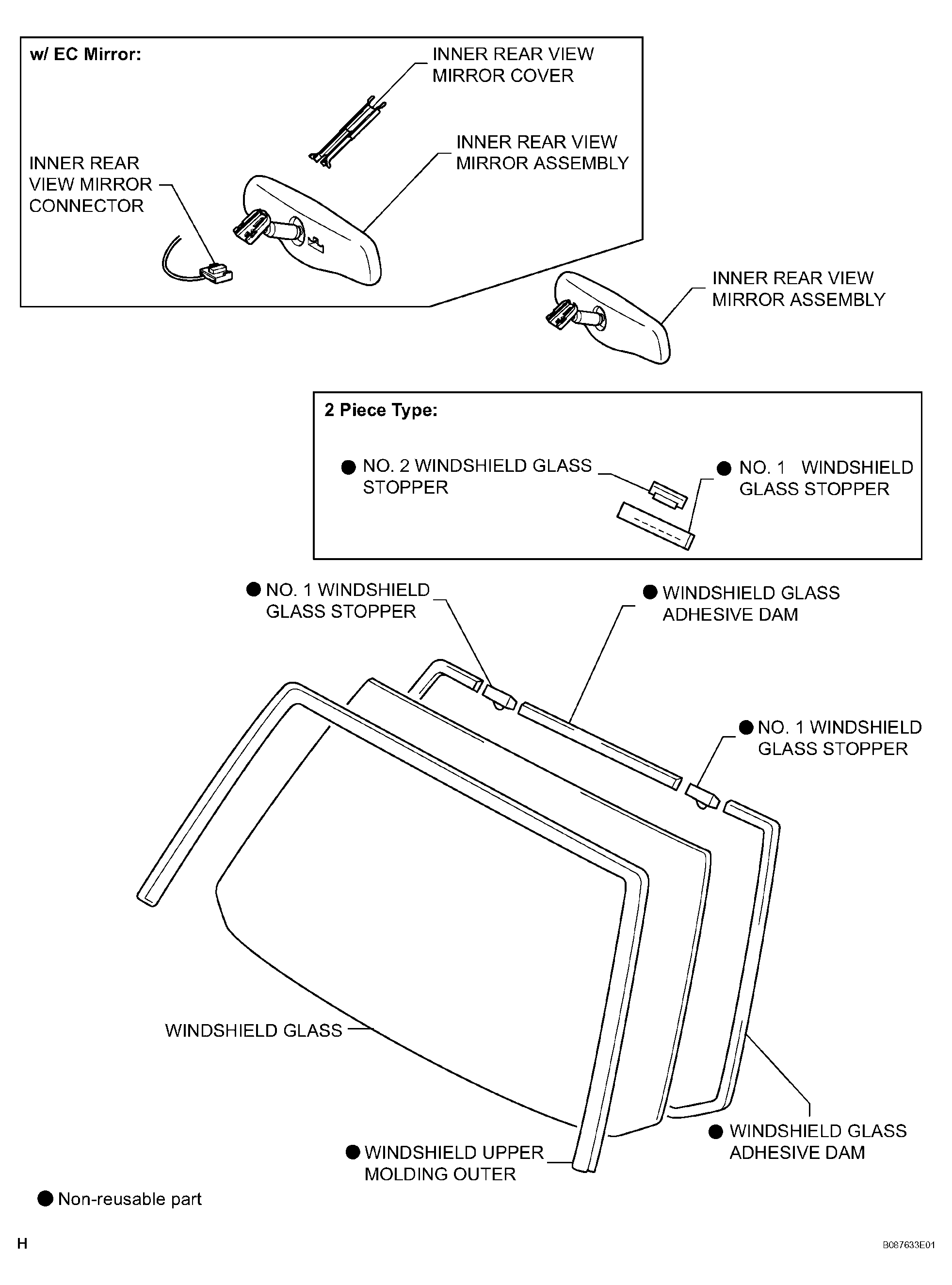

Fig 3: Identifying Windshield Glass Components (3 Of 3)
G04412874Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
