Remote Up/Down Function Does Not Operate: Wiring Diagram

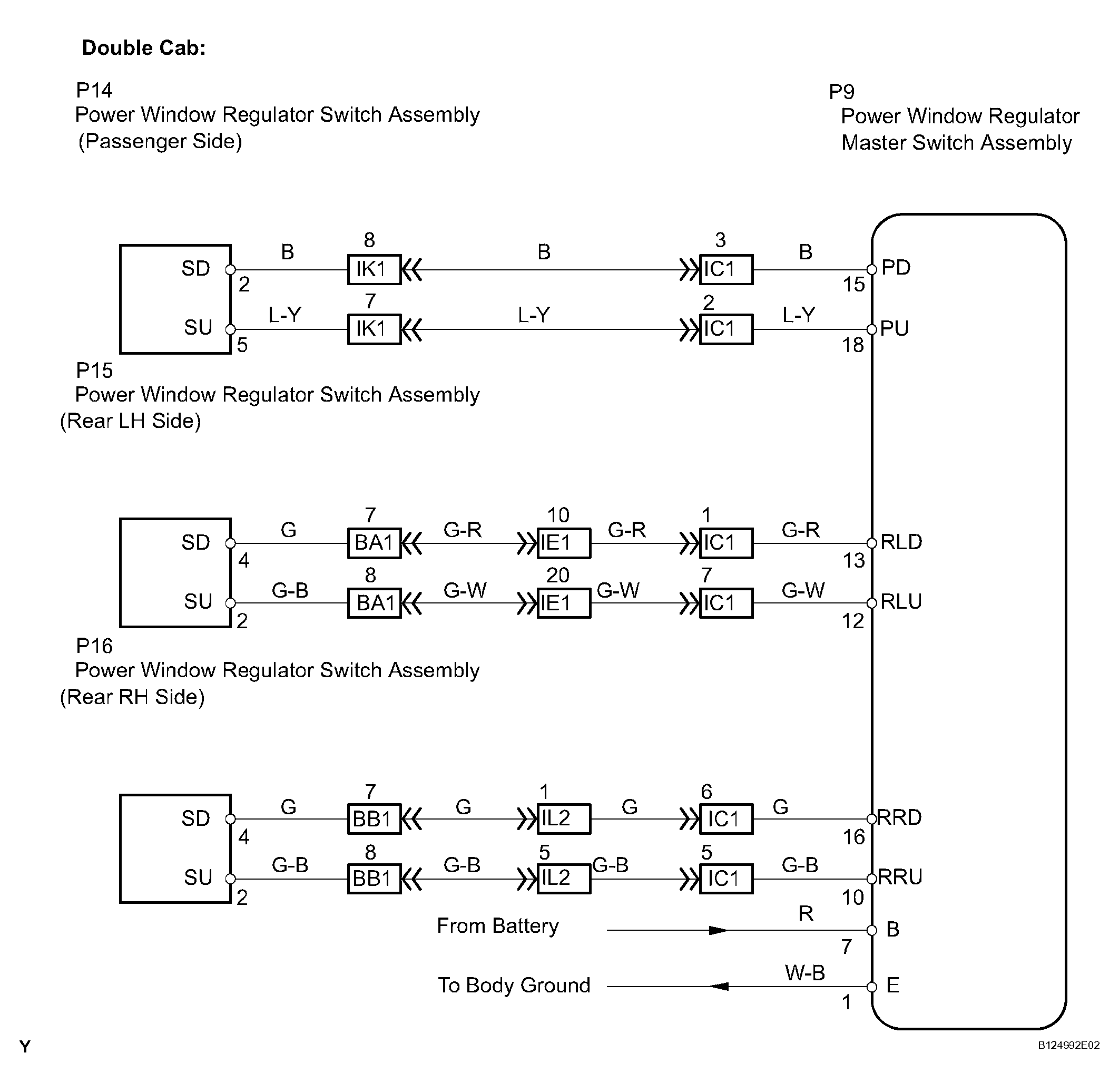

Fig 1: Remote Up/Down Function Does Not Operate Wiring Diagram (1 Of 2)
G04412836Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

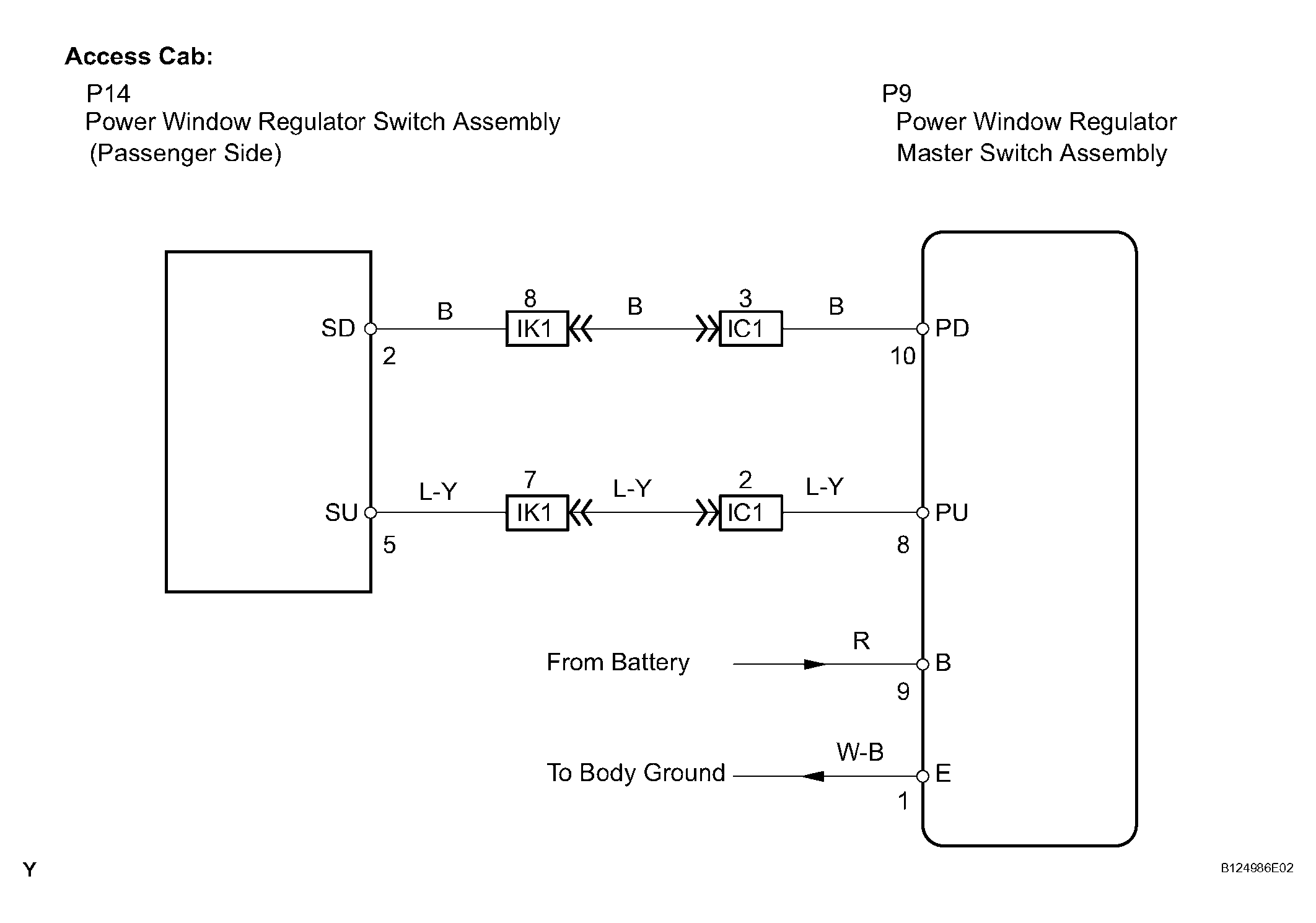

Fig 2: Remote Up/Down Function Does Not Operate Wiring Diagram (2 Of 2)
G04412837Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
