Parts Location

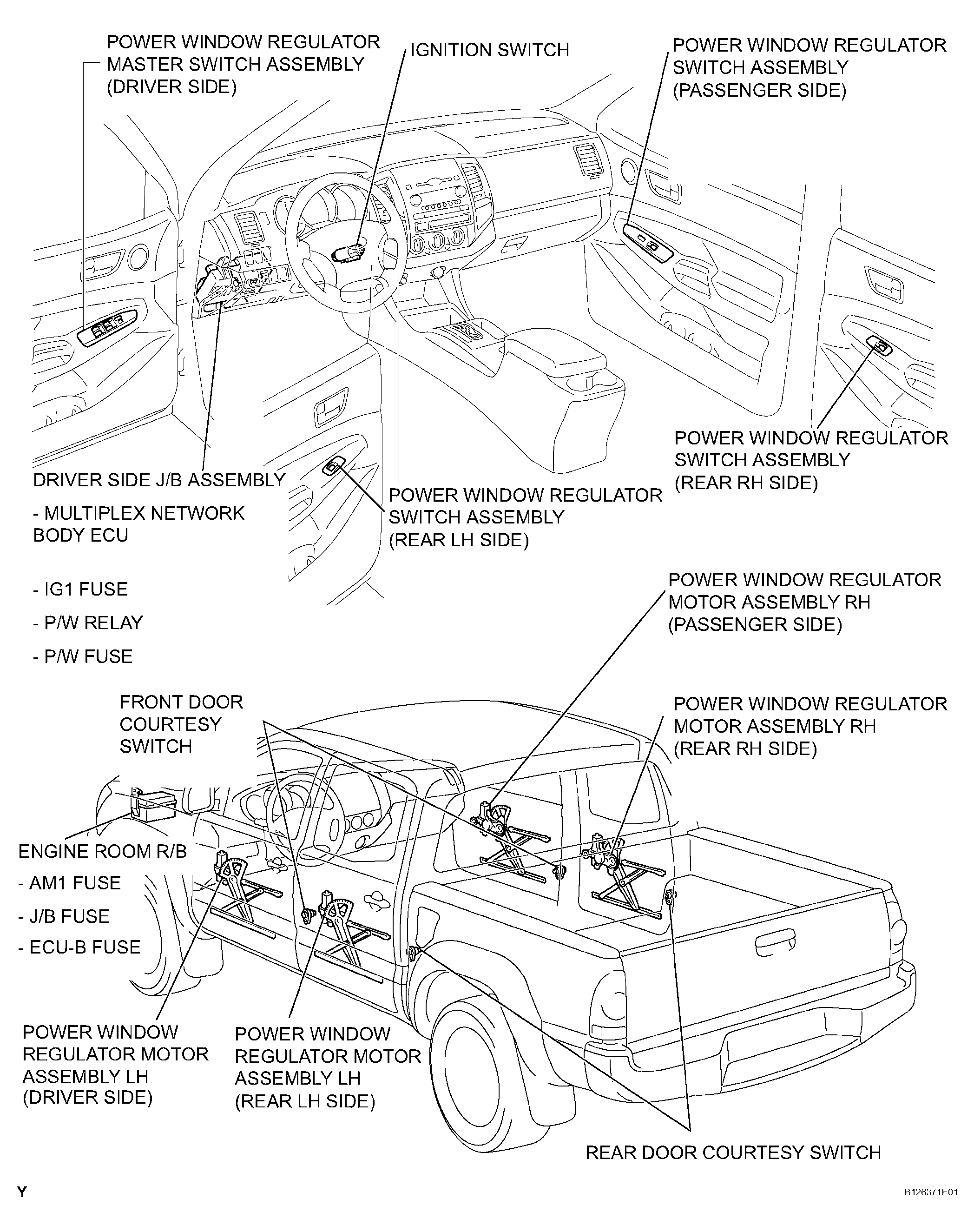

Fig 1: Identifying Power Window Control System Part Location

G04412830

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
