Back Window Glass: Removal

  1. REMOVE REAR SEAT BACK HINGE COVER (for Double Cab)
    1. for RH Side:
      1. Remove the rear seat back hinge cover (see REMOVAL ).
    2. for LH Side:
      1. Remove the rear seat back hinge cover (see REMOVAL ).
  2. REMOVE REAR SEATBACK ASSEMBLY LH (for Double Cab) (See  REMOVAL  )
  3. REMOVE REAR SEATBACK ASSEMBLY RH (for Double Cab) (See  REMOVAL  )
  4. REMOVE REAR SEAT BACK HINGE SUB-ASSEMBLY LH (for Double Cab) (See  REMOVAL  )
  5. REMOVE REAR SEAT BACK HINGE SUB-ASSEMBLY RH (for Double Cab) (See  REMOVAL  )
  6. REMOVE FRONT DOOR SCUFF PLATE LH (for Regular Cab) (See  REMOVAL  )
  7. REMOVE FRONT DOOR SCUFF PLATE LH (for Access Cab) (See  REMOVAL  )
  8. REMOVE FRONT DOOR SCUFF PLATE RH (for Regular Cab)

    HINT:

    Follow the same procedures as for the front door scuff plate LH.

  9. REMOVE FRONT DOOR SCUFF PLATE RH (for Access Cab)

    HINT:

    Follow the same procedures as for the front door scuff plate LH.

  10. REMOVE REAR DOOR SCUFF PLATE LH (for Access Cab) (See  REMOVAL  )
  11. REMOVE REAR DOOR SCUFF PLATE LH (for Double Cab) (See  REMOVAL  )
  12. REMOVE REAR DOOR SCUFF PLATE RH (for Access Cab)

    HINT:

    Follow the same procedures as for the rear door scuff plate LH.

  13. REMOVE REAR DOOR SCUFF PLATE RH (for Double Cab)

    HINT:

    Follow the same procedures as for the rear door scuff plate LH.

  14. REMOVE ROOF SIDE INNER GARNISH CAP LH (for Access Cab) (See  REMOVAL  )
  15. REMOVE ROOF SIDE INNER GARNISH CAP RH (for Access Cab)

    HINT:

    Follow the same procedures as for the roof side inner garnish LH.

  16. REMOVE FRONT DOOR OPENING TRIM WEATHERSTRIP LH (for Regular Cab) (See  REMOVAL  )
  17. REMOVE FRONT DOOR OPENING TRIM WEATHERSTRIP LH (for Access Cab) (See  REMOVAL  )
  18. REMOVE FRONT DOOR OPENING TRIM WEATHERSTRIP RH (for Regular Cab)

    HINT:

    Follow the same procedures as for the front door opening trim weatherstrip LH.

  19. REMOVE FRONT DOOR OPENING TRIM WEATHERSTRIP RH (for Access Cab)

    HINT:

    Follow the same procedures as for the front door opening trim weatherstrip LH.

  20. REMOVE REAR DOOR OPENING TRIM WEATHERSTRIP LH (for Double Cab) (See  REMOVAL  )
  21. REMOVE REAR DOOR OPENING TRIM WEATHERSTRIP RH (for Double Cab)

    HINT:

    Follow the same procedures as for the rear door opening trim weatherstrip LH.

  22. REMOVE BACK PANEL TRIM COVER (for Regular Cab) (See  REMOVAL  )
  23. REMOVE BACK PANEL TRIM COVER (for Access Cab) (See  REMOVAL  )
  24. REMOVE BACK PANEL TRIM COVER (for Regular Cab on Bench Seat Type) (See  REMOVAL  )
  25. REMOVE BACK PANEL UPPER GARNISH (for Regular Cab) (See  REMOVAL  )
  26. REMOVE JACK ASSEMBLY (for Regular Cab on Separate Seat Type)
  27. REMOVE BACK PANEL TRIM COVER (for Regular Cab on Separate Seat Type) (See  REMOVAL  )
  28. REMOVE BACK PANEL TRIM (for Regular Cab on Separate Seat Type) (See  REMOVAL  )
  29. REMOVE BACK PANEL TRIM (for Access Cab on Separate Seat Type) (See  REMOVAL  )
  30. REMOVE LUGGAGE COMPARTMENT SIDE TRAY (for Double Cab) (See  REMOVAL  )
  31. REMOVE REAR SEAT BACK CENTER HINGE SUB-ASSEMBLY (for Double Cab) (See  REMOVAL  )
  32. REMOVE LUGGAGE COMPARTMENT SIDE TRAY (for Double Cab) (See  REMOVAL  )
  33. REMOVE QUARTER TRIM LOWER PANEL LH (for Regular Cab) (See  REMOVAL  )
  34. REMOVE QUARTER TRIM LOWER PANEL LH (for Access Cab) (See  REMOVAL  )
  35. REMOVE QUARTER TRIM LOWER PANEL LH (for Double Cab) (See  REMOVAL  )
  36. REMOVE QUARTER TRIM LOWER PANEL RH (for Regular Cab)

    HINT:

    Follow the same procedures as for the quarter trim panel lower LH.

  37. REMOVE QUARTER TRIM LOWER PANEL RH (for Access Cab)

    HINT:

    Follow the same procedures as for the quarter trim panel lower LH.

  38. REMOVE QUARTER TRIM LOWER PANEL RH (for Double Cab)

    HINT:

    Follow the same procedures as for the quarter trim panel lower LH.

  39. REMOVE ROOF SIDE INNER GARNISH LH (for Access Cab) (See  REMOVAL  )
  40. REMOVE ROOF SIDE INNER GARNISH RH (for Access Cab)

    HINT:

    Follow the same procedures as for the roof side garnish inner LH.

  41. REMOVE QUARTER INSIDE TRIM BOARD LH (for Regular Cab) (See  REMOVAL  )
  42. REMOVE QUARTER INSIDE TRIM BOARD LH (for Access Cab) (See  REMOVAL  )
  43. REMOVE QUARTER INSIDE TRIM BOARD LH (for Double Cab) (See  REMOVAL  )
  44. REMOVE QUARTER INSIDE TRIM BOARD RH (for Regular Cab)

    HINT:

    Follow the same procedures as for the quarter inside trim board LH.

  45. REMOVE QUARTER INSIDE TRIM BOARD RH (for Access Cab)

    HINT:

    Follow the same procedures as for the quarter inside trim board LH.

  46. REMOVE QUARTER INSIDE TRIM BOARD RH (for Double Cab)

    HINT:

    Follow the same procedures as for the quarter inside trim board LH.

  47. REMOVE COAT HOOK (for Regular Cab) (See  REMOVAL  )
  48. REMOVE COAT HOOK (for Access Cab) (See  REMOVAL  )
  49. REMOVE COAT HOOK (for Double Cab) (See  REMOVAL  )
  50. REMOVE BACK WINDOW ASSEMBLY
    1. Remove the 2 nuts.
      Fig 1: Removing Back Window Assembly Nuts
      G04412898Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Apply protective tape to the outer circumference of the back window, as shown in Fig 2.
    3. From the interior, insert piano wires between the vehicle body and back window, as shown in Fig 2.
    4. Tie objects that can serve as handles (for example, wooden blocks) to all wire ends.
      NOTE: When separating the back window from the vehicle, be careful not to damage the vehicle's paint or exterior/interior ornaments.
    5. Cut through the adhesive by pulling the piano wire around the back window.

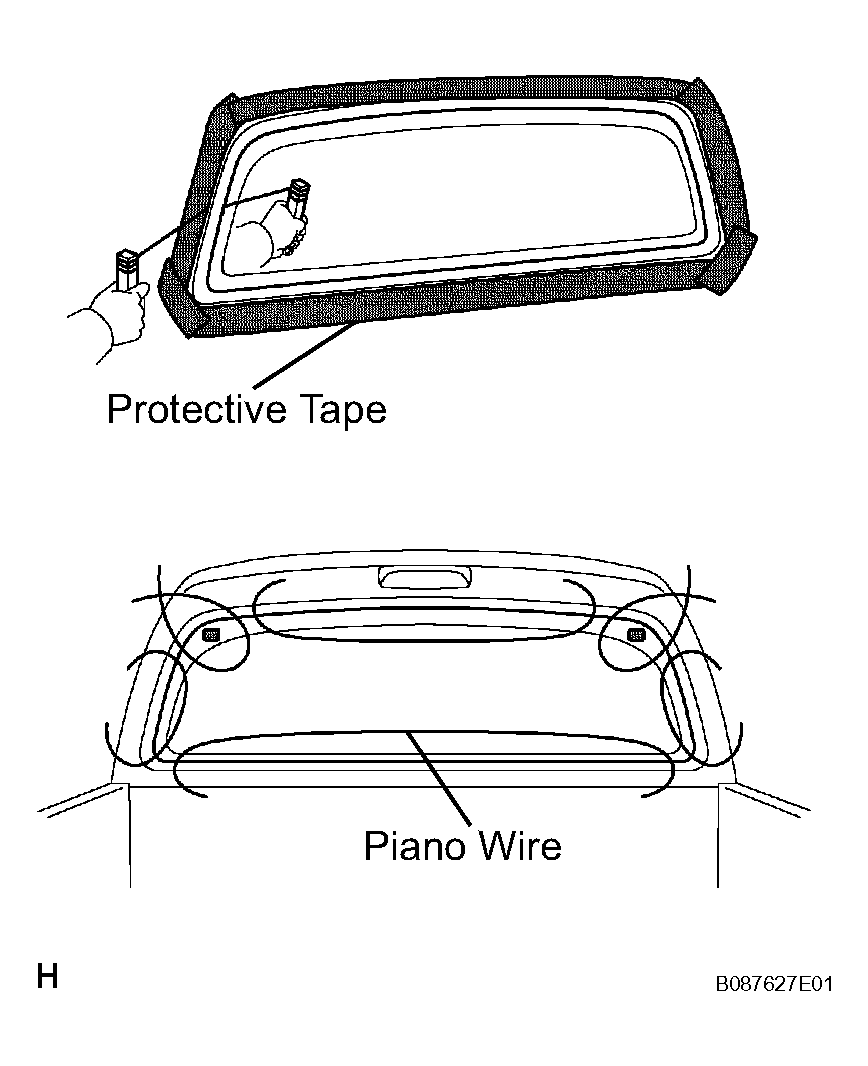

      Fig 2: Applying Protective Tape To Outer Circumference Of Back Window
      G04412899Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    6. Disengage the 2 clips.
    7. Using suction cups, remove the back window.
      NOTE: Leave as much adhesive on the vehicle body as possible when removing the back window.
      Fig 3: Removing Back Window Using Suction Cups
      G04412900Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
