Charging System (2TR-FE): Generator: Removal: Notes

  1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
  2. REMOVE FAN AND GENERATOR V BELT (See  REMOVAL  )
  3. REMOVE GENERATOR ASSEMBLY
    1. Remove the terminal cap.
    2. Remove the nut, then remove the generator wire.
    3. Disconnect the generator connector.

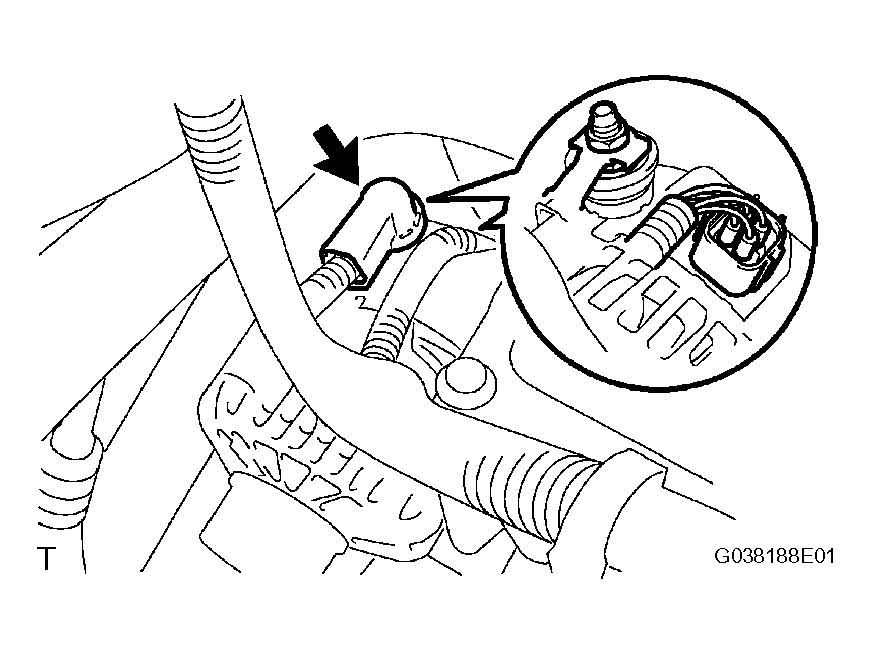

      Fig 1: Identifying Generator Wire
      G04409791Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Remove the 2 bolts, then remove the generator.

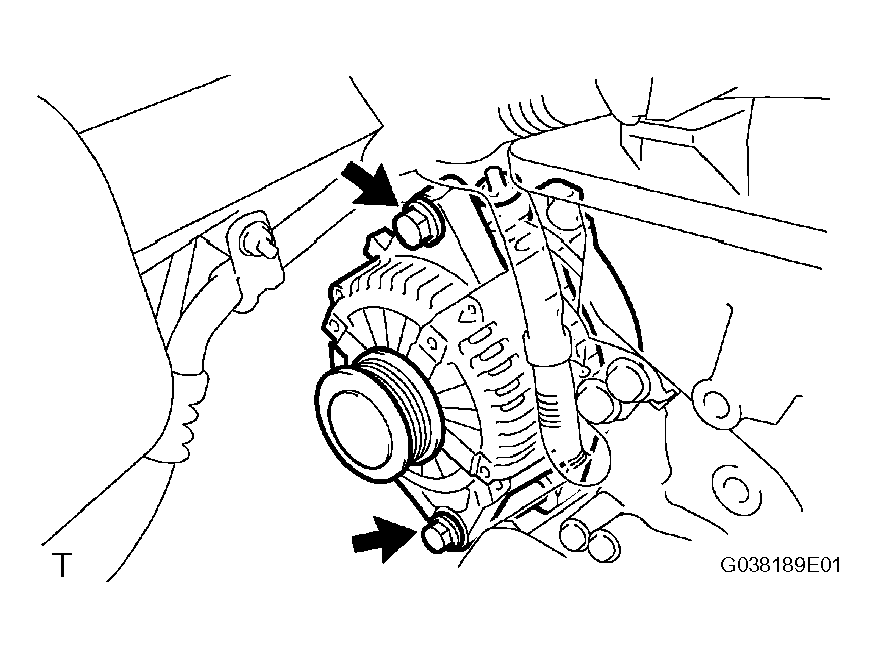

      Fig 2: Identifying Generator Bolts
      G04409792Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
