Charging System (2TR-FE): Generator: Components

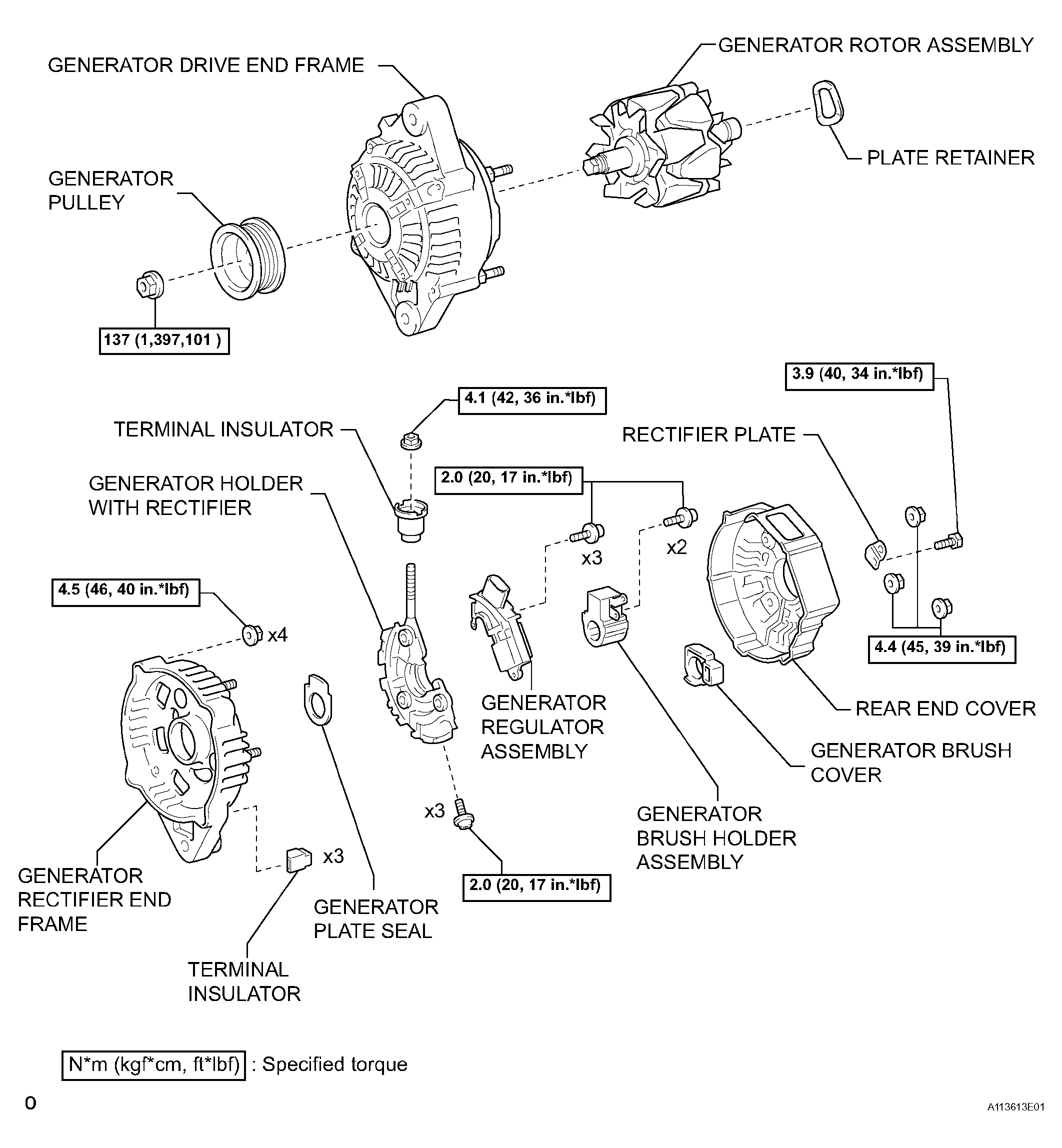

Fig 1: Generator Replacement Components With Torque Specifications

G04409790

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
