Fuel Pump Resistor: Inspection

INSPECT FUEL PUMP RESISTER
1. Check the resistance.
  1. Using an ohmmeter, measure the resistance between the terminals.
    Resistance: 0.71 to 0.75 Ω

    If the result is not as specified, replace the fuel pump resistor.

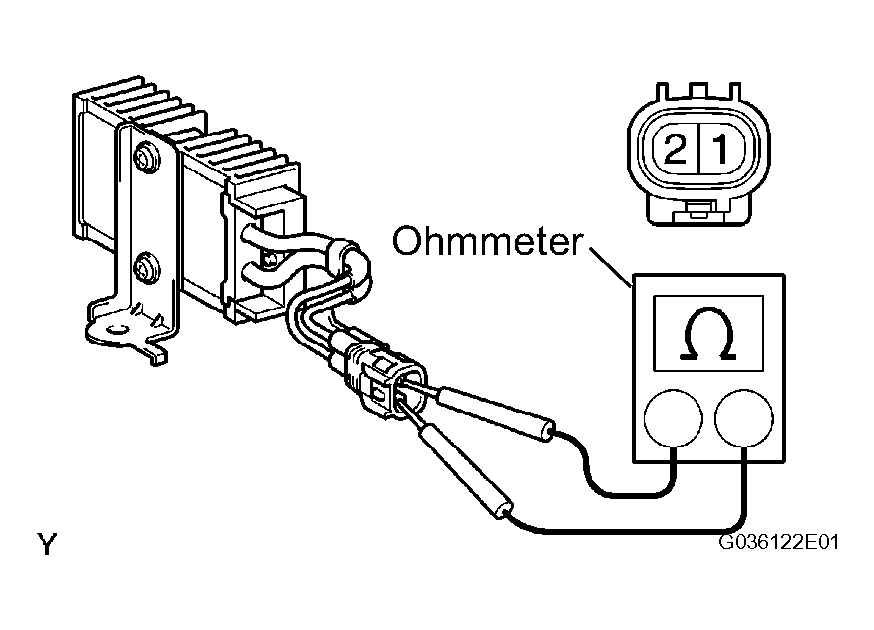

    Fig 1: Measuring Resistance Between Terminals Using Ohmmeter
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
