Charging System (1GR-FE): Generator: Removal

DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
REMOVE V-BANK COVER (See REMOVAL )
REMOVE RADIATOR SUPPORT TO FRAME SEAL LH (See REMOVAL )
REMOVE FAN SHROUD (See REMOVAL )
REMOVE GENERATOR ASSEMBLY

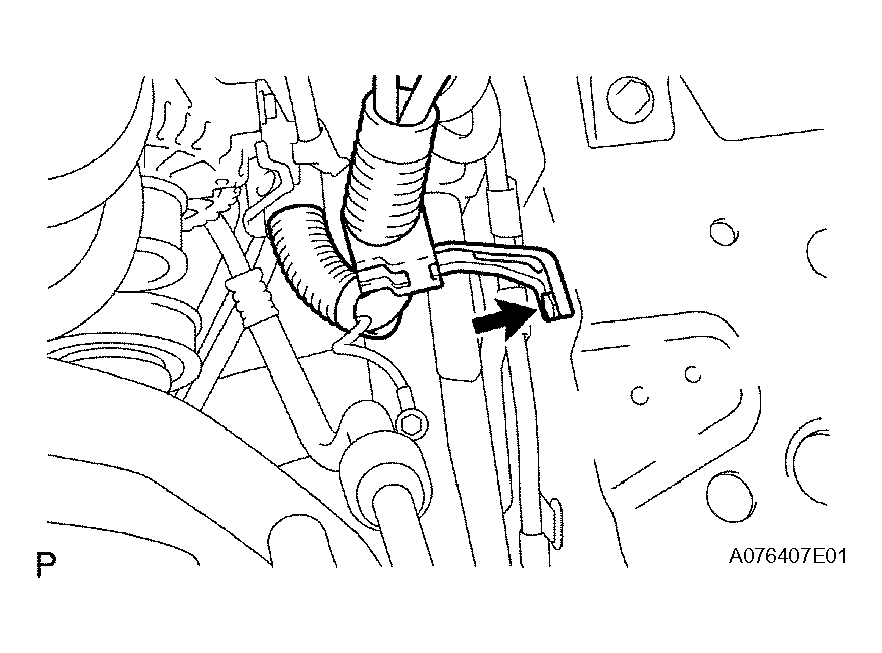

1. Disconnect the wire harness.
  1. Remove the bolt and wire harness stay.
  2. Disconnect the connector from the generator assembly.
  3. Remove the terminal cap and nut.
  4. Disconnect the wire harness from terminal B.

    Fig 1: Disconnecting Wire Harness
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

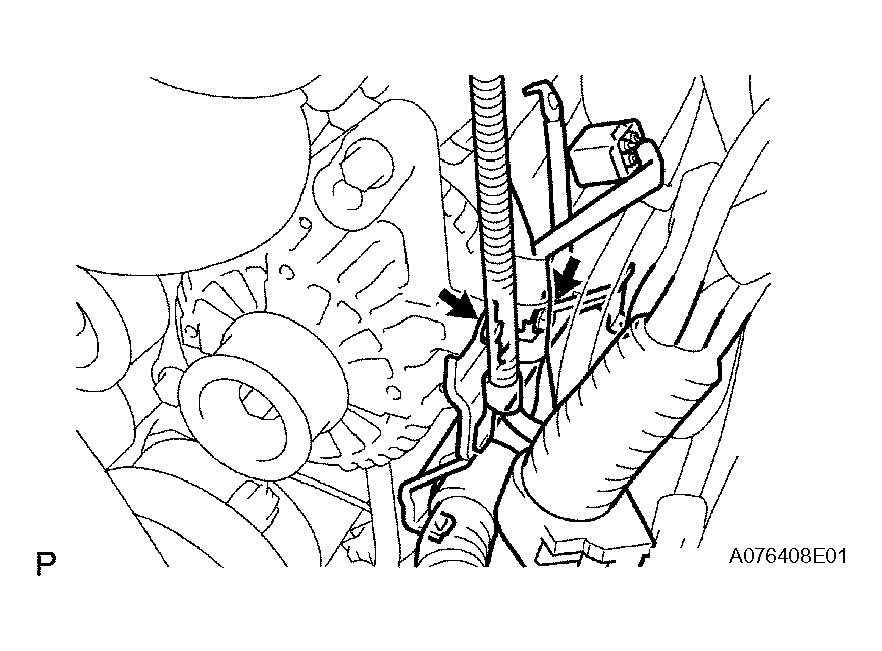

2. Remove the 2 bolts, then separate the wire harness clamp bracket from the generator assembly.

  Fig 2: Separating Wire Harness Clamp Bracket From Generator Assembly
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

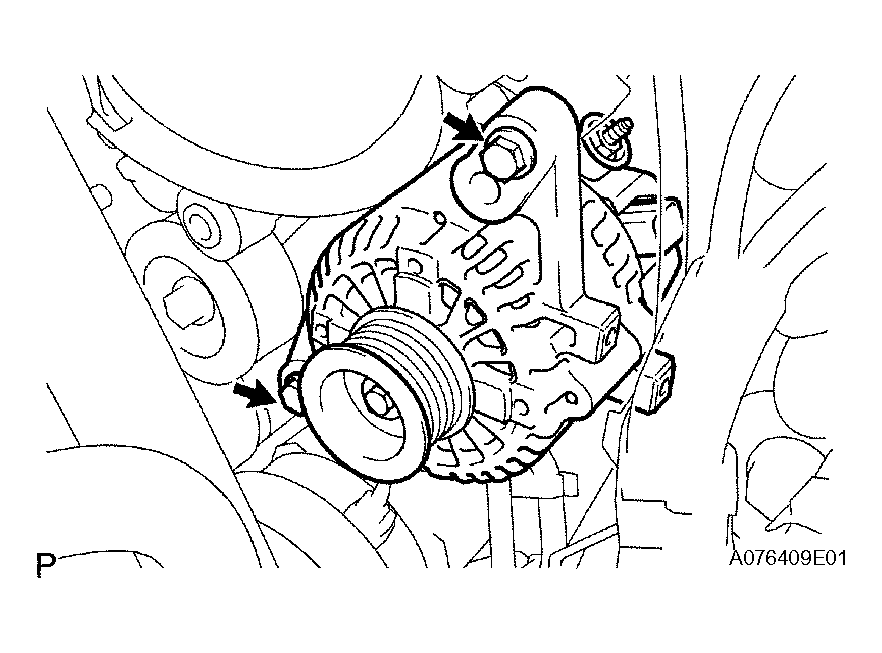

3. Remove the 2 bolts, then remove the generator assembly.

  Fig 3: Removing Generator Assembly
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
