ECT and A/T Indicator for 2TR-FE: Notes

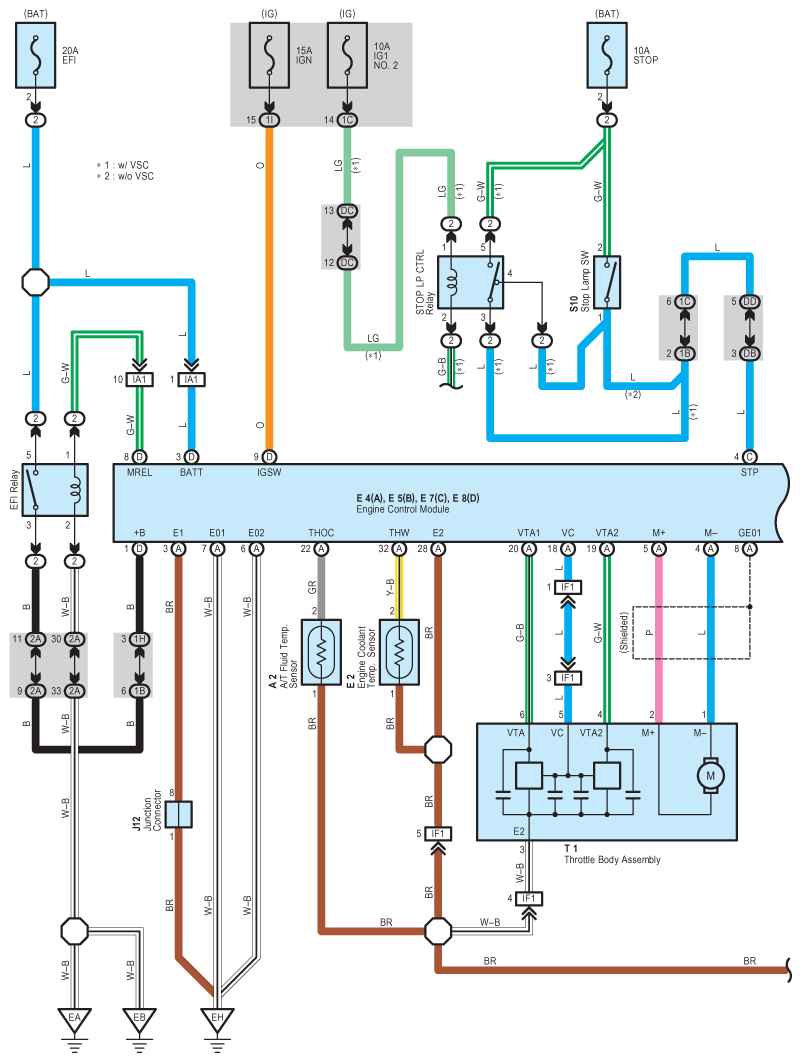

Fig 1: ECT And A/T Indicator For 2TR-FE System Wiring Diagram (1 Of 4)
G08796815Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: ECT And A/T Indicator For 2TR-FE System Wiring Diagram (2 Of 4)
G08796816Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 3: ECT And A/T Indicator For 2TR-FE System Wiring Diagram (3 Of 4)
G08796817Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

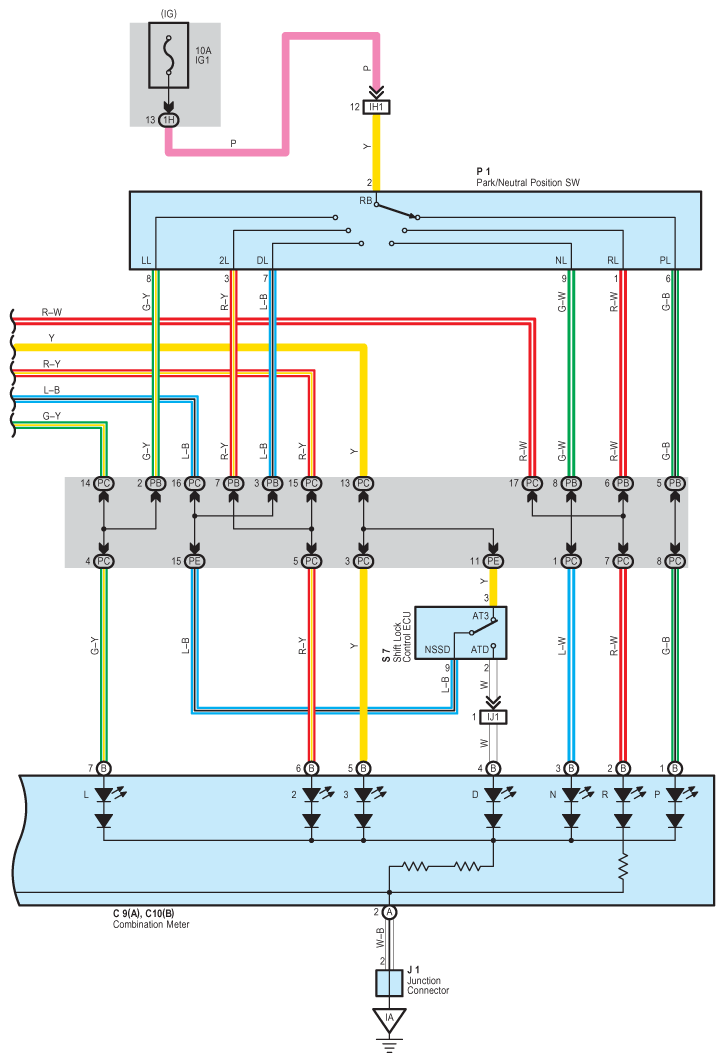

Fig 4: ECT And A/T Indicator For 2TR-FE System Wiring Diagram (4 Of 4)
G08796818Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
